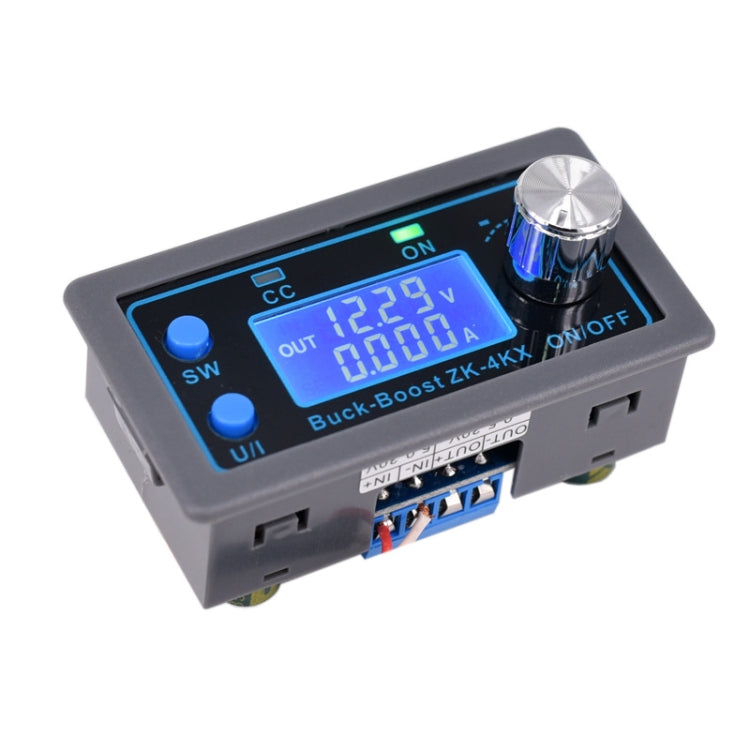

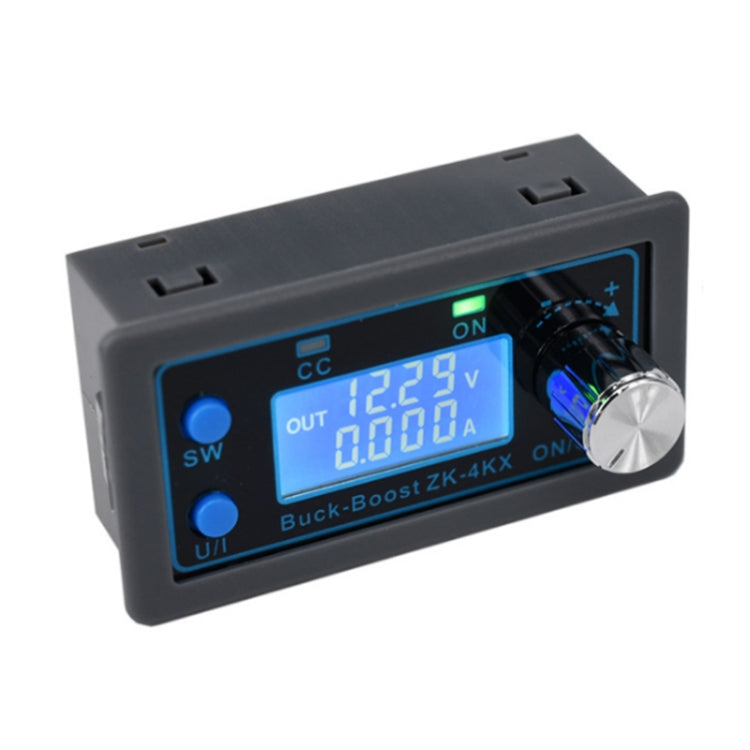

ZK-4KX CNC DC-DC Buck Boost Converter Module CC CV 0.5-30V 4A Adjustable Step Down Up Voltage Regulator, 0.5-30V – TPU, 4K

ZK-4KX CNC DC-DC Buck Boost Converter Module CC CV 0.5-30V 4A Adjustable Step Down Up Voltage Regulator, 0.5-30V – TPU, 4K.

Key Features:

• Features
• Made of high quality material, solid, durable and strong conductivity.

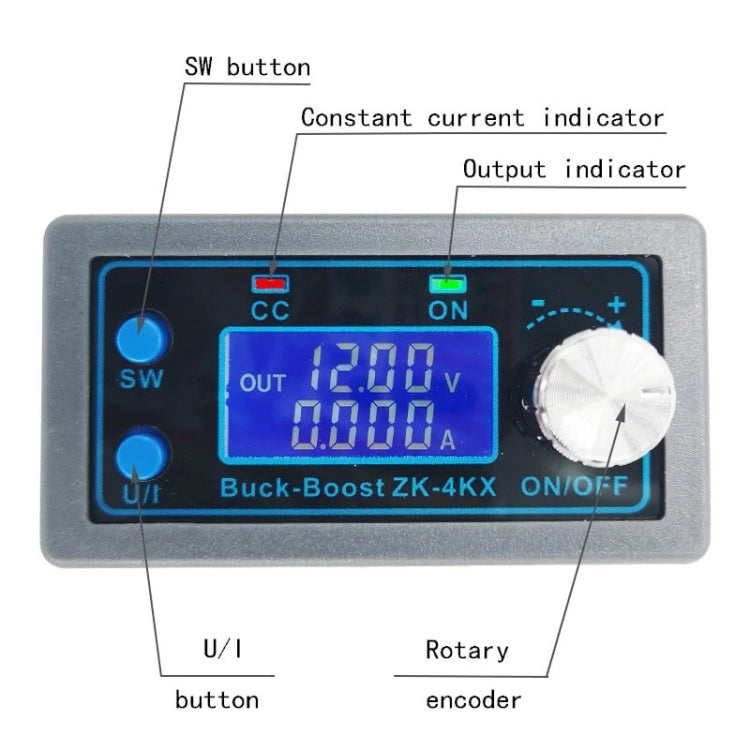

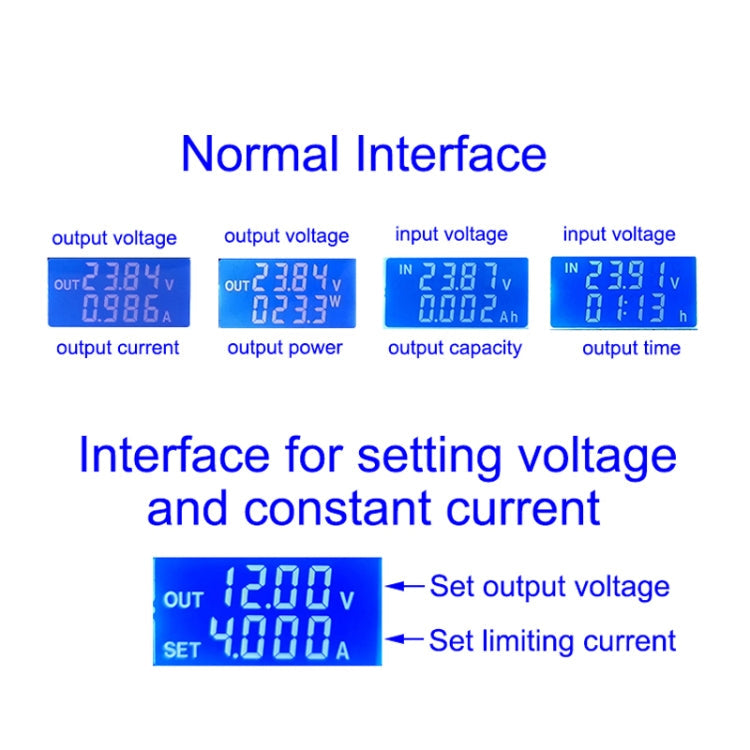

• Large LCD can display input/output voltage, output current/output power/output capacity/output time, easy to read.
• CNC adjustment is very accurate and fast, and it also can boost and step down voltage. Output voltage can be adjusted from 0.5-30v, while the current can be...
• It features anti-reverse connection protection of input end, which will not burn out, safe to use.
• Anti-reverse irrigation at the output end, no additional anti-reverse irrigation diode is needed to charge the battery;
• The module can be set to open/close by default, easy to use.
• It has multiple software protection mechanisms are available, and the protection threshold is adjustable.When the working parameters of the module exceed...

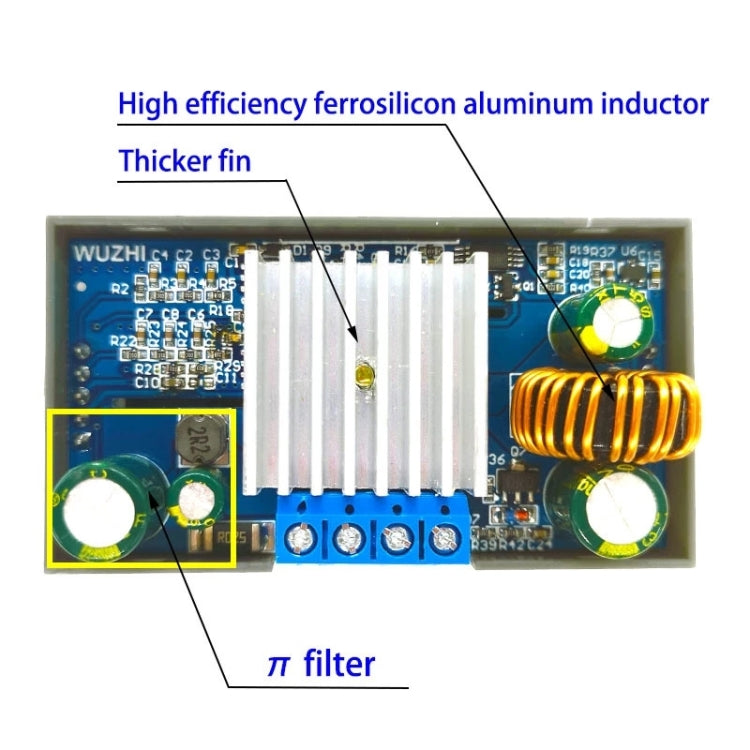

• Output ripple is small and PI filter is available.
• Thicken radiator fins helps the module to dissipate heat quickly, long service life.
• Specification
• Input Voltage: 5.0-30v
• Output Voltage: 0.5-30v
• Output Current: It can work stably at 3A for a long time, and can reach 4A under enhanced heat dissipation.
• Output Power: Natural heat dissipation 35W; Strengthen heat dissipation 50W
• Voltage Display resolution: 0.01V
• Current Display resolution: 0.001A
• Conversion Efficiency: About 88%
• Soft Start: Yes (The soft start may fail when it starts with high power and load module.)
• Material: Fiber glass board, Electronic component
• Size: 7.9 x 4.3 x 2.6cm

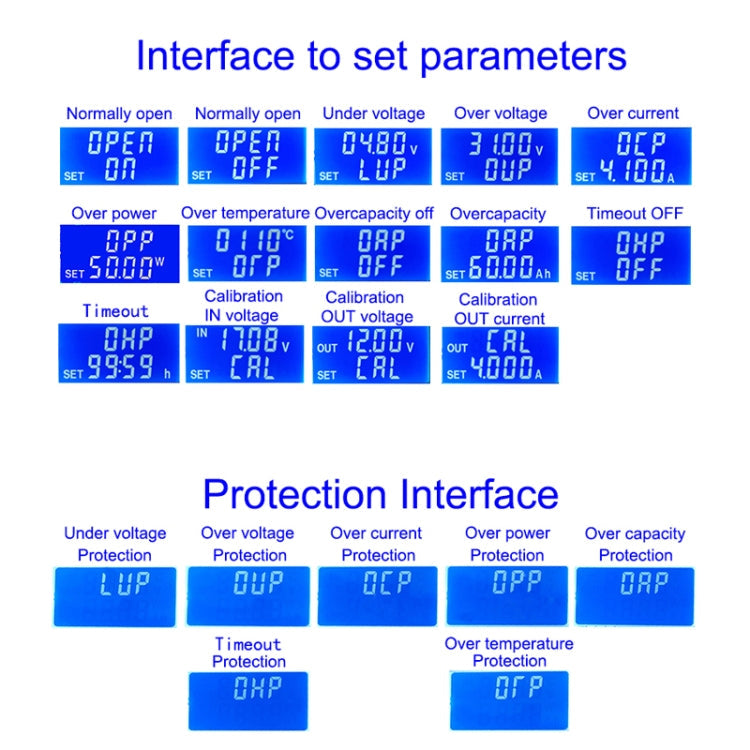

• Protection Mechanism
• Input Anti-reverse Connection;
• Output Anti-reverse Irrigation;
• Input Under voltage Protection (4.8-30V adjustable, default 4.8V)
• Output Over voltage Protection (0.5-31V adjustable, default 31V)
• Output Over current Protection 0-4.1A (adjustable, default 4.1A)
• Overpower Protection (0-50W adjustable, default 50W)
• Over temperature Protection (80-110 degree C adjustable, default 110 degree C)
• Timeout Protection (0-100h adjustable, OFF by default)
• Super Capacity Protection (0-60AH adjustable, OFF by default)
• Operating Frequency: 180KHz

Package Info: Weight: 0.10kgs / 0.23lb, Size: 12cm * 8cm * 7cm / 4.72inch * 3.15inch * 2.76inch
