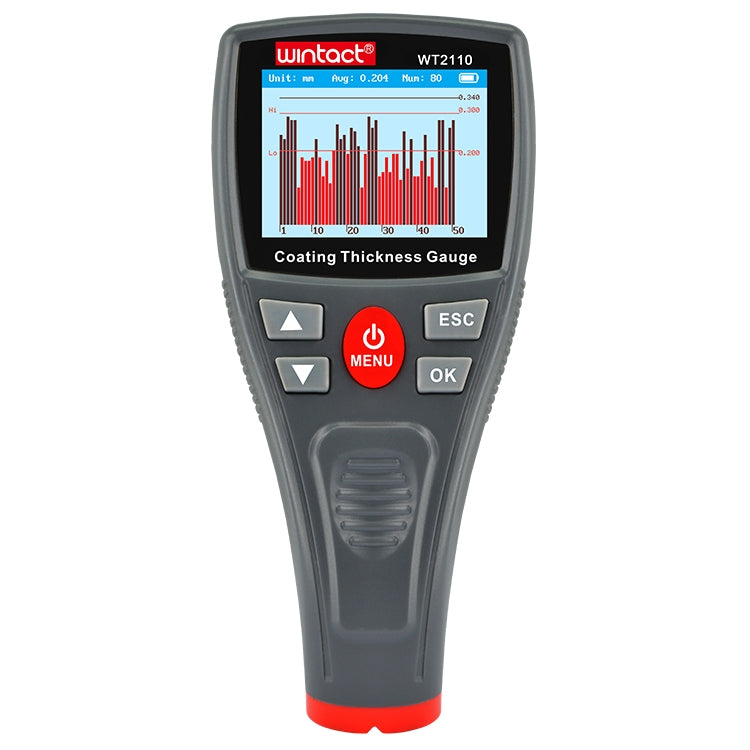

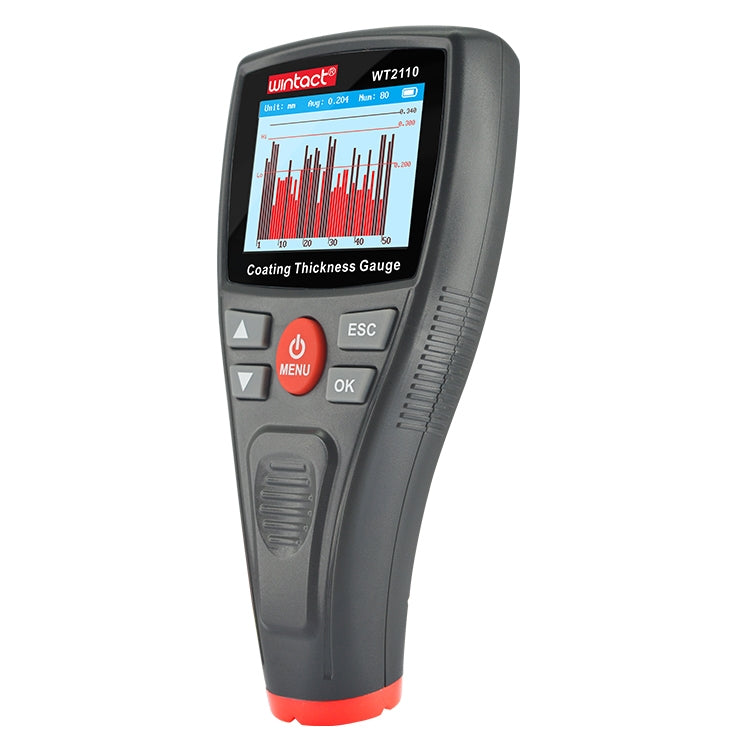

Wintact WT2110 Color Screen Display Coating Thickness Gauge, WT2110 – Magnetic

Wintact WT2110 Color Screen Display Coating Thickness Gauge, WT2110 – Magnetic.

Key Features:

• Menu operation and color screen high-definition display.
• It can quickly, non-destructively and accurately measure the thickness of the non-magnetic coating on the magnetic metal substrate and the thickness of the...
• Two measurement methods: single measurement and continuous measurement.
• Three calibration modes: basic calibration, offset calibration, and zero calibration. Metric/English units and storage function.

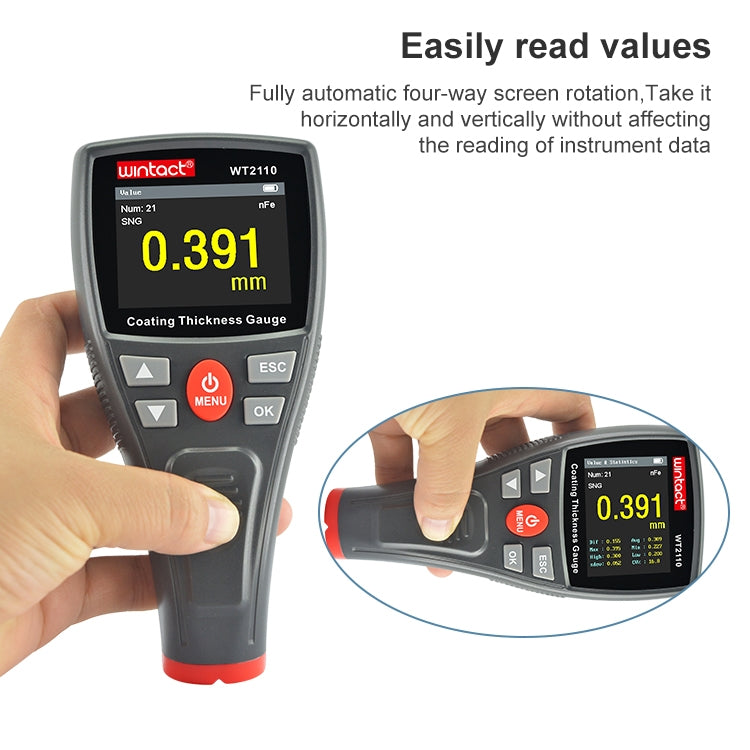

• Screen rotation, charging protection, multi-interface display, screen brightness selection.
• Widely used in manufacturing, metal processing, chemical, commodity inspection and other testing fields.
• Support USB and battery power supply.
• Measuring range: 0-1500um/0-1.5mm/0-59mil
• Lower limit diameter of magnetic metal substrate: 12mm
• Lower limit thickness of magnetic metal substrate: 0.5mm
• The lower limit radius of curvature of the magnetic convex substrate: 2mm
• The lower limit radius of curvature of the magnetic concave substrate: 11mm
• Lower limit diameter of non-magnetic metal substrate: 50mm
• Lower limit thickness of non-magnetic metal substrate: 0.5mm

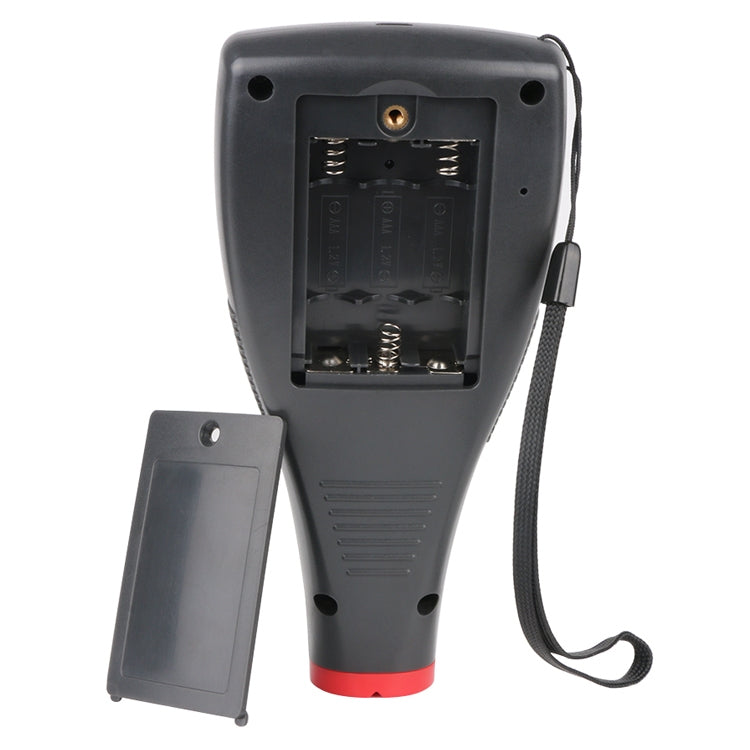

• Battery: 3 x 1.2V Ni-MH battery or 5V 1A power adapter
• Weight: 132g
• Dimensions: 150 x 65 x 30mm

Package Info: Weight: 0.77kgs / 1.69lb, Size: 29cm * 19cm * 9cm / 11.42inch * 7.48inch * 3.54inch
