Waveshare SIM8202G-M2 5G HAT B Multi Band Snapdragon X55 Module Board for Raspberry Pi, SIM8202G-M2 5G HAT B – Card Slot, TPU

Waveshare SIM8202G-M2 5G HAT B Multi Band Snapdragon X55 Module Board for Raspberry Pi, SIM8202G-M2 5G HAT B – Card Slot, TPU.

Key Features:

• Features

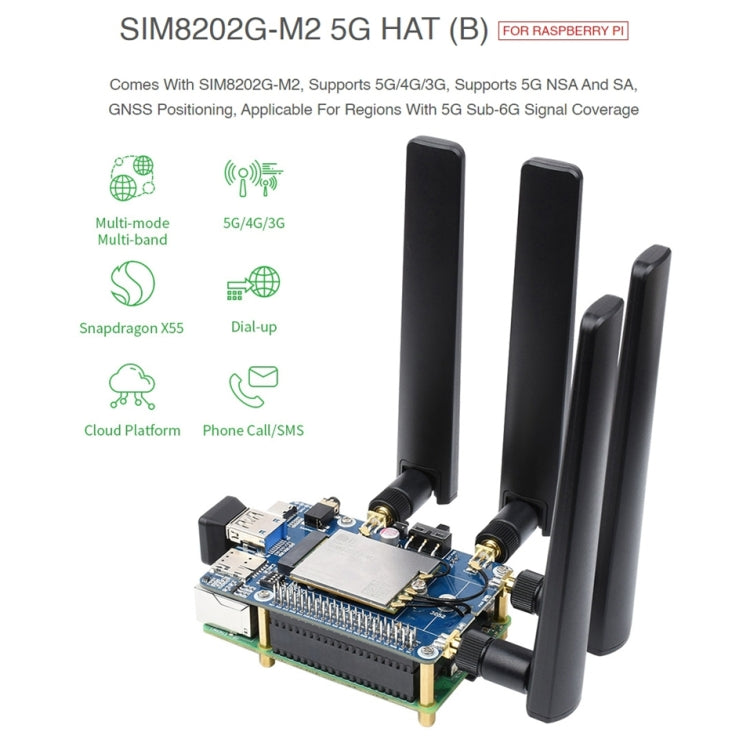

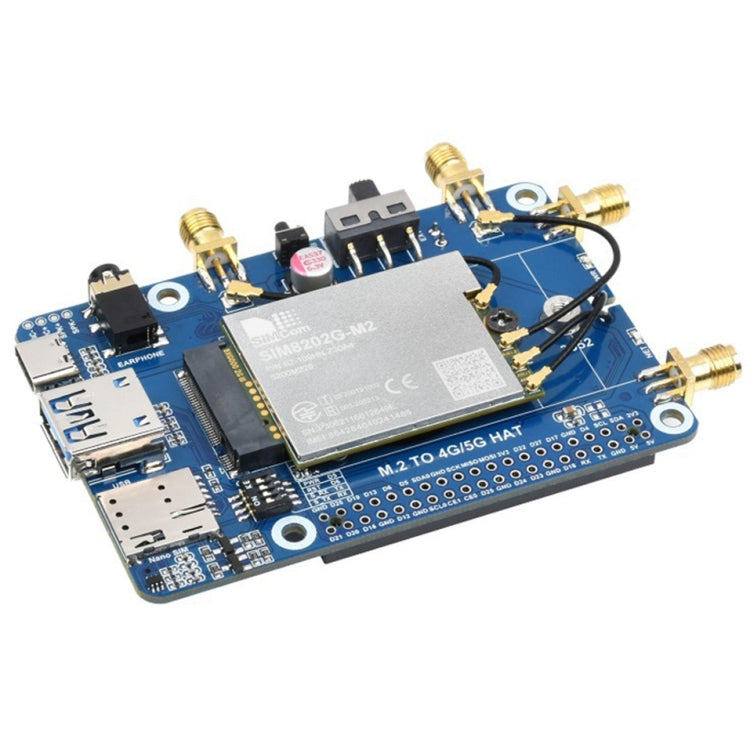

• Comes with SIM8202G-M2 core module, based on Qualcomm snapdragon X55 platform, supports 5G NSA and SA networking, supports multi-mode multi-band
• Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
• Operating system support: Windows/Linux/Android

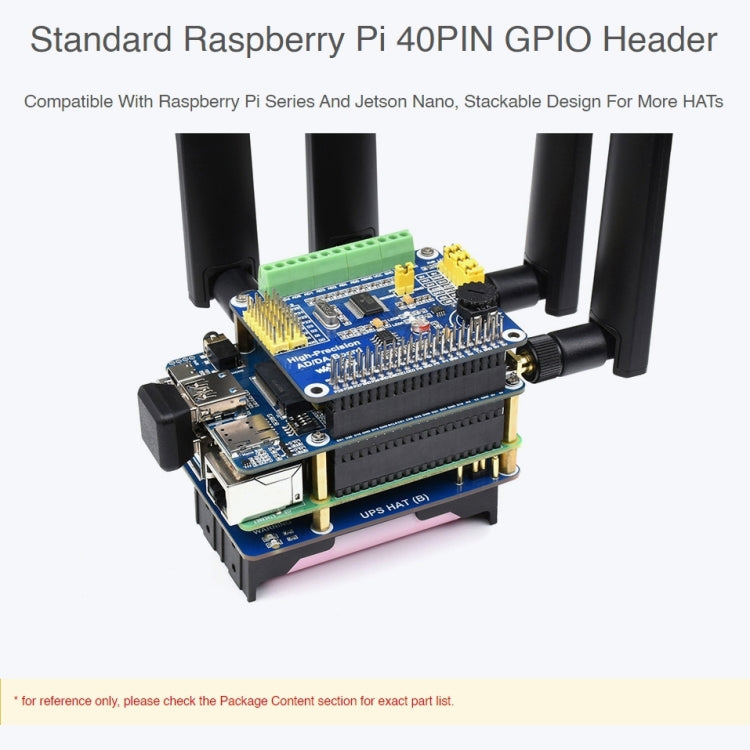

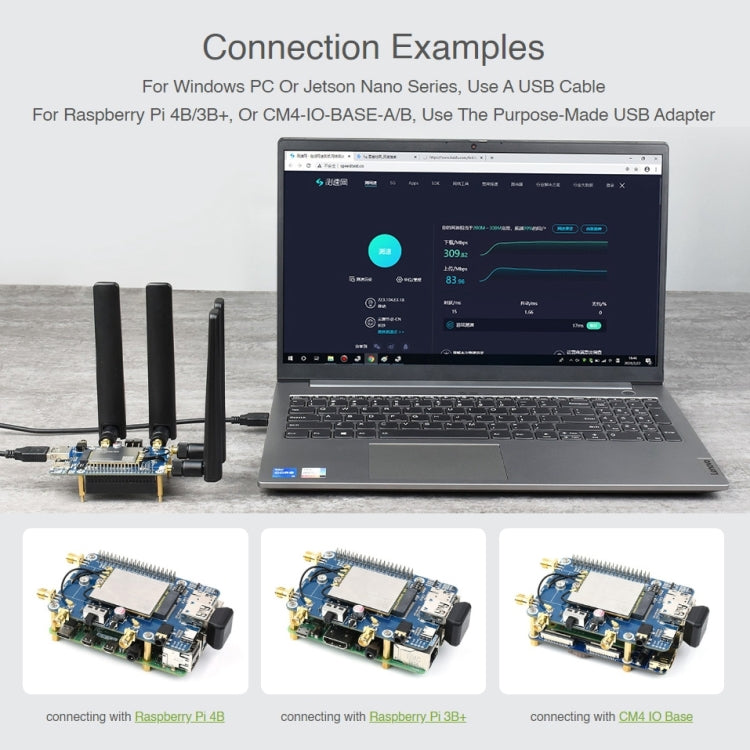

• USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
• Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series
• Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
• Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
• Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
• 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
• 2x SIM card slot, dual card single standby, switchable via AT command
• Onboard audio jack and audio decoder, allows audio operation like making phone call
• High efficiency power supply circuit, up to 3A output current
• Specifications
• Frequency band:
• Sub-6G (SA): n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
• Sub-6G (NSA): n41, n77, n78, n79
• LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
• LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
• WCDMA: B1, B2, B3, B4, B5, B8
• GNSS: GPS, GLONASS, Beidou, Galileo, and QZSS
• Data rate
• Sub-6G: 2.4 Gbps (DL) / 500 Mbps (UL)
• LTE: 1 Gbps (DL) / 200 Mbps (UL)
• HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
• Software functions
• Operating systems: Windows/Linux/Android
• Communication protocols: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
• SMS: Supports MT, MO, CB, Text, PDU
• Firmware upgrade: Supports firmware upgrade via USB port
• Applications
• Applicable regions: Regions with 5G Sub-6G signal coverage including China, US, Japan, South Kor, Europe, the Middle East, Latin America, etc.
• Application examples: CPE, Smart gateway, Drone, Live streaming, Remote treatment, Intelligent security
• Package List
• M.2 TO 4G/5G HAT x1
• SIM8202G-M2 x1
• Antenna 4pcs x1
• IPEX adapter cable 4pcs x1
• 2 x 20PIN pin header x1
• Passive GPS antenna x1
• Dual plug USB3.0 cable x1
• USB 3.0 adapter x1
• USB 2.0 adapter x1
• SMA protective cap 4pcs x1
• Screws pack x1

Package Info: Weight: 0.34kgs / 0.74lb, Size: 20cm * 16cm * 4cm / 7.87inch * 6.3inch * 1.57inch
