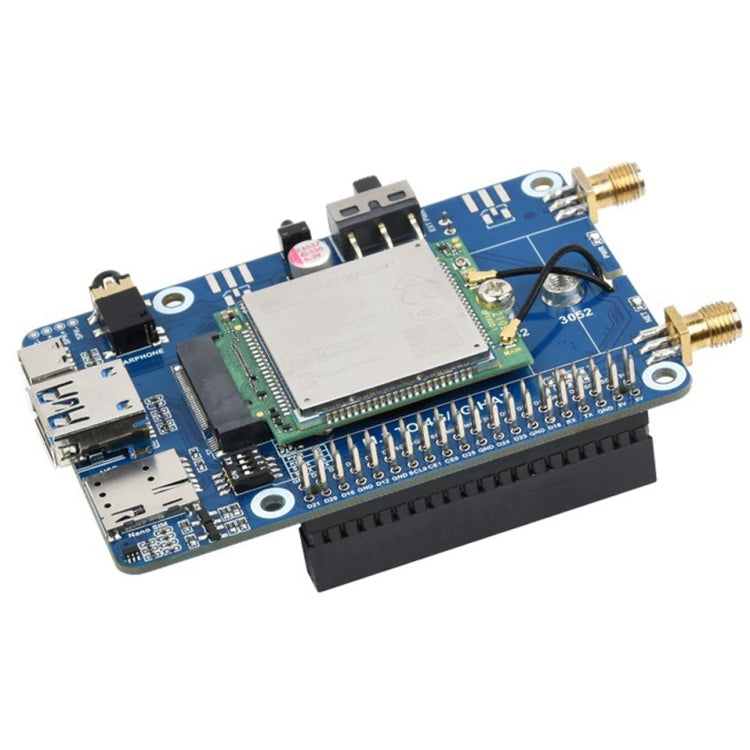

Waveshare SIM7600G-H M.2 4G HAT LTE CAT4 High Speed GNSS Global Band Module for Raspberry Pi, SIM7600G-H M.2 4G HAT – TPU

Waveshare SIM7600G-H M.2 4G HAT LTE CAT4 High Speed GNSS Global Band Module for Raspberry Pi, SIM7600G-H M.2 4G HAT – TPU.

Key Features:

• Features

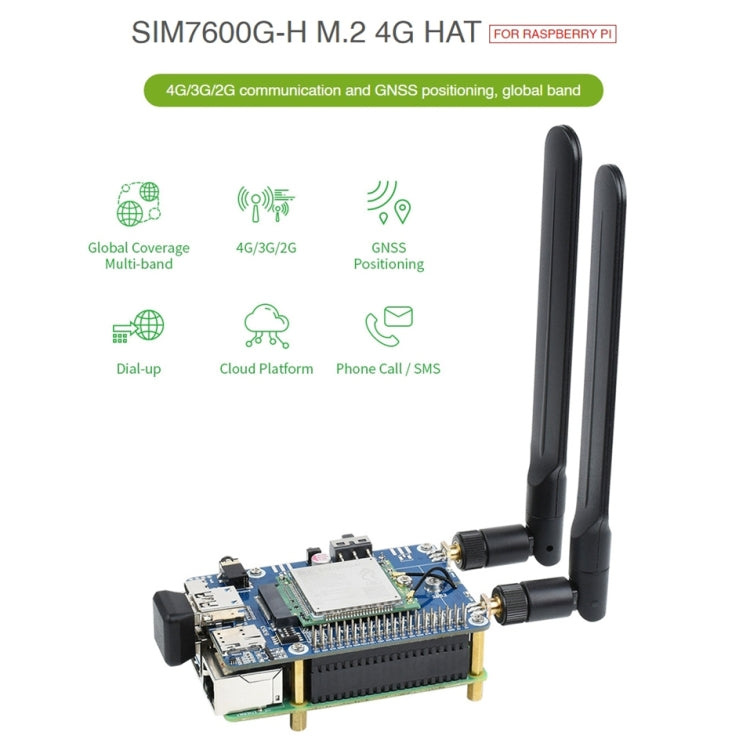

• This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high speed LTE CAT4 global band connection. By connecting it to PC, Raspberry Pi...
• Support dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
• GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station

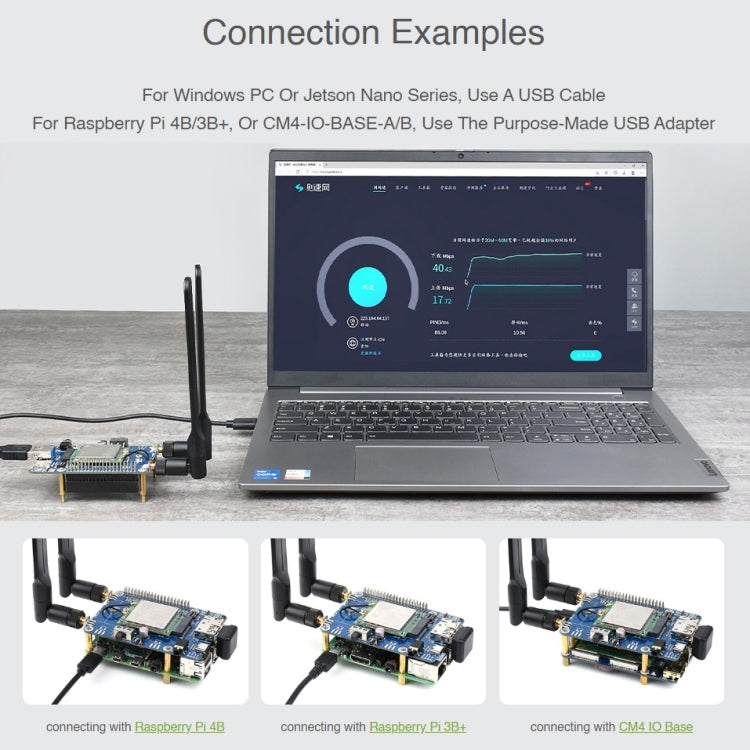

• USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication
• Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
• Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
• Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
• Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
• Onboard audio jack and audio decoder, allows audio operation like making phone call
• High efficiency power supply circuit, up to 3A output current
• Specifications
• Frequency band:
• LTE Cat-4: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
• LTE-TDD: B34, B38, B39, B40, B41
• 3G: UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
• 2G: GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
• GNSS:
• Satellite systems: GPS, Beidou, GLONASS, GALILEO, QZSS
• Receiver type:
• - 16-channel
• - C/A Code
• Sensitivity:
• - -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
• - Cold starts: -148 dBm
• Time-To-First-Fix (open air):
• - Cold starts: Less than 35s
• - Hot starts: Less than 1s
• SMS and Audio
• SMS:
• - Supported types: MT, MO, CB, Text, PDU
• - Storage: USIM card and ME (default)
• Audio feature:
• - Support echo cancellation
• - Support noise reduction
• Package List
• M.2 TO 4G/5G HAT x 1
• SIM7600G-H-M.2 x 1
• Antenna 2pcs x 1
• IPEX adapter cable 2pcs x 1
• 2*20PIN pin header x 1
• Passive GPS antenna x 1
• Dual plug USB3.0 cable x 1
• USB3.0 adapter x 1
• USB2.0 adapter x 1
• SMA protective cap 2pcs x 1
• Screws pack x 1

Package Info: Weight: 0.24kgs / 0.52lb, Size: 20cm * 16cm * 4cm / 7.87inch * 6.3inch * 1.57inch
