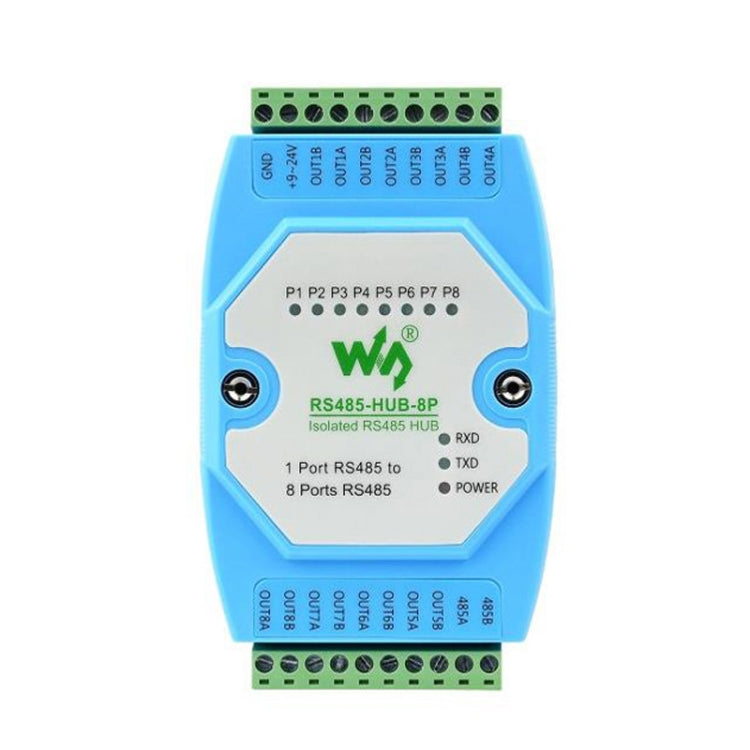

Waveshare RS485-HUB-8P Industrial-grade Isolated 8-ch RS485 Hub, Rail-mount Support, Wide Baud Rate Range – Durable Build, Easy to Use

Waveshare RS485-HUB-8P Industrial-grade Isolated 8-ch RS485 Hub, Rail-mount Support, Wide Baud Rate Range – Durable Build, Easy to Use.

Key Features:

• Interface standard: compliant with RS485 standard
• Physical interface: RS485 wiring terminal
• Communication rate: 300-460800bps baud rate (adaptive)
• Support points: each RS485 interface can support up to 32 nodes
• Communication distance: 1200m (9600bps), the higher the communication rate, the shorter the distance
• Working mode: RS485 two-wire (A, B), half-duplex transparent transmission
• Power supply voltage: DC 9-24V
• Transmission medium: ordinary parallel wire/twisted pair

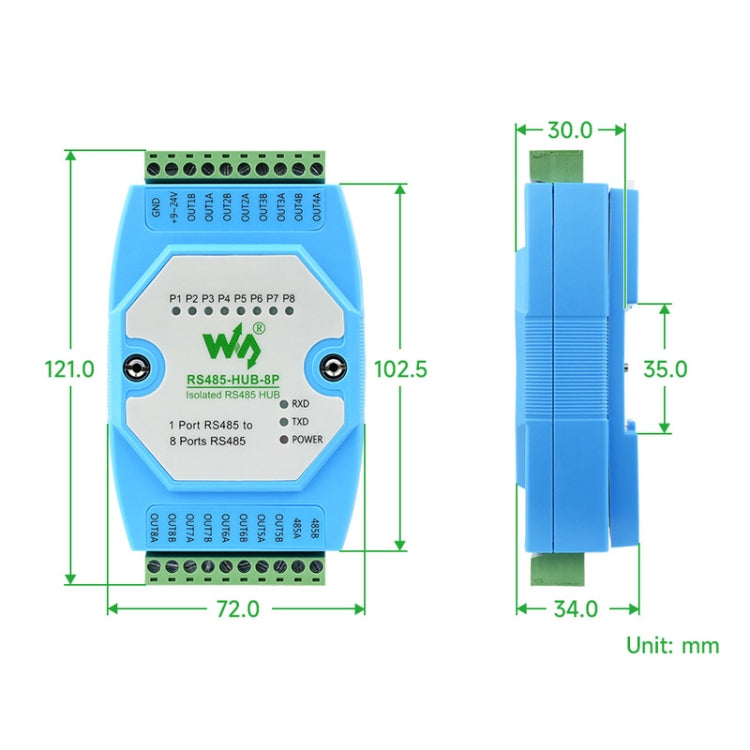

• Size: about 12.1 x 7.2 x 3cm
• Features:

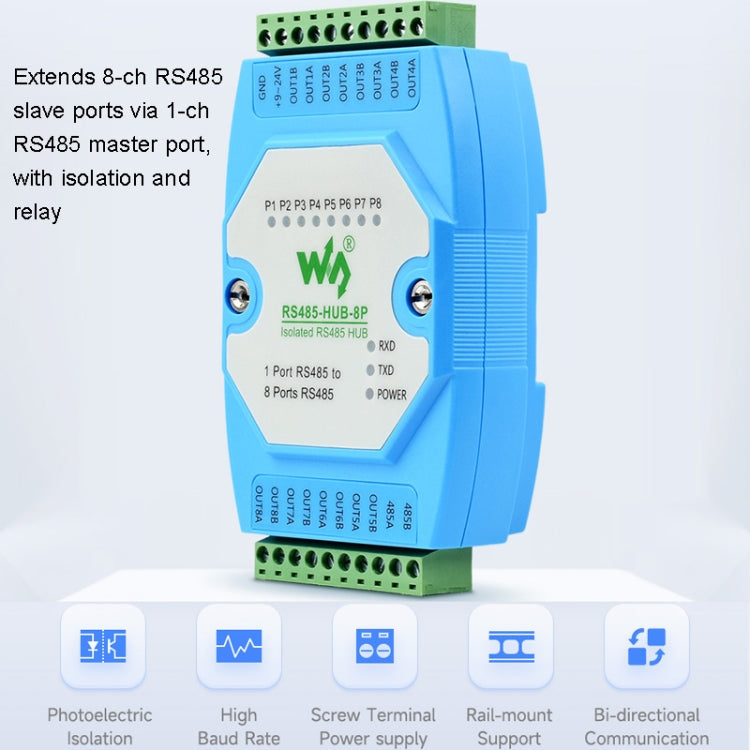

• 8-way RS485 slave port can be extended by one 485 master port with isolation and relay

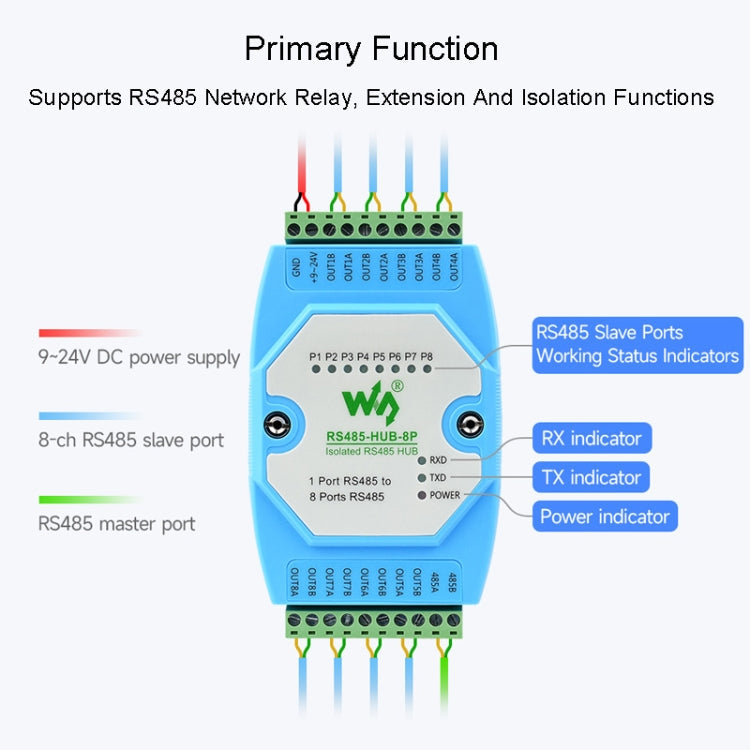

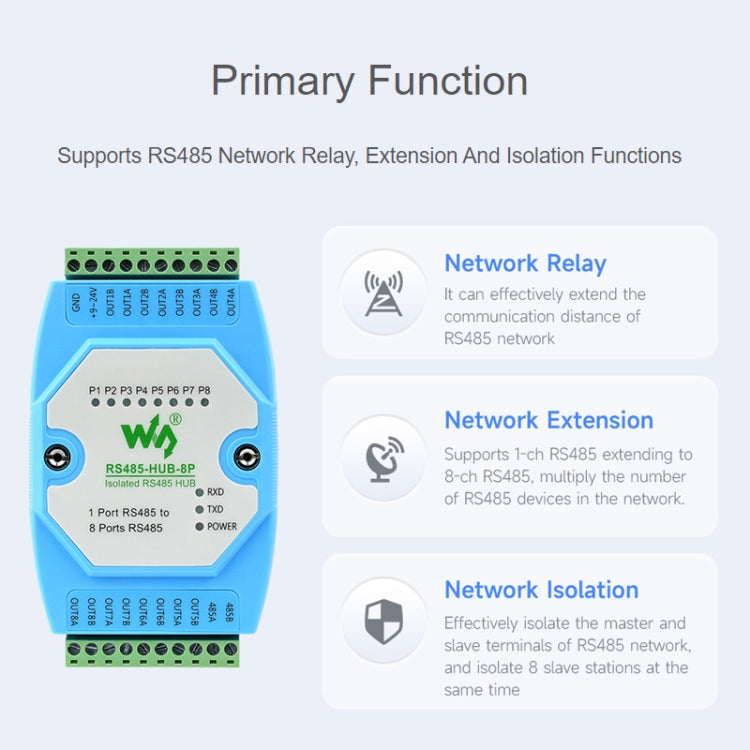

• RS485 network relay, extension and isolation functions can be realized

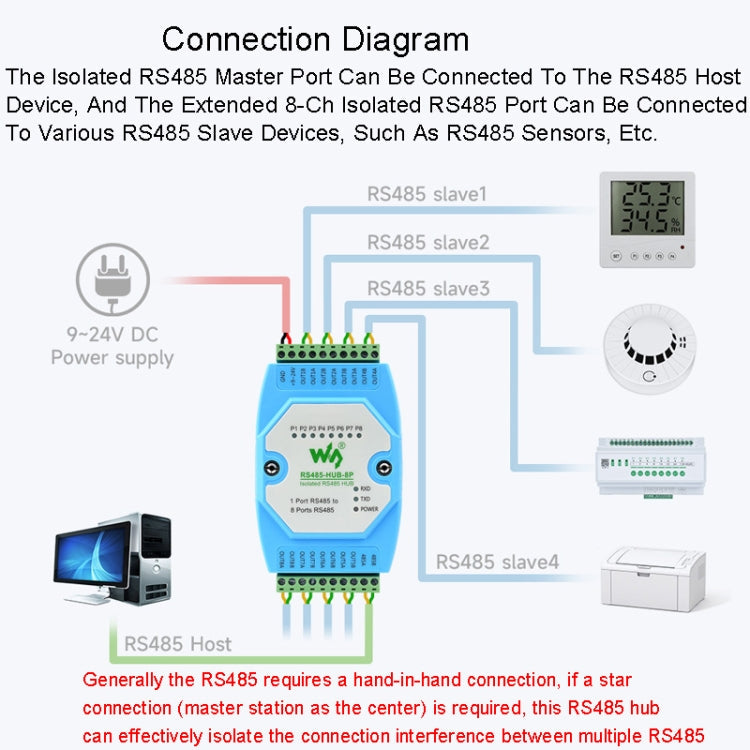

• The isolated RS485 interface at the RS485 master port can be connected to RS485 master control devices, and the extended 8-way isolated RS485 interface can...

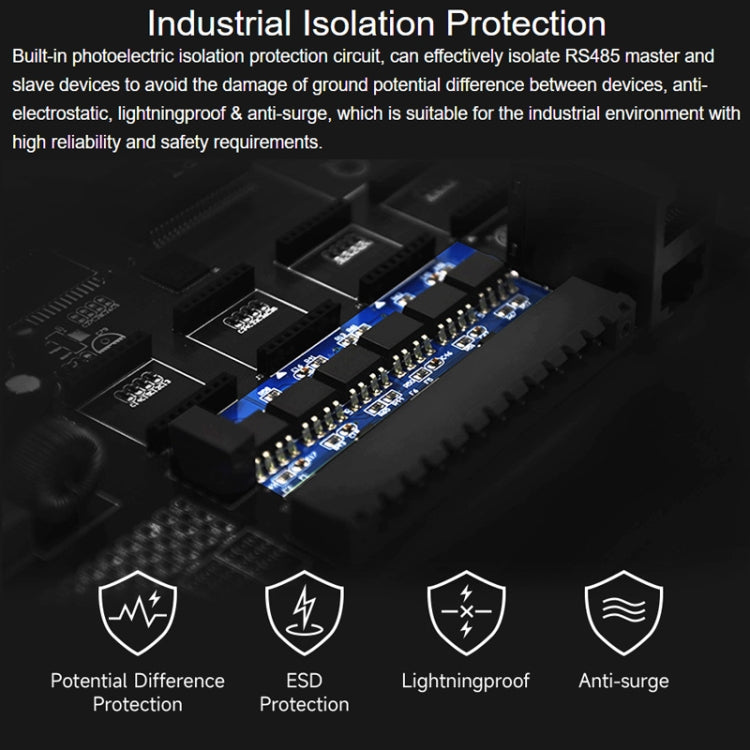

• Built-in optoelectronic isolation protection circuit, RS485 master and slave devices are isolated, which can effectively protect RS485 master and slave...

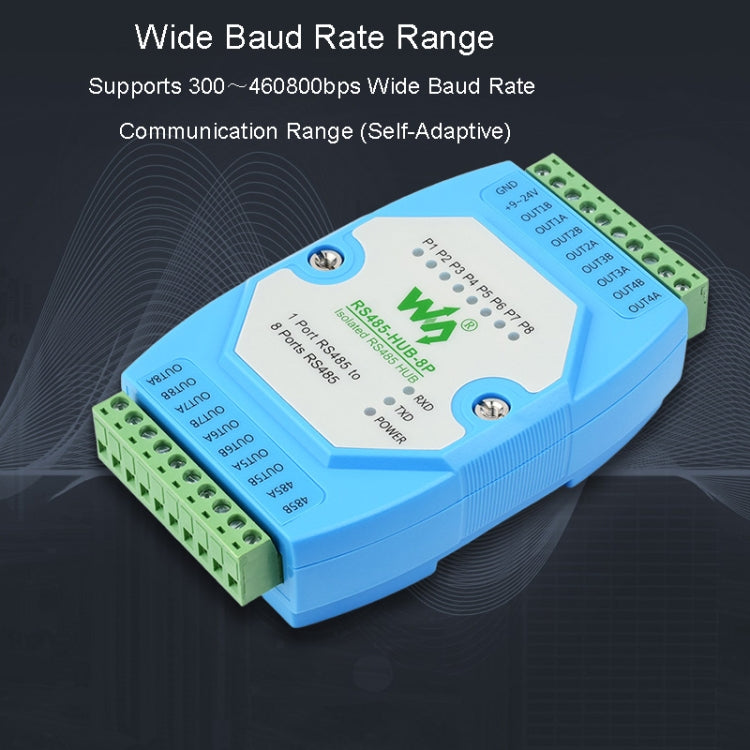

• Wide baud rate range, support 300-460800bps wide baud rate communication range (self-adaptive)

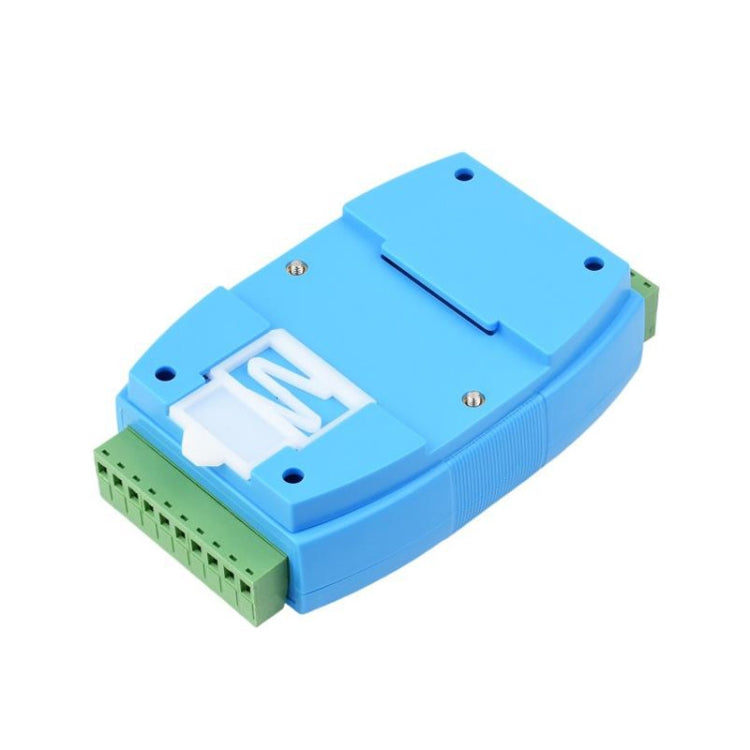

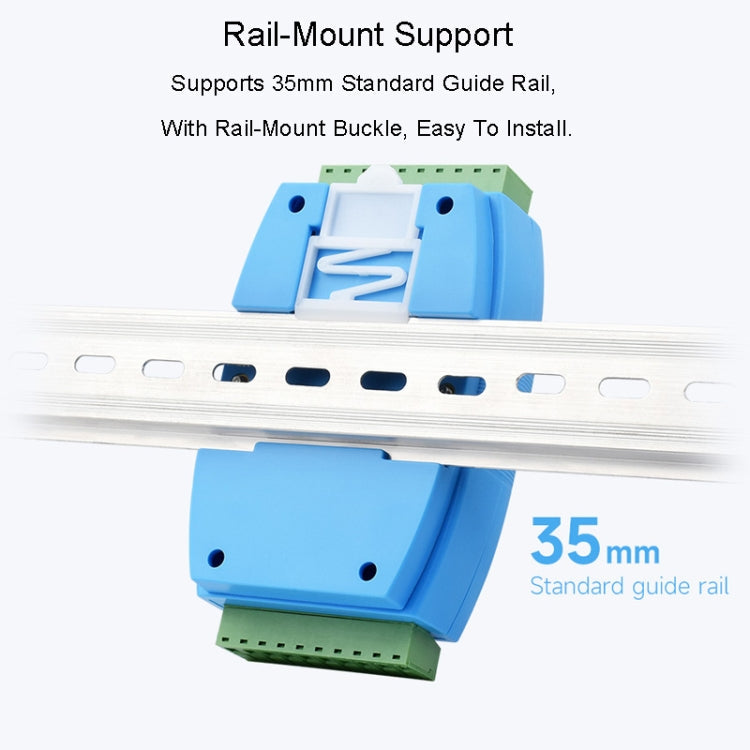

• Support 35mm standard rail with rail clips, easy to install

Package Info: Weight: 0.21kgs / 0.47lb, Size: 15cm * 10cm * 4cm / 5.91inch * 3.94inch * 1.57inch
