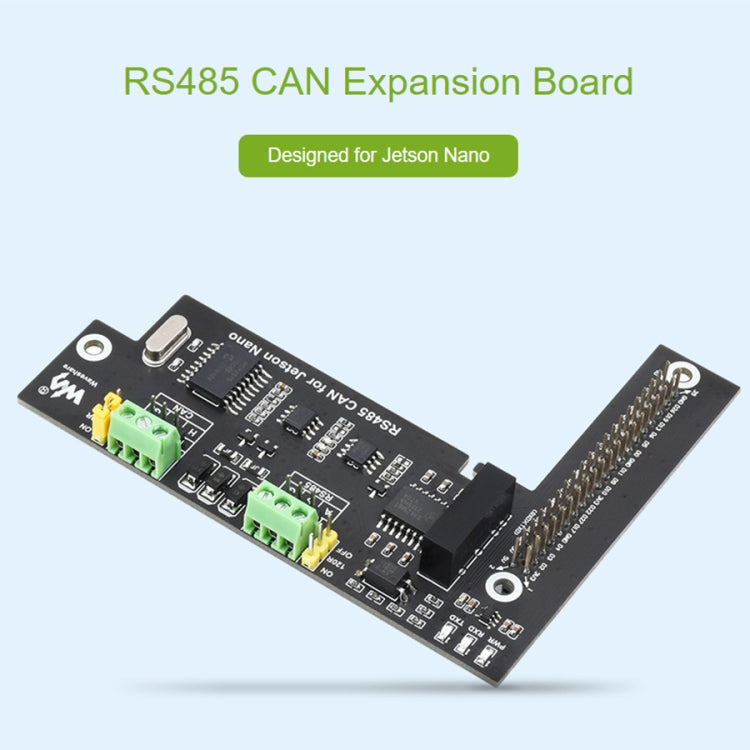

Waveshare RS485 CAN Expansion Board for Jetson Nano, Digital Isolation, Built-In Protection Circuit – Durable Build, Easy to Use

Waveshare RS485 CAN Expansion Board for Jetson Nano, Digital Isolation, Built-In Protection Circuit – Durable Build, Easy to Use.

Key Features:

• Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano

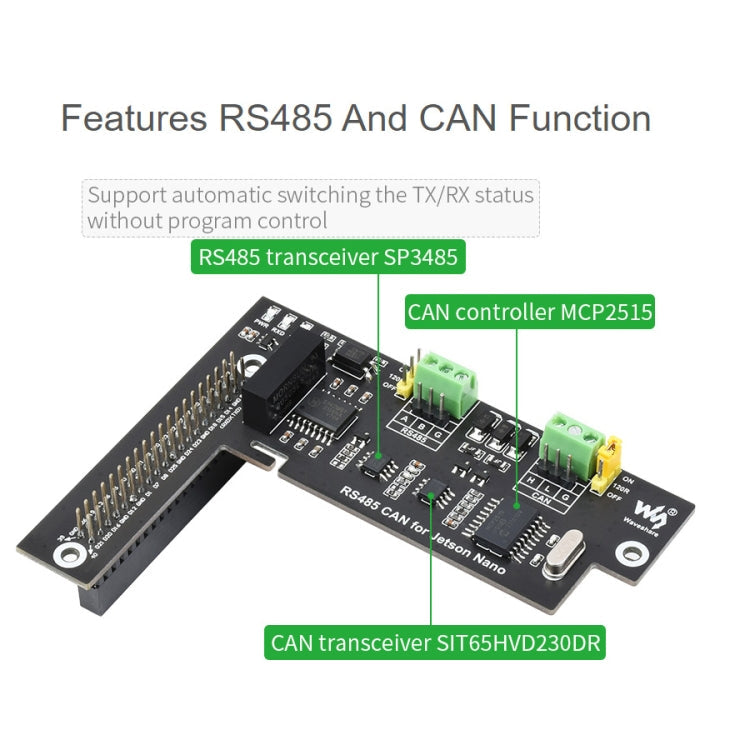

• Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
• Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485

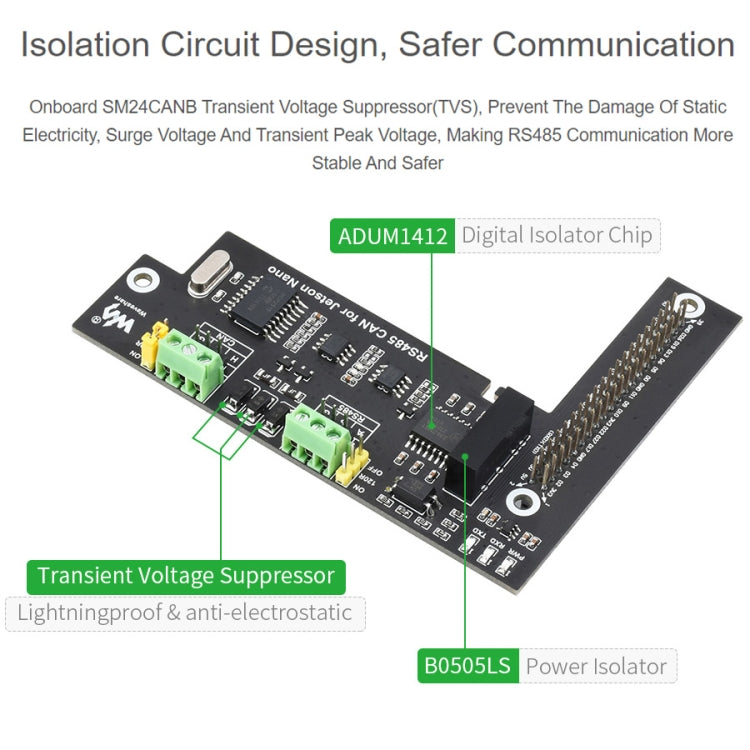

• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving,...
• Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
• Reserved control pins, allows to work with other control boards
• Comes with development resources and manual (examples in python)
• Specifications

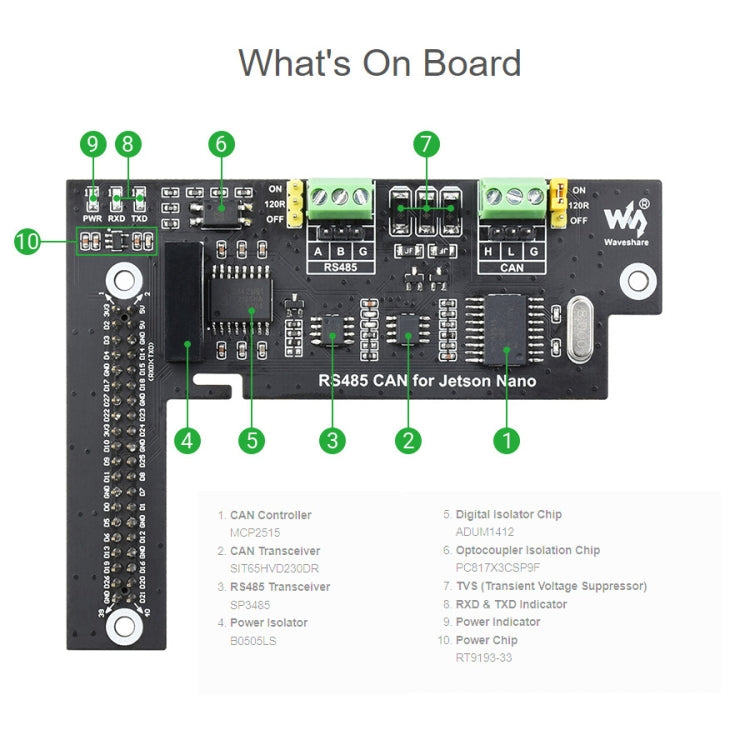

• CAN Controller: MCP2515
• CAN transceiver: SIT65HVD230DR
• RS485 transceiver: SP3485
• Working voltage: 3.3V
• Mounting hole size: 3.0mm

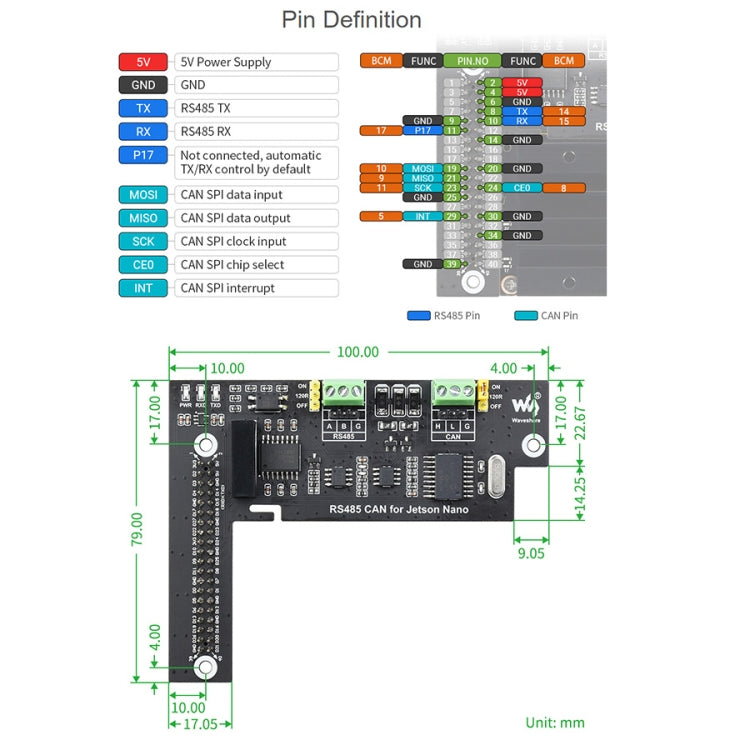

• Dimensions: 100 x 79 mm
• Package List
• RS485 CAN for Jetson Nano x1
• Screws pack x1

Package Info: Weight: 0.05kgs / 0.12lb, Size: 12cm * 7cm * 2cm / 4.72inch * 2.76inch * 0.79inch
