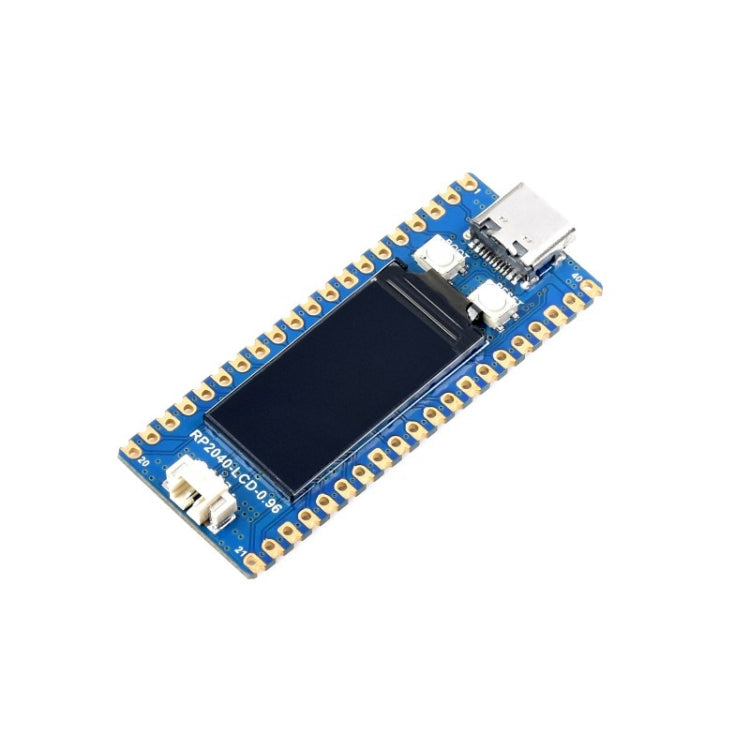

Waveshare RP2040-LCD-0.96 Pico-like MCU Board Based on Raspberry Pi MCU RP2040, with Pinheader, RP2040-LCD-0.96 – 4K

Waveshare RP2040-LCD-0.96 Pico-like MCU Board Based on Raspberry Pi MCU RP2040, with Pinheader, RP2040-LCD-0.96 – 4K.

Key Features:

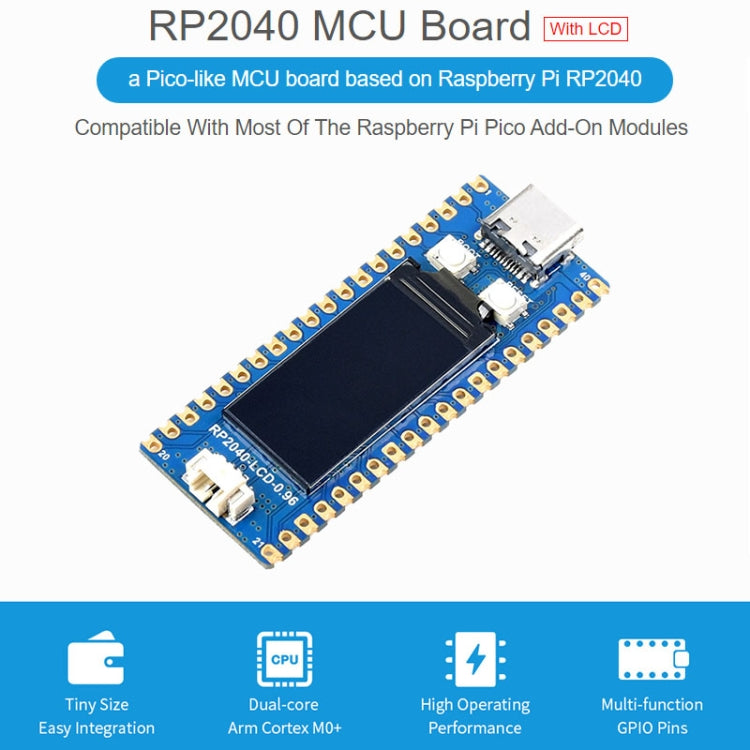

• RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi RP2040 microcontroller...

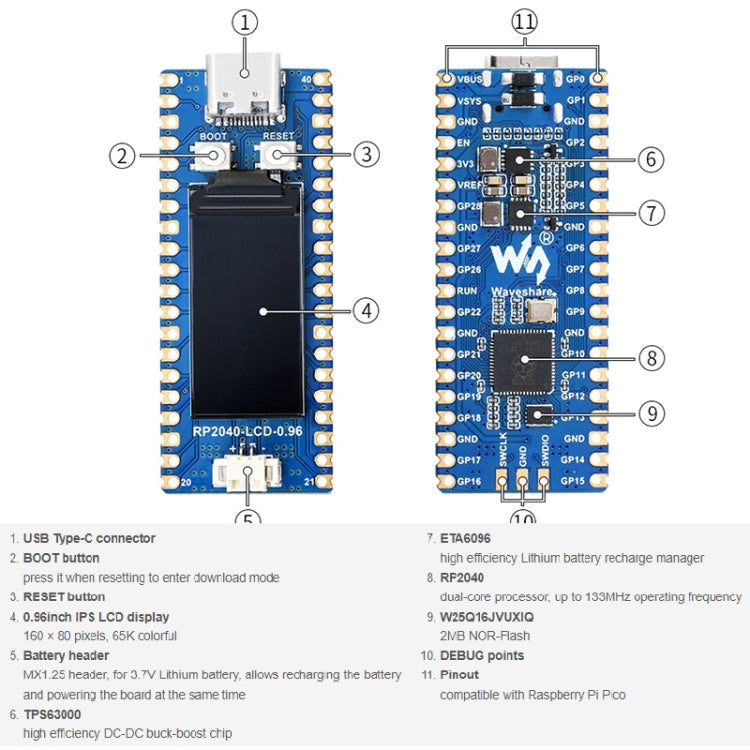

• In additional, there are also onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip.
• Key features include:
• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• USB-C connector, keeps it up to date, easier to use
• 0.96 inch 160x80 pixels 65K colorful IPS LCD display
• Lithium battery recharge/discharge header, suitable for mobile devices
• Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
• Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components)
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB

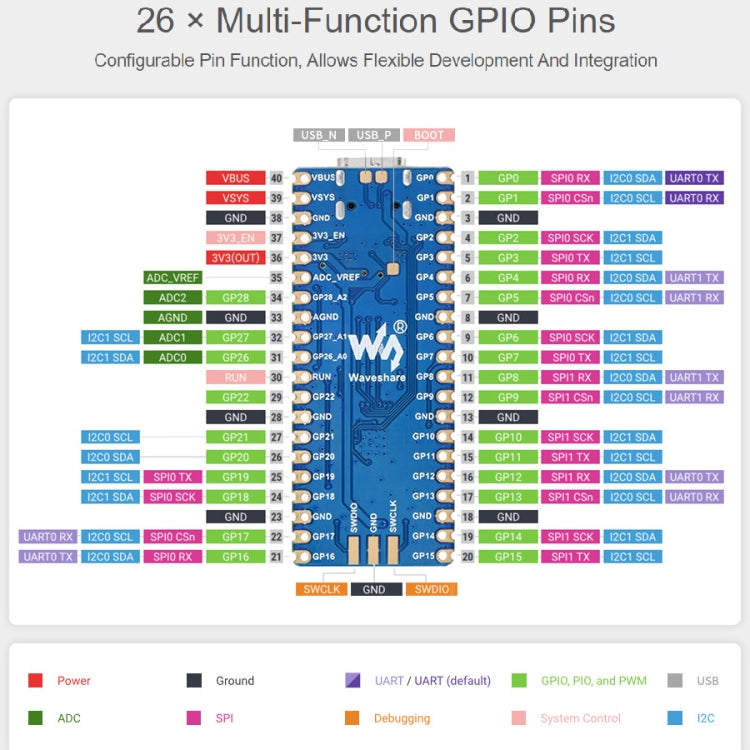

• 26 x multi-function GPIO pins
• 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 x Programmable I/O (PIO) state machines for custom peripheral support

Package Info: Weight: 0.03kgs / 0.06lb, Size: 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch
