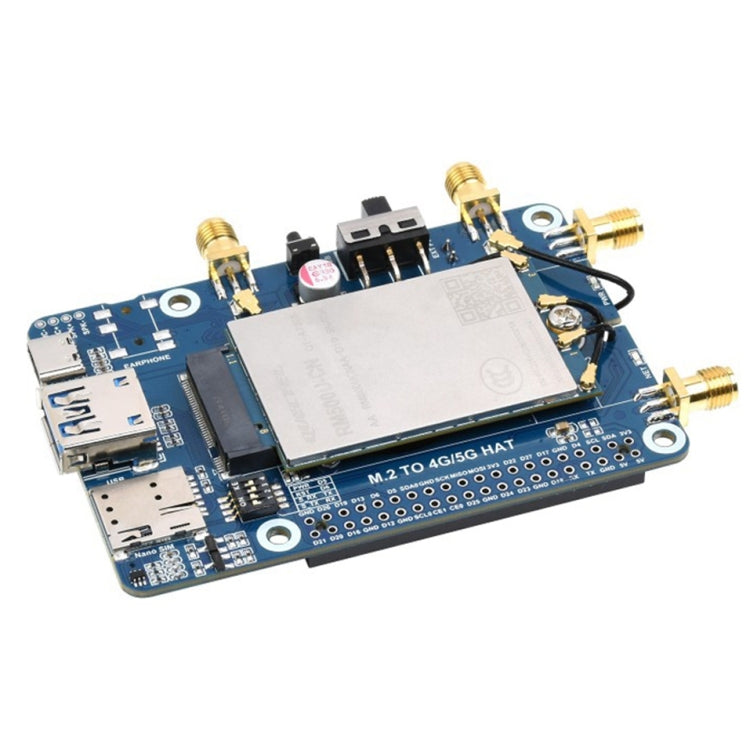

Waveshare RM500U-CN 5G HAT Quad Antennas LTE-A Multi Band Module Board for Raspberry Pi, RM500U-CN 5G HAT – Card Slot, TPU

Waveshare RM500U-CN 5G HAT Quad Antennas LTE-A Multi Band Module Board for Raspberry Pi, RM500U-CN 5G HAT – Card Slot, TPU.

Key Features:

• Features
• Comes with RM500U-CN core module, supports 5G and LTE-A multi network types, supports 5G NSA and SA networking
• Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android

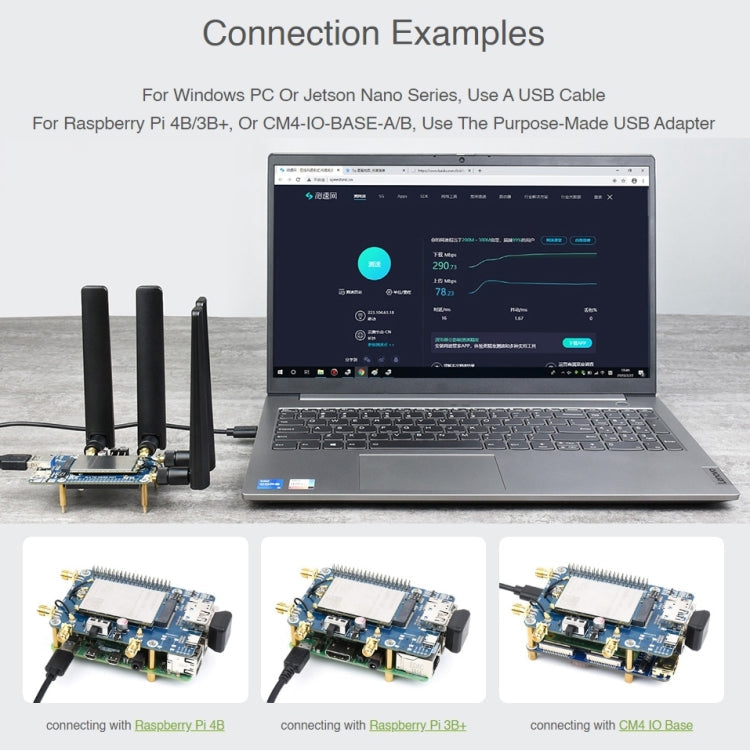

• USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
• Standard M.2 B KEY slot, compatible with different 5G modules: RM500U-CN / RM500Q-CN / RM500Q-GL series

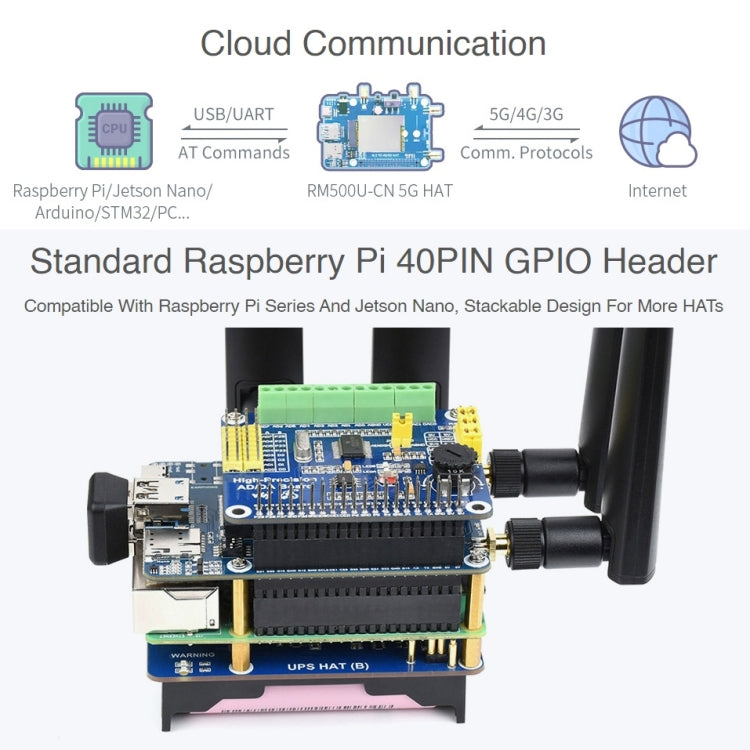

• Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
• Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
• Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
• 2x SIM card slot, dual card single standby, switchable via AT command
• High efficiency power supply circuit, up to 3A output current
• Specifications
• Frequency band:
• 5G:
• - 5G NR: 3GPP Release 15 NSA/SA operation, Sub-6 GHz
• - 5G NR NSA: n41, n78, n79
• - 5G NR SA: n1, n28, n41, n77, n78, n79
• - Downlink: 4 x 4 MIMO n1, n41, n77, n78, n79
• LTE:
• - LTE Category: Downlink Cat 12, uplink Cat 13
• - LTE-FDD: B1, B2, B3, B5, B7, B8, B20, B28
• - LTE-TDD: B34, B38, B39, B40, B41
• - Downlink 2 x 2 MIMO: B1, B2, B3, B5, B7, B8, B20, B28, B34, B38, B39, B40, B41
• UMTS: WCDMA: B1, B2, B5, B8
• Data rate:
• 5G SA Sub-6: Downlink 2 Gbps; uplink 1 Gbps
• 5G NSA Sub-6: Downlink 2.2 Gbps; uplink 575 Mbps
• LTE: Downlink 600 Mbps; uplink 150 Mbps
• UMTS: Downlink 42.2 Mbps; uplink 11 Mbps
• Other:
• Operating temperature: -30 degree C ~ +75 degree C
• Extension temperature: -40 degree C ~ +85 degree C

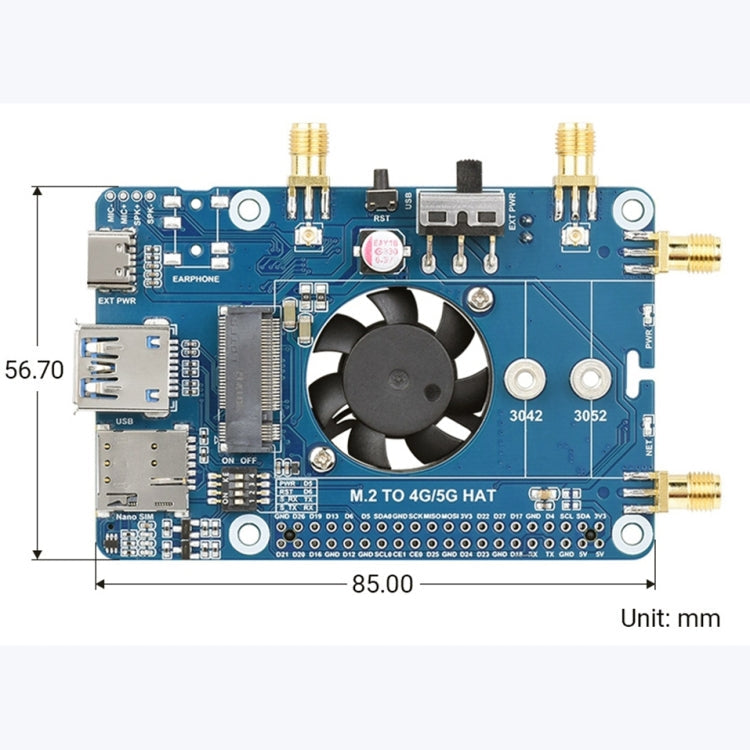

• Module dimensions: 30.0 x 52.0 x 2.3 (mm)
• Module weight: 8.9 (g)
• Package List
• M.2 TO 4G/5G HAT x 1
• RM500U-CN x 1
• Antenna 4pcs x 1
• IPEX adapter cable 4pcs x 1
• 2*20PIN pin header x 1
• 5V 3A Type-C power adapter x 1
• Dual plug USB3.0 cable x 1
• USB3.0 adapter x 1
• USB2.0 adapter x 1
• SMA protective cap 4pcs x 1
• Screws pack x 1

Package Info: Weight: 0.36kgs / 0.79lb, Size: 20cm * 16cm * 4cm / 7.87inch * 6.3inch * 1.57inch
