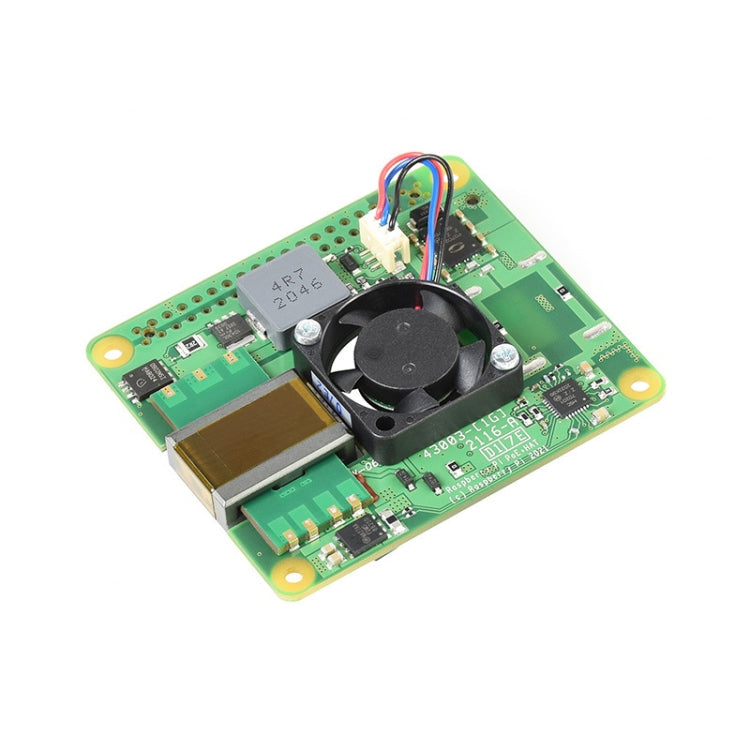

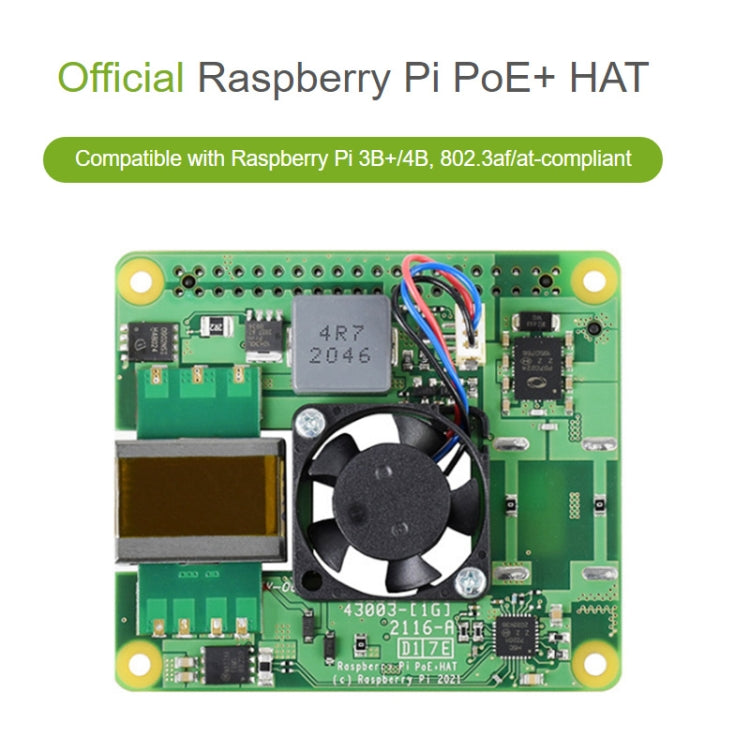

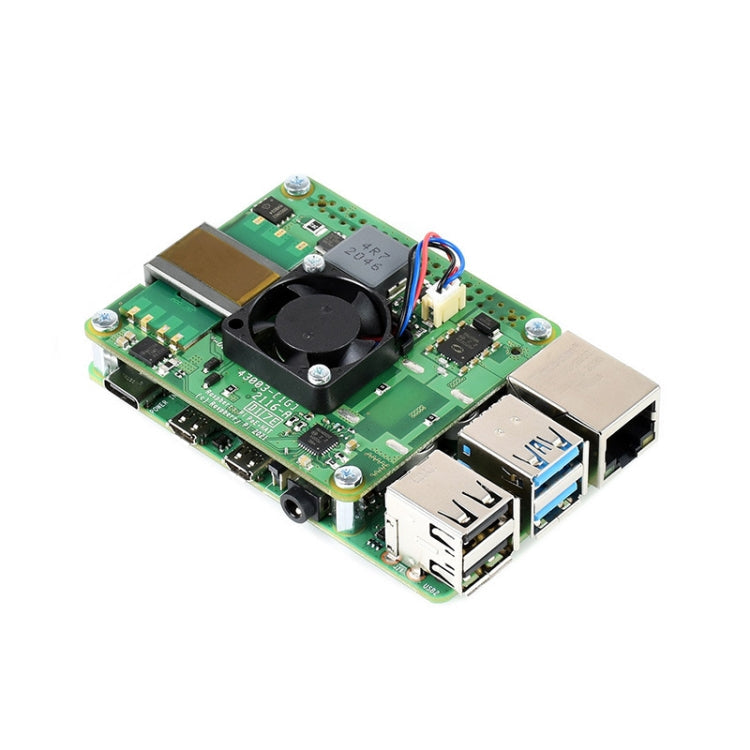

Waveshare Raspberry Pi PoE+ HAT Ethernet Expansion Board for Raspberry Pi 3B+/4B – TPU

Waveshare Raspberry Pi PoE+ HAT Ethernet Expansion Board for Raspberry Pi 3B+/4B – TPU.

Key Features:

• Product Overview
• The Raspberry Pi PoE+ HAT is a Power Over Ethernet (PoE+) accessory for the Raspberry Pi 3B+/4B. Compared to its predecessor Raspberry Pi PoE HAT, it...

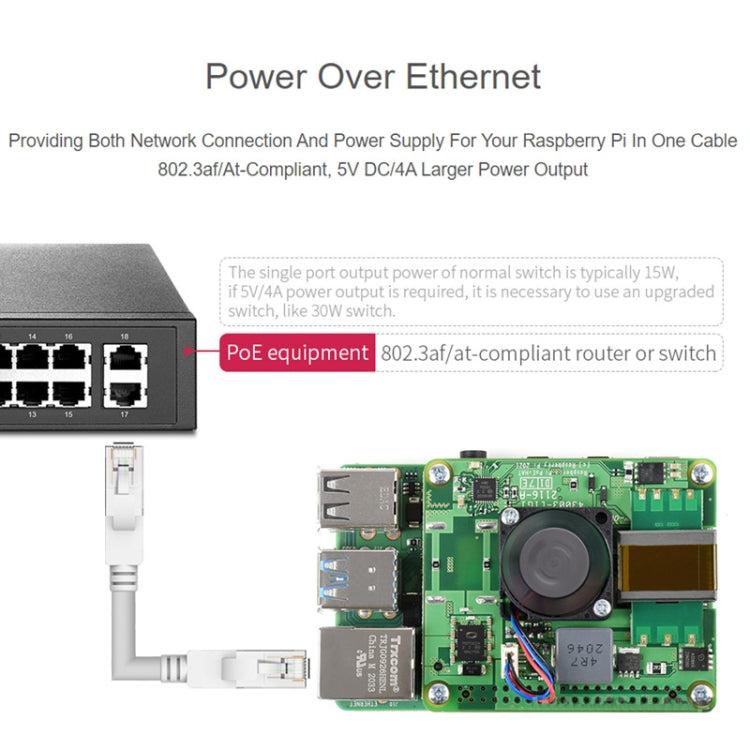

• By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply...
• Specification
• PoE standard: 802.3af/at
• Input voltage: 37-57 V DC, Class 4 device
• Output voltage/current: 5V DC/4A
• Current sense: Yes
• Transformer design: Planar

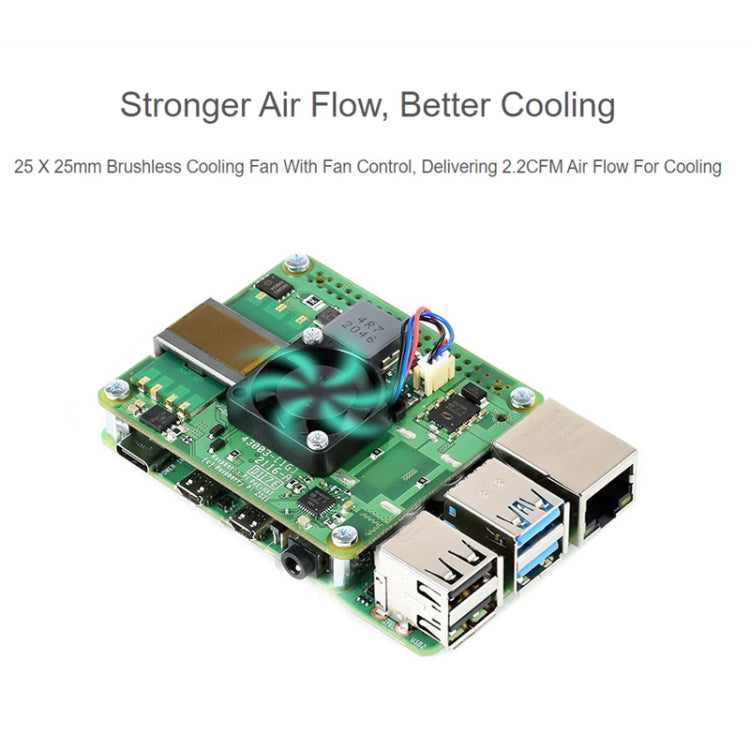

• Fan: Controllable brushless cooling fan, delivering 2.2 CFM for processor cooling
• Fan size: 25 x 25mm
• Feature: Fully isolated switched-mode power supply

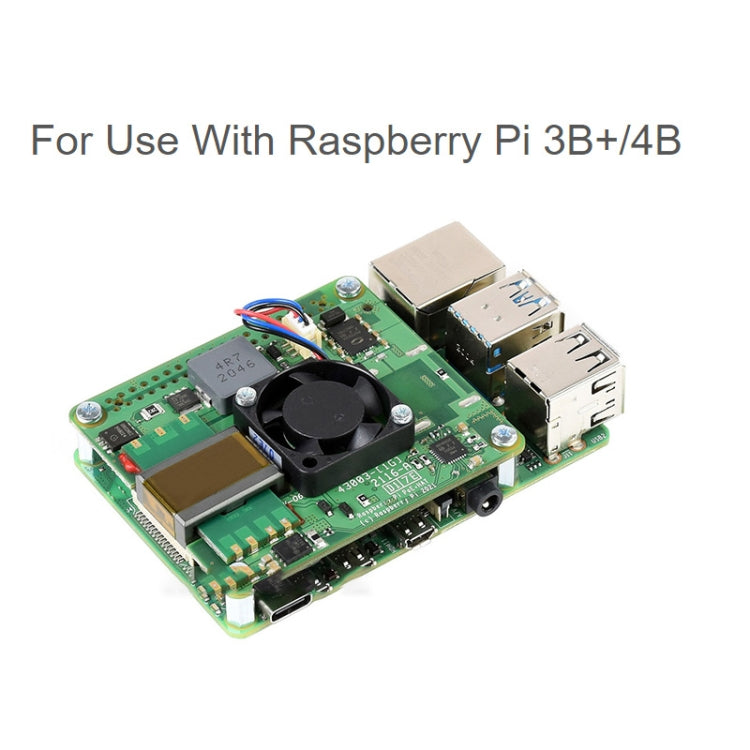

• Compatible with: Raspberry Pi 3B+/4B
• Package List
• Raspberry Pi PoE+ HAT x1
• Standoffs pack x1

Package Info: Weight: 0.08kgs / 0.17lb, Size: 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch
