Waveshare Multi Band 2G GSM / GPRS LBS A7670E LTE Cat-1 HAT for Raspberry Pi, for Europe, Southeast Asia, West Asia, Africa, China, South Kor, A7670E LTE Cat-1 HAT – Card Slot, TPU.

Key Features:

  • Features
  • The A7670E Cat-1 HAT is an LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and EDGE, with up to 10Mbps...

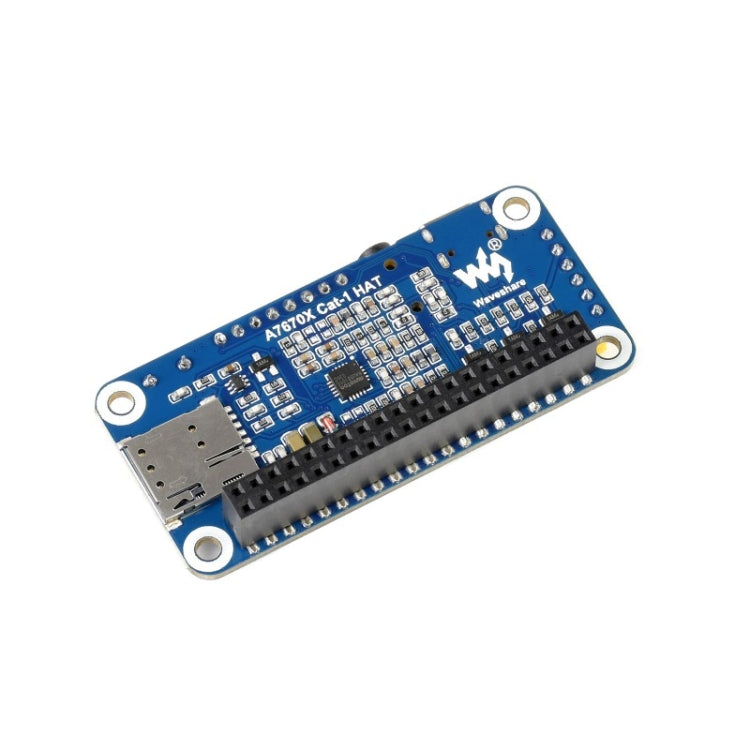

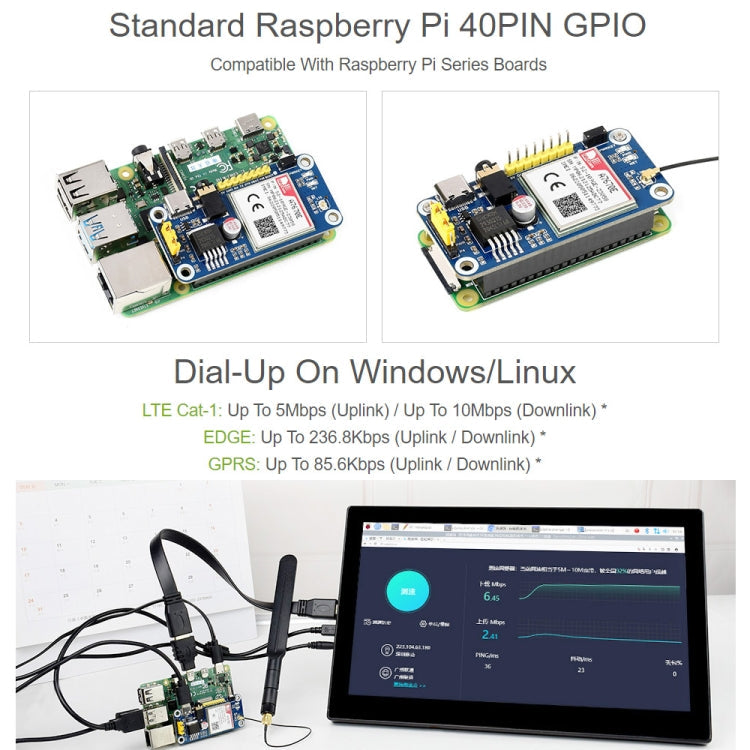

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

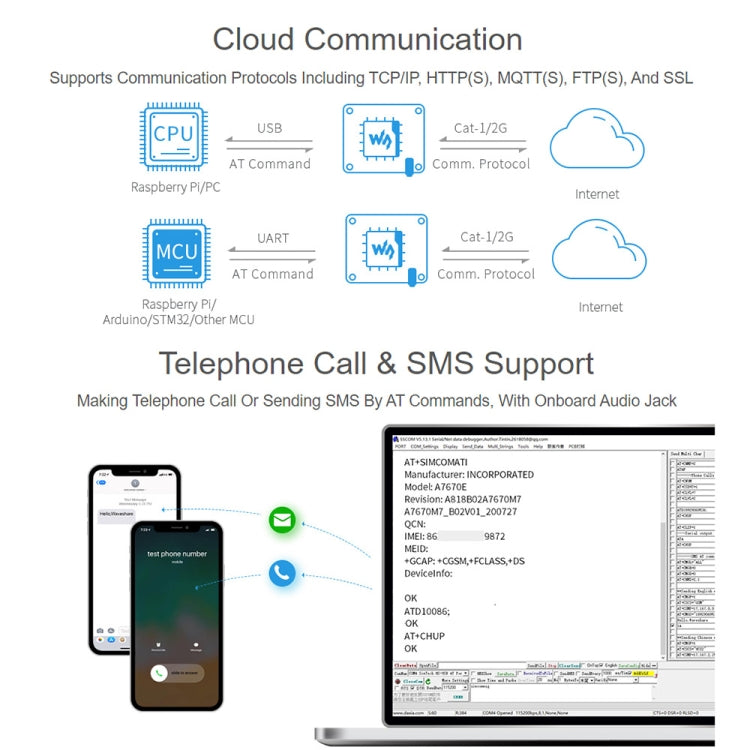

  • Support protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
  • Support dial-up, telephone call, SMS
  • Support LBS base station positioning, it is able to get the approximate position info via mobile network
  • TTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken words
  • Onboard USB interface, for testing AT Commands, network communication, and so on
  • Onboard audio jack for sound recording, making telephone call, listening the TTS resulting speech, etc.
  • Breakout common used control pins of the A7670X module, make it easy to connect with hosts boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • 2x LED indicators, easy to monitor the operating status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
  • Specification
  • Frequency band
  • LTE Cat-1: LTE-FDD: B1, B3, B5, B7, B8, B20
  • 2G: GSM/GPRS/EDGE: 900/1800 MHz
  • SMS and audio
  • SMS: Supported types: MT, MO, CB, Text, PDU
  • Storage: USIM card (CB could not be stored on SIM card)
  • Audio feature: Standard 3.5mm audio jack for audio input/output
  • Others
  • Power supply: 5V
  • Operating voltage:5V / 3.3V (configured via jumper)
  • Operating temperature: -30 degree C ~ 80degree C
  • Storage temperature: -45 degree C ~ 90 degree C

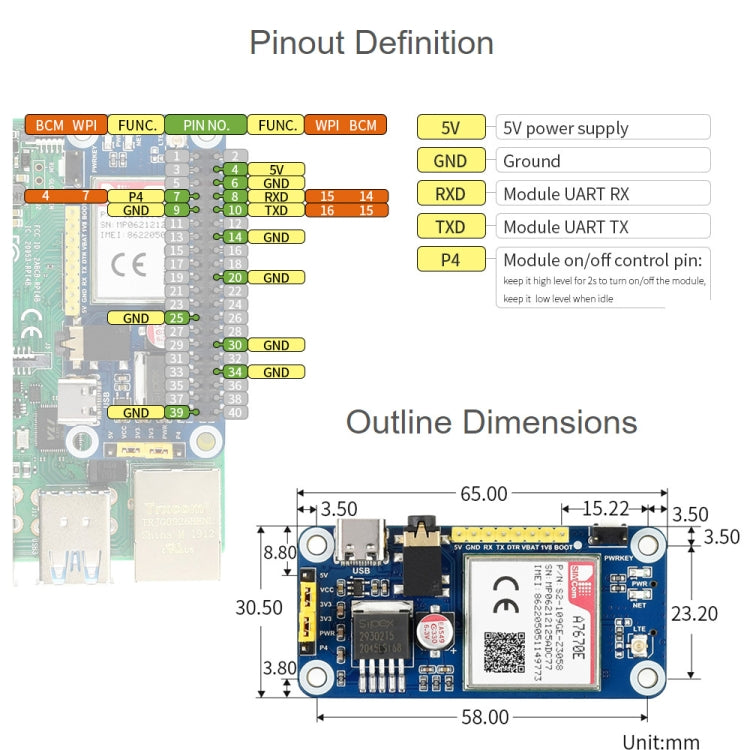

  • Dimensions: 65 x 30.5mm
  • Package List
  • A7670E Cat-1 HAT x 1
  • LTE Antenna x 1
  • USB-A to USB-C cable x 1
  • RPi screws pack x 1

Package Info: Weight: 0.09kgs / 0.20lb, Size: 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch
