Waveshare Mini IO Board Full Ver Mini-Computer Base Box with Metal Case & Cooling Fan for Raspberry Pi CM4, Mini IO Board Full Ver – Card Slot, TPU, 4K

Waveshare Mini IO Board Full Ver Mini-Computer Base Box with Metal Case & Cooling Fan for Raspberry Pi CM4, Mini IO Board Full Ver – Card Slot, TPU, 4K.

Key Features:

• Specification
• USB:
• - USB 2.0 x 2
• - USB 2.0 x 2 (via FFC connector)
• GPIO: Raspberry Pi 40 PIN GPIO x 1
• Header: M.2 slot x 1
• HD media interface: HDMI x 2, 1x via FFC connector, support 4K 30fps output
• DSI display: MIPI DSI x 1 (15pin 1.0mm FPC)
• CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
• Power input: 5V
• FAN: 5V / 12V (no fan control)
• RJ45 Ethernet: Gigabit Ethernet
• CM4 slot: Suitable for all variants of Compute Module 4
• SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

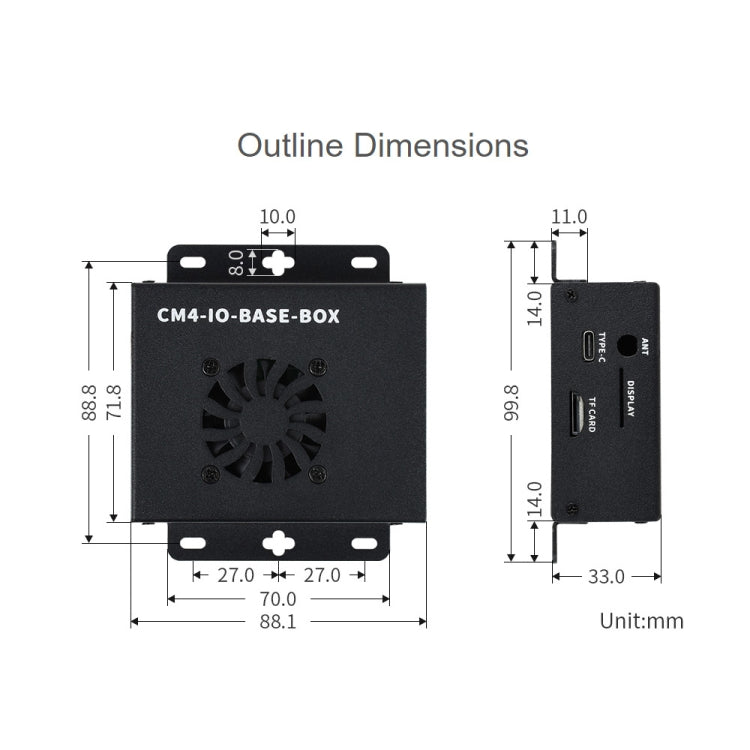

• Size: 85.0 x 56.0mm
• Package List
• CM4-IO-BASE-B x 1
• Metal case (top and bottom) x 1
• Fan-4010-PWM-5V x 1
• Screwdriver x 1
• Screws pack x 1
• 5V 3A USB-C power adapter x 1

Package Info: Weight: 0.41kgs / 0.89lb, Size: 16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch
