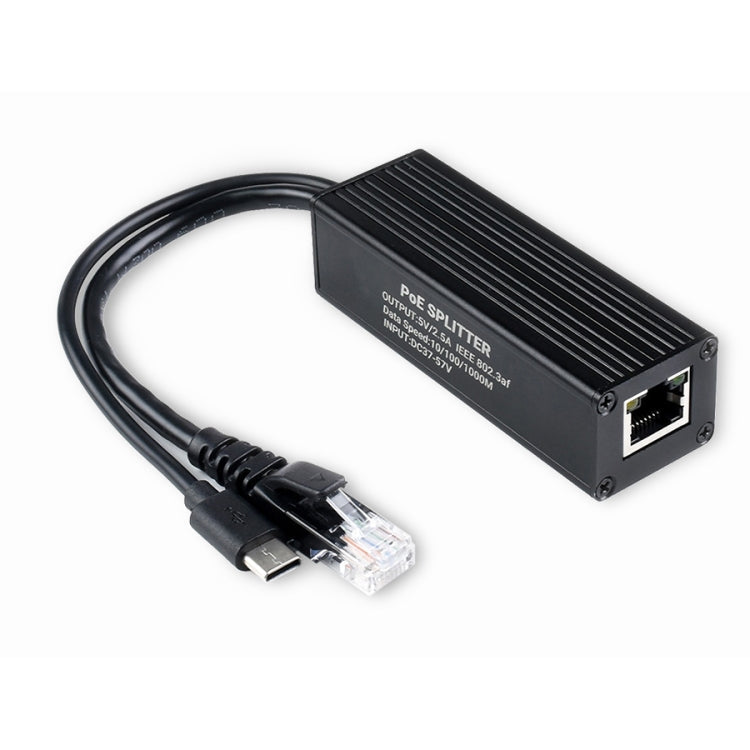

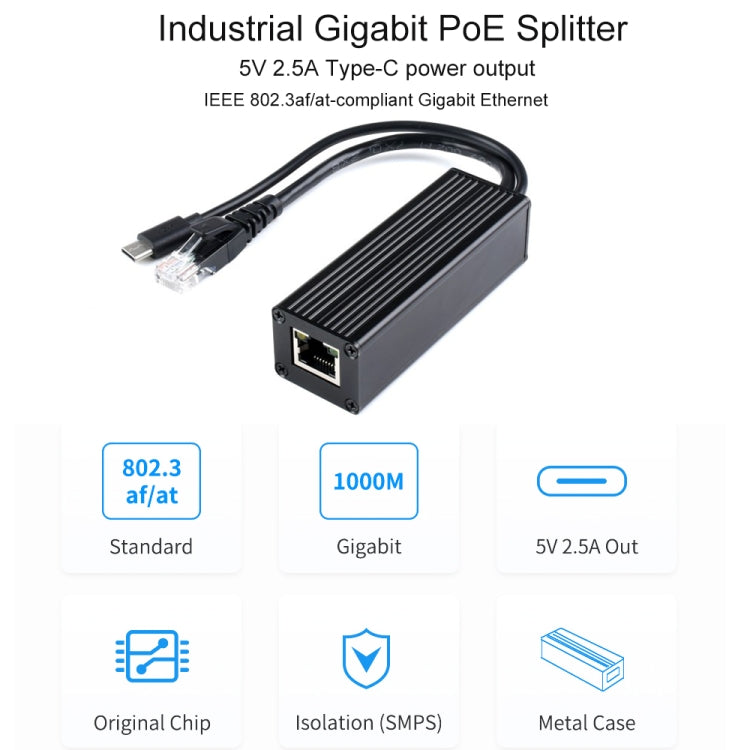

Waveshare Metal Case Gigabit PoE Splitter, 5V 2.5A Type-C Out – TPU

Waveshare Metal Case Gigabit PoE Splitter, 5V 2.5A Type-C Out – TPU.

Key Features:

• Features
• Incorporates original chip Si3404, high-efficiency, high-safety, stable-performance

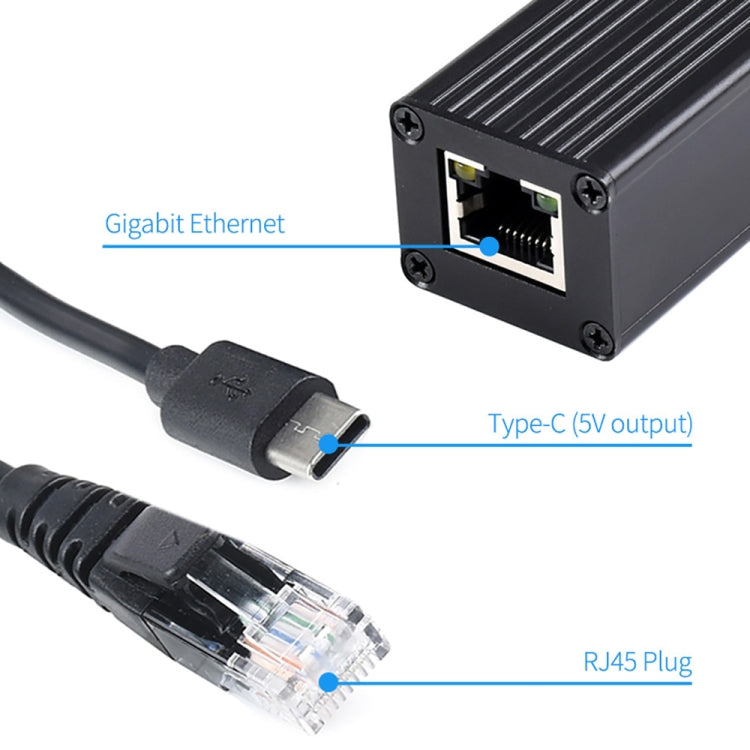

• 10/100/1000Mbps auto-negotiation Ethernet port
• 802.3af/at-compliant PoE (Power over Ethernet) standard

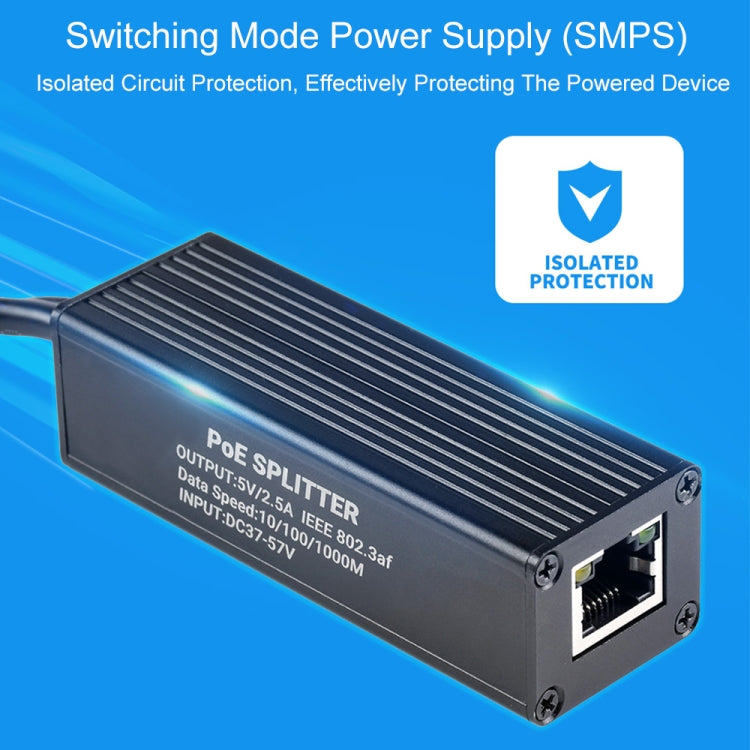

• Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device

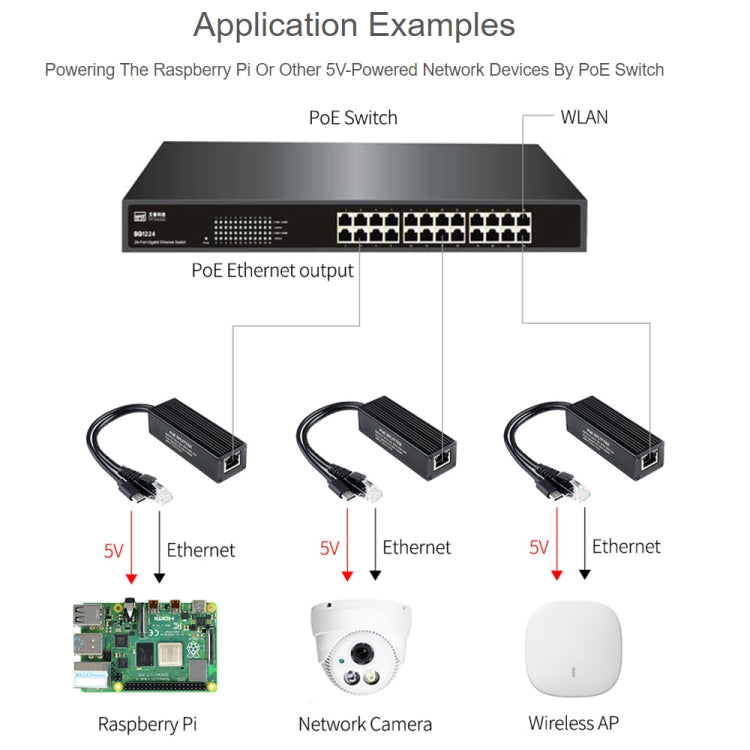

• 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices

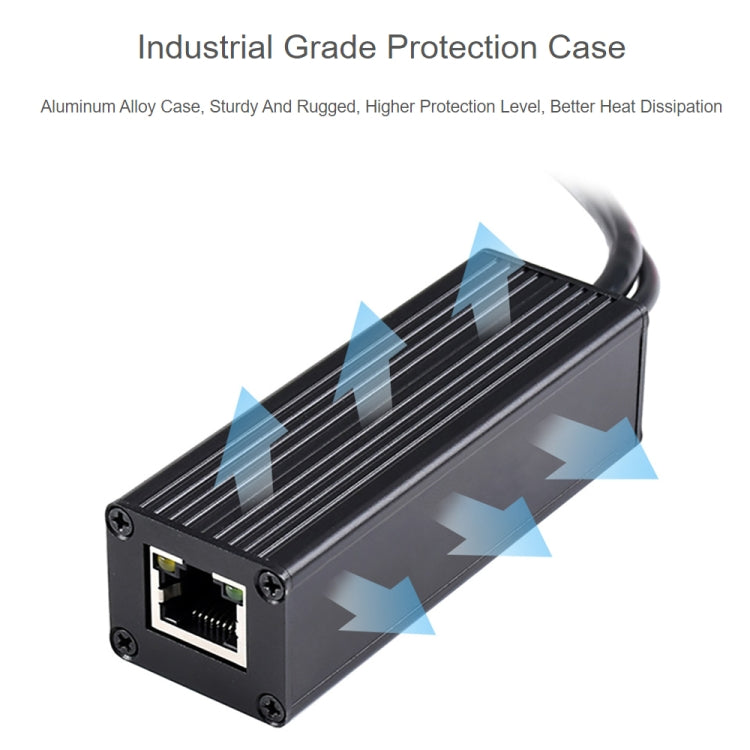

• Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
• Specifications
• Power Supply: Support 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
• POE input voltage: 37V ~ 57V
• Type-C output: 5V 2.5A (MAX)
• Cable: Cat-5 UTP
• Standard: IEEE 802.3 af/at PoE Ethernet
• Data rate: 10/100/1000Mbps
• LED indicator: PoE power input indicator

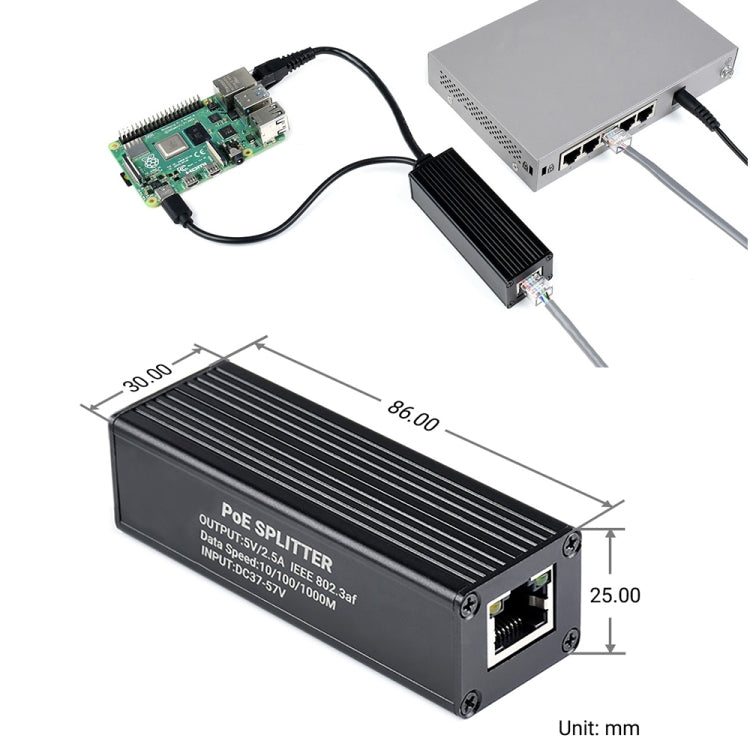

• Size: 86 x 30 x 25mm (l x w x h)
• Operation temperature: -40 degree C ~ 85 degree C

Package Info: Weight: 0.10kgs / 0.22lb, Size: 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch
