Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4 – Card Slot, TPU, 4K

Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4 – Card Slot, TPU, 4K.

Key Features:

• About The Protuct

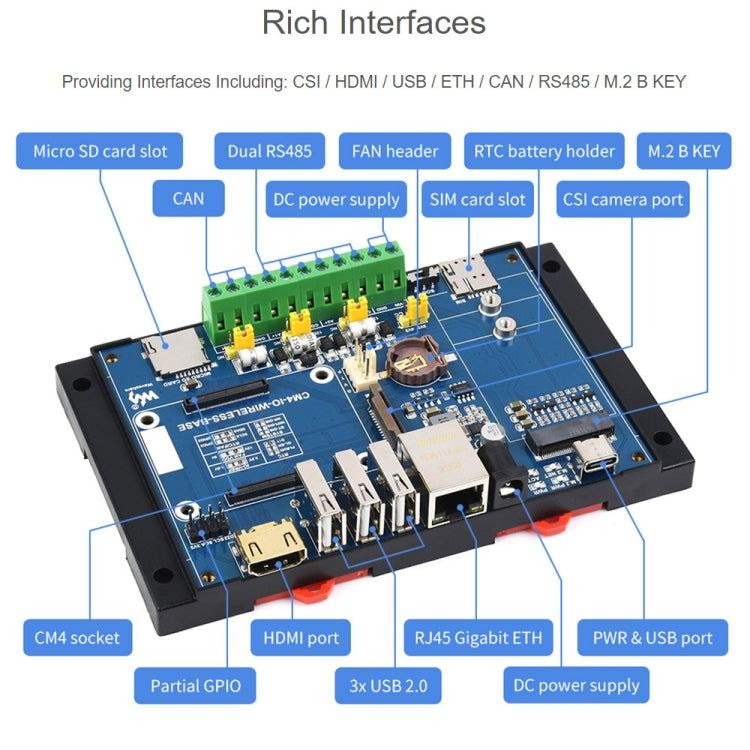

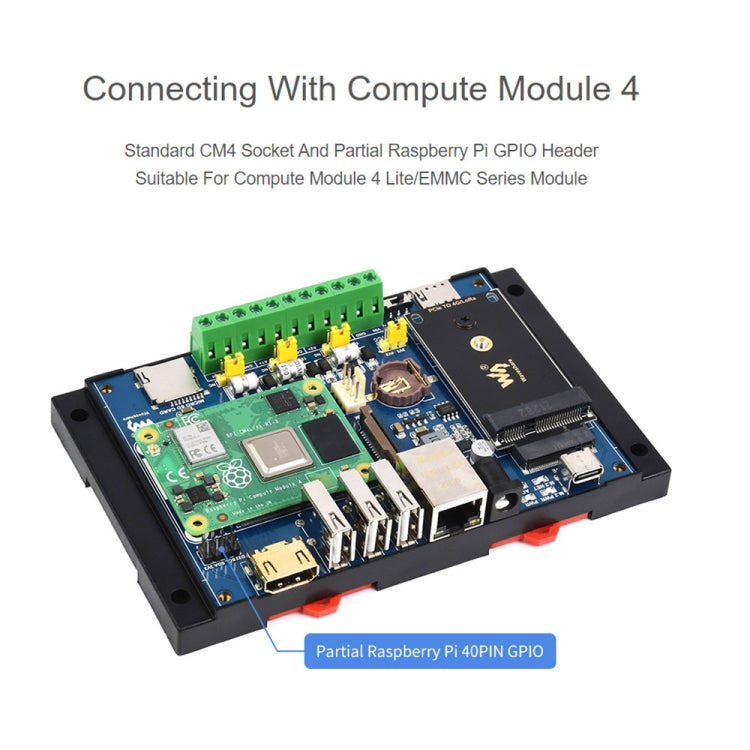

• This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows...

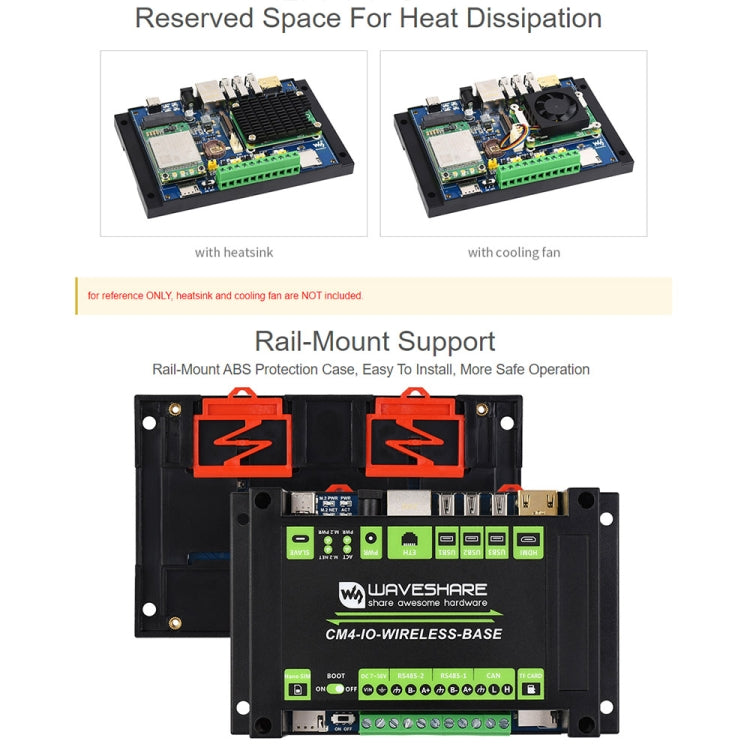

• Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even...
• Specifications

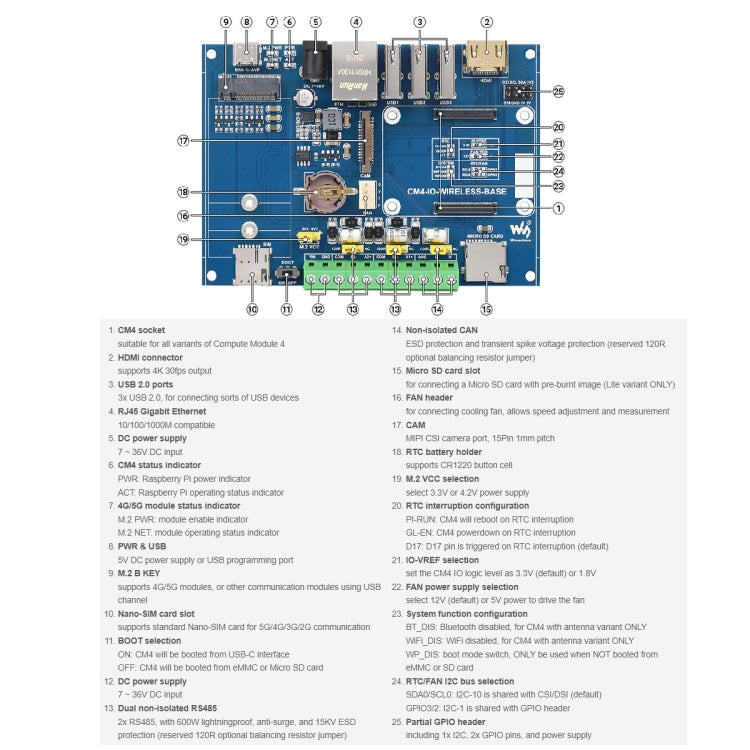

• CM4 socket: For all variants of Compute Module 4
• Networking:
• - Gigabit Ethernet RJ45

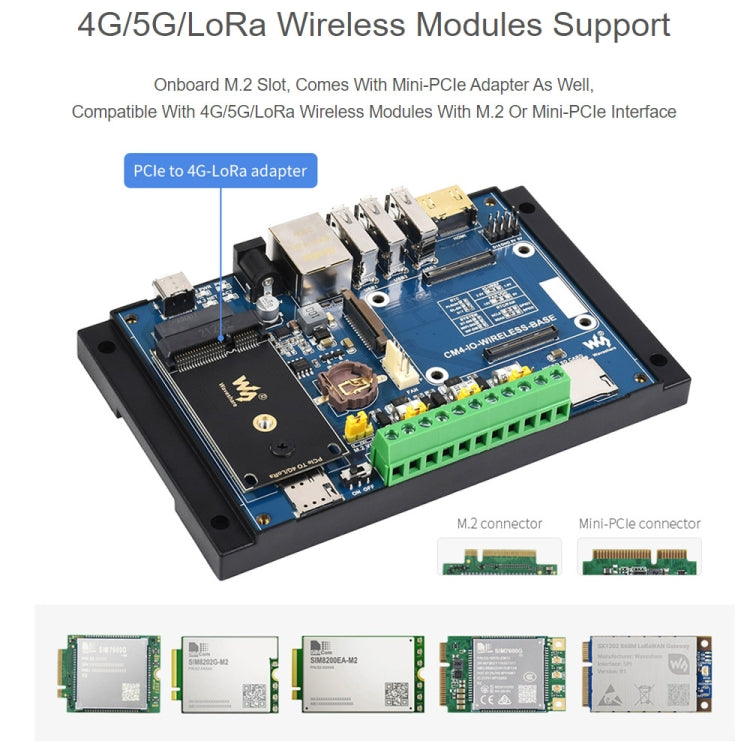

• - M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
• - Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication
• USB: USB 2.0 x 3
• PIN header: Non-isolated RS485 x 2, non-isolated CAN x 1, some GPIO pins
• Camera: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector)
• Video: HDMI x 1, support 4K 30fps output
• RTC: Real-time clock with battery socket and ability to wake Compute Module 4
• Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
• Fan header: 5V/12V, allows speed adjustment and measurement
• Power input: 5V or 7~36V

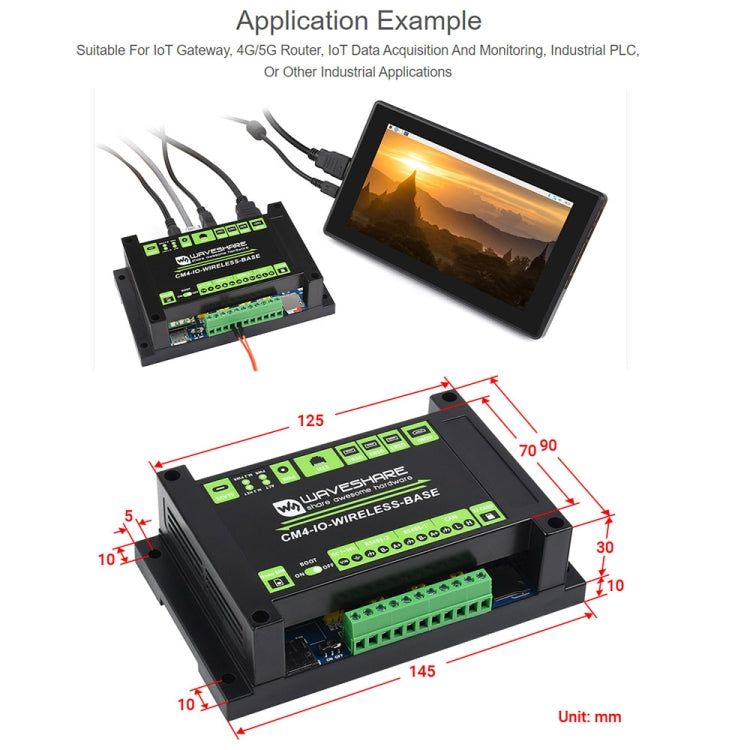

• Dimensions: 145 x 90 x 40mm
• Package List
• CM4-IO-WIRELESS-BASE x 1
• PCIe to 4G/LoRa adapter x 1
• Screwdriver x 1
• Screws pack x 1
• 12V 2A power adapter x 1

Package Info: Weight: 0.38kgs / 0.83lb, Size: 16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch
