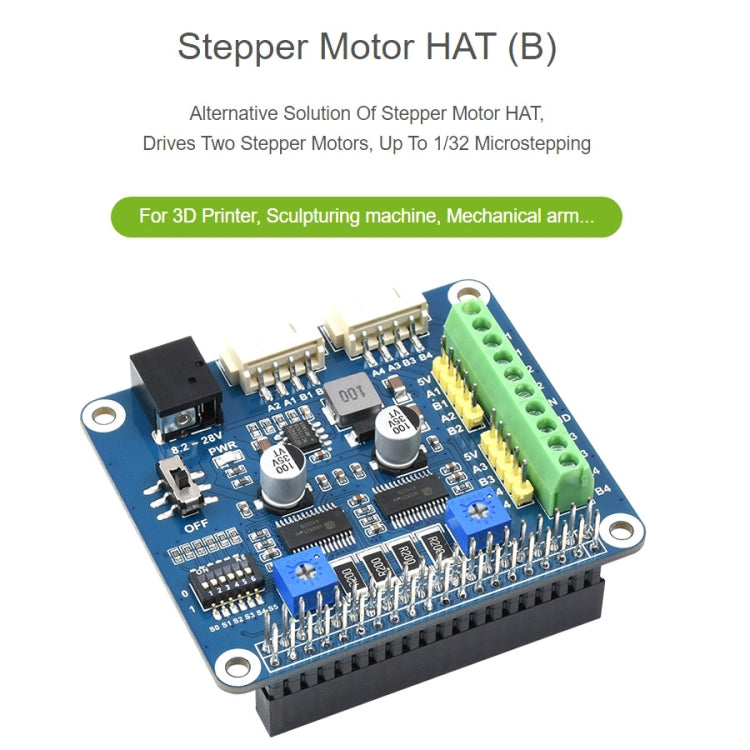

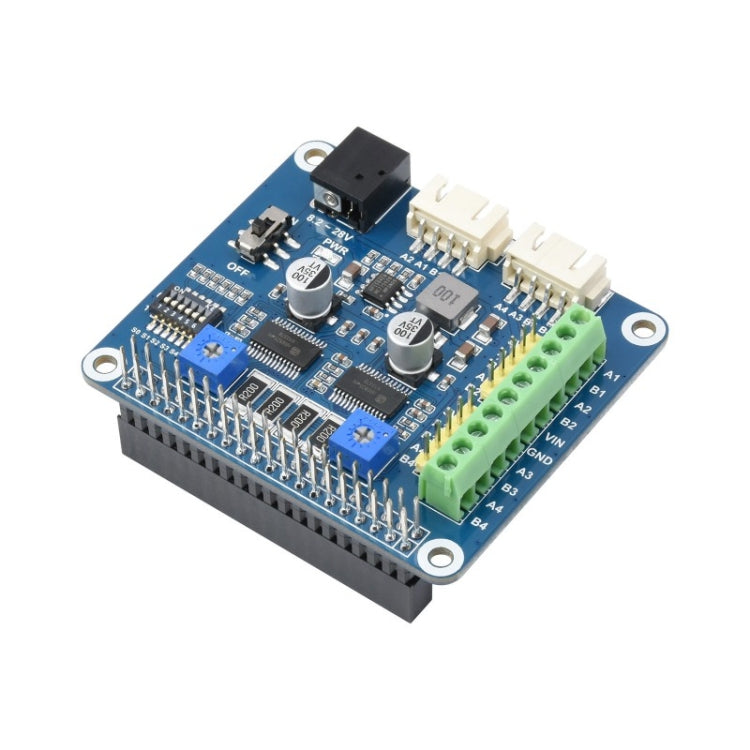

Waveshare HRB8825 Stepper Motor HAT For Raspberry Pi, Drives Two Stepper Motors, Up To 1/32 Microstepping – TPU

Waveshare HRB8825 Stepper Motor HAT For Raspberry Pi, Drives Two Stepper Motors, Up To 1/32 Microstepping – TPU.

Key Features:

• Features

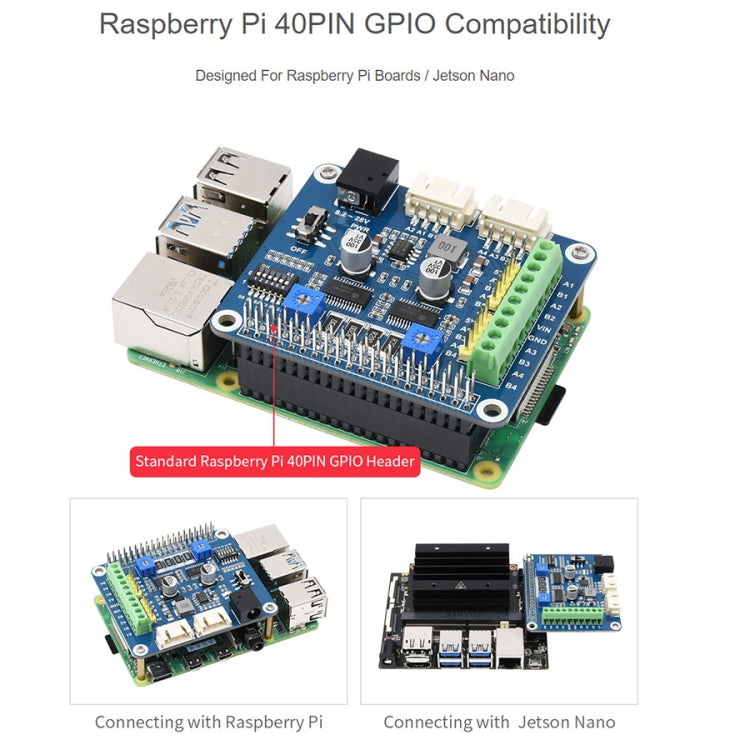

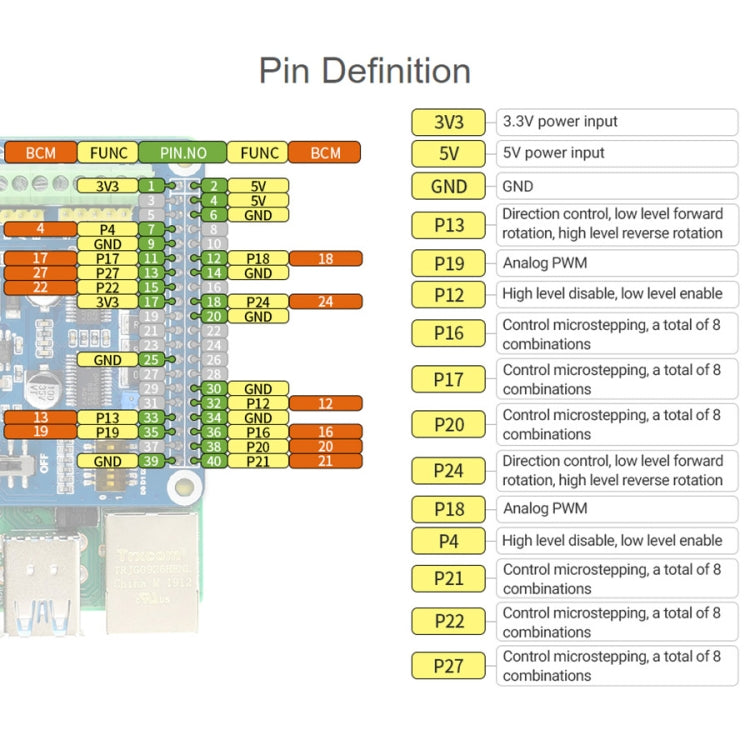

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

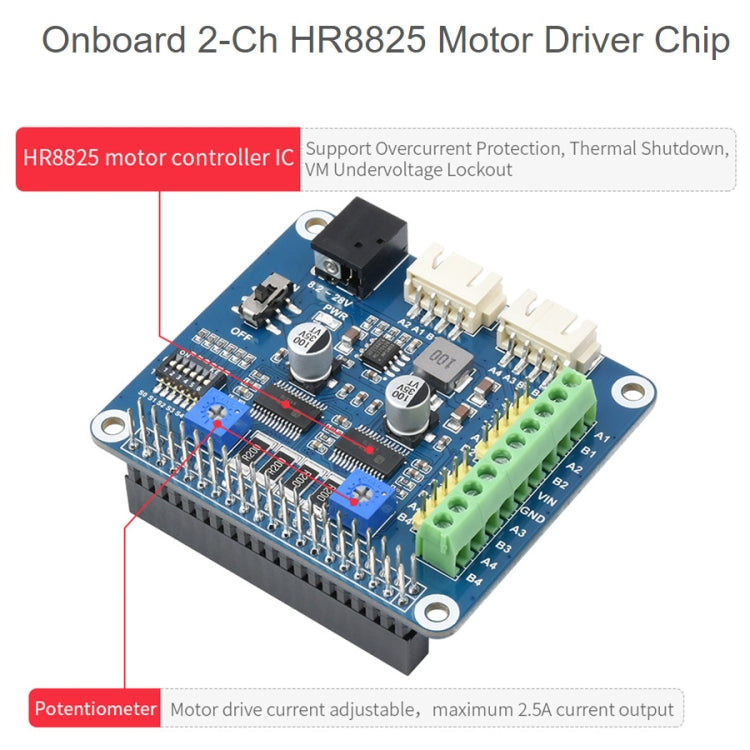

• Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use

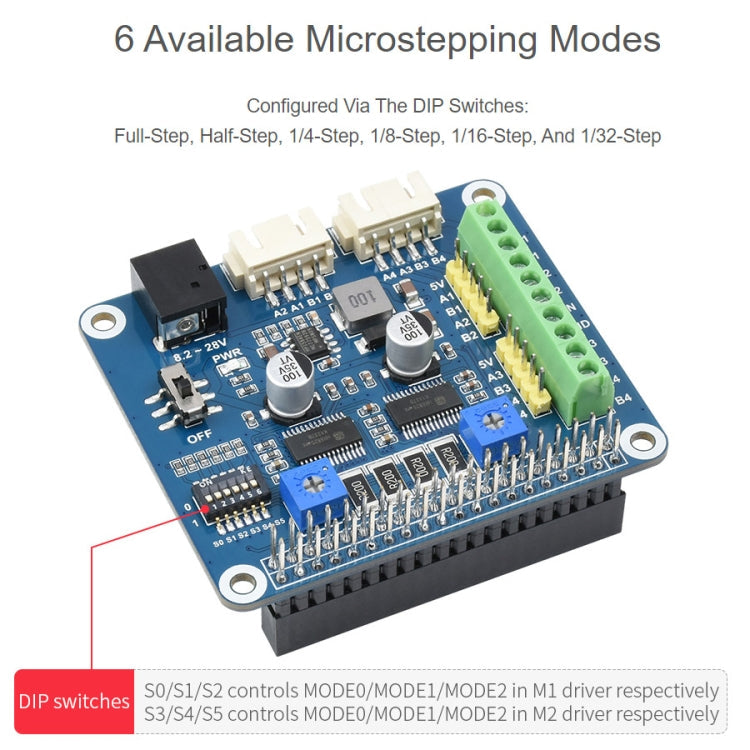

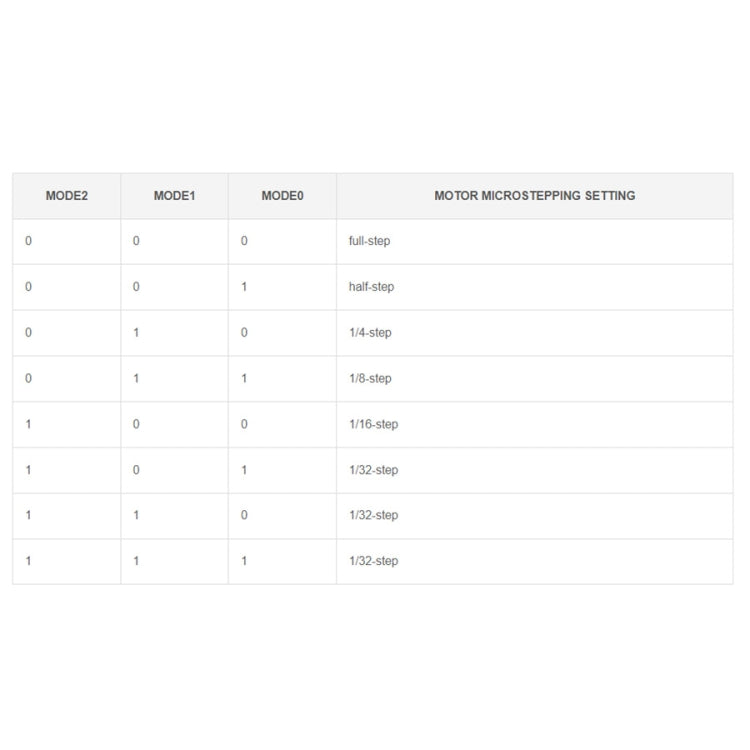

• 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
• Adjustable motor drive current via potentiometer, maximum 2.5A current output
• Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
• Integrates 5V regulator, allows providing power to Raspberry Pi

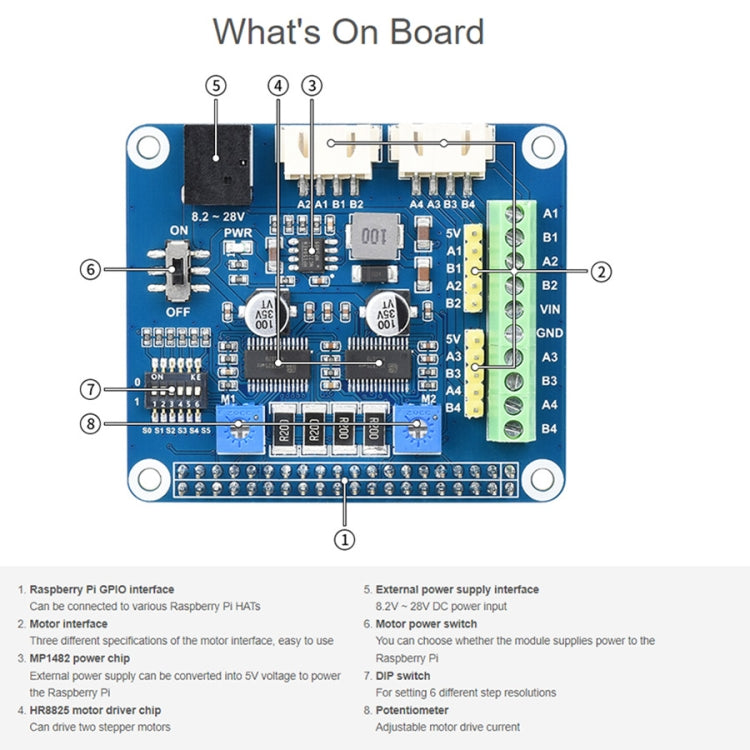

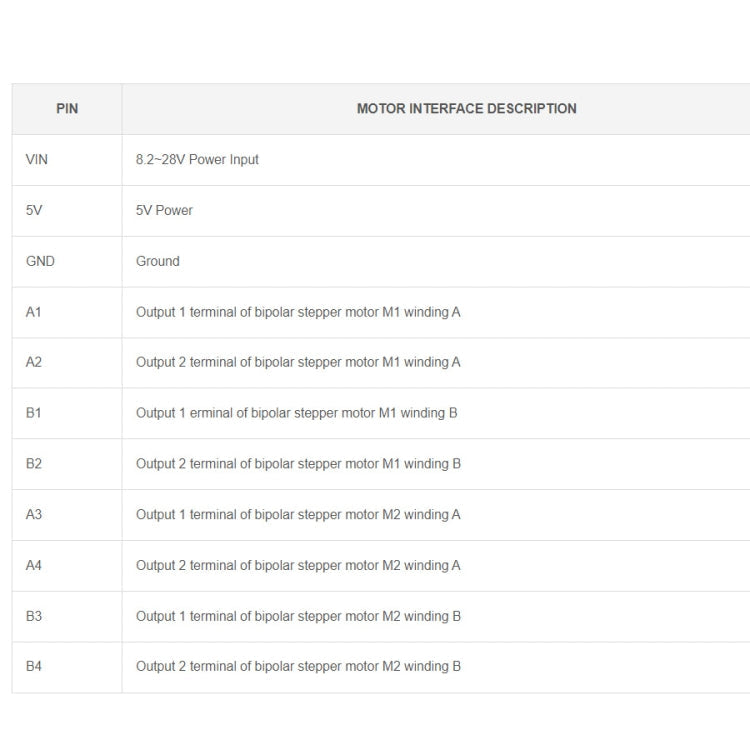

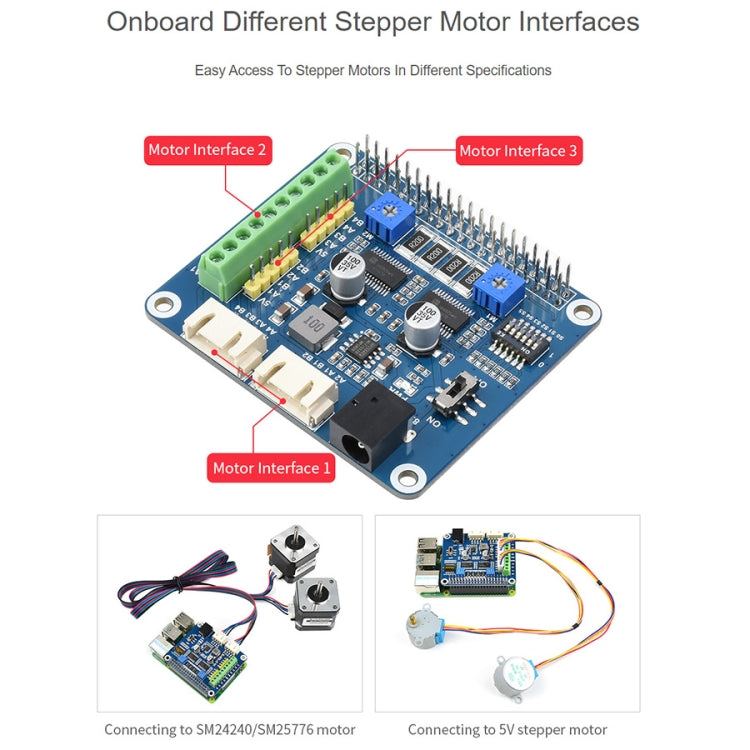

• Onboard multi connector options for stepper motors in different specifications
• Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
• Specifications
• Motor controller: HR8825
• Motor drive voltage: 8.2V~28V
• Motor drive current: 2.5A
• Logic voltage: 3.3V
• Mounting hole size: 3.0mm

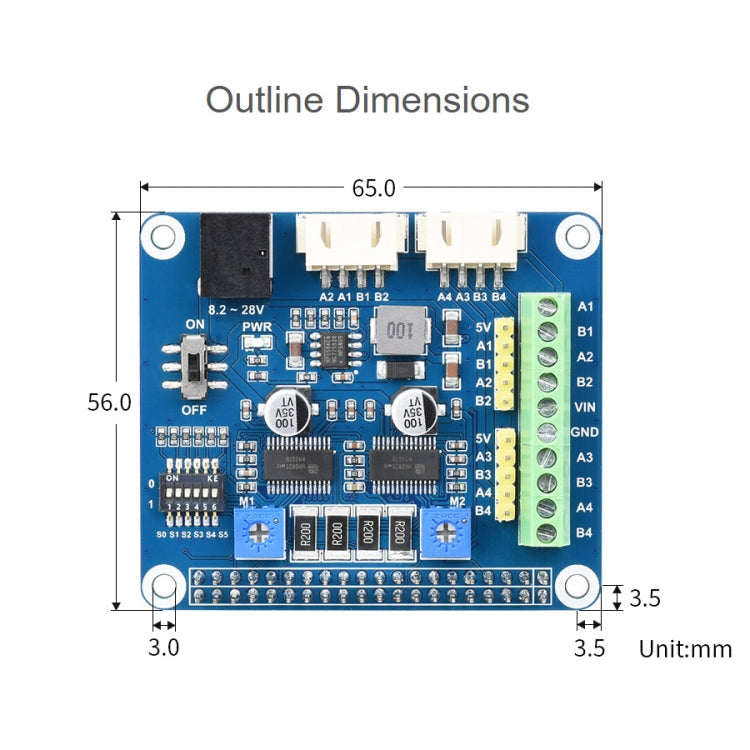

• Size: 65 x 56mm
• Package List
• Stepper Motor HAT (B) x 1
• RPi screws pack (2pcs) x 1
• Aluminum heatsink x 1

Package Info: Weight: 0.06kgs / 0.14lb, Size: 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch
