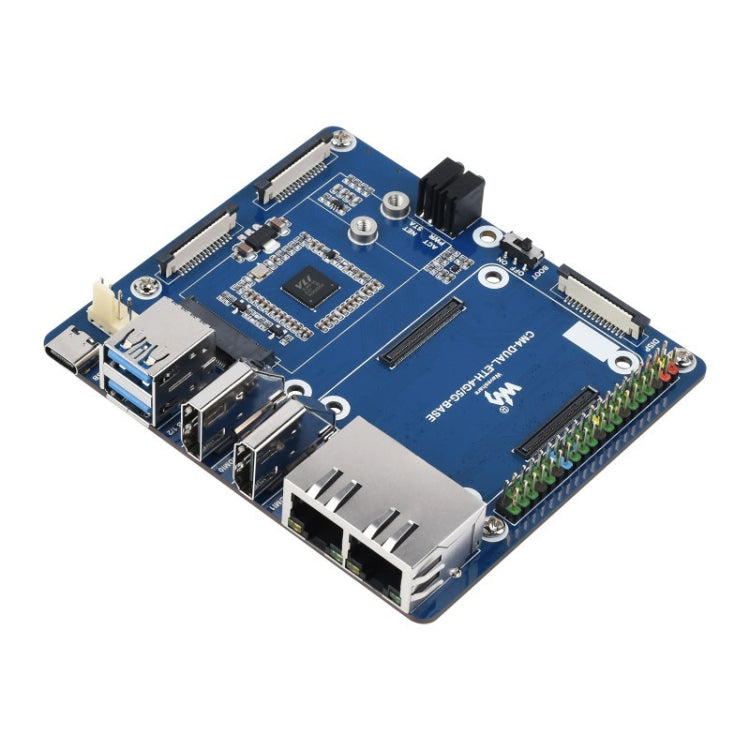

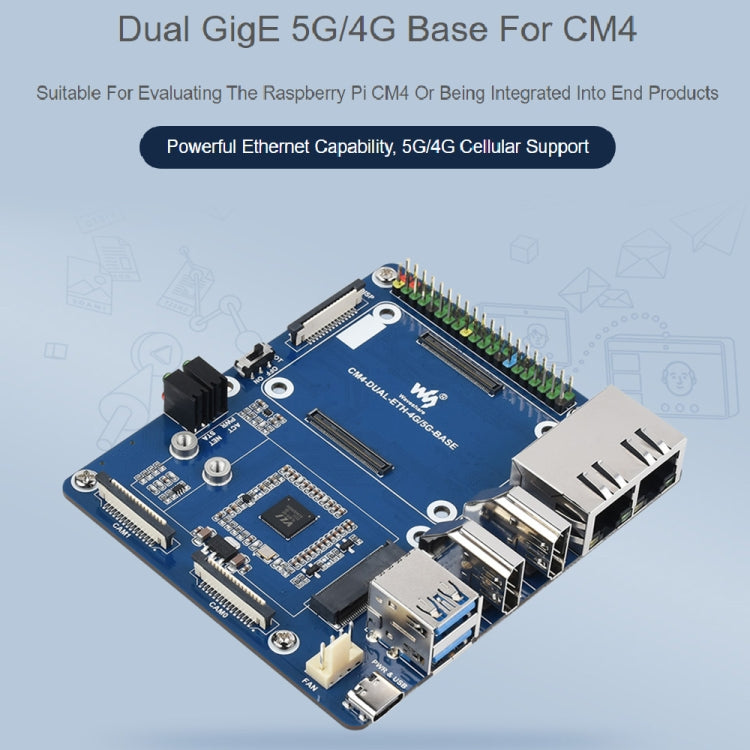

Waveshare Dual Gigabit Ethernet 5G / 4G Base Board for Raspberry Pi CM4 – Card Slot, TPU, 4K

Waveshare Dual Gigabit Ethernet 5G / 4G Base Board for Raspberry Pi CM4 – Card Slot, TPU, 4K.

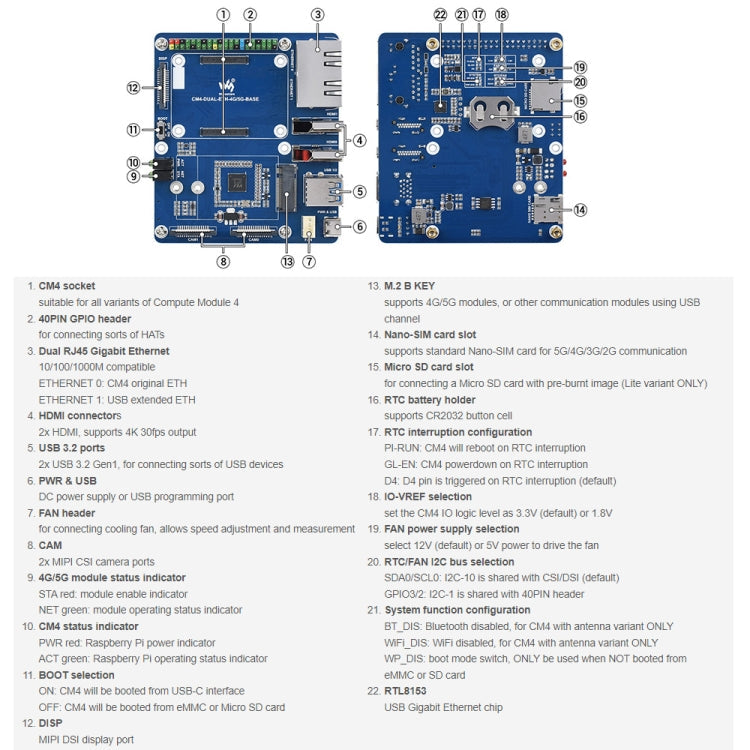

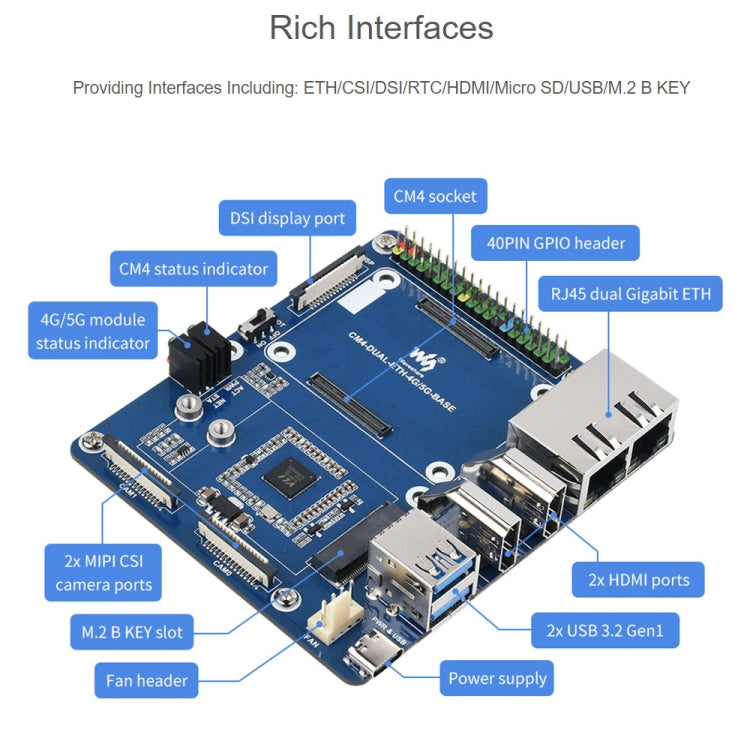

Key Features:

• Specifications

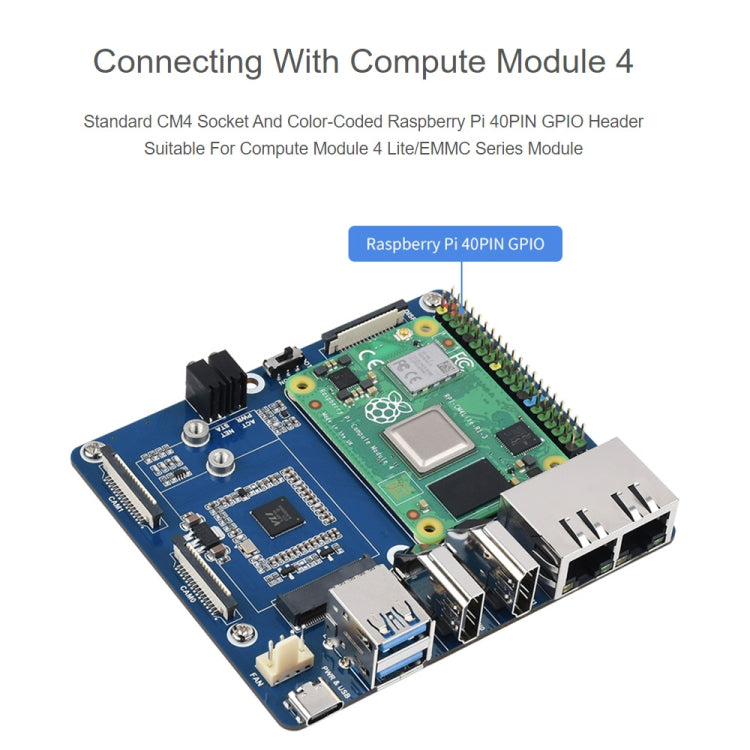

• CM4 socket: Suitable for all variants of Compute Module 4
• Network:
• - Ethernet: Dual Gigabit Ethernet RJ45

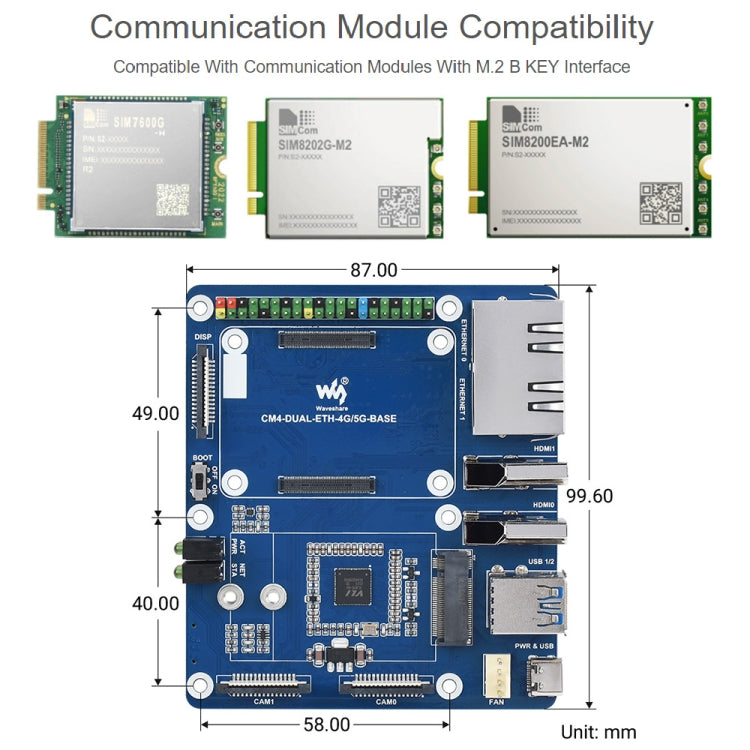

• - M.2 B KEY, for connecting 5G / 4G module
• - Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
• USB 3.2 Gen1 x 2
• PIN header: Raspberry Pi 40PIN GPIO headerx 1
• Display: MIPI DSI port (15pin 1.0mm FPC connector)
• Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
• Video: HDMI x 2, supports 4K 30fps output

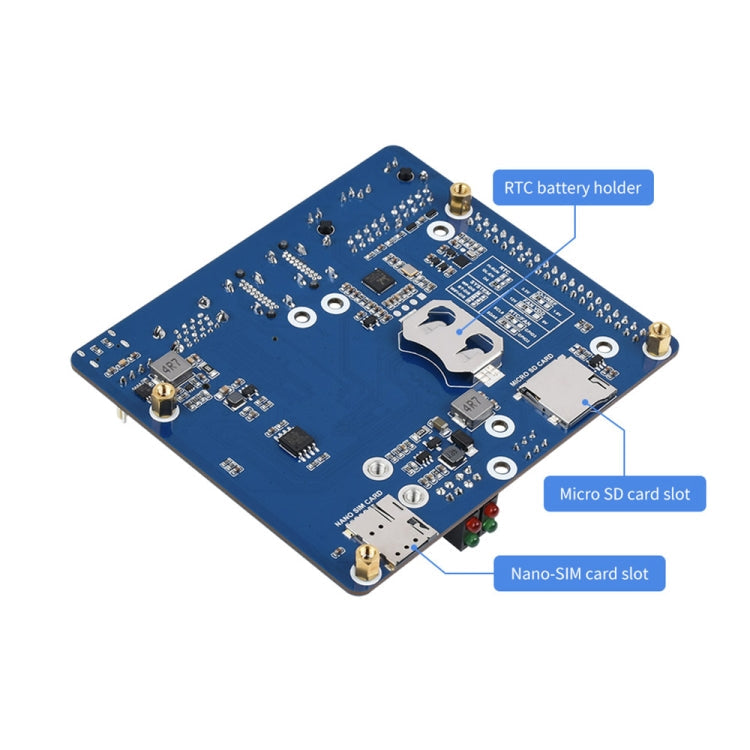

• RTC: Real-time clock with battery socket and ability to wake Compute Module 4
• Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
• Fan header: 5V/12V (12V by default), allows speed adjustment and measurement
• Power input: 5V/2.5A
• Size: 99.6 x 87.0mm

Package Info: Weight: 0.09kgs / 0.21lb, Size: 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
