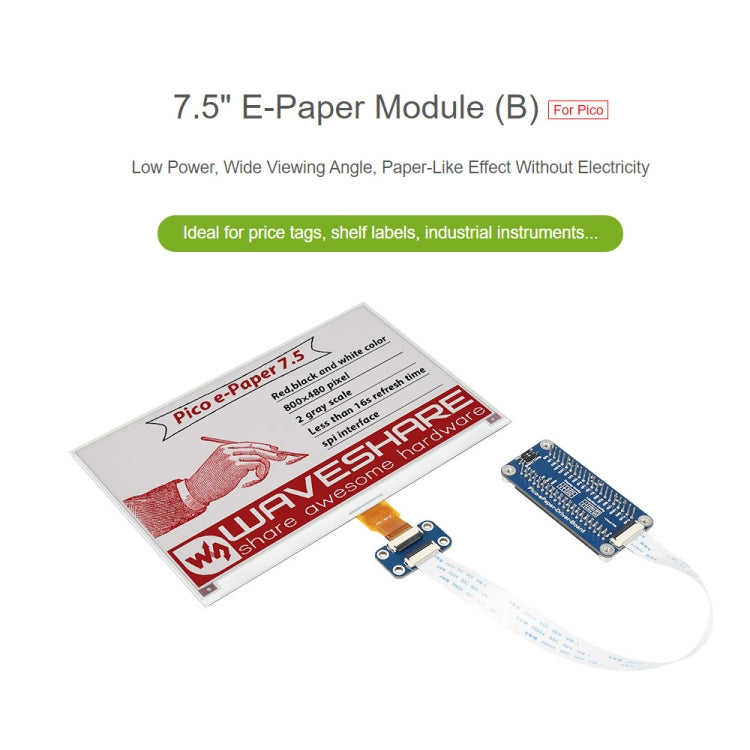

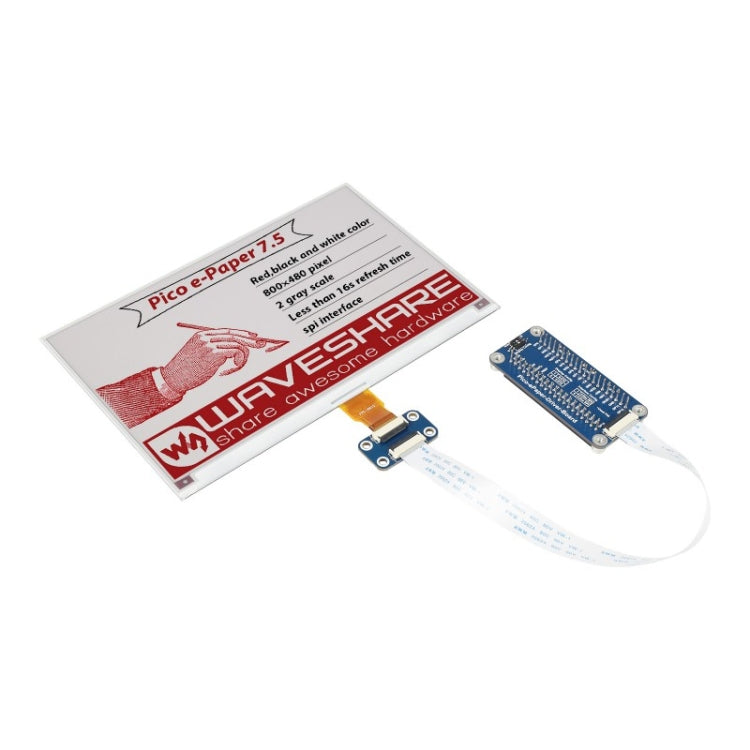

Waveshare 7.5 inch 800x480 Pixel Red Black White E-Paper E-Ink Display Module (B) for Raspberry Pi Pico, SPI Interface, 20129 – Durable Build, Easy to Use

Waveshare 7.5 inch 800x480 Pixel Red Black White E-Paper E-Ink Display Module (B) for Raspberry Pi Pico, SPI Interface, 20129 – Durable Build, Easy to Use.

Key Features:

• Features
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing

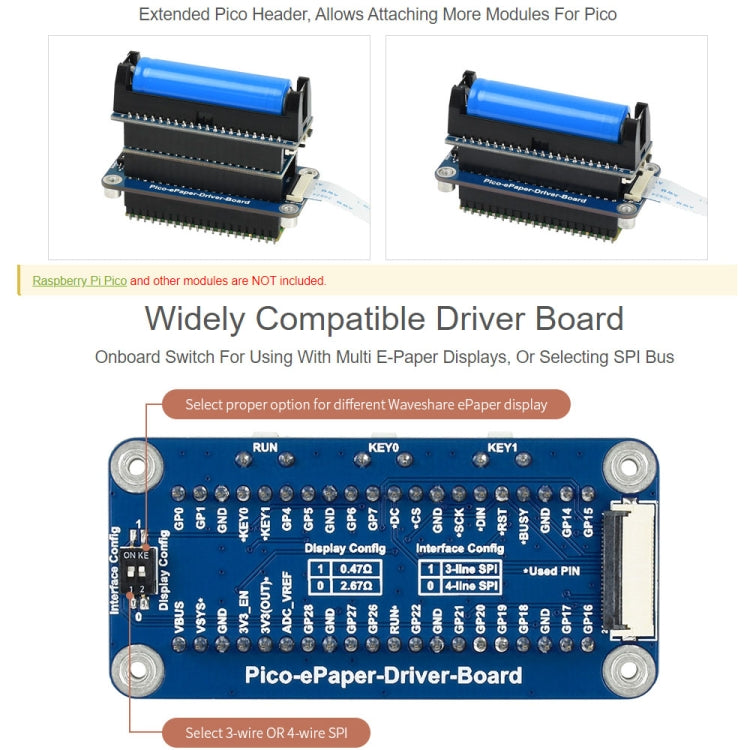

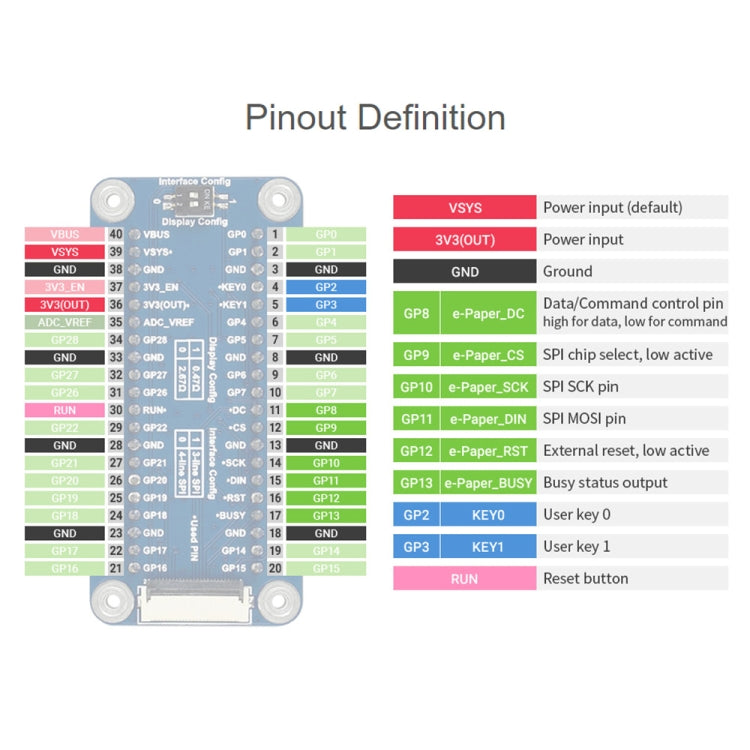

• SPI interface, requires minimal IO pins

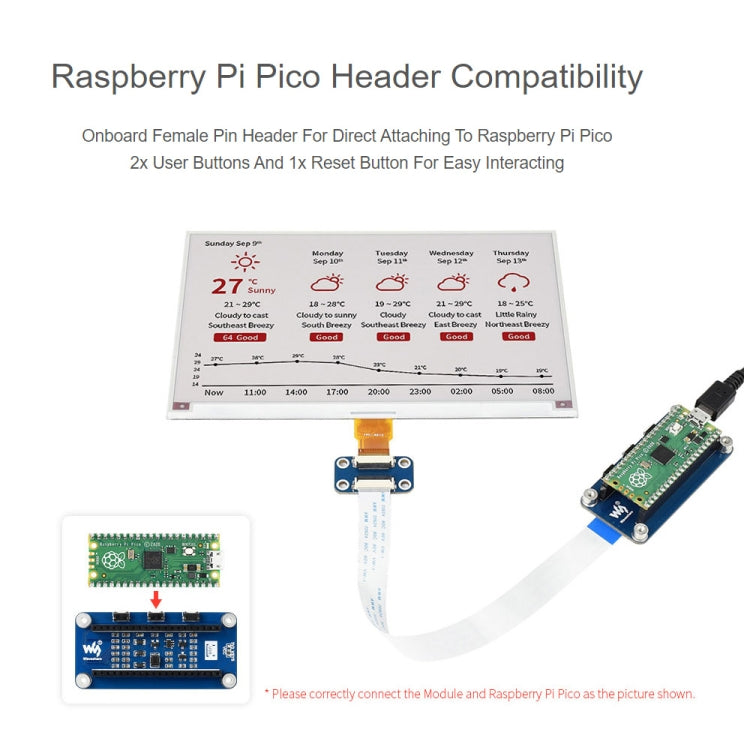

• 2x user buttons and 1x reset button for easy interacting
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

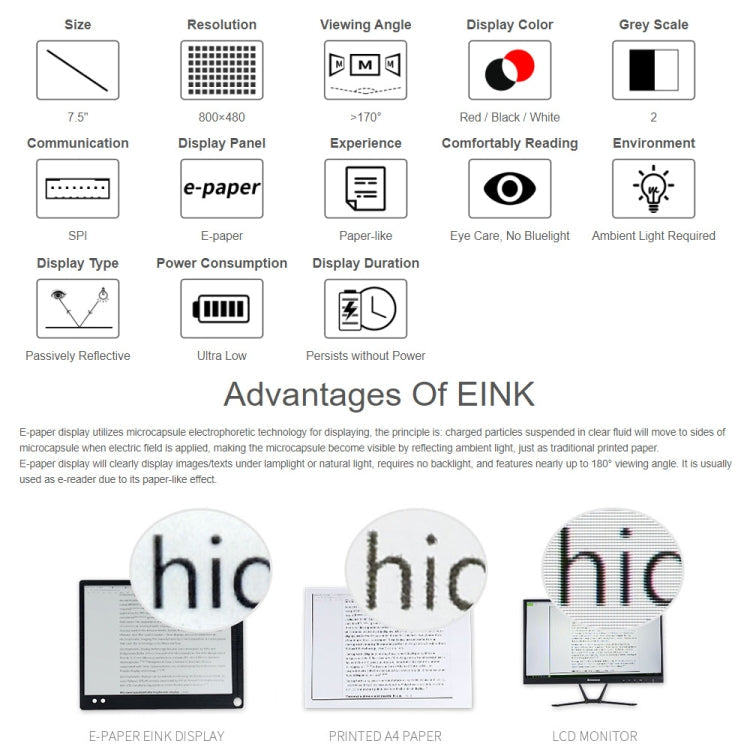

• Advantages Of EINK
• E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to...
• E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180 degree viewing...
• Specification
• Operating voltage: 3.3V
• Display color: Red, black, white
• Resolution: 800x480 pixels
• Grey scale: 2
• Interface: 3-wire SPI, 4-wire SPI
• Viewing angle: Greater than 170 degree
• Partial refresh time: N/A
• Full refresh time: 5s

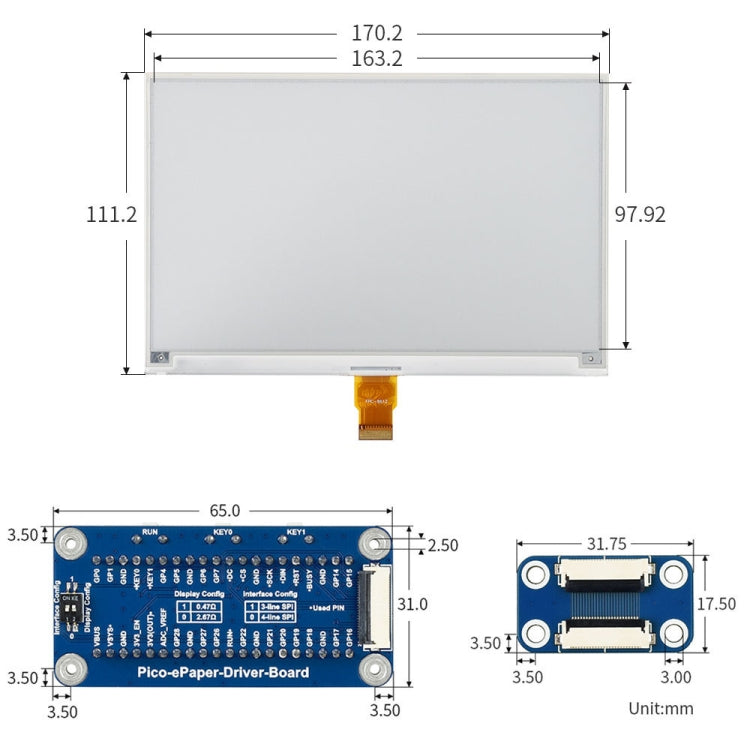

• Outline dimensions: 170.2 x 111.2mm
• Display size: 163.2 x 97.92mm
• Refresh power: 26.4mW (typ.)
• Standby current: Less than 0.01uA (almost none)
• Dot pitch: 0.204 x 0.204 mm
• Package List
• 7.5 inch e-Paper x1
• Pico-ePaper-Driver-Board x1
• Standoff pack x1

Package Info: Weight: 0.09kgs / 0.20lb, Size: 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch
