Waveshare 18V 10W Semi-flexible Polycrystalline Silicon Solar Panel, 24167 – TPU

Waveshare 18V 10W Semi-flexible Polycrystalline Silicon Solar Panel, 24167 – TPU.

Key Features:

• Using semi-flexible polysilicon solar panels, light and portable, easy to use outdoors

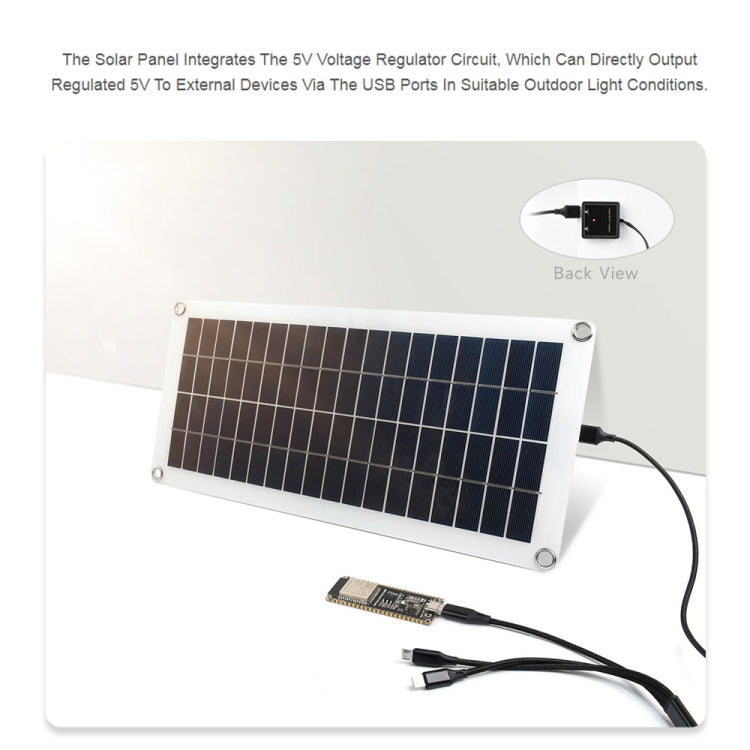

• Integrate 5V voltage stabilizing circuit, and lead out 2 USB ports, which can be powered by external 5V devices through USB, with working indicator light

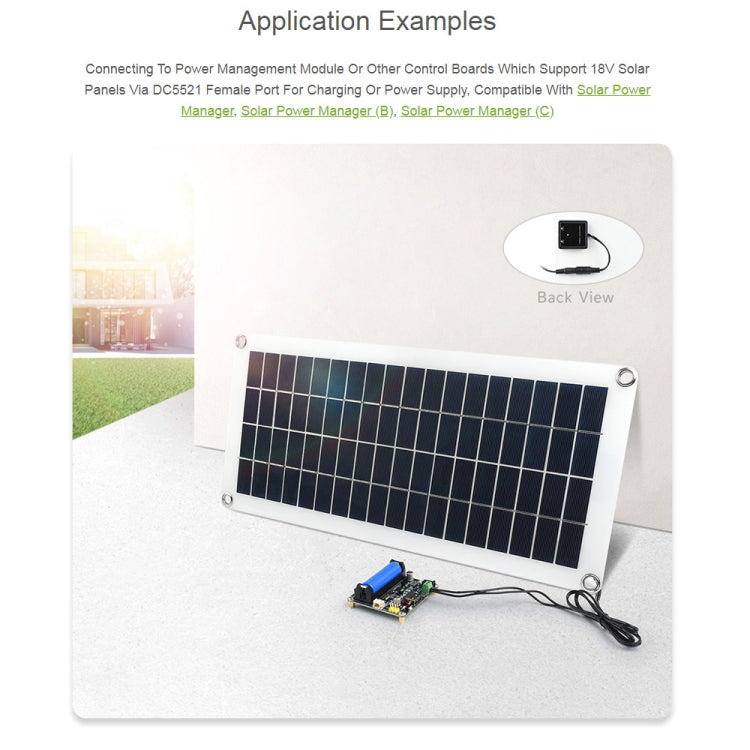

• Reserve the DC5521 power interface, which can be used to connect to a power management module or controller that supports 18V solar panels
• Comes with a variety of accessories and adapter cables for easy use
• Parameter:
• Solar cells: polysilicon
• Surface material: semi-flexible laminate (not overbending)
• Solar panel power: 10W

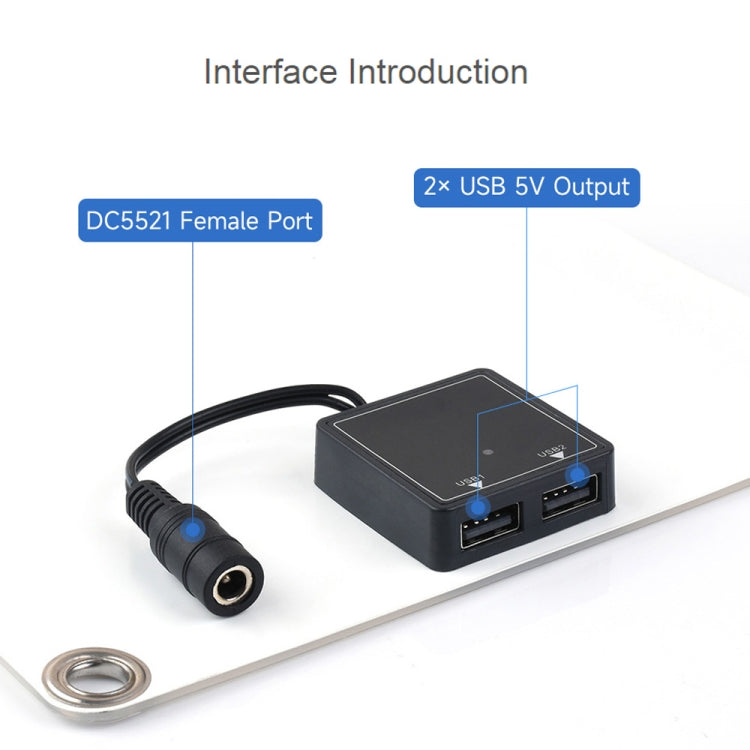

• Output interface:
• DC5521 female port
• - The solar panel is not converted, and the power supply interface is directly output
• - Working voltage: 18V +/-5%
• - Working current: 600mA +/- 5% (Max)
• - Open circuit voltage: 21.6V +/- 5%
• Dual USB 5V ports:
• - After the solar panel passes through the 5V voltage regulator circuit, the output power supply interface
• - Working voltage: 5V (sufficient power and stable 5V output only if the sun is well illuminated; if there is no sunlight or the light is weak, the output...
• - Output current: 1.5A (voltage regulator circuit can support 5V/3A output, but limited to -solar panel power, actual use of light and loss, 2-way total...

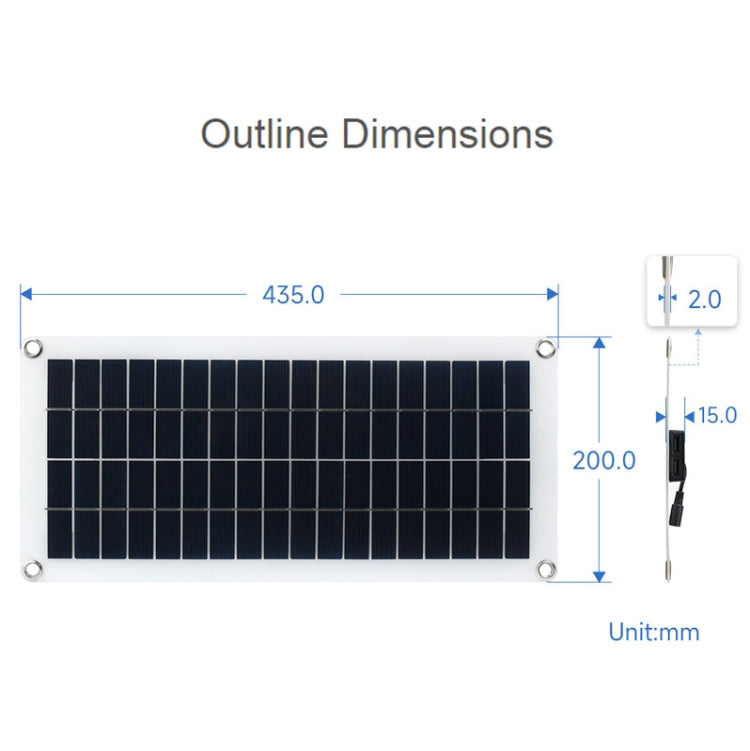

• Product size: 435 × 200mm
• Note: The above parameters are tested under standard conditions (1000W/m2 radiation intensity, 25 degrees Celsius temperature, AM1.5 air quality)

Package Info: Weight: 0.70kgs / 1.55lb, Size: 46cm * 22cm * 8cm / 18.11inch * 8.66inch * 3.15inch
