Waveshare 16-Channel 12-bit I2C Servo Driver HAT for Raspberry Pi, 15275 – Bluetooth, TPU

Waveshare 16-Channel 12-bit I2C Servo Driver HAT for Raspberry Pi, 15275 – Bluetooth, TPU.

Key Features:

• About The Product
• Needless to say, the Raspberry Pi is powerful enough in most cases, yet it is not that good at providing precise PWM output. You may have tried to control a...
• Features

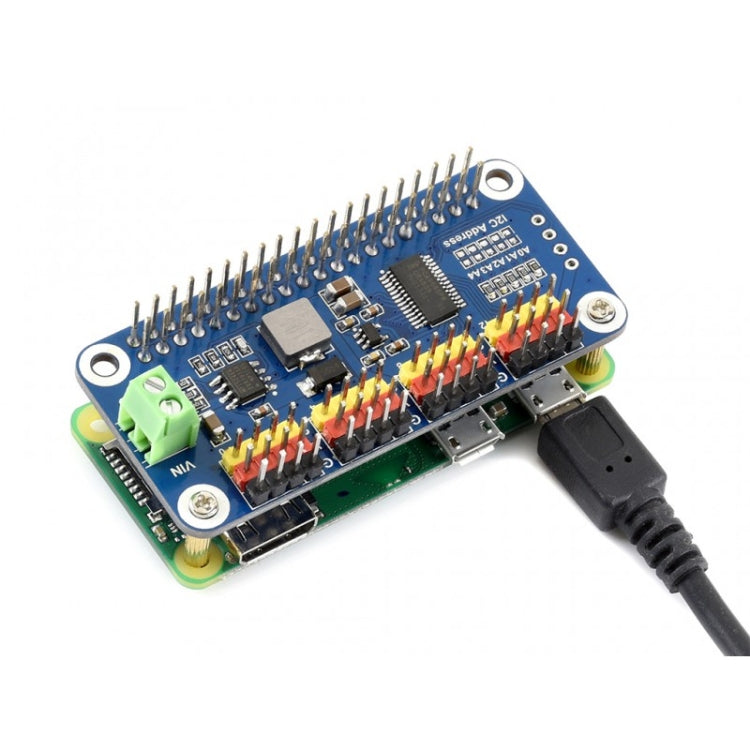

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• I2C controlled, using only 2 pins
• Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
• Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
• Reserved I2C control pins, allows to work with other control boards
• Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)
• Specifications
• Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
• Servo voltage: 5V
• Logic voltage: 3.3V
• Driver: PCA9685
• Control interface: I2C

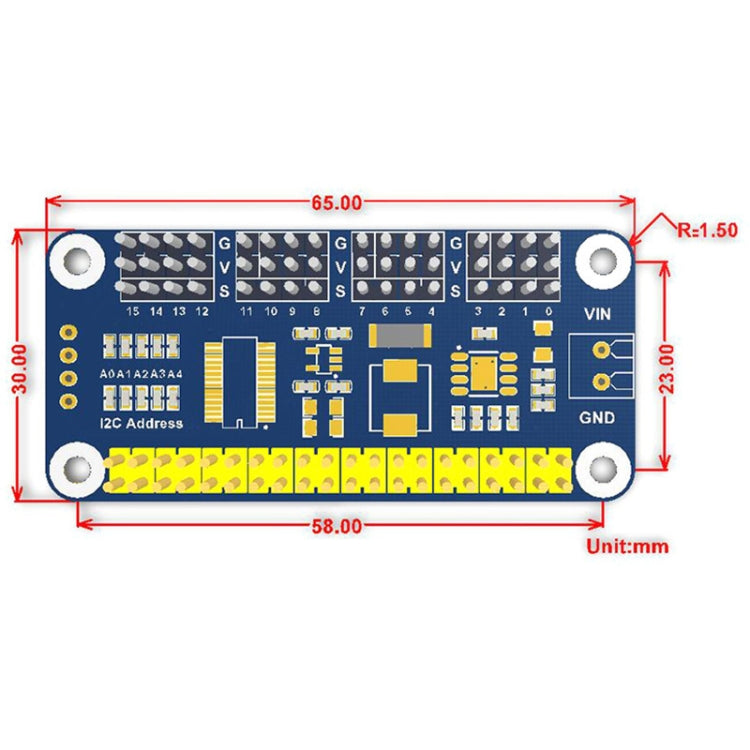

• Dimension: 65mm x 30mm
• Mounting hole size: 3.0mm
• Supported Servo

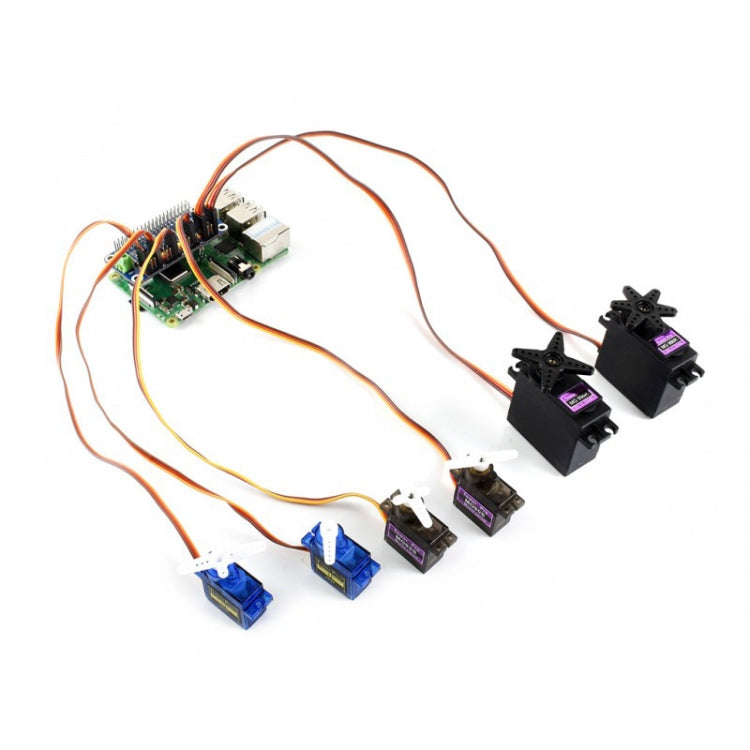

• This HAT can be used to drive servos such as:
• - SG90 Servo
• - MG90S Servo
• - MG996R Servo
• Package List
• Servo Driver HAT x1
• RPi screws pack (2pcs) x1
• Note: Raspberry Pi and servos are NOT included.

Package Info: Weight: 0.03kgs / 0.07lb, Size: 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch
