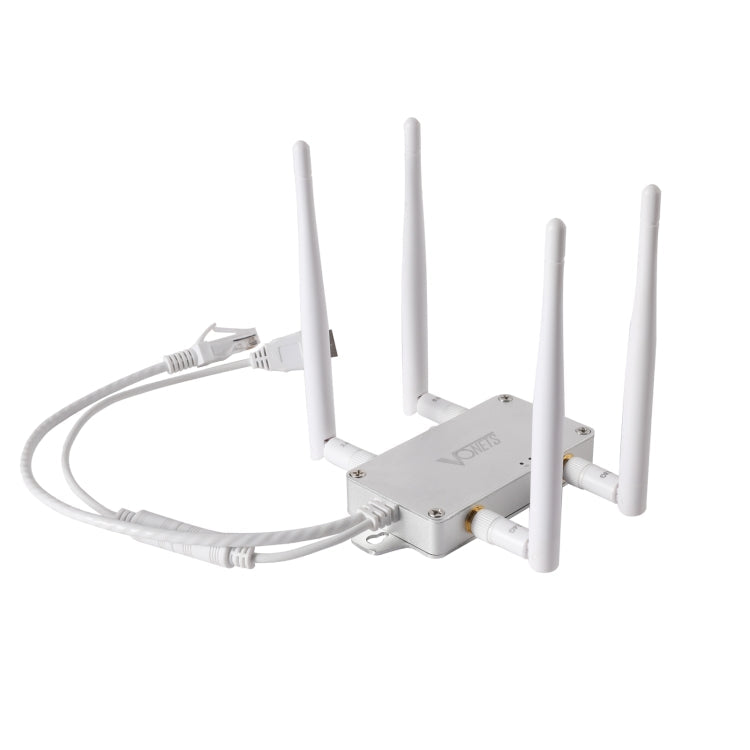

VONETS VBG1200 300Mbps+900Mbps Dual Band Wireless Router Repeater WIFI Base Station with 4 Antennas – Aluminum Alloy, TPU

VONETS VBG1200 300Mbps+900Mbps Dual Band Wireless Router Repeater WIFI Base Station with 4 Antennas – Aluminum Alloy, TPU.

Key Features:

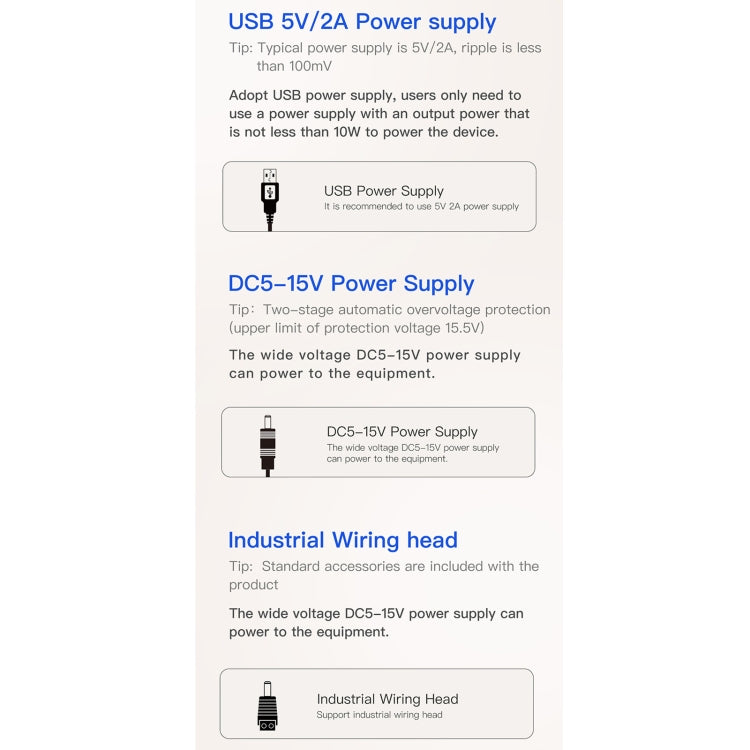

• Support wide voltage DC5-15V power supply, two-level automatic overvoltage protection (protection voltage upper limit 15.5V)
• The output power of the power supply is not less than 10W (typical power supply 5V/2A, ripple less than 100mV)
• Module power consumption: 1.3W - 3.75W
• WiFi working frequency band: 2.4G + 5G

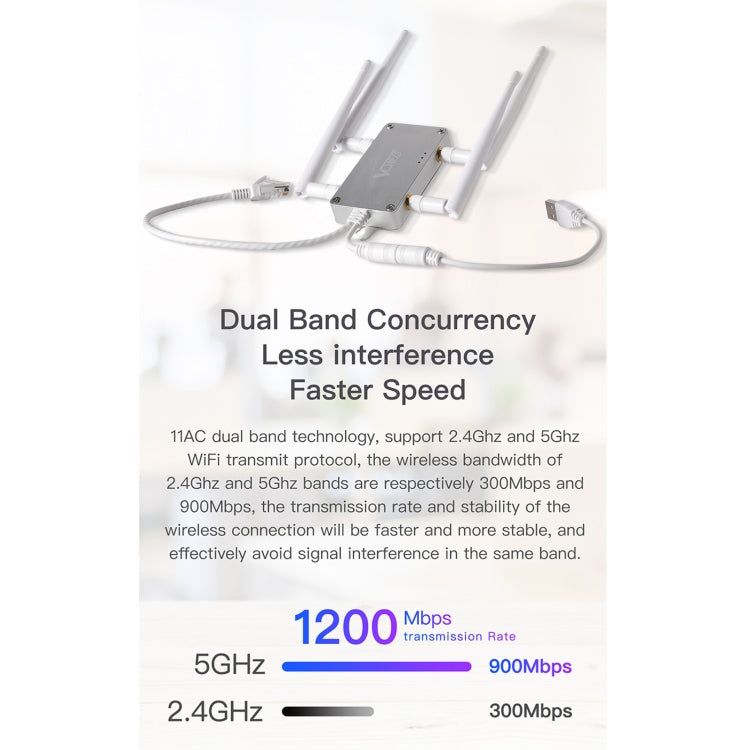

• Wireless transmission rate: 300Mbps(2.4G)+900Mbps(5G)

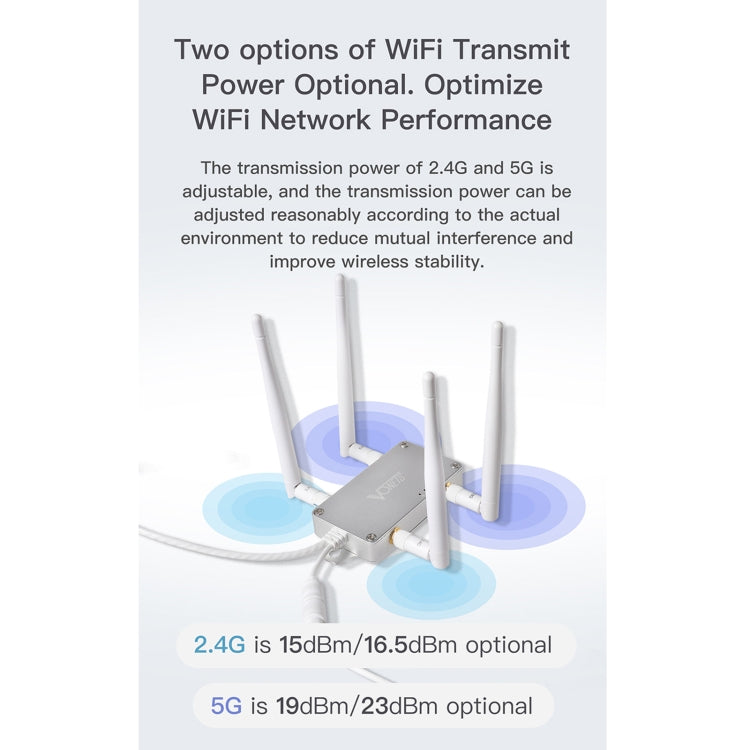

• Transmit power: 2.4G is 15dBm/16.5dBm optional, 5G is 19dBm/23dBm optional

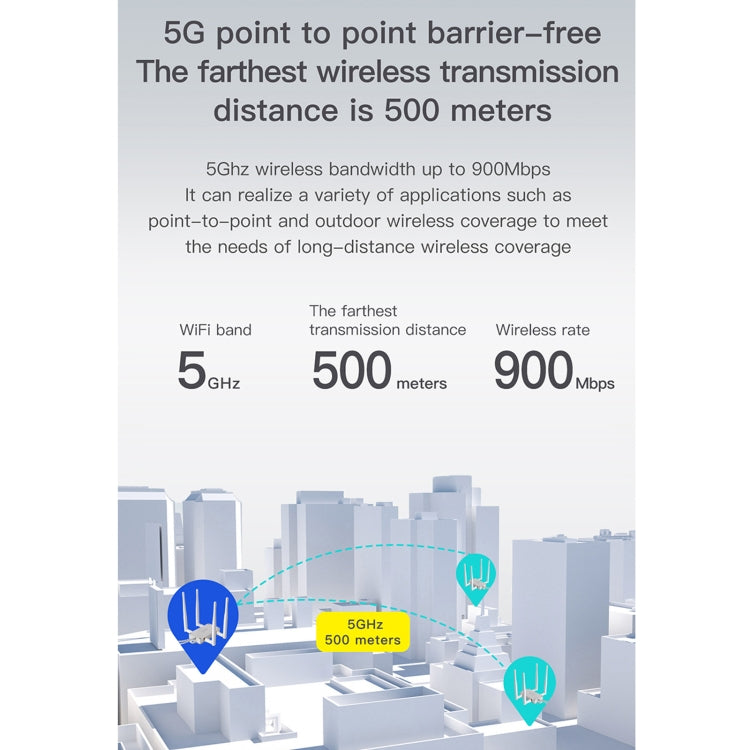

• Point-to-point barrier-free transmission distance: 500 meters (5G frequency band)
• The module has a built-in low-noise amplifier (LNA) with a receiving sensitivity of 14dB
• Standard external antennas: 2 3dBi 2.4G antennas, 2 3dBi 5G antennas
• Using digital-analog temperature compensation and frequency stabilization technology, the WiFi signal is more stable and not easy to drop
• The aluminum alloy shell has good heat dissipation characteristics, which can quickly dissipate the heat generated when the equipment is working
• Working environment temperature: -20 to 50 degrees Celsius

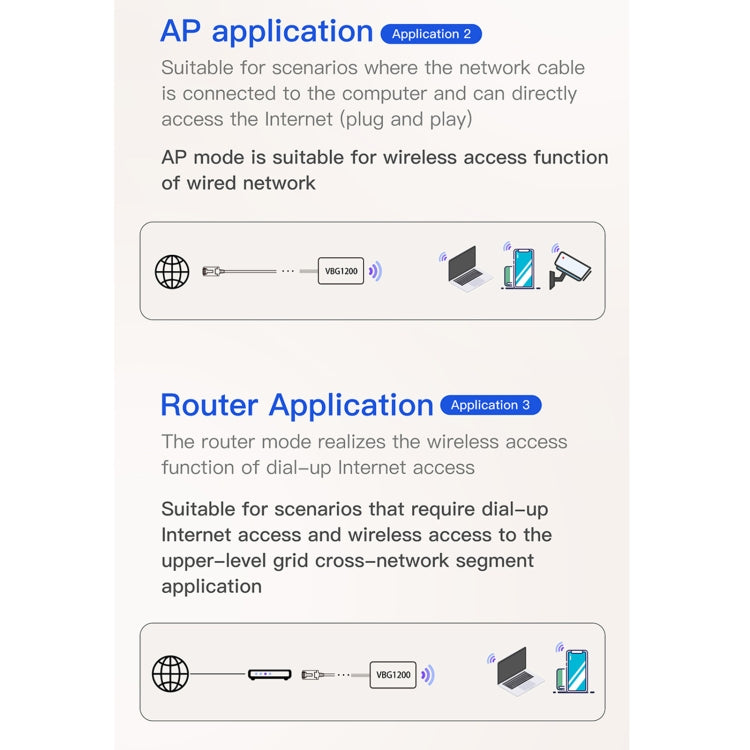

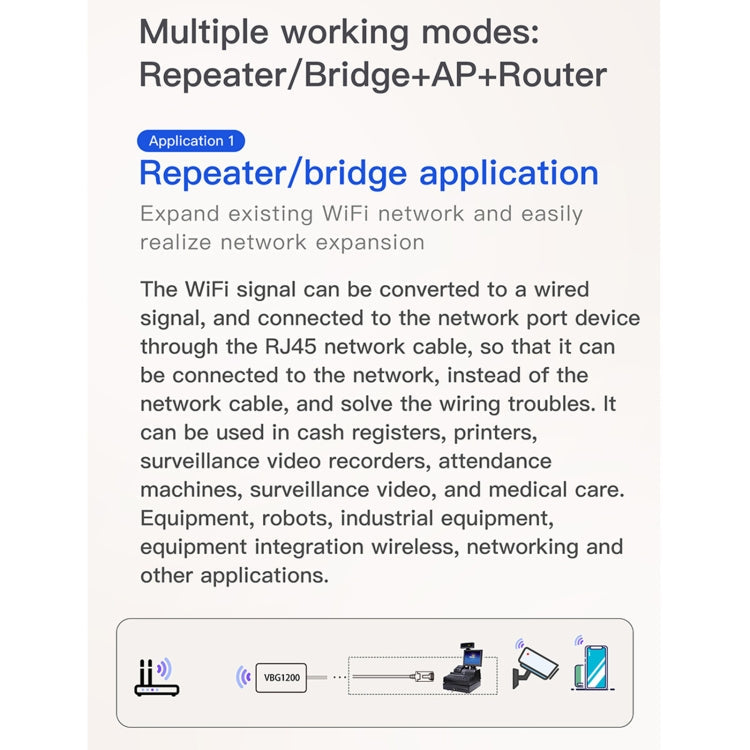

• Support WiFi intelligent bridge relay, which can realize the functions of wireless to wired and wired to wireless
• Support 802.11ac, 802.11a, 802.11n and other WiFi transmission protocols
• Support WiFi hotspot automatic reconnection, two hotspot matching methods: full matching authentication mode, SSID and password authentication mode
• Support WiFi hotspot memory, memorize 100 hotspots
• Support simultaneous connection of more than 20 WiFi terminal devices
• Support SSA protocol, built-in hotspot signal strength detection and reporting function, realize WiFi mobile positioning
• Supports forced shutdown of hotspots and forced shutdown of WiFi hardware
• WiFi hotspot connection parameter import and export function
• Adopting VDNS virtual domain name configuration technology to ease user configuration difficulties
• Using WEB management, you can freely switch between Chinese and English configuration interface
• Support online upgrade
• Support two bridge modes of IP layer transparent transmission and MAC layer transparent transmission to meet various bridge applications

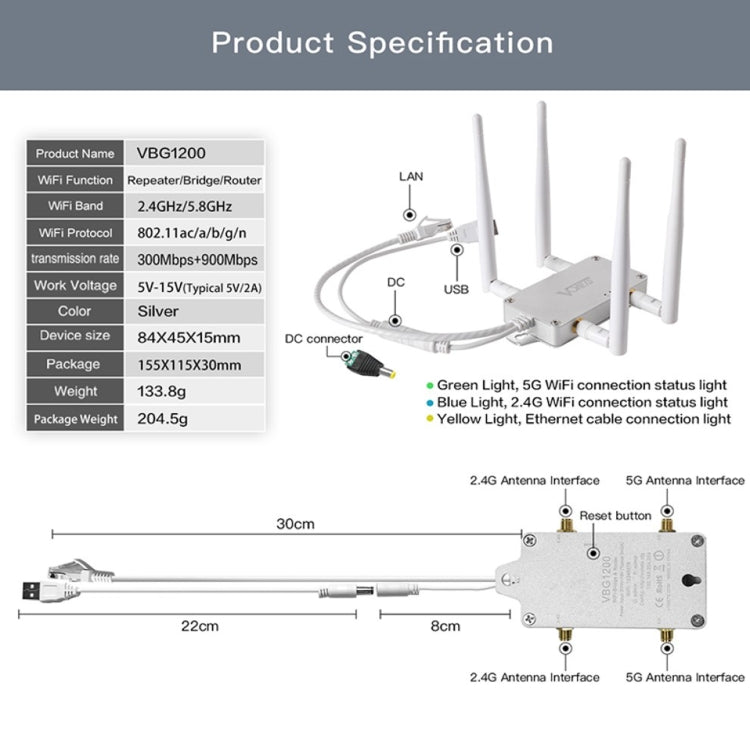

• Dimensions: 84x45x15mm
• Weight: 133.8g

Package Info: Weight: 0.21kgs / 0.47lb, Size: 16cm * 12cm * 3cm / 6.3inch * 4.72inch * 1.18inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
