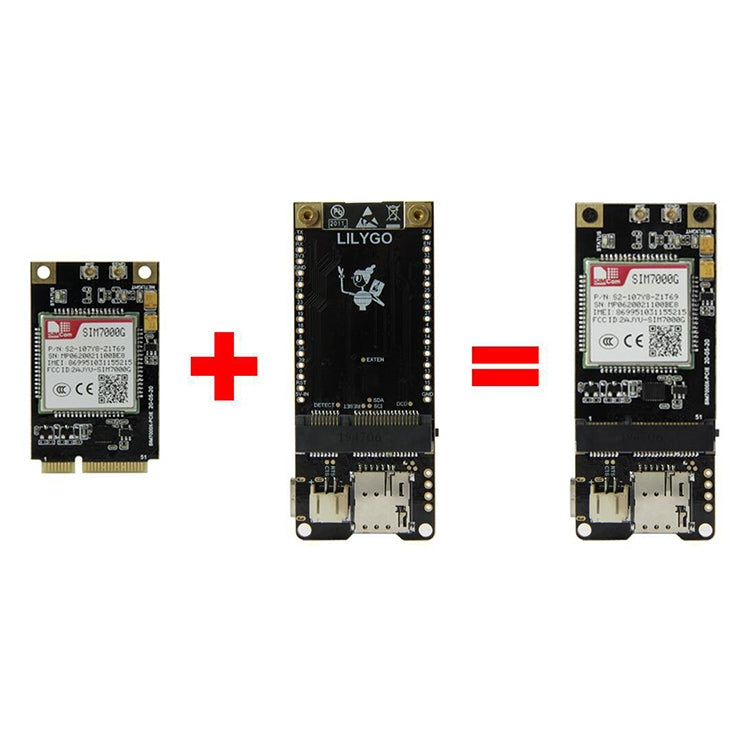

TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WiFi Bluetooth Nano Card SIM Series Module Hardware Composable Development Board, PCIE-SIM7070G Module, PCIE-SIM7070G Module – Card Slot, Bluetooth

TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WiFi Bluetooth Nano Card SIM Series Module Hardware Composable Development Board, PCIE-SIM7070G Module, PCIE-SIM7070G Module – Card Slot, Bluetooth.

Key Features:

• About The Product
• Hardware specifications
• Chipset: ESP32-WROVER-B, AXP192 power management chip
• Flash: 4MB /16MB
• Static SRAM: 8MB
• SRAM: 520 kB SRAM
• Button: PWR power switch, reset
• USB to TTL: CP2104
• Vehicle clock: 40MHz crystal oscillator
• Peripheral equipment: SIM Nano card slot, Mini PCIE card slot
• Antenna: Onboard antenna (default)
• Working voltage: 2.7V to 3.6V
• Sleep current: About 700ma
• Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius
• Dimensions: 75 x 33 x 10.5 mm
• Weight: 14.5g
• Power Specifications
• Power input: USB 5V / 1A
• Charging current: 500 mA
• Battery input: 3.7-4.2V
• Charging IC: AXP192
• JST connector: 2-pin 2.0mm
• USB: Type C
• wireless online
• Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip)
• Protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4uS guard interval
• Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
• Transmit power: 22dBm
• Communication distance: 300m
• Bluetooth
• Protocol: Compliant with Bluetooth v4.2BR/EDR and BLE standards
• Radio frequency: NZIF receiver Class-1 with sensitivity of -97dBm, Class-2&Class-3 transmitter AFH
• Audio: CVSD&SBC audio
• Software specifications
• Wi-Fi mode: Workstation / SoftAP / SoftAP + Station / P2P
• Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS
• Encryption method: AES / RSA / ECC / SHA
• Firmware upgrade: UART download/OTA (download and write firmware via network/host)
• Software development: support cloud server development / SDK for user firmware development
• Network protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
• User configuration: AT + command set, cloud server, Android / iOS app
• Operating system: FreeRTOS

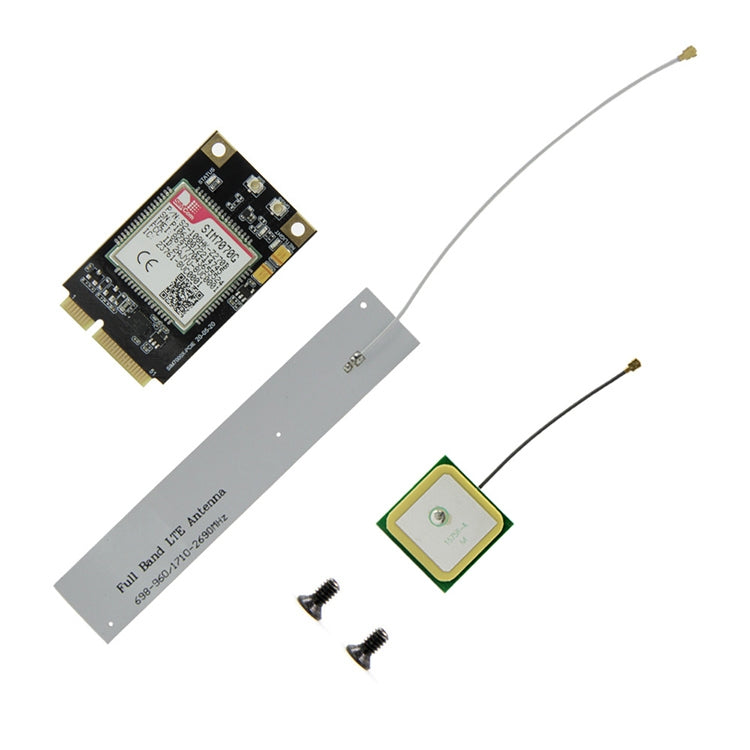

• Packing list
• PCIE-SIM7070G module x 1
• LTE antenna x 1
• GPS antenna x 1
• Screw x 2

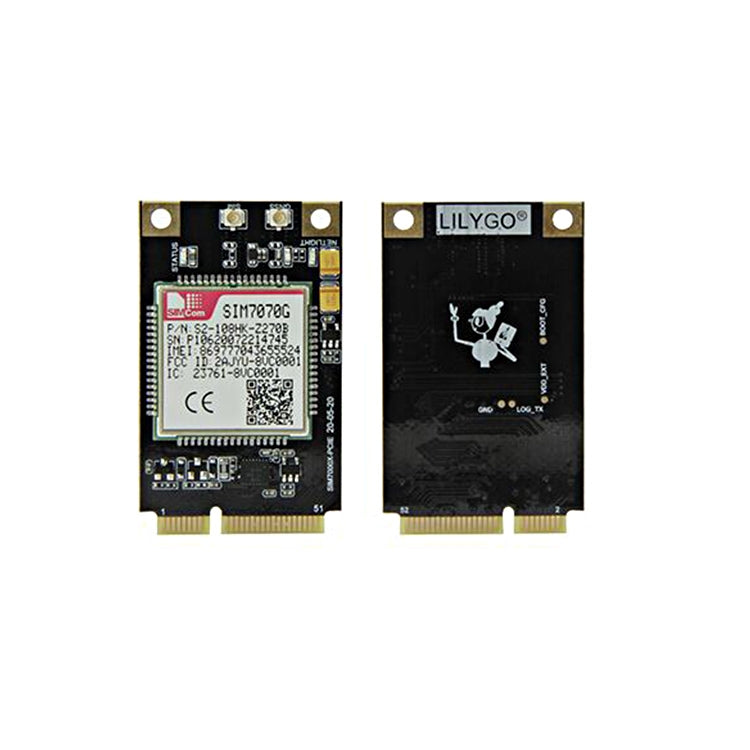

• SIM7070G
• SIM7070G suitable global:
• NB-IOT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
• CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
• GSM/GPRS/EDGE: 850/900/1800/1900MHz
• GNSS: C/A CODE
• - GPS L1:1575.42+/-1.023MHz
• - GLONASS L1: 1598.0625~1605.375MHz
• - BDS B1: 1559.052~1591.788MHz
• - GALILEO L1:1575.42+/-1.023MHz

Package Info: Weight: 0.03kgs / 0.06lb, Size: 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch
