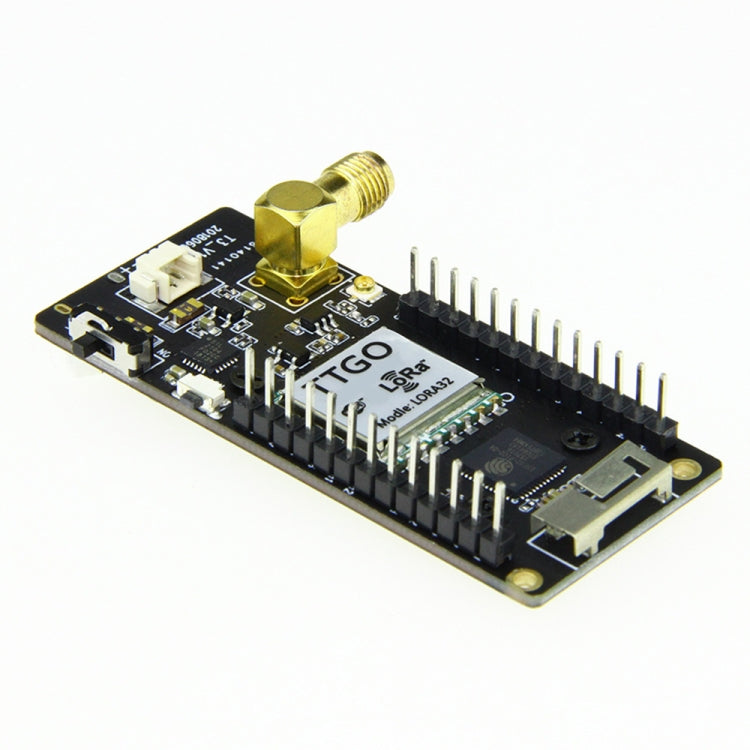

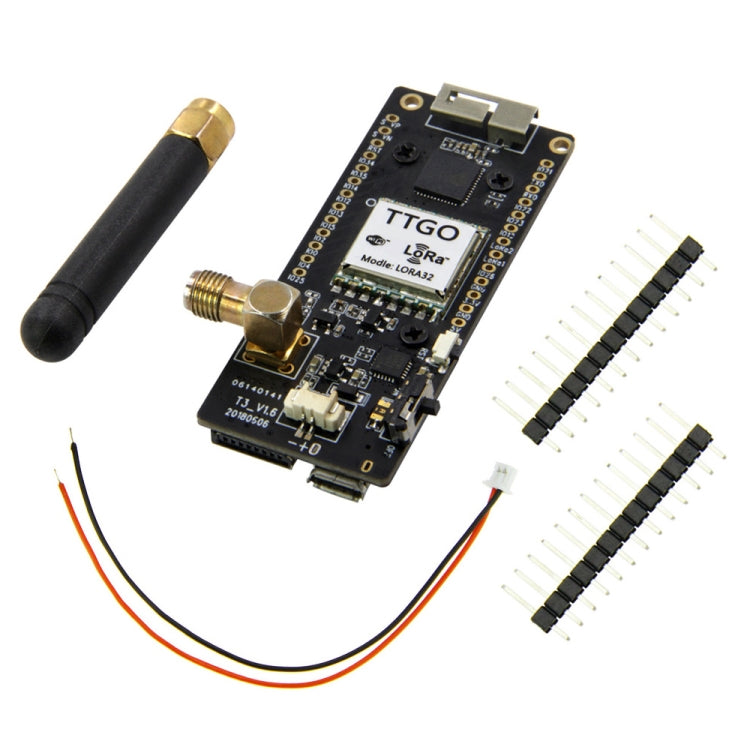

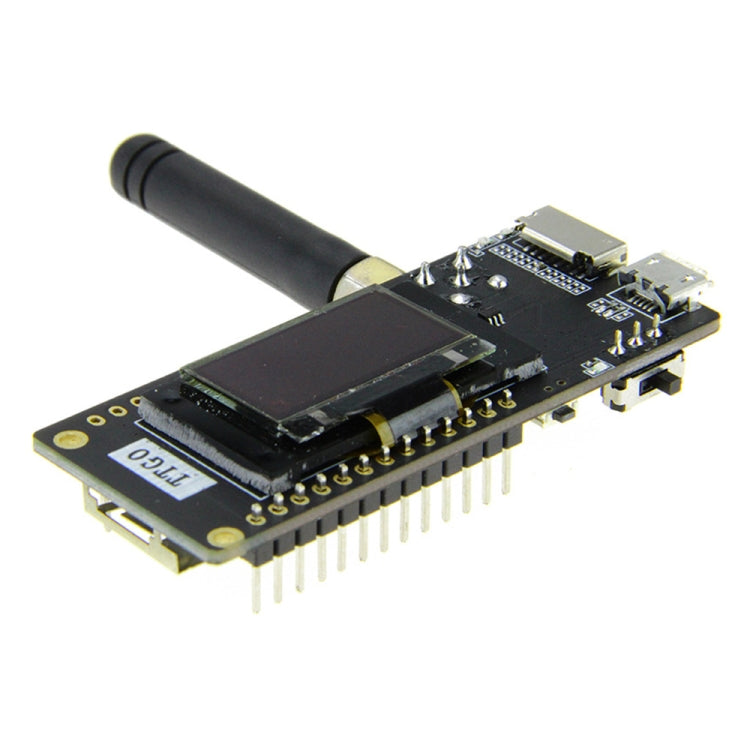

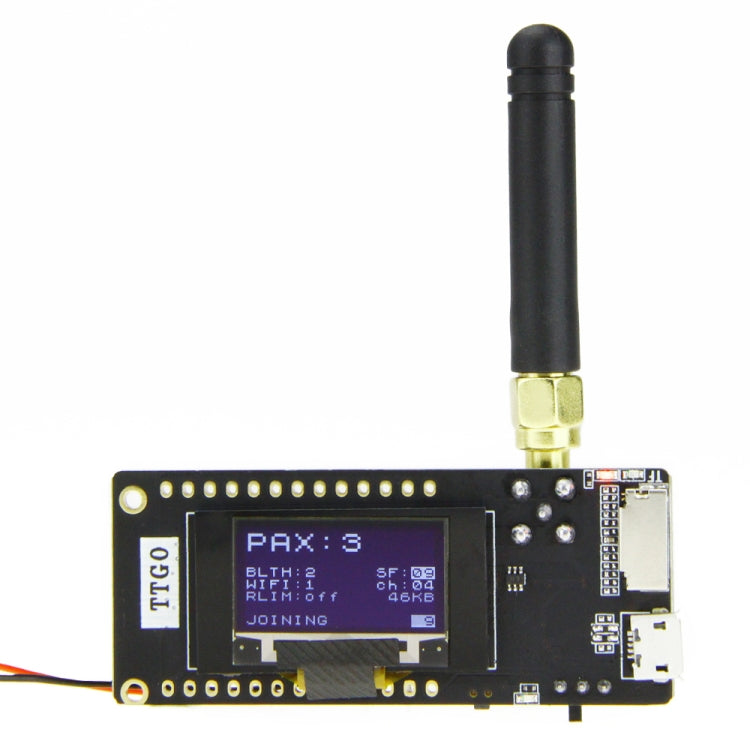

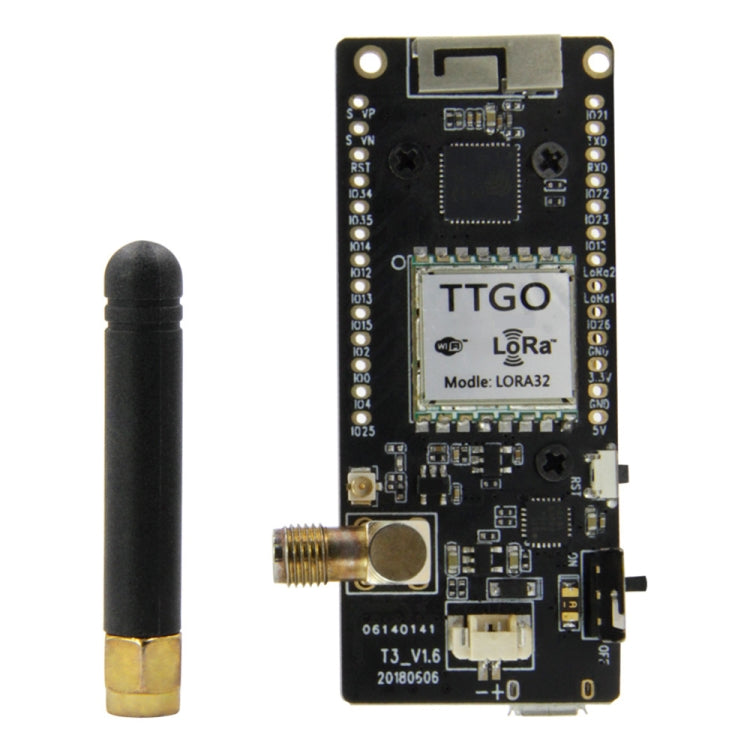

TTGO LORA32 V2.1 ESP32 0.96 inch OLED Bluetooth WiFi Wireless Module 915MHz SMA IP5306 Module with Antenna, 915MHz – Bluetooth

TTGO LORA32 V2.1 ESP32 0.96 inch OLED Bluetooth WiFi Wireless Module 915MHz SMA IP5306 Module with Antenna, 915MHz – Bluetooth.

Key Features:

• Working voltage: 1.8~13.7V
• Acceptable current: 10~114mA
• Emission current:
• - 120mA at + 20dBm
• - 90 mA lies at +17dBm
• - 29mA at +13dBm
• Working frequency: 915MHz
• Transmitting power: + 20dBm
• Receiving sensitivity:
• - 139dBm lies at LoRa & 62.5Khz & SF = 12 & 146bps
• - 136dBm lies at LoRa & 125Khz & SF = 12 & 293bps
• - 118dBm lies at LoRa & 125Khz & SF = 6 & 9380bps
• - 123dBm lies at FSK & 5Khz & 1.2Kbps
• Frequency error: +/- 15KHz
• FIFO space: 64Byte
• Data rate:
• -1.2K~1300Kbps at FSK
• -0.018K~37.5Kbps at LoRa
• Modulation mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
• Interface form: SPI
• Sleep current:
• - 0.2uA SLEEP
• - 1.5uA IDLE
• Working temperature: -40 degrees Celsius-+ 85 degrees Celsius
• Digital RSSI function
• Automatic frequency correction
• Automatic gain control
• RF wake-up function
• Low voltage detection and temperature sensor
• Fast wake-up and frequency hopping
• Highly configurable packet handler
• SMA antenna IP5306
• This product is based on LoRa radio frequency, 868MHz (common in North America), 915MHz (common in Europe) and 433MHz (common in Asia Pacific)

Package Info: Weight: 0.08kgs / 0.17lb, Size: 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch
