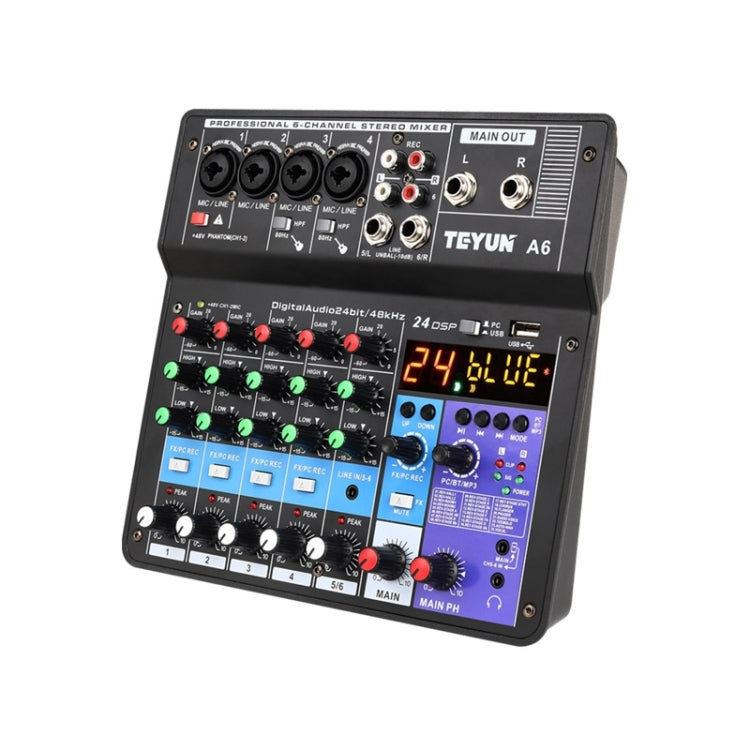

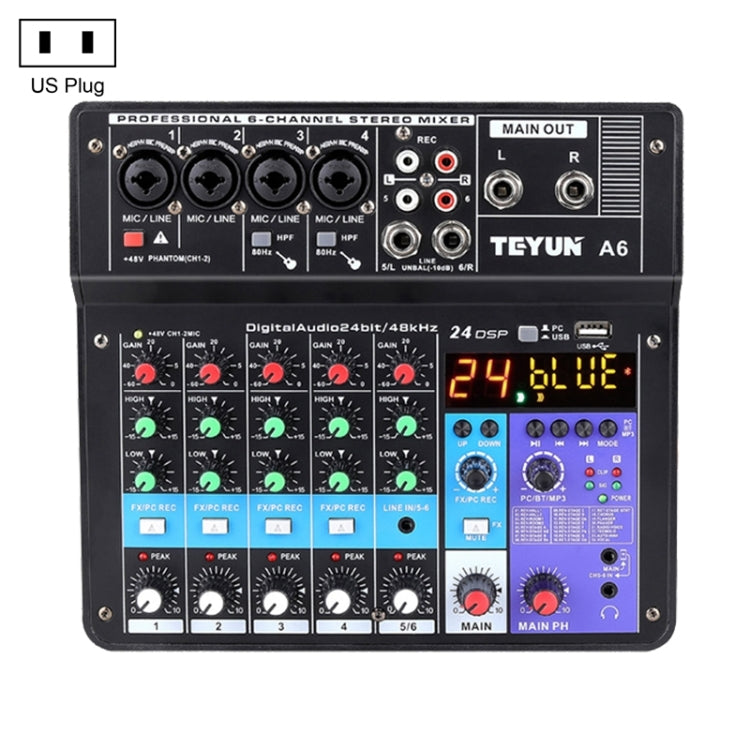

TEYUN NA6 6-channel Small Mixing Console Mobile Phone Sound Card Live Broadcast Computer Recording Console Processor, US Plug, NA6 US Plug – Bluetooth, TPU

TEYUN NA6 6-channel Small Mixing Console Mobile Phone Sound Card Live Broadcast Computer Recording Console Processor, US Plug, NA6 US Plug – Bluetooth, TPU.

Key Features:

• Features
• Mixing console The analog mixing console is combined with a digital sound card, with 6 channels, personalized function settings, and convenient console...
• Intelligent noise reduction, high-fidelity sound quality, clear and bright vocals.
• Built-in high-speed ARM chip, with unique low-noise, voice-changing, pitch-changing, reverberation, delay, electronic sound effects and other processing...

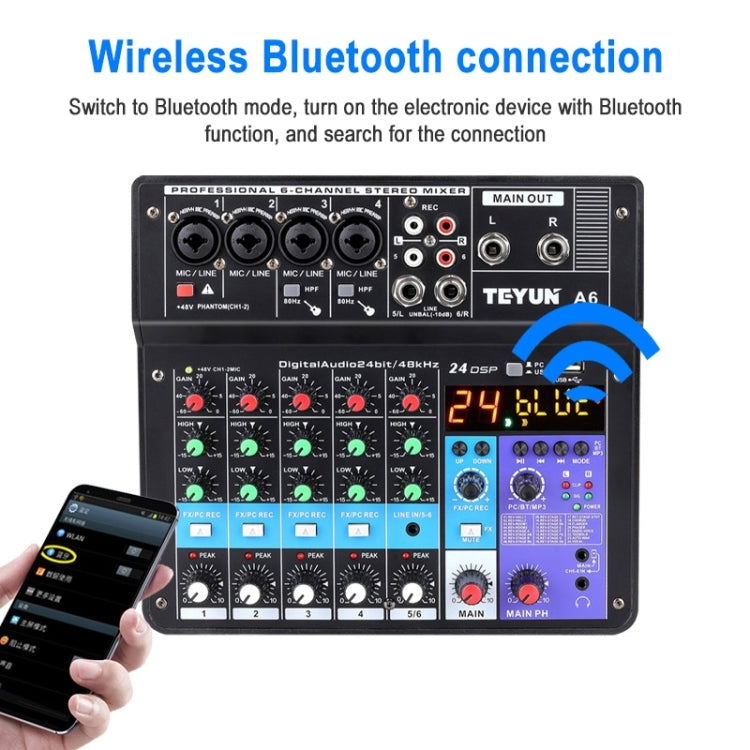

• For wireless Bluetooth connection, switch to Bluetooth mode, turn on the electronic device with Bluetooth function, and search for the connection.

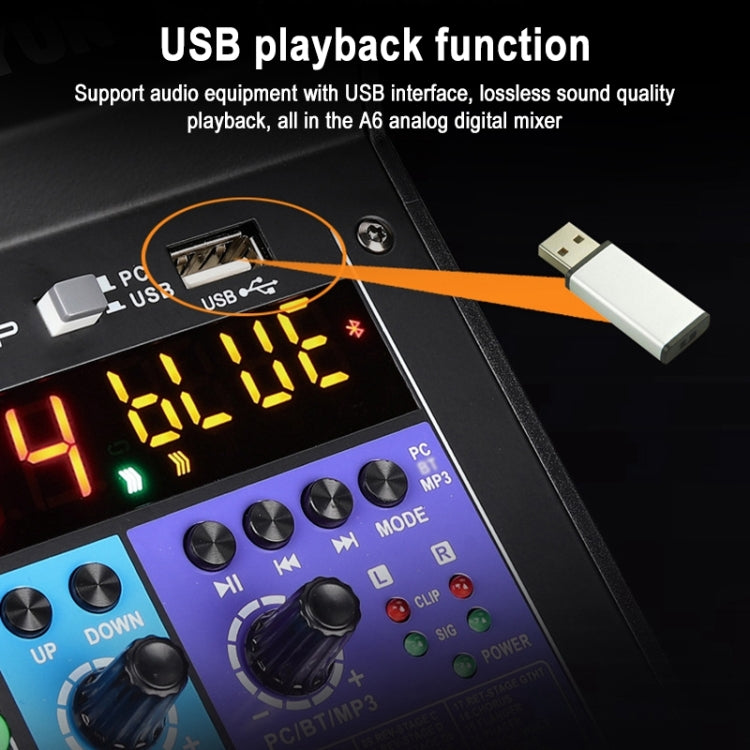

• Support audio equipment with USB2.0 interface, lossless sound quality playback, all in NA4 analog digital mixer.
• The flexible LOOPBACK function is perfect for recording and webcasting. The LXR combined microphone input interface is adopted, and the level of the...
• Specification
• Frequency response: 0.05%dB/-2.0dB (20Hz to 20kHz), refer to the rated output level @1kHz, GAIN knob: medium
• Total harmonic distortion (THD+N): 0.02%@+10dBu (20Hz to 20kHz), GAIN knob: Medium
• Noise (20Hz to 20kHz): residual output noise, -85dBu (STEREO OUT, STEREO LEVE), GAIN knob: small
• Crosstalk (1kHz)*2: -83dB
• Input/output impedance:
• Microphone input: 3k Ohm, line input: 10k Ohm
• Output: 150 Ohm (balanced) 75 Ohm (unbalanced)
• AES digital signal input and output: 110 Ohm

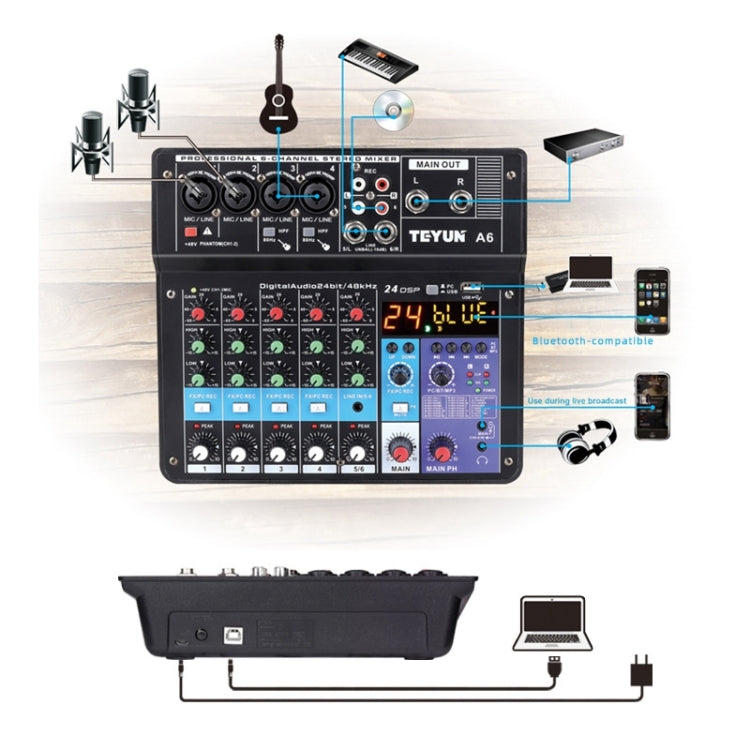

• Input channels: MIC*4, 2REC, PC, 2LINE, USB, BT, 3.5MINI
• Output channel: STEREO OUT: 2, PHONES:1, 3.5MINI MAIN PH OUT:1, 2.GROUP PH:1.3.5MINI LOOP BACK output: 2.REC
• Bus: Stereo: 1, GROUP:1.
• Input channel function:
• HPF(Mono)80Hz,12dB/octave (CH3,4) EQ HIGH
• Gain: +15dB/-15dB frequency: 10kHz ramp frequency: EQ LOW
• Gain: +15dB/-15dB Frequency: 100kHz Ramp frequency: PEAK LED When the signal after EQ reaches 11. 3dB below the distortion, the LED lights up
• LED indication: MAIN STEREO LEVEL knob, the green light is on when the MAIN LEVEL signal reaches -10dB, and the red light is on when the signal reaches 3dB...
• Input and output level: MIC (-60dB) LINE OUTPUT (-40dB) MAX OUT (+12dB)
• USB audio: 2IN/2OUT USB audio 2.0 compatible, decoding rate: 48.1kHz, Bit depth: 24-bit
• Effect category: independent volume adjustment effect: true digital effect processing
• Phantom power supply voltage: support large diaphragm condenser microphone
• Voltage adapter: DC 5V/2.0A standard
• 24 types of DSP
• Reverberation:
• Simulate reverberation in small spaces such as concert halls
• Simulate the reverberation of the acoustic environment of a small space (auditorium)
• Simulate the reverberation in large spaces such as theaters
• Echo of the Valley
• Electronic synthesis sound effects:
• Electronic Mix (A flat major)
• Electronic Mix (A major)
• Electronic Mix (B-flat major)
• Electronic Mix (B major)
• Electronic Mix (C major)
• Electronic Mix (D-flat major)
• Electronic Mix (D major)
• Electronic Mix (E-flat major)
• Electronic Mix (E major)
• Electronic Mix (F major)
• Electronic Mix (G flat major)
• Electronic Mix (G major)
• Electronic mixing (semitone scale)
• Synthetic sound effect with altered voice:
• Female Voice
• Uncle Tone Flanger
• Children Voice
• Childish Echo
• Magic Sound (Male)
• Magic Sound Echo (Male)
• Original Sound

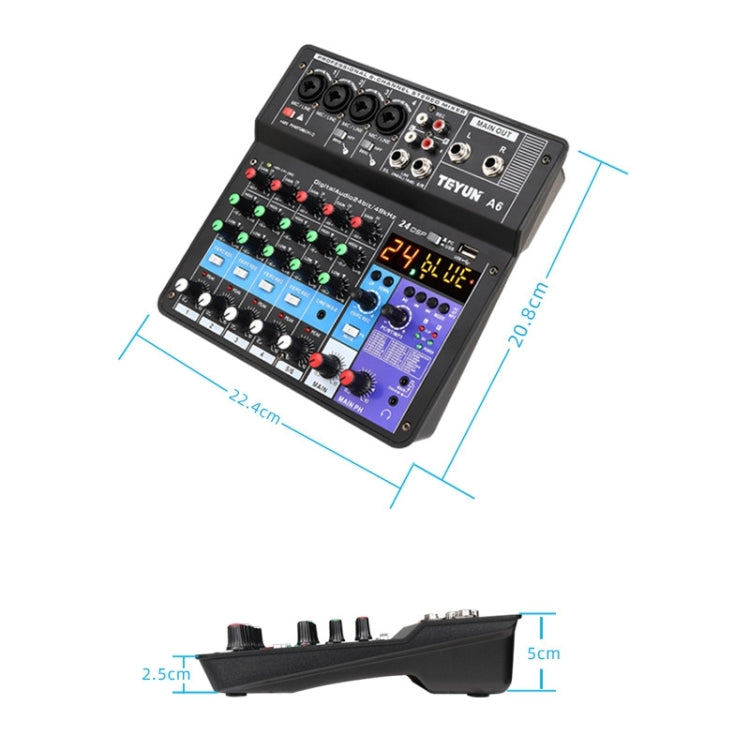

Package Info: Weight: 1.27kgs / 2.81lb, Size: 28cm * 26cm * 9cm / 11.02inch * 10.24inch * 3.54inch
