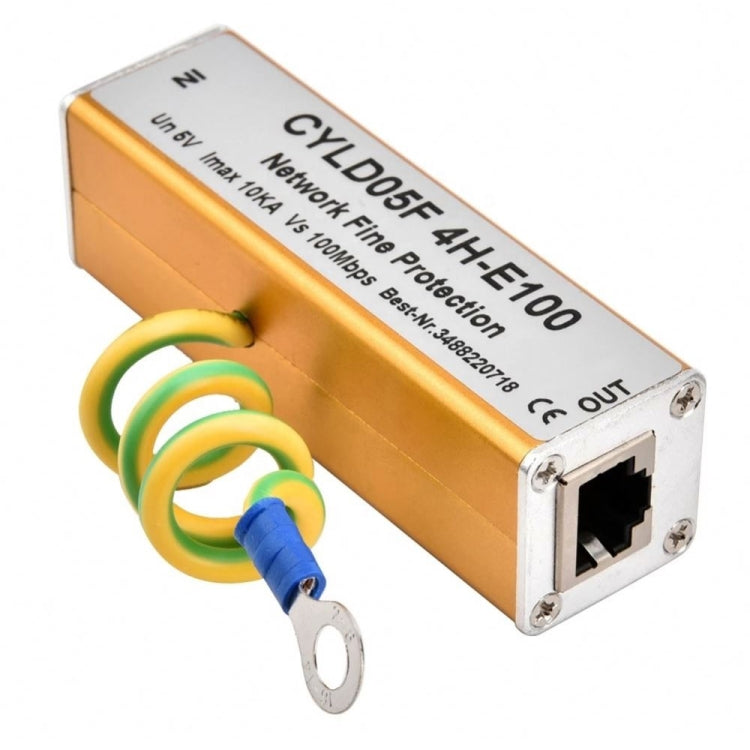

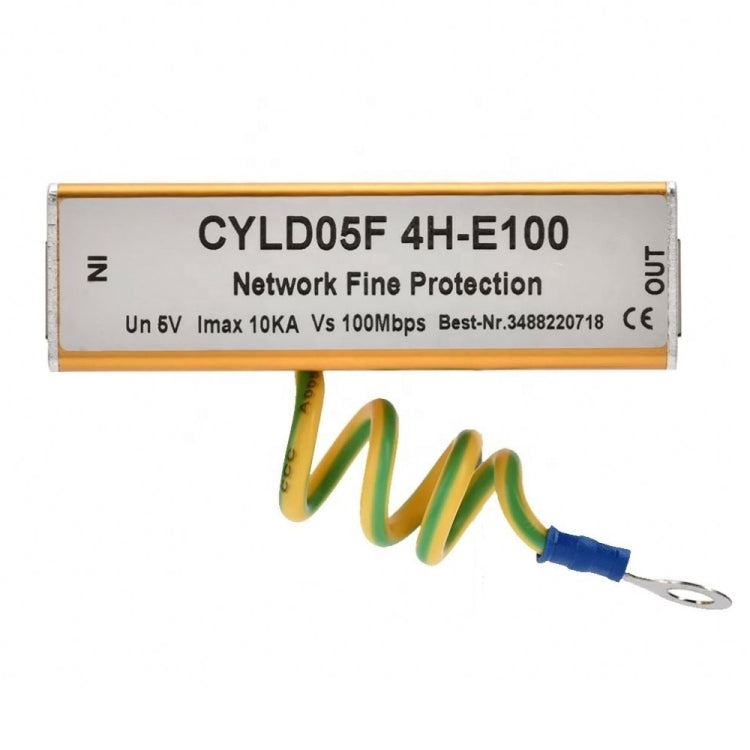

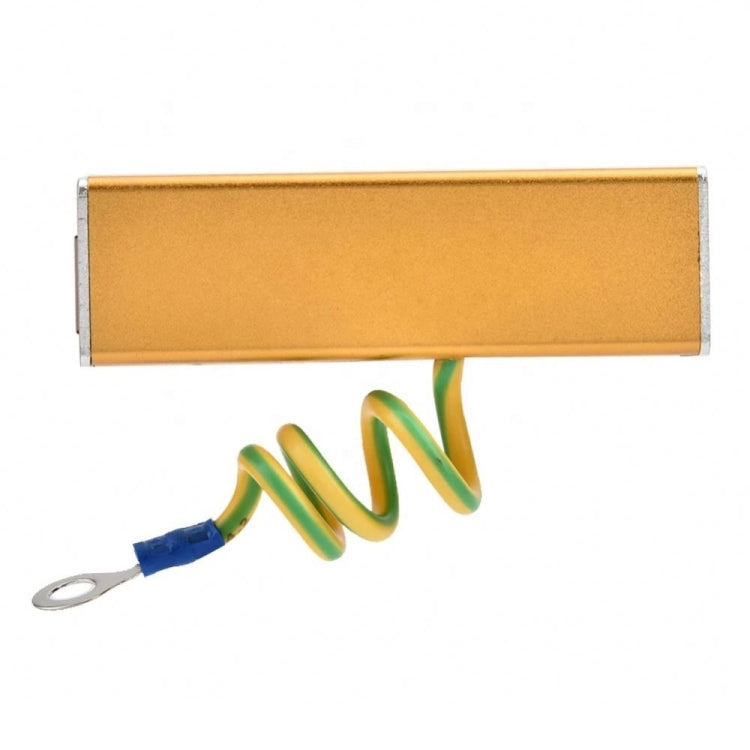

Network Surge Arrester Surge Protection Device (CYL D05F4H-E100), CYL D05F4H-E100 – Durable Build, Easy to Use

Network Surge Arrester Surge Protection Device (CYL D05F4H-E100), CYL D05F4H-E100 – Durable Build, Easy to Use.

Key Features:

• Function:
• Protect data transit in Ethernet from surge.Make sure system and equipment safety when surge come from thunderbolt or static
• Features:
• Large elecric current support , multiple level protection, quickly response, minor wastage when join them.
• Technical parameter:
• Model: CYL D05F4H-E100
• Responsive time: Less than or equal 1ns
• Operating Temperature: -40?°C to + 80?°C; Humidity a?¤95% (25-30?°C)
• Discharge current: 10KA
• Rated voltage: 5V
• Protection voltage: 12-18V
• Joint wastage: Less than or equal 0.5dB
• Transmission speed: 100Mbps
• Protect pin:1/2/3/6
• Size: 80x26x26mm
• Net weight: 100g

Package Info: Weight: 0.12kgs / 0.26lb, Size: 13cm * 7cm * 4cm / 5.12inch * 2.76inch * 1.57inch
