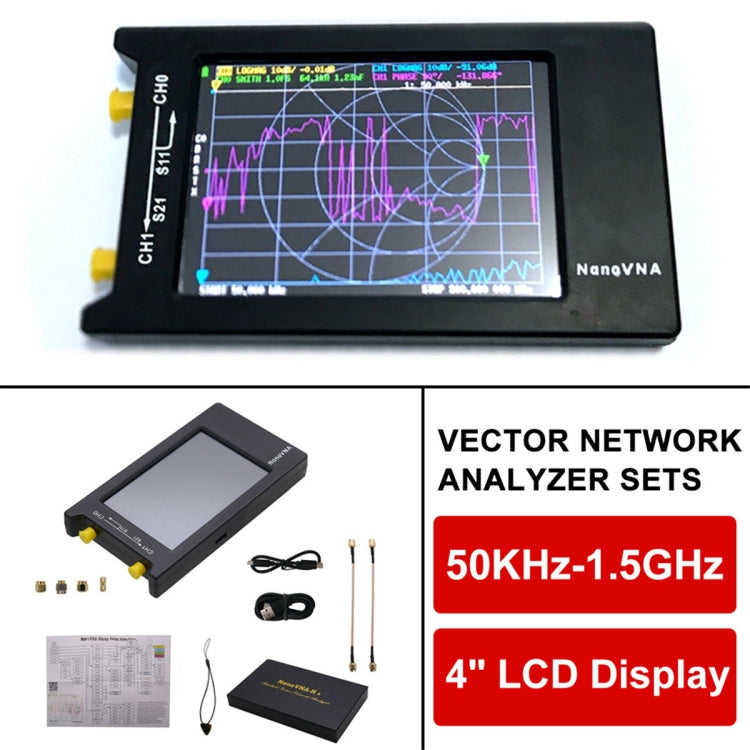

NANOVNA-H Upgraded Version 2.8 Inch TFT 50Khz-1.5Ghz Vector Network Antenna Analyzer MF HF VHF UHF With SD Card Slot Without Card, 4 Inch – Card Slot, TPU

NANOVNA-H Upgraded Version 2.8 Inch TFT 50Khz-1.5Ghz Vector Network Antenna Analyzer MF HF VHF UHF With SD Card Slot Without Card, 4 Inch – Card Slot, TPU.

Key Features:

• A 4-inch LCD screen is used. Due to the larger screen, there is more PCB space for installing components and batteries
• Use an independent charge pump to power the mixer and add tantalum capacitors, which can further reduce power supply noise
• In order to make it easier for geeks to create more possibilities, UART1 and PC14, PC15 interfaces are drawn on the PCB, which is convenient for DIY expansion
• ABS shell, can effectively protect SMA connectors and buttons
• DC dimming is added, it can be seen more clearly when used outdoors, and it is more comfortable to use indoors.
• Optimized the bridge to make full use of the Si5351s harmonics. Now the 5th harmonic can be used to measure to 1.5GHz;
• When the fundamental wave is used, the output level of CH0 is increased to 0dBm, and the reflection measurement is more accurate;
• Solve the previous abnormality of NanoVNA-H near 6MHz
• The redesigned power management circuit further reduces power noise, reduces USB power interference, reduces charging current, and protects the battery
• Optimized PCB layout, accommodating 1950mAh battery, more than 8 hours of use

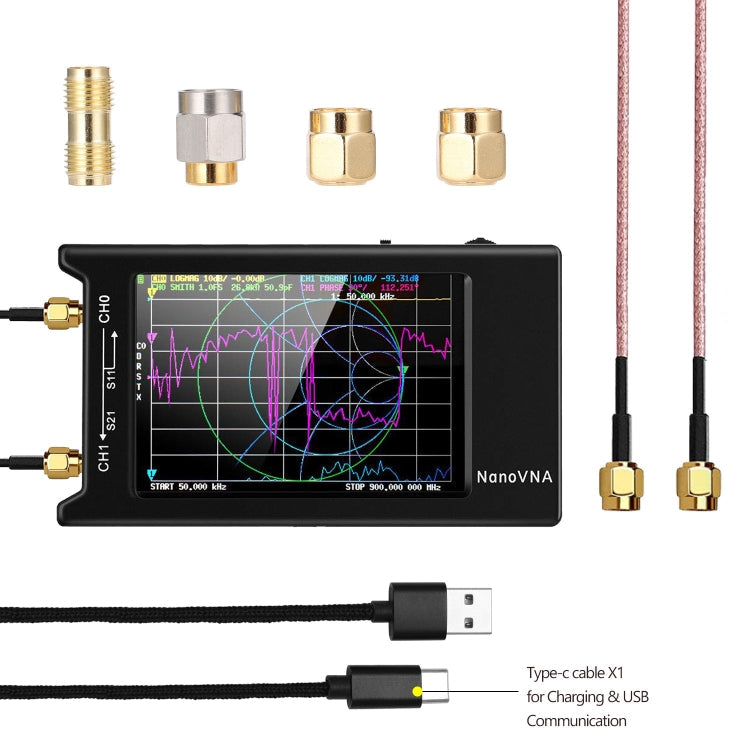

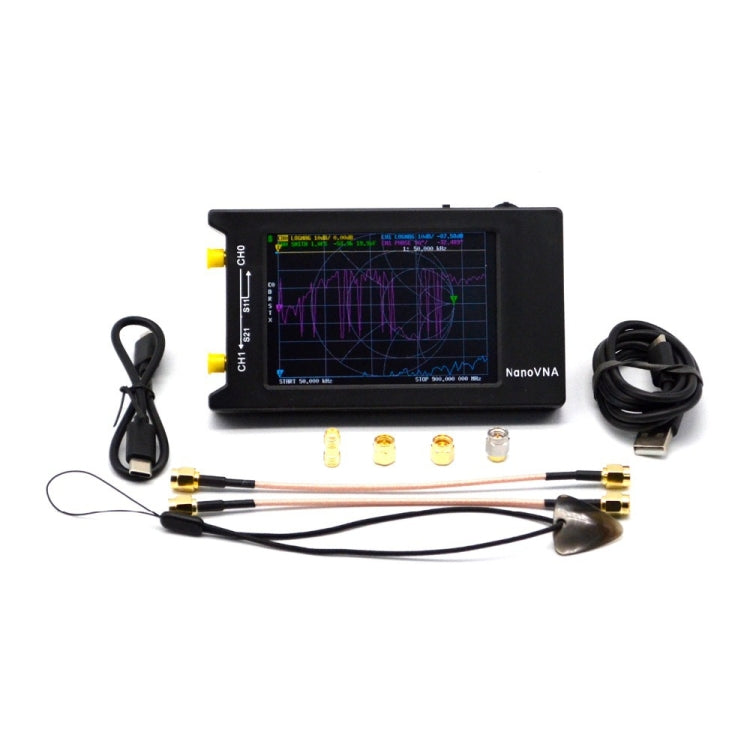

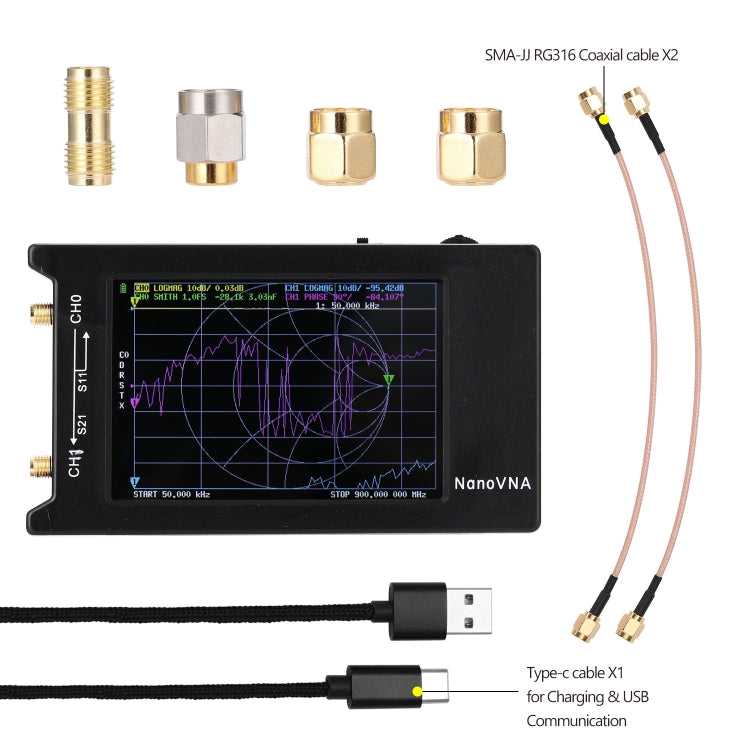

• packing list:
• NanoVNA host x 1 (including 4-inch touch screen, 2000mAh battery)
• 15cm SMA male to male RG316 RF cable x 2
• SMA female to female connector x1
• SMA simple calibration kit SHORT x1
• SMA simple calibration kit OPEN x1
• SMA simple calibration kit LOAD x1
• USB Type-C data cable x1
• Type-c to Type-c x1 supports connection with most Android phones
• One pick

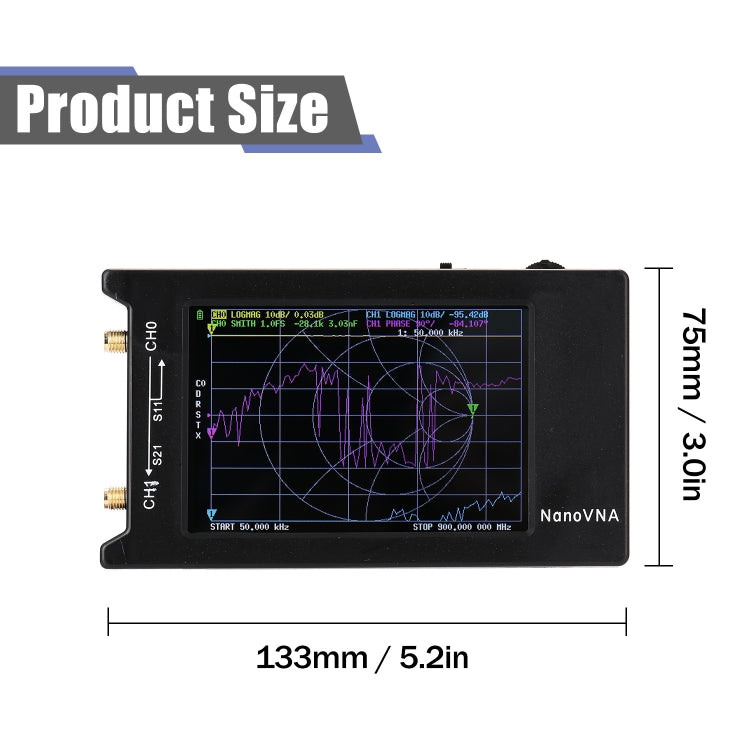

Package Info: Weight: 0.40kgs / 0.89lb, Size: 24cm * 14cm * 3cm / 9.45inch * 5.51inch * 1.18inch
