LDTR-WG0234 1100 Meter Long Distance NRF24L01+PA+LNA Wireless Module with Antenna – Data Transmission

LDTR-WG0234 1100 Meter Long Distance NRF24L01+PA+LNA Wireless Module with Antenna – Data Transmission.

Key Features:

• NRF24L01P + PA + LNA Division for the ultra-long-distance data transmission, specially developed high-power and high sensitivity wireless module 2.4G ISM...
• Digital transmission chip NRF24L01+ with the Division of Professional Design professional full two-way RF power amplifier high power PA and LNA chip, RF...
• RF part, it has been done a lot of optimization matching debugging. The emission efficiency to achieve the highest harmonic minimum and make NRF24L01P + PA...

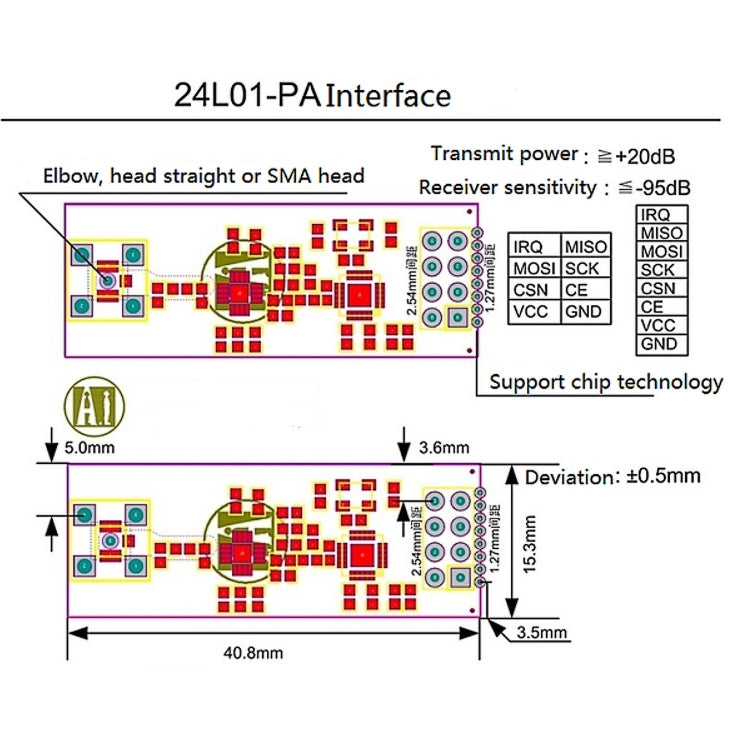

• NRF24L01P + PA + LNA wireless module integration is extremely high, the size is 41mm x 15.5mm to make conveniently embedded.
• Working Voltage: 3.0~3.6V, (recommended 3.3V);
• Maximum power: 20dBm;
• Transmit mode operating current (peak): 115mA;
• Operating current receive mode (peak): 45mA;
• Power-down mode current: 4.2uA
• Package List
• - 1 x Wireless module

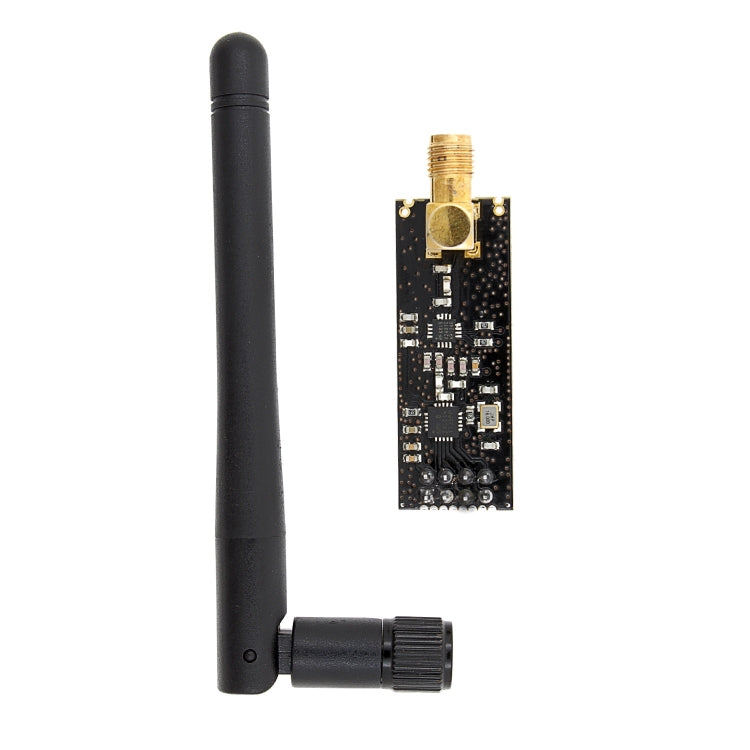

• - 1 x Antenna

Package Info: Weight: 0.04kgs / 0.09lb, Size: 6cm * 3cm * 1cm / 2.36inch * 1.18inch * 0.39inch
