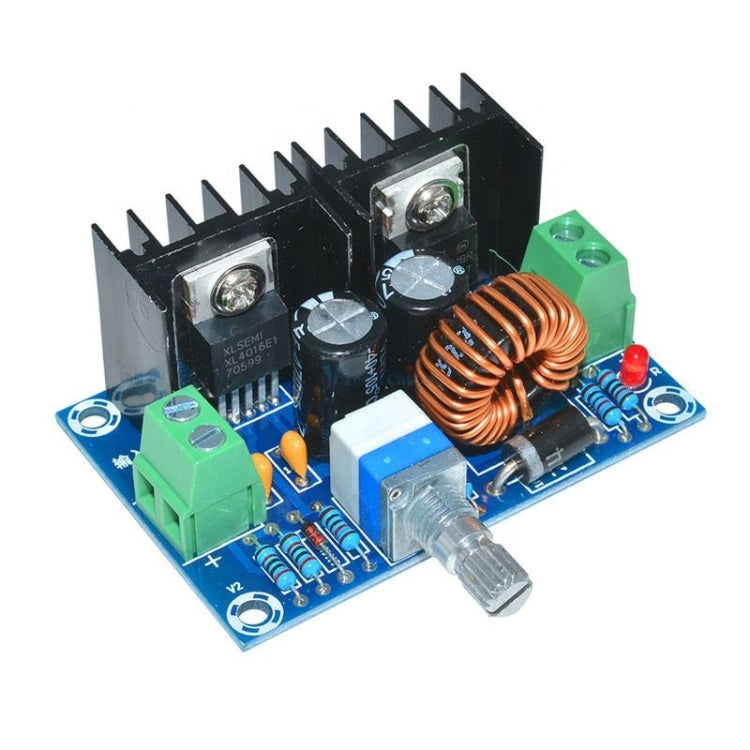

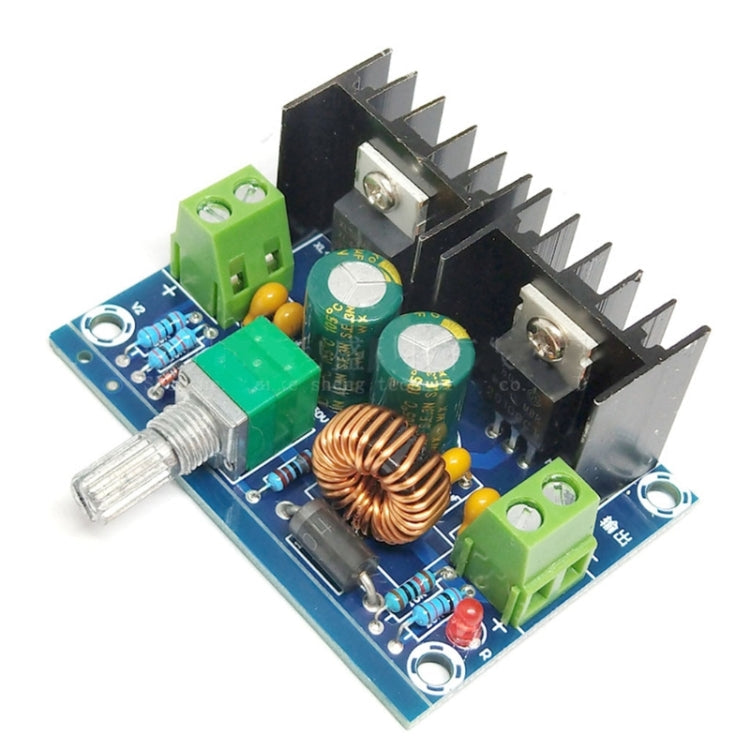

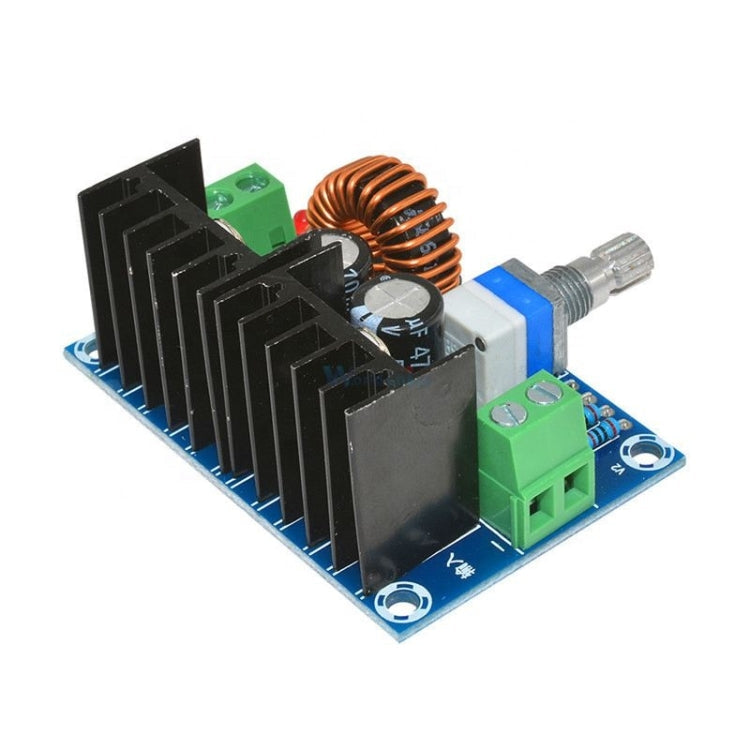

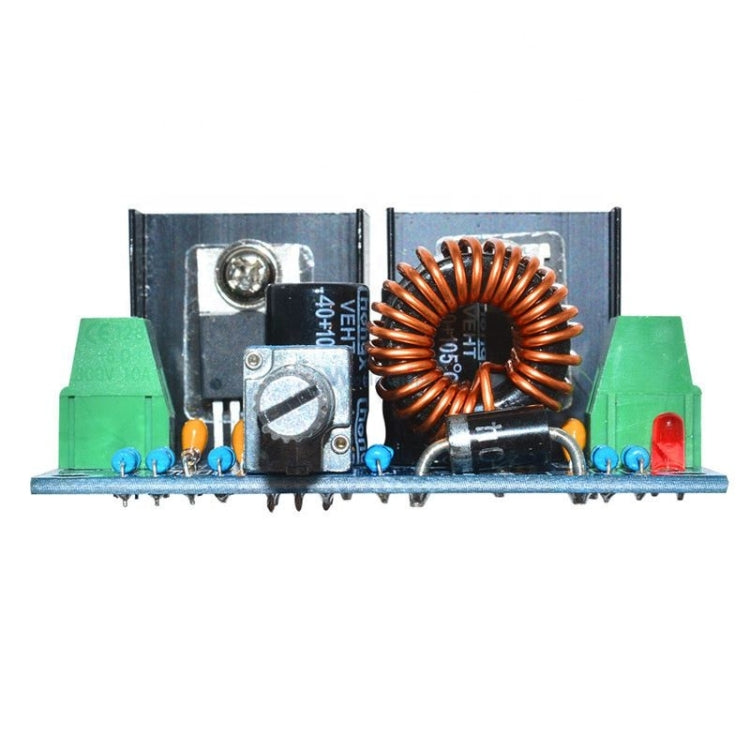

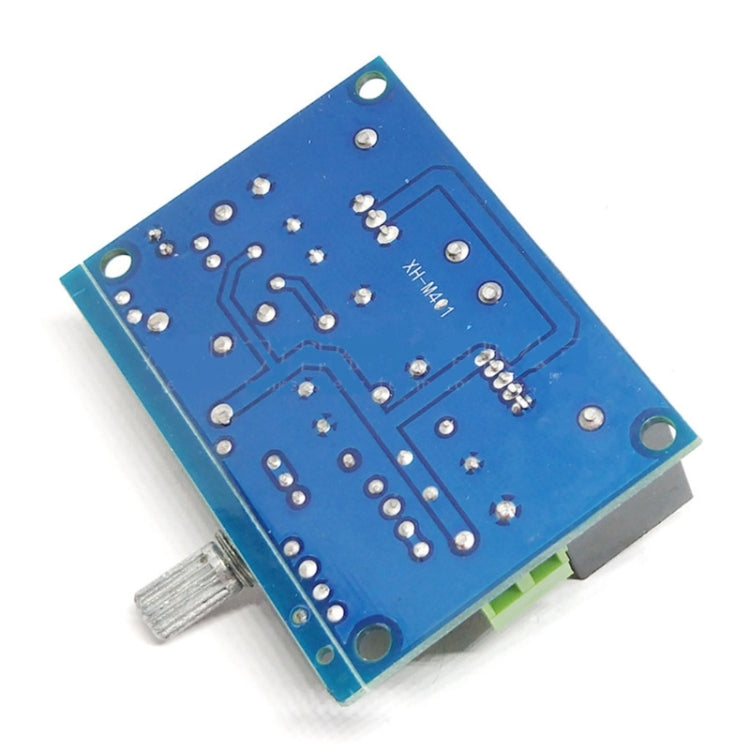

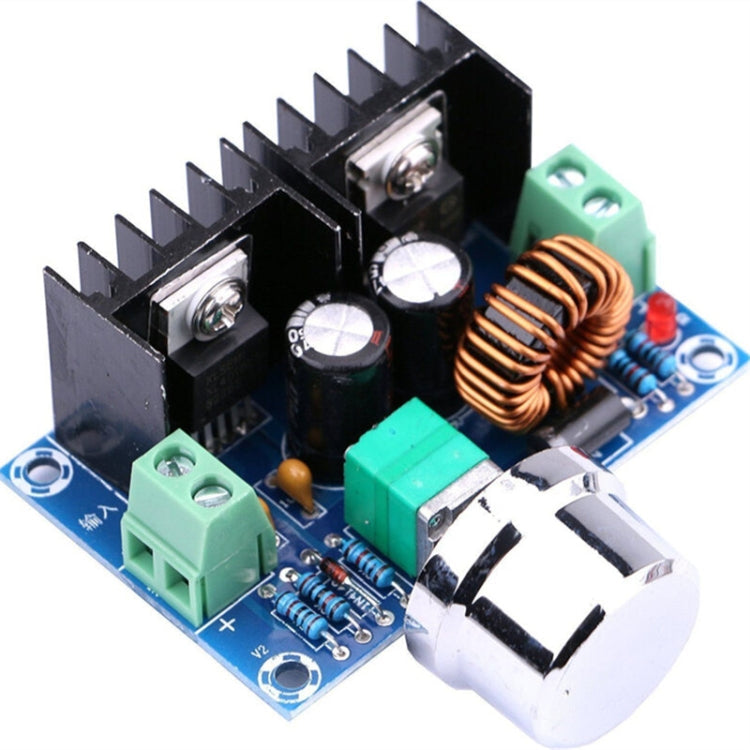

HW-439 DC-DC Step Down Buck Converter Power Supply Module XL4016E1 4-40V to 1.25-36V 8A 200W Voltage Regulator – TPU

HW-439 DC-DC Step Down Buck Converter Power Supply Module XL4016E1 4-40V to 1.25-36V 8A 200W Voltage Regulator – TPU.

Key Features:

• Using XL4016 switch voltage regulator chip, with MBR20100 dual rectifier, the input voltage can reach 40V and output 1.25~36V continuously adjustable
• 180KHz fixed frequency PWE step-down (step-down) DC/DC converter
• High efficiency and up to 8A load driving capacity
• Low ripple and excellent line and load regulation ability
• Built-in frequency compensation and fixed frequency oscillator
• Built-in over-current and short-circuit protection functions
• Built-in thermal shutdown function, output protection function, output overvoltage protection
• Voltage regulation method: PWM modulation
• Chip model: XL4016E1
• Type: DC/DC power supply module
• Input voltage: DC4-40v
• Output range: DC1.25-36v
• Rated current: 8A
• Rated power: 200w
• Conversion efficiency: 94%
• Switching efficiency: 180Khz

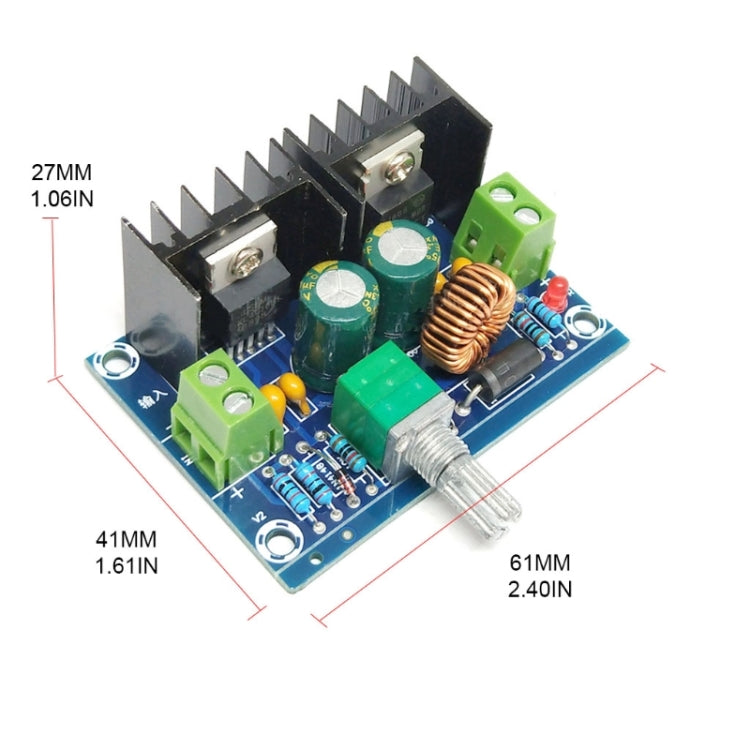

• Size: 61x41x27mm

Package Info: Weight: 0.04kgs / 0.10lb, Size: 10cm * 6cm * 5cm / 3.94inch * 2.36inch * 1.97inch
