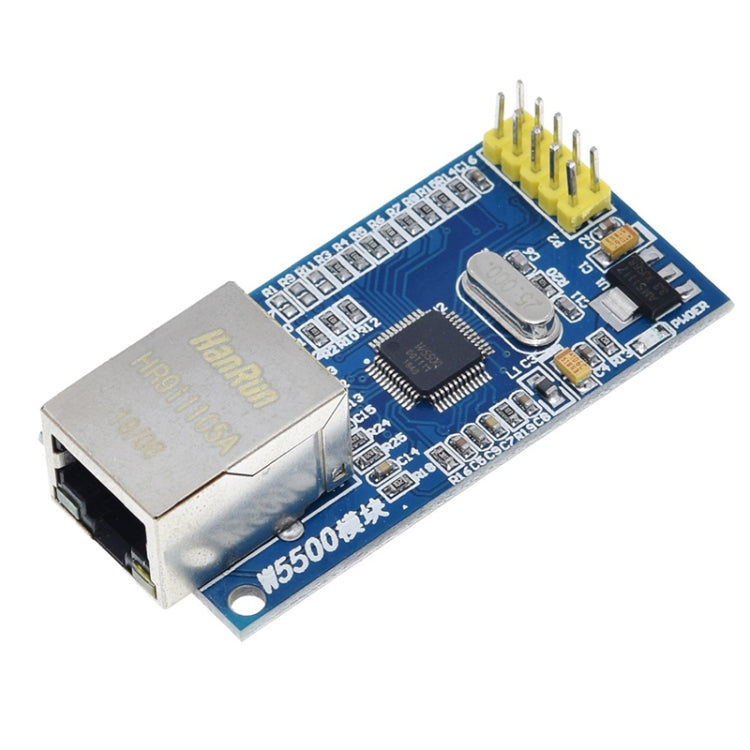

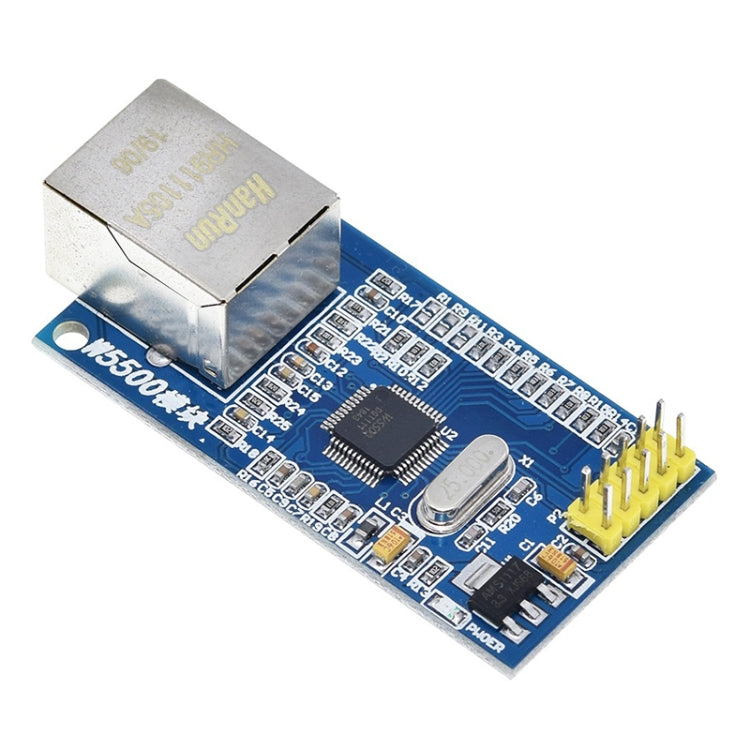

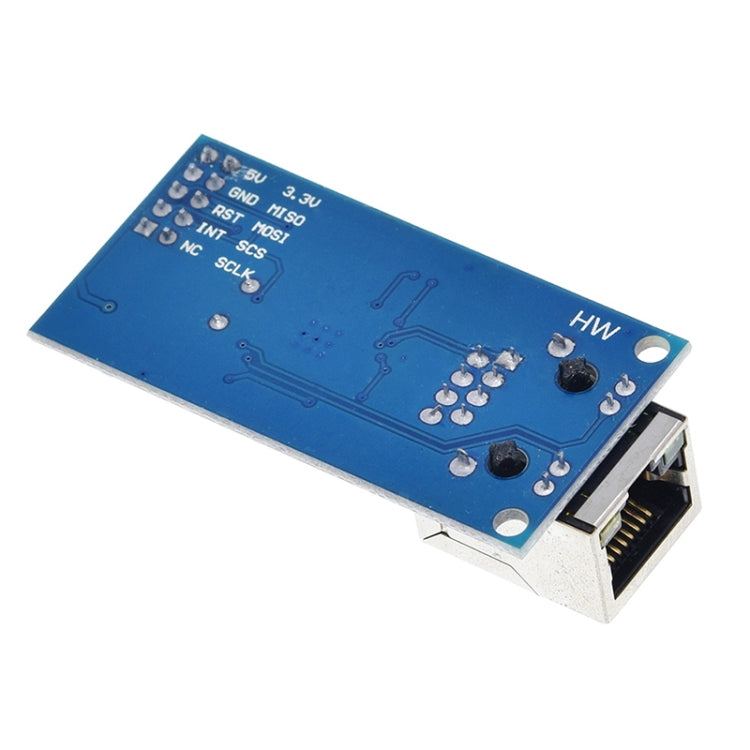

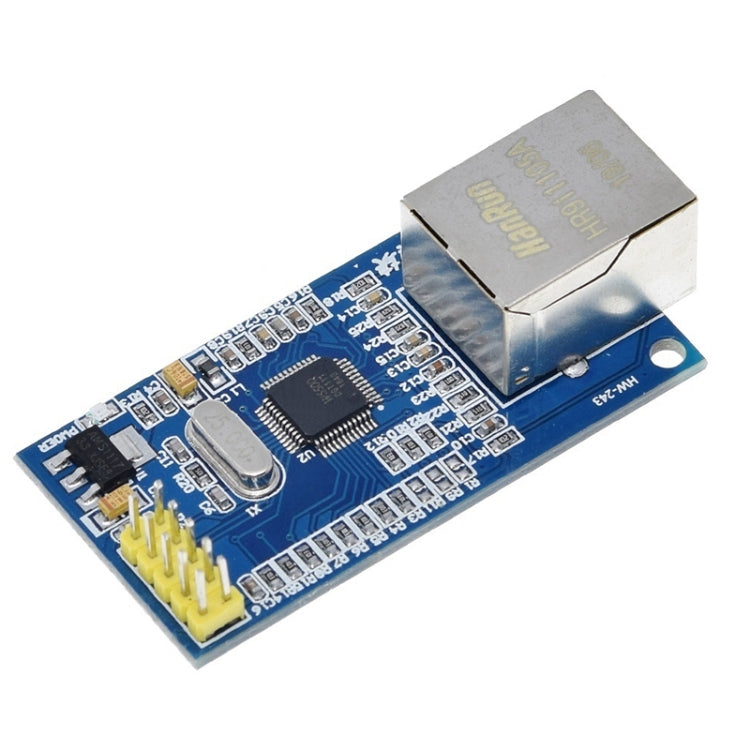

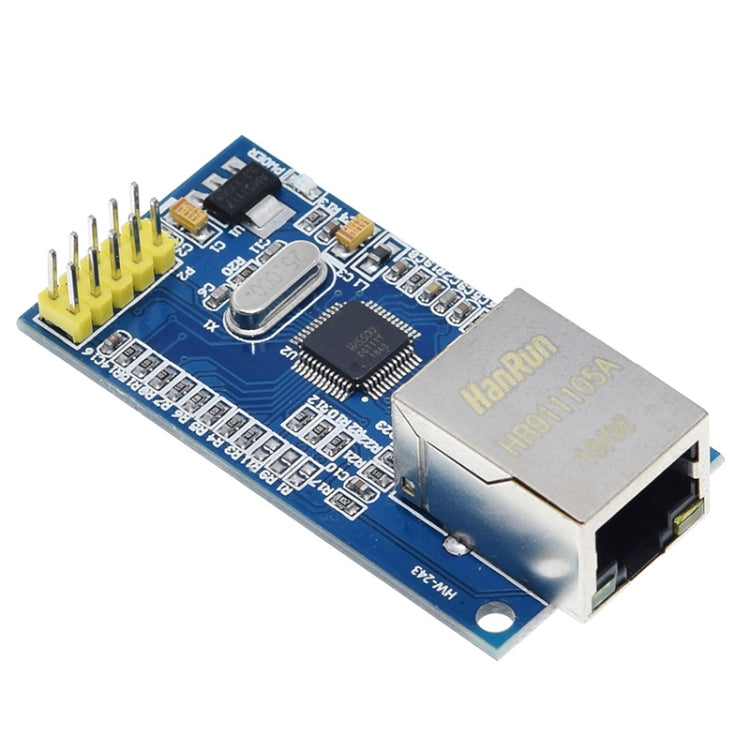

HW-243 W5500 Ethernet Network Module Hardware TCP / IP 51 / STM32 Single-Chip Program – Durable Build, Easy to Use

HW-243 W5500 Ethernet Network Module Hardware TCP / IP 51 / STM32 Single-Chip Program – Durable Build, Easy to Use.

Key Features:

• No need to write Ethernet underlying code to implement TCP/IP protocol stack
• Support sleep mode and wake-up on LAN, internal integrated 32K bytes on-chip buffer for Ethernet packet processing
• Support 10/100MBPS transfer rate
• Support 8 independent ports working at the same time
• The module supports 5V or 3. 3V power supply, which is convenient for users to use in different SCM systems
• The communication method between the module and the microcontroller is SPI protocol, which supports speeds up to 80MHz
• If you use the 5500 Ethernet module, you only need some simple Socket programming to realize the Ethernet application
• Support protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
• We provide users with the source code of the routines based on the 51 single-chip microcomputer and ISTM32 single-chip microcomputer in the "client",...
• Chip model: W5500
• Input voltage: 3.3-5v

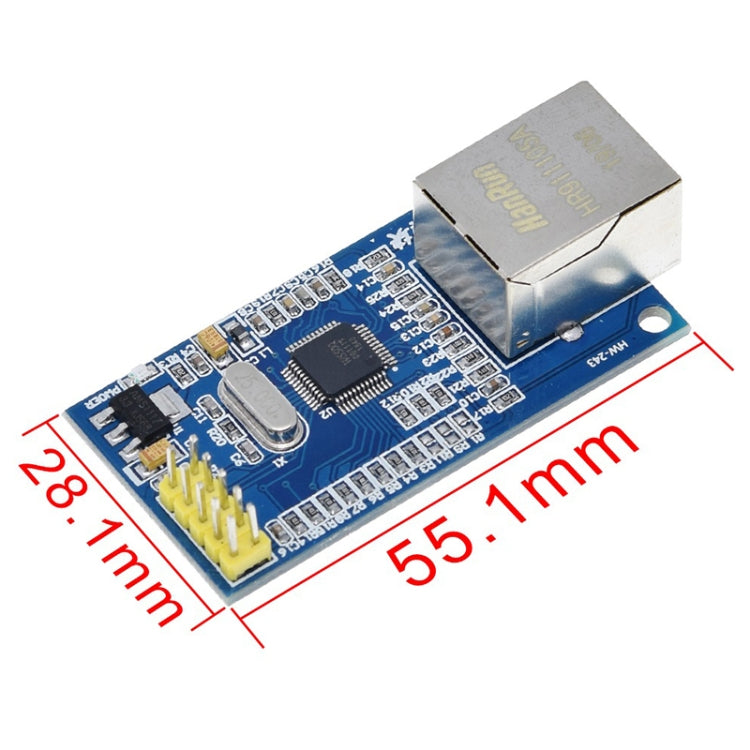

• Size: about 55 x 28mm

Package Info: Weight: 0.10kgs / 0.23lb, Size: 15cm * 10cm * 3cm / 5.91inch * 3.94inch * 1.18inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
