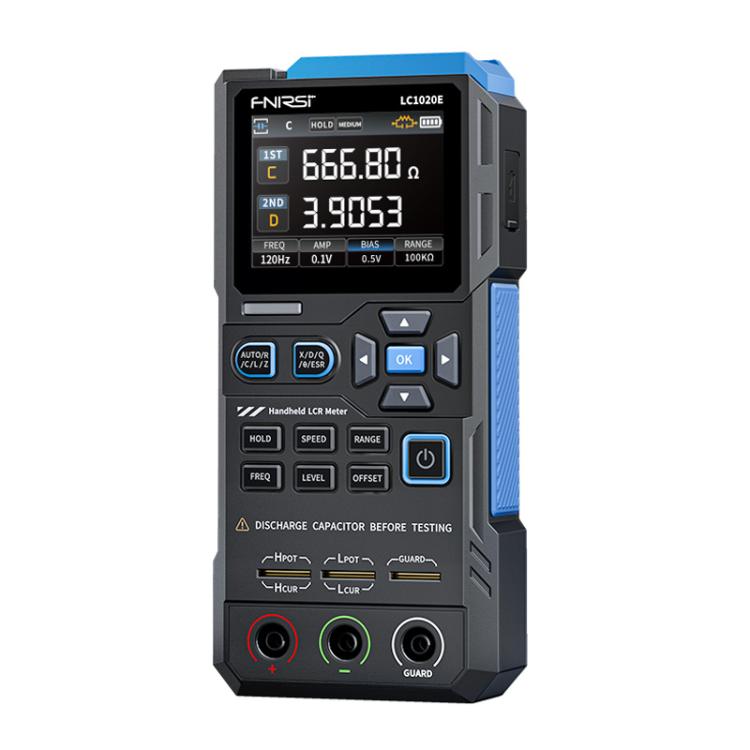

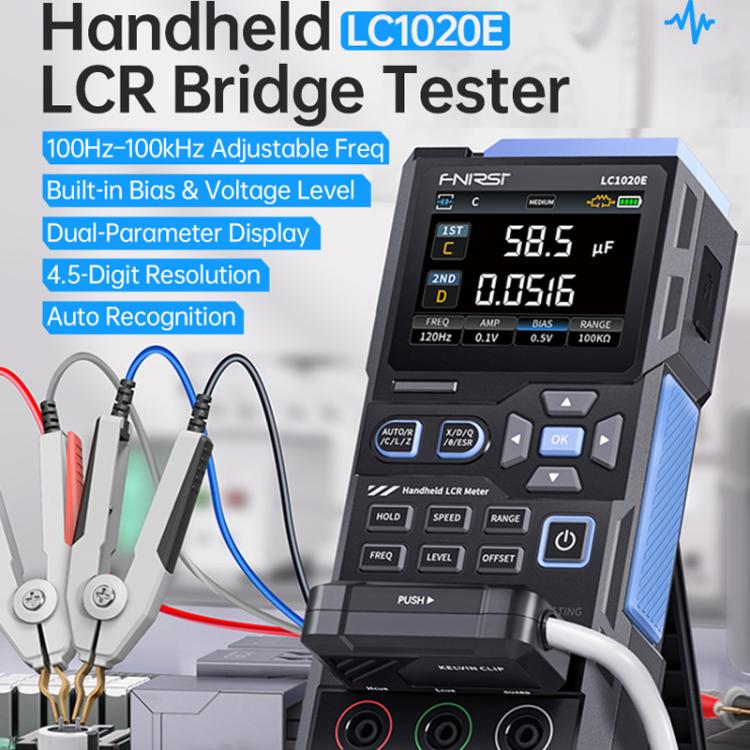

Handheld Digital Bridge Tester Capacitance Resistance Inductance Tester, FNIRSI LC1020E – TPU

Handheld Digital Bridge Tester Capacitance Resistance Inductance Tester, FNIRSI LC1020E – TPU.

Key Features:

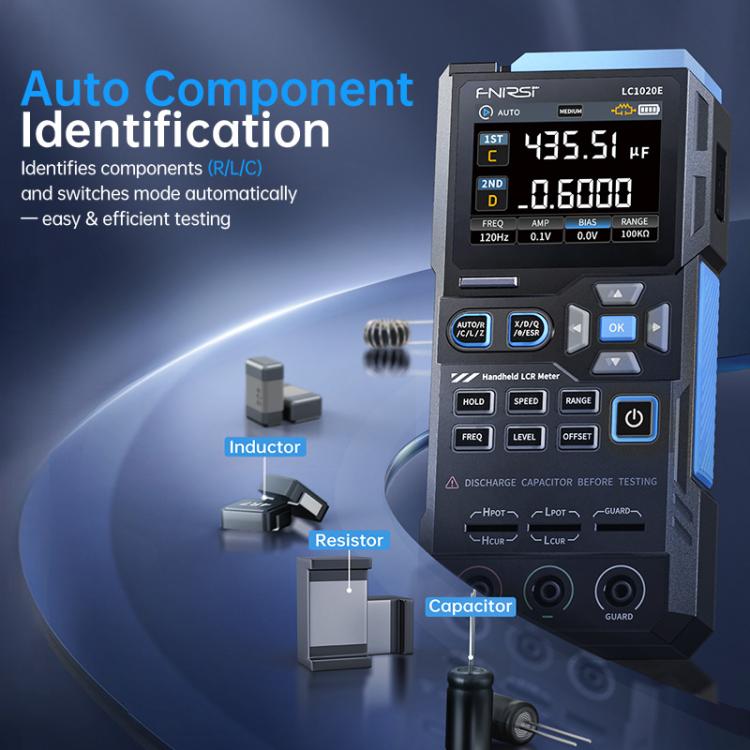

• Automatically identify components, automatically select based on component characteristics, making the measurement process more convenient and efficient

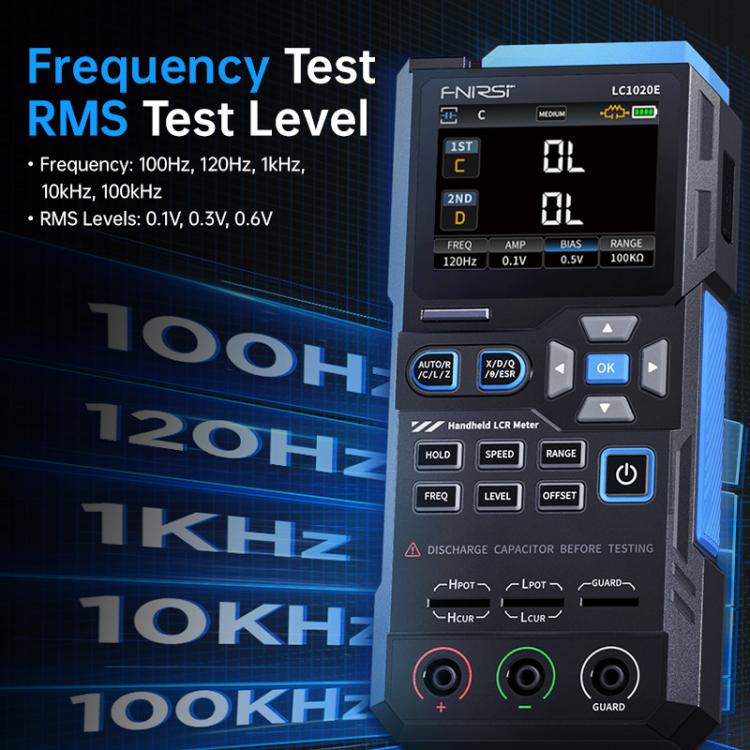

• Multiple frequency tests, effective value test levels. Supports five test frequencies: 100Hz, 120KHz, 1kHz, 10kHz, and 100KHz. It is suitable for the...

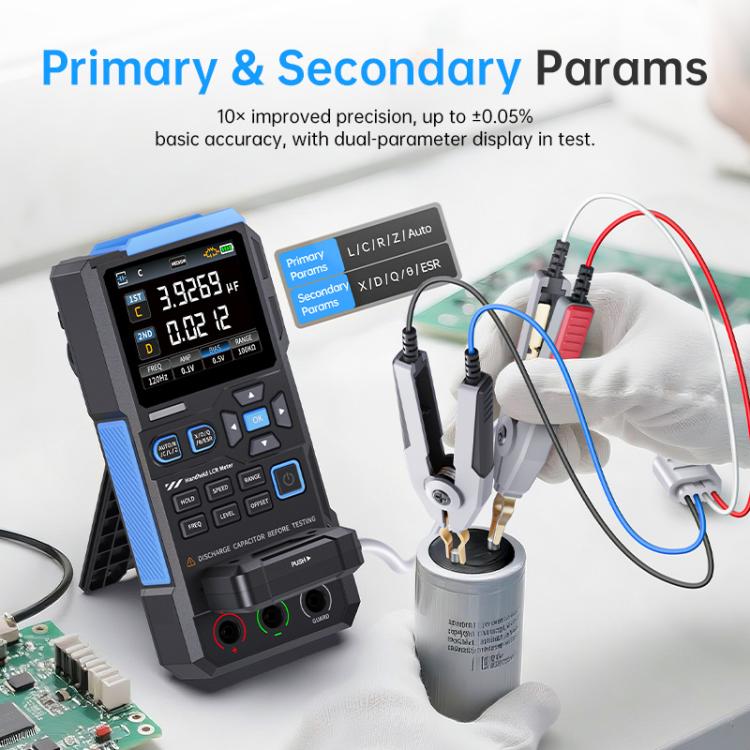

• Four-segment digital display, with high precision, capable of simultaneously showing main and auxiliary parameters

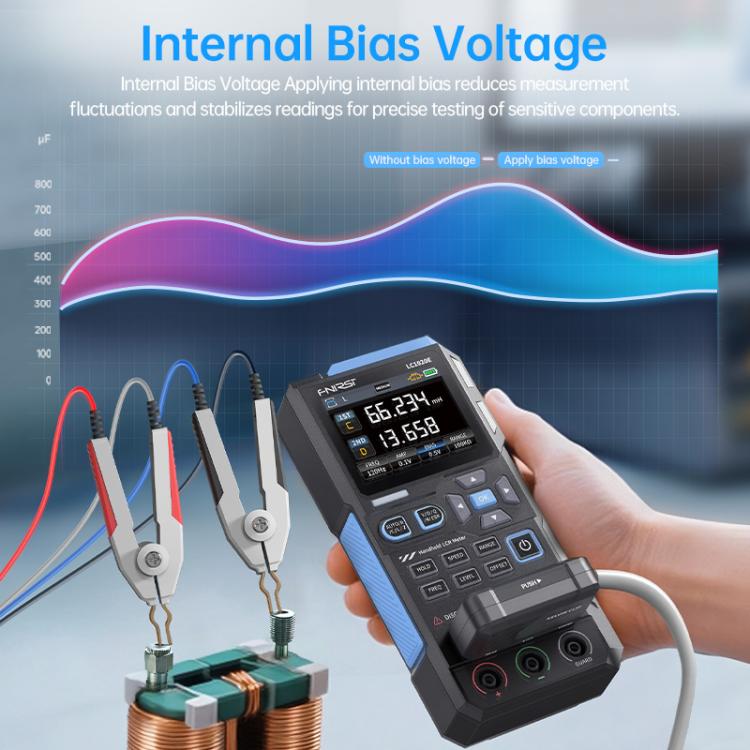

• Internal bias function, eliminating material nonlinearity, restoring true capacity, enabling precise measurement and control of nonlinear components, weak...

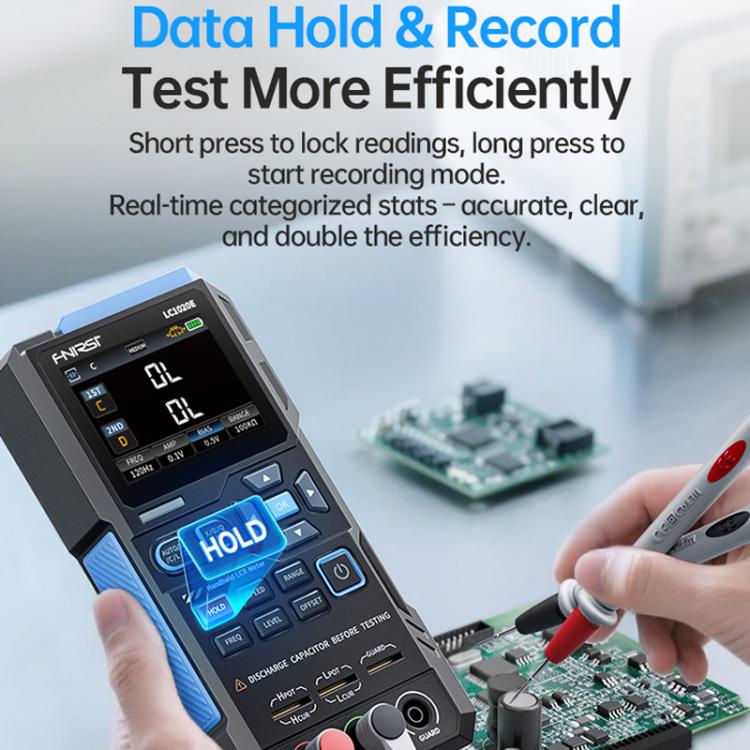

• One-click locking and recording, making measurement more efficient. Press lightly to lock the current reading, press for a long time to activate the...

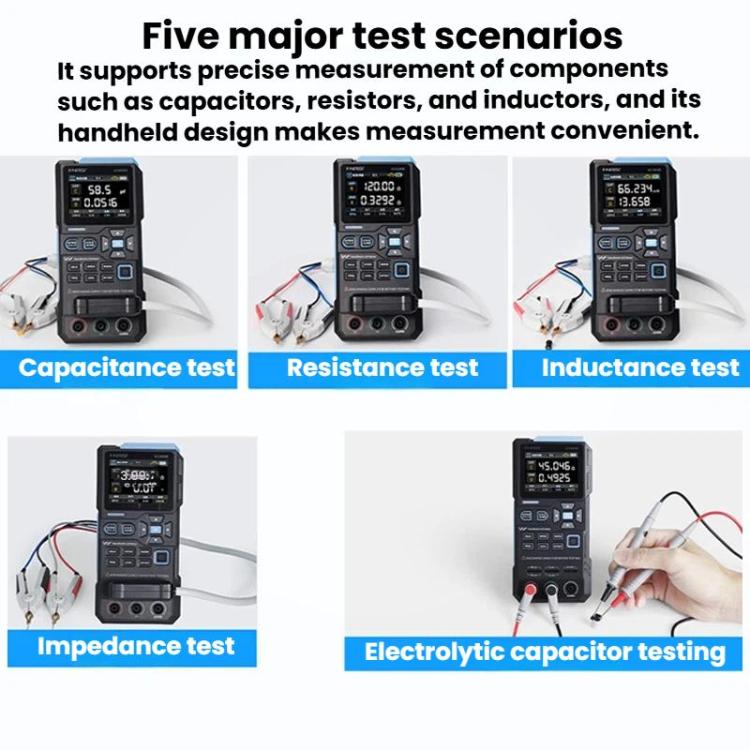

• Five test scenarios, supporting precise measurement of capacitors, resistors, inductors impedance, electrolytic capacitors, etc
• Compact handheld design, allowing for precise measurement anytime and anywhere

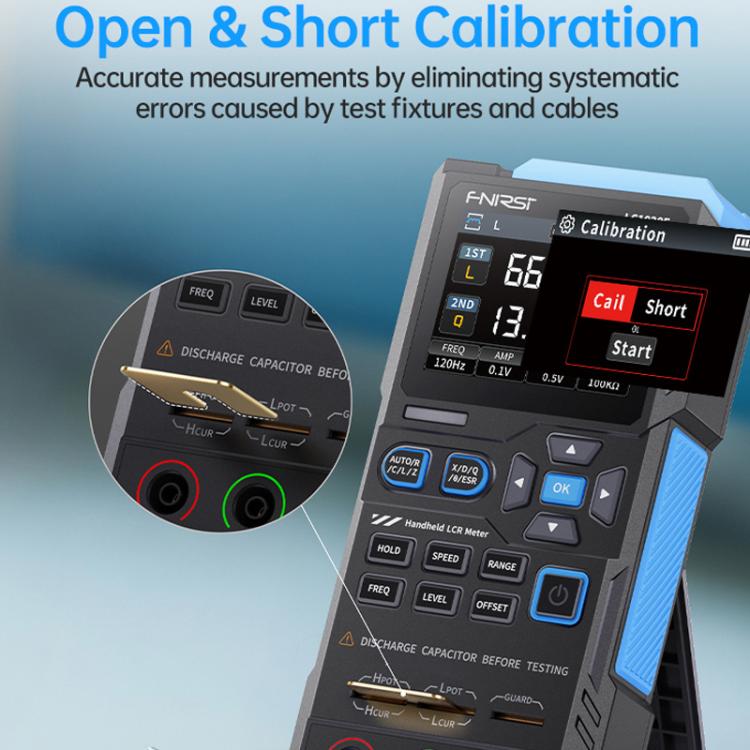

• Open circuit/closed circuit correction function, used to eliminate systematic errors introduced by test fixtures and cables, which directly affect the...
• Parameters
• Test frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz
• Basic accuracy: 0.3%

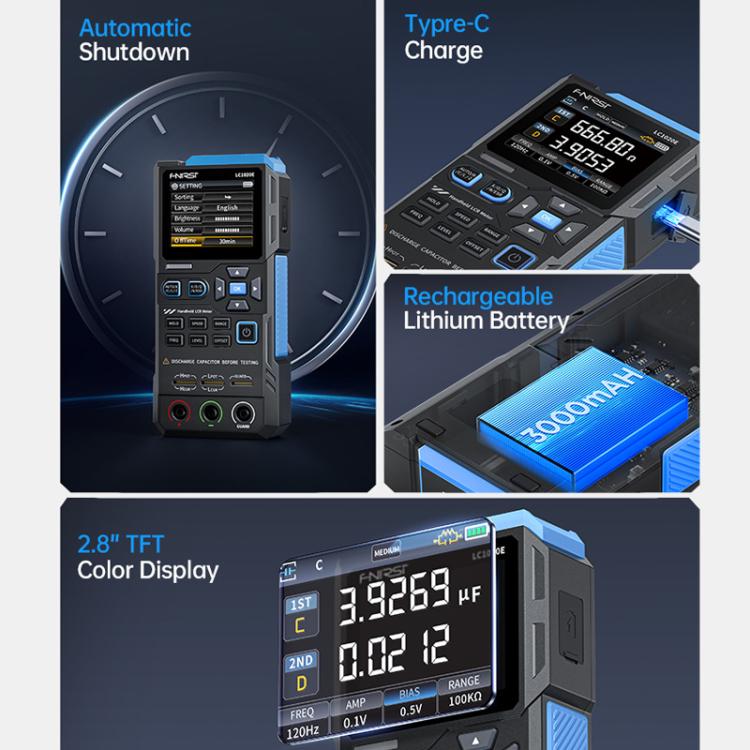

• Display screen: 2.8 inch TFT liquid crystal display
• Display digits: main parameter: 4 1/2 digits, secondary parameter: 4 1/2 digits
• Test level: 0.1V, 0.3V, 0.6V
• Calibration function: open circuit calibration, short circuit calibration
• Internal bias: 0.0V, 0.5V
• Test port configuration: three-terminal, five-terminal
• Output impedance: 100Ω
• Communication interface: USB-TypeC (virtual serial port)
• Comparison function: used to calculate the relative error between the measured value of the component and the nominal value, displayed in percentage, and...
• Recording function: check whether the data of the tested component conforms to the set nominal value and tolerance, record the number of successful and...
• Battery capacity: 3000mAh
• Supported languages: Chinese, English

Package Info: Weight: 0.70kgs / 1.55lb, Size: 24cm * 16cm * 8cm / 9.45inch * 6.3inch * 3.15inch
