FEELWORLD F5 Pro V4 6 inch Touch Screen DSLR Camera Field Monitor 3D LUT 4K HDMI Input Output Tilt Arm, F5 Pro V4 – Flip, TPU, 4K

FEELWORLD F5 Pro V4 6 inch Touch Screen DSLR Camera Field Monitor 3D LUT 4K HDMI Input Output Tilt Arm, F5 Pro V4 – Flip, TPU, 4K.

Key Features:

• Features

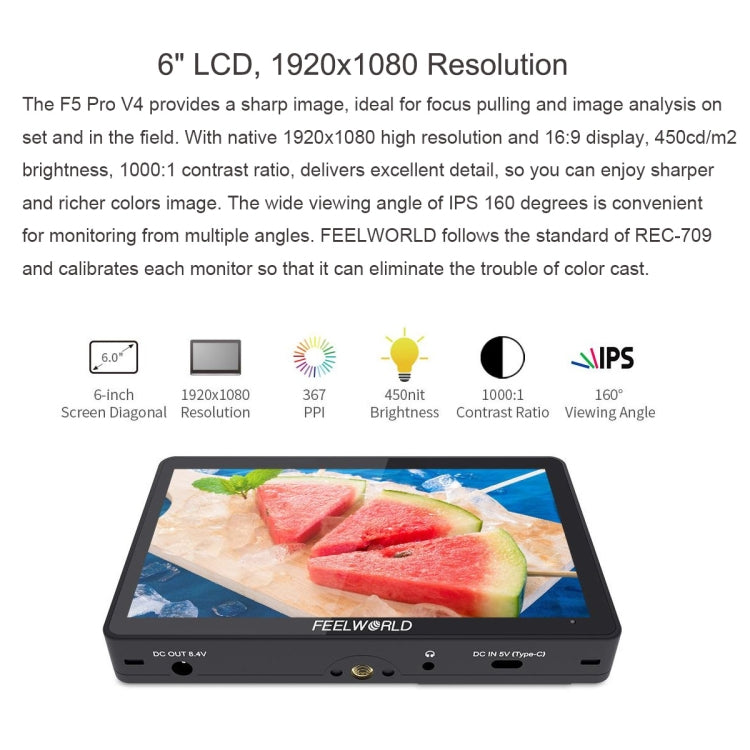

• High Resolution: Full HD 1920x1080,High Contrast: 1000:1, High Brightness: 450cd/m, 160 degree wide viewing angles IPS Panel
• This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light and other equipment
• Support 3D LUT Log to Rec.709, user 3D LUT Upload

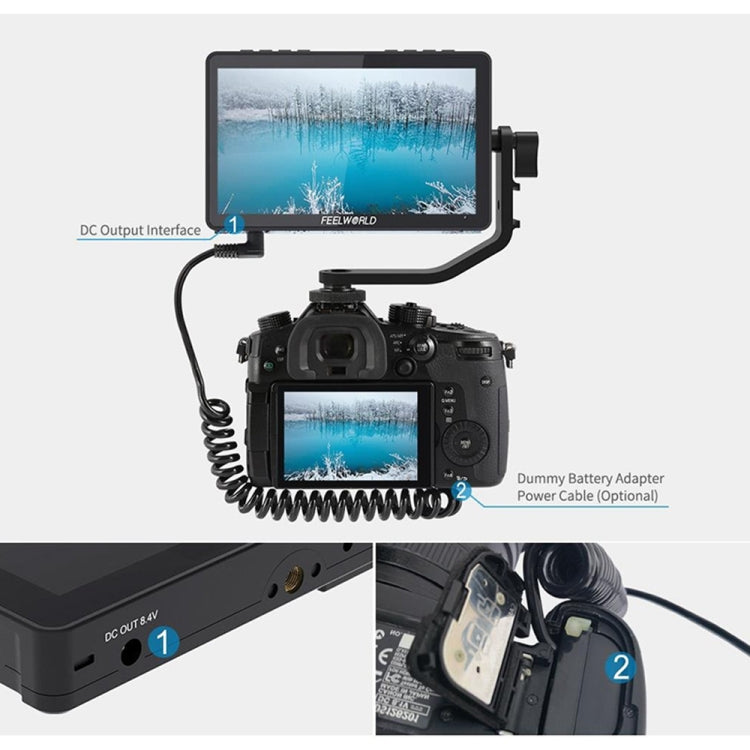

• Provide auxiliary power out; allowing shooters to power their cameras
• All waves
• Waveform (RGB, Y, YUV)
• Histogram(RGB1, Y, RGB2)
• Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
• False Colors
• Zebra Exposure
• Nine Grid
• Scan Mode (Under Scan, Over Scan)
• Zoom (4x,9x,16x)
• Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
• Pixel to Pixel
• Center Marker
• Safe Area (80%,85%,90%,93%,96%,2.35:1)
• Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
• Marker Color (Red,Green,Blue,White,Black???
• Check Field (Red/Green/Blue/Mono)
• Image Flip (H, V, H/V)
• Image Freeze
• Zoom All (0~500 adjustable)
• U/D & L/R Zoom (0~500 adjustable)
• Color Temperature Adjustment
• Specifications
• Display screen
• Model: F5 Pro V4

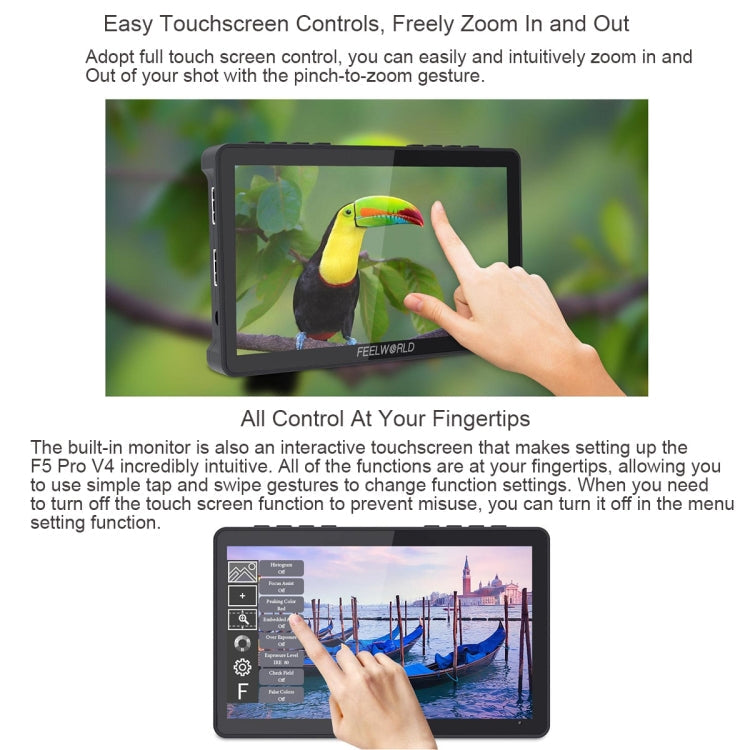

• Screen Size: 6.0 inch IPS Touch Screen
• Resolution: 1920x1080 pixels
• Pixel Pitch: 0.069 (H) x 0.069 (W) mm
• Aspect Ratio: 16:9
• Brightness: 450cd/m2
• Contrast Ratio: 1000:1
• Backlight: LED
• Viewing Angle: 80 degrees /80 degrees (L/R) 80 degrees /80 degrees(U/D)
• Input
• 1 x HDMI: HDMI
• 1 x Type-C: 5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply)
• Output
• 1 X HDMI: HDMI
• 1 X DC Output: DC Output
• Audio
• - Audio: Stereo Headphone
• HDMI Input/ Output Support Format:
• - 480i/576i/480p/576p
• - 1080i (60/59.94/50)
• - 720p (60/59.94/50/30/29.97/25/24/23.98)
• - 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
• - 4K UHD 3840 x 2160p (30/29.97/25/24/23.98Hz), 4096 x 2160p (24Hz)
• General
• Input Voltage: DC 7-24V
• Power Consumption: Less than or equal to 8W
• Power Connector: DC
• Working Temperature: -20 degree C~50 degree C
• Storage Temperature: -30 degree C~60 degree C
• Install Way: 1/4-20 thread points

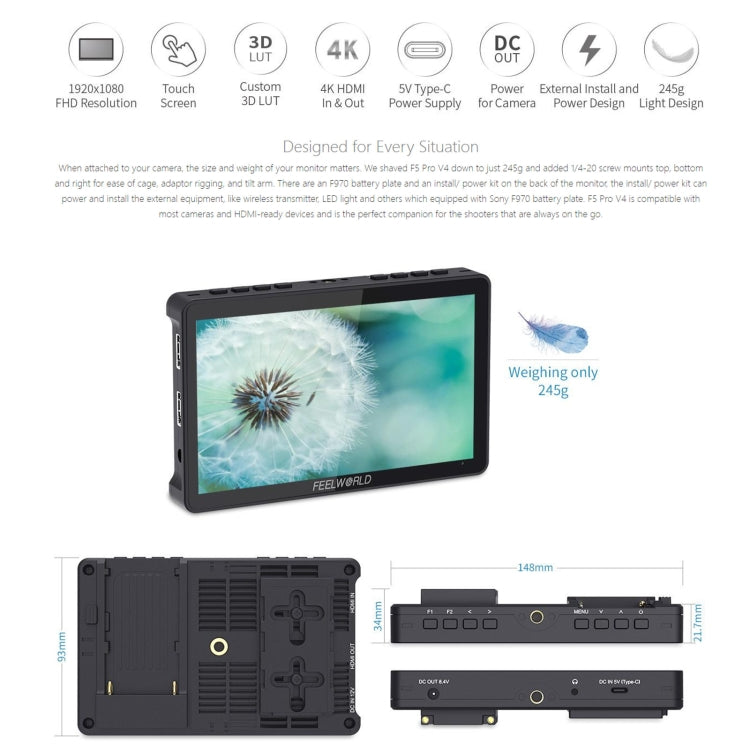

• Unit Size: 148Lx93Hx20D (mm)
• Unit Weight: 245g
• Package List
• Monitor x 1
• Micro HDMI Cable x 1

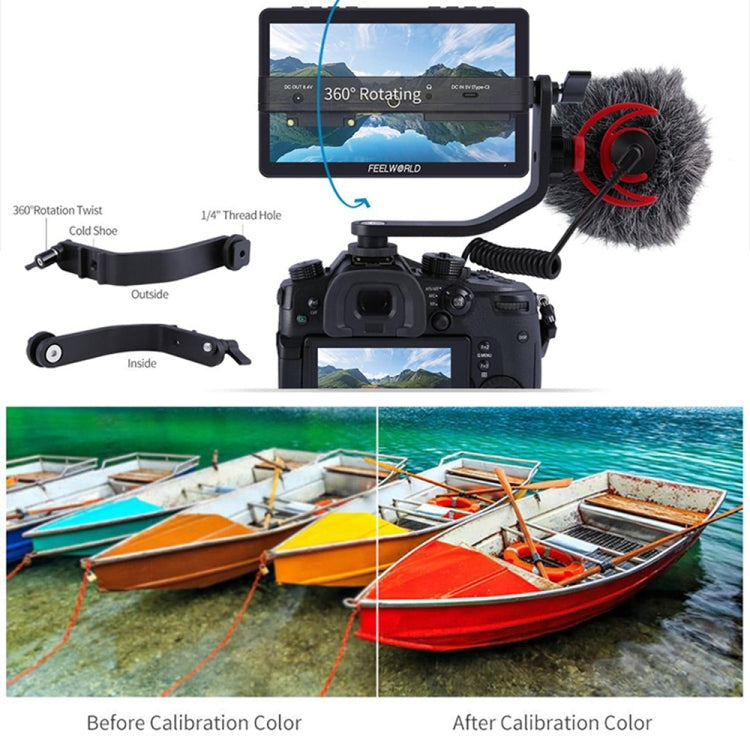

• Tilt Arm x 1

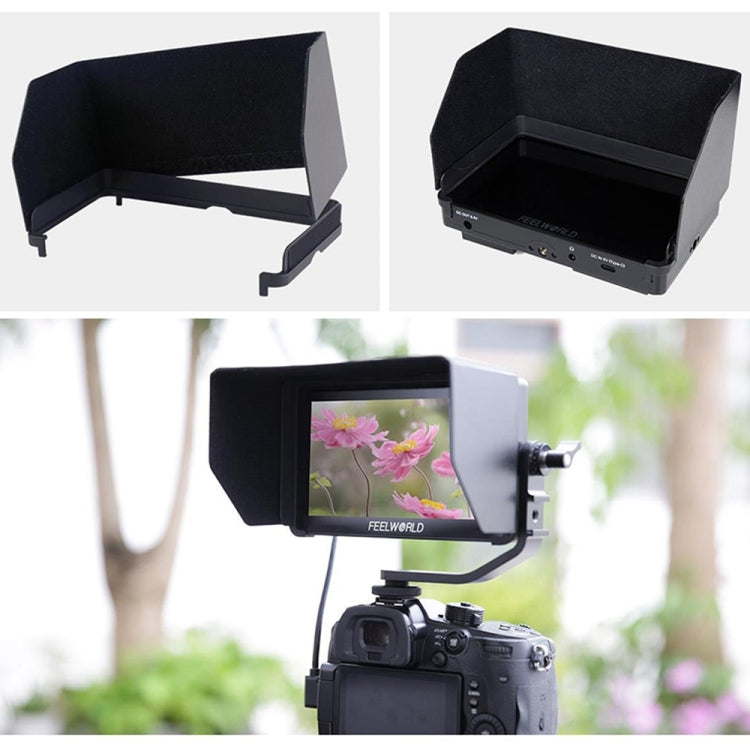

• Sunshade x 1
• TYPE-C to USB x 1
• Disassembly Wrench x 1
• Manual x 1

Package Info: Weight: 0.67kgs / 1.47lb, Size: 20cm * 13cm * 9cm / 7.87inch * 5.12inch * 3.54inch
