ESCAM POE 8+2 10-Port Fast Ethernet Switch 8-Port POE 10/100M 120W Network Switch, Transmission Distance: 150m, 10 Ports – Data Transmission, TPU

ESCAM POE 8+2 10-Port Fast Ethernet Switch 8-Port POE 10/100M 120W Network Switch, Transmission Distance: 150m, 10 Ports – Data Transmission, TPU.

Key Features:

• About The Product
• PSE series PoE switches not only in price can be mount and desk-top installation comparable to ordinary switch, and, compared to those only...
• All models feature stable performance,come with dual surge protection circuits, so that the MTBF of these switches reaches 150K hours. Usually, these...
• The aluminum housing of PSE series switches designed to be very compact, so you can easily put them in a small power supply box. Therefore, they are...
• Features
• Metal aluminium housing supports wall mount and desk-top installation.
• Unique thermal design, wide operating temperature range -30 degree C ~ 70 degree C.
• MTBF up to 150K hours, designed for 24-hours-working surveillance system.
• Maxium PoE output up to 20W/port.
• Plug and play installation, non-professional can quickly install it.

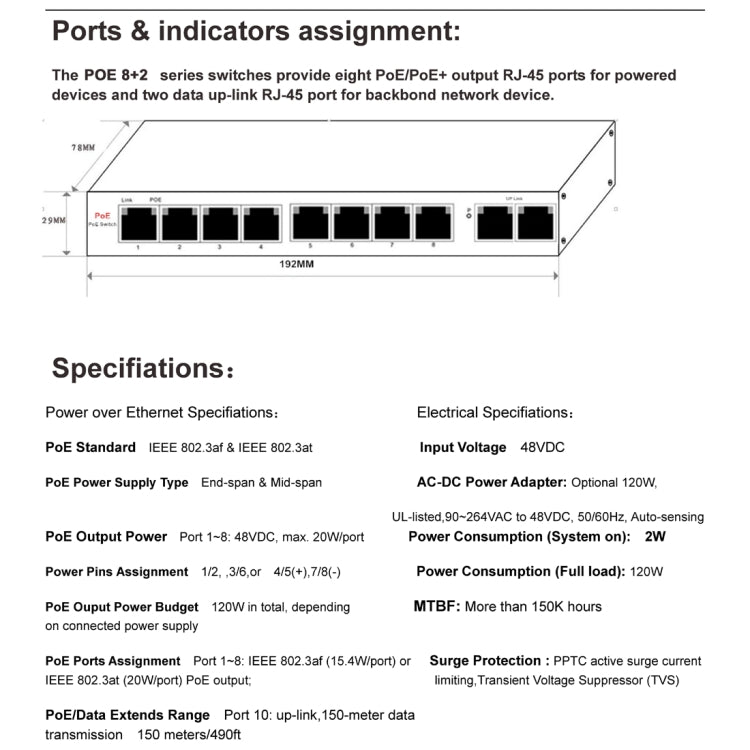

• Standards Conformance
• - IEEE 802.3af & IEEE 802.3at Power over Ethernet
• - IEEE 802.3 10Base-T
• - IEEE 802.3u 100Base-TX
• - IEEE 802.3x Flow Control and Back pressure
• - IEEE 802.1d Spanning Tree Protocol
• - IEEE 802.1Q VLAN Tagging
• - IEEE 802.1x Port Authentication Network Control
• - FCC Part 15 Class A, CE
• Power Support
• Power over Ethernet:
• - PoE Standard: IEEE 802.3af & IEEE 802.3at.
• - PoE Power Supply Type: End-span & Mid-span.
• - PoE Output Power: Port 1~8: 48VDC, max. 20W/port.
• - Power Pins Assignment: 1/2, ,3/6,or 4/5(+),7/8(-).
• - PoE Ouput Power Budget: 120W in total, depending on connected power supply.
• - PoE Ports Assignment: Port 1~8: IEEE 802.3af (15.4W/port) or IEEE 802.3at (20W/port) PoE output.
• - PoE/Data Extends Range: Port 10: up-link,150-meter data transmission 150 meters/490ft.
• Electrical:
• - Input Voltage: DC 48V.
• - AC-DC Power Adapter: Optional 120W, UL-listed,90~264VAC to 48VDC, 50/60Hz, Auto-sensing.
• - Power Consumption (System on): 2W.
• - Power Consumption (Full load): 120W.
• - MTBF: More than 150K hours.
• - Surge Protection : PPTC active surge current limiting, Transient Voltage Suppressor (TVS).

Package Info: Weight: 1.26kgs / 2.78lb, Size: 25.5cm * 18cm * 8.5cm / 10.04inch * 7.09inch * 3.35inch
