DY-HV20T 12V/24V 10W/20W Voice Playback Module MP3 Music Player UART I/O Trigger Amplifier Board Module, DY-HV20T – TPU

DY-HV20T 12V/24V 10W/20W Voice Playback Module MP3 Music Player UART I/O Trigger Amplifier Board Module, DY-HV20T – TPU.

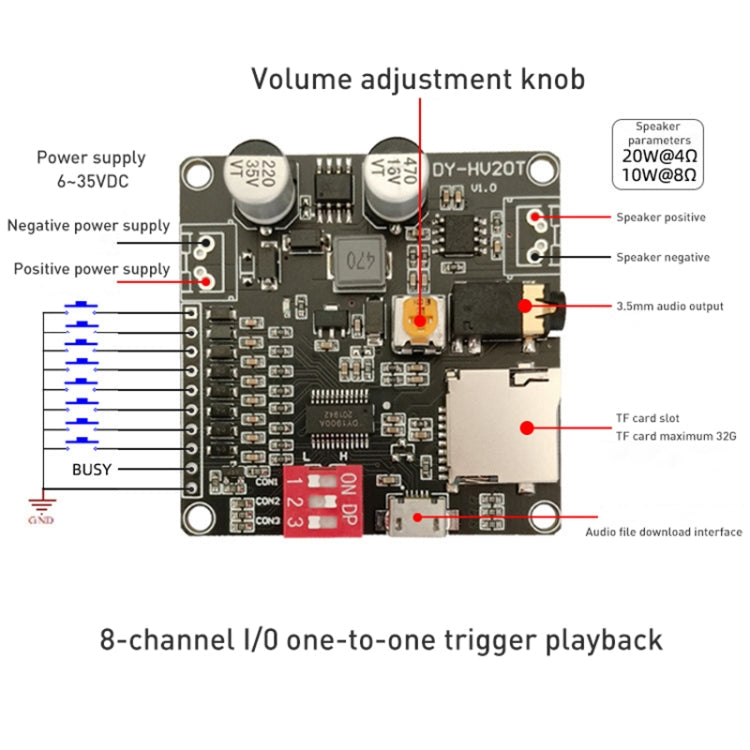

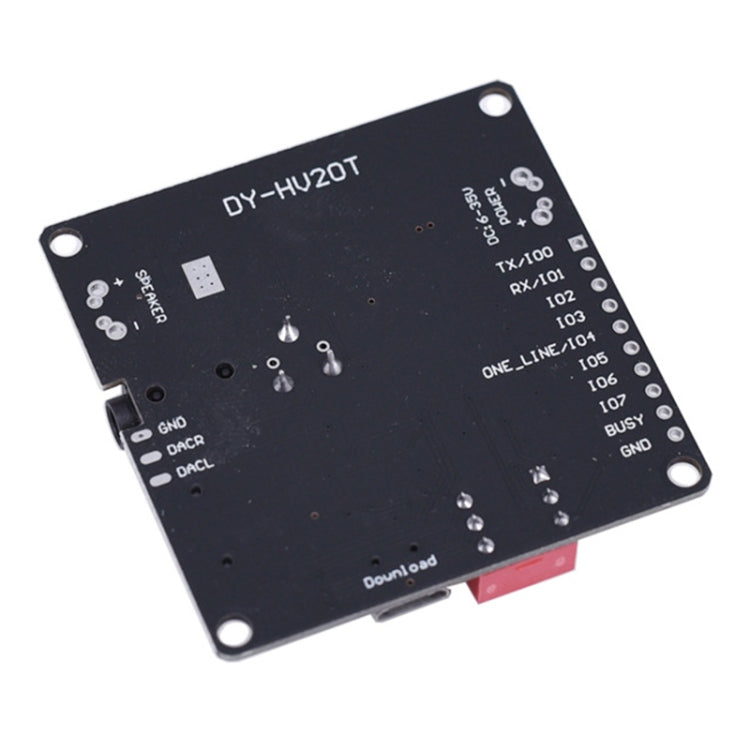

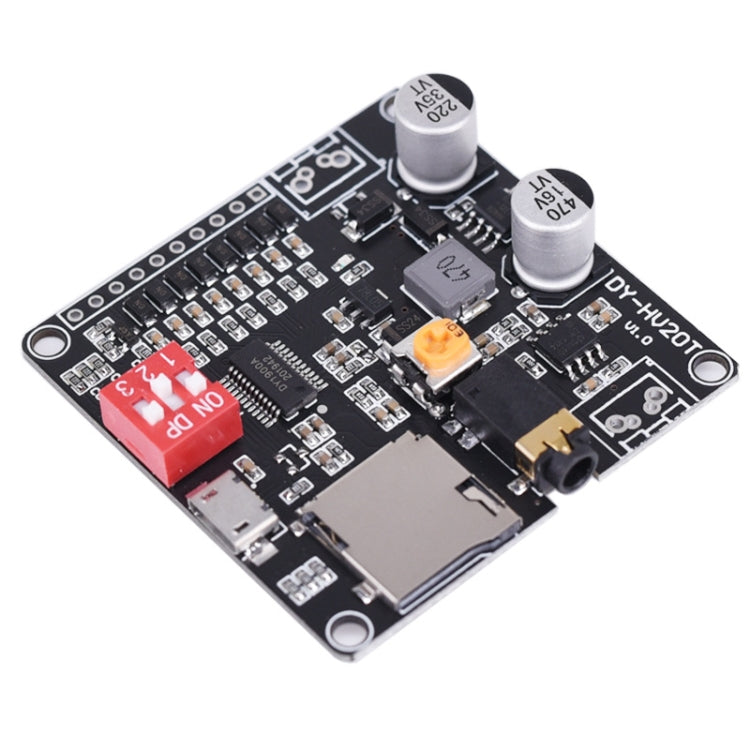

Key Features:

• Support MP3, WAV decoding format.
• Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48.
• 24-bit DAC output, dynamic range supports 90dB, signal-to-noise ratio supports 85dB.
• DC 6~35V ultra-wide working voltage.
• Support up to 32G memory card, can connect to computer via USB data cable to update and store audio files.
• Integrated high-power amplifier output, driving 4?? speakers up to 20W, driving 8?? speakers up to 10W.
• The UART serial port controls the voice broadcast function, which can control play, pause, song selection, volume addition and subtraction and other...
• Support IO one-to-one trigger playback function, 8 IO ports can trigger 8 tracks individually or 8 IO ports can trigger 255 tracks in combination.
• Support One_line single-bus serial port control, which can control functions such as play, pause, song selection, volume addition and subtraction.
• Support 3 configuration IOs for up to 7 working modes selection, DIP switch settings, easy to operate.
• 8-way IO design ESD protection

Package Info: Weight: 0.05kgs / 0.11lb, Size: 10cm * 10cm * 2cm / 3.94inch * 3.94inch * 0.79inch
