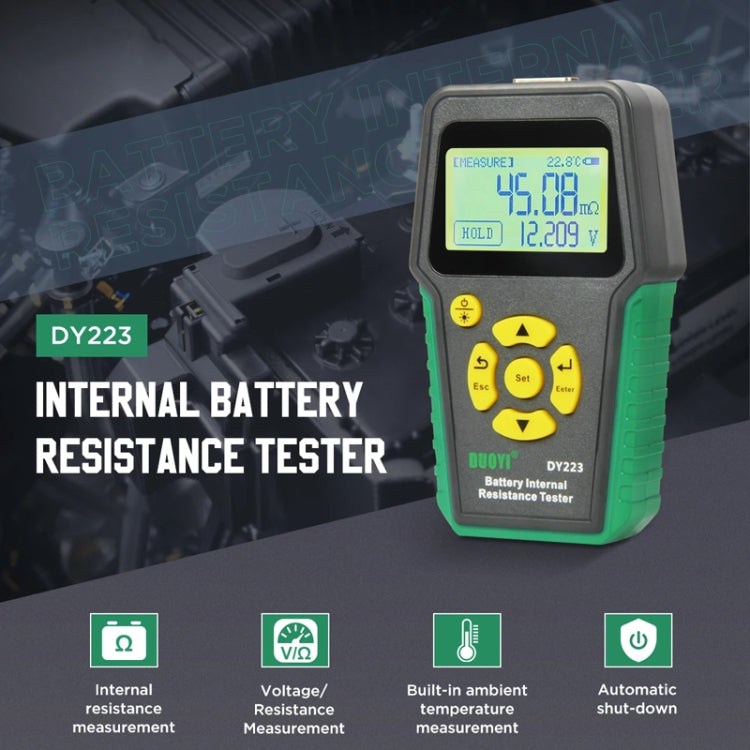

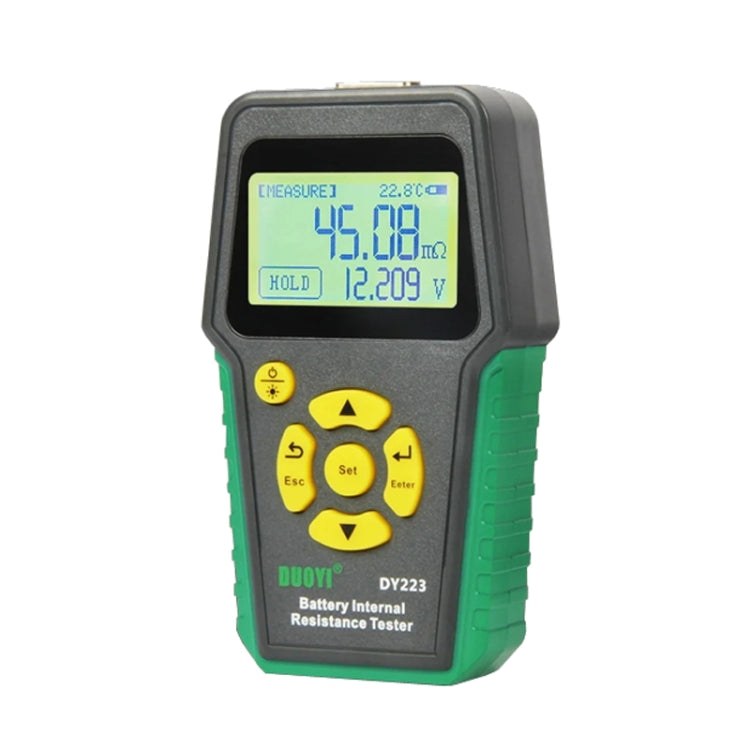

DUOYI DY223 Electrical Vehicle Voltage Testing And Fault Diagnostic Instrument – Durable Build, Easy to Use

DUOYI DY223 Electrical Vehicle Voltage Testing And Fault Diagnostic Instrument – Durable Build, Easy to Use.

Key Features:

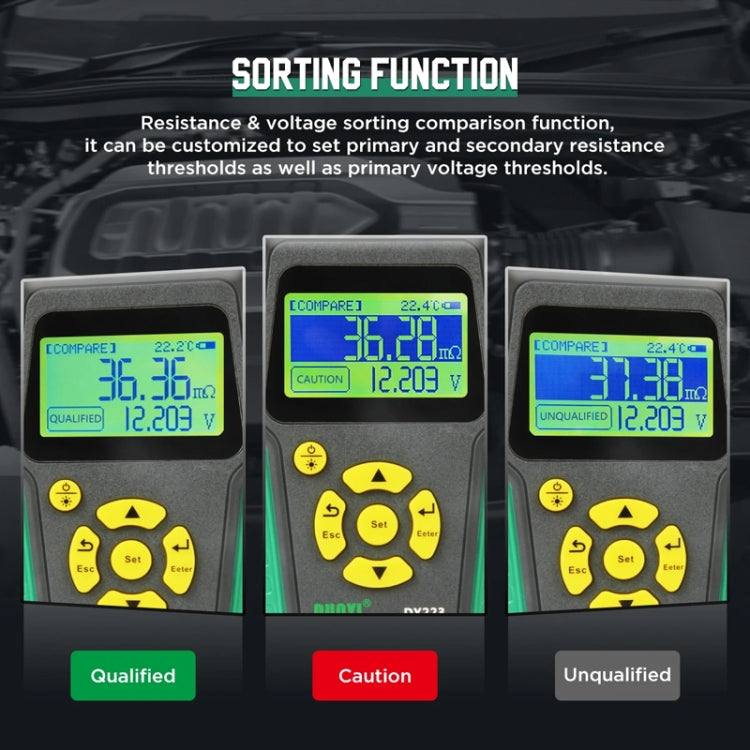

• Resistance, voltage sorting comparison function, can be customized to set the primary and secondary resistance thresholds and primary voltage thresholds

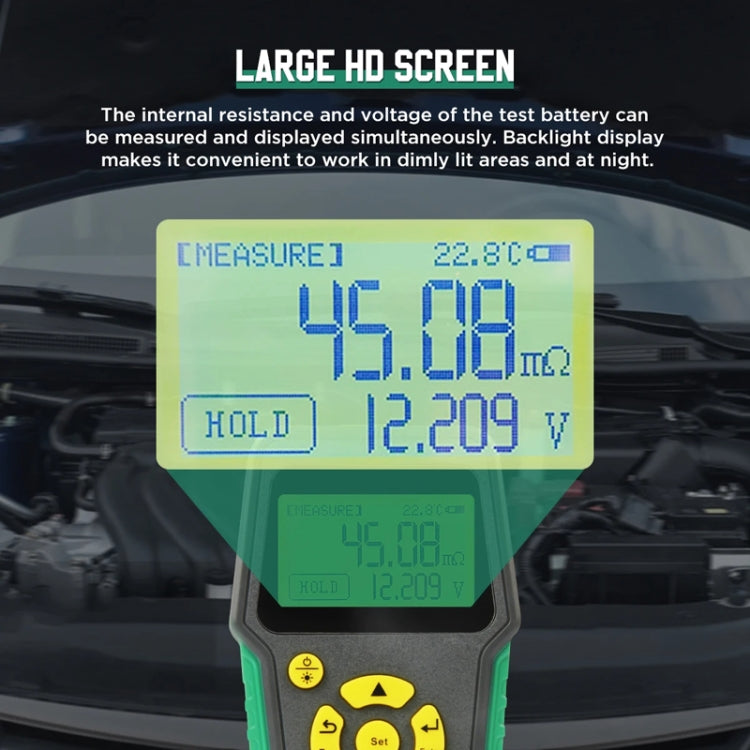

• Measure and display the internal resistance and voltage of the test battery at the same time; backlight display is convenient for working in dimly lit...

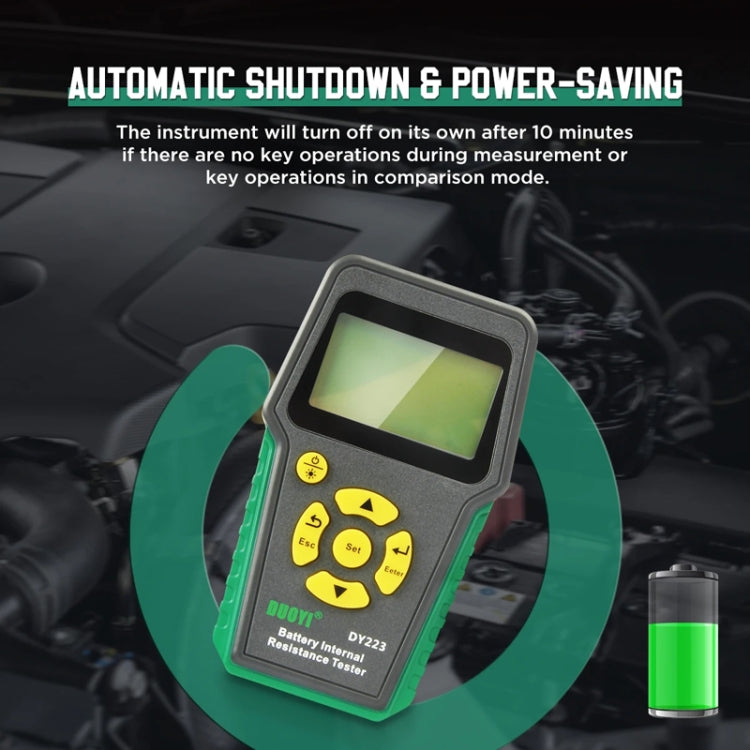

• Auto power off to save power If there is no key operation in the measurement or comparison mode, the instrument will be automatically shut down after 10 minutes

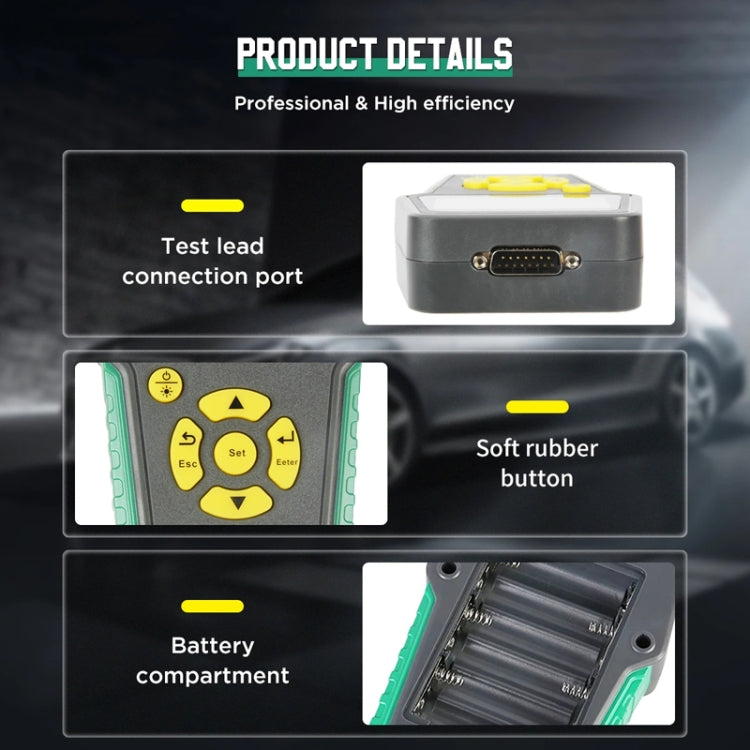

• Soft rubber buttons are comfortable to use and not easy to wear

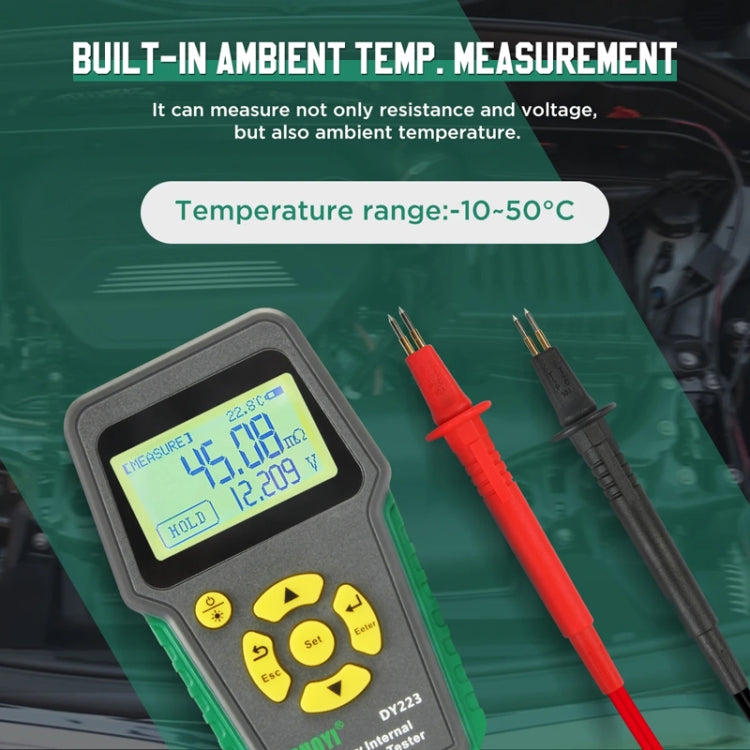

• Built-in ambient temperature measurement for versatile use

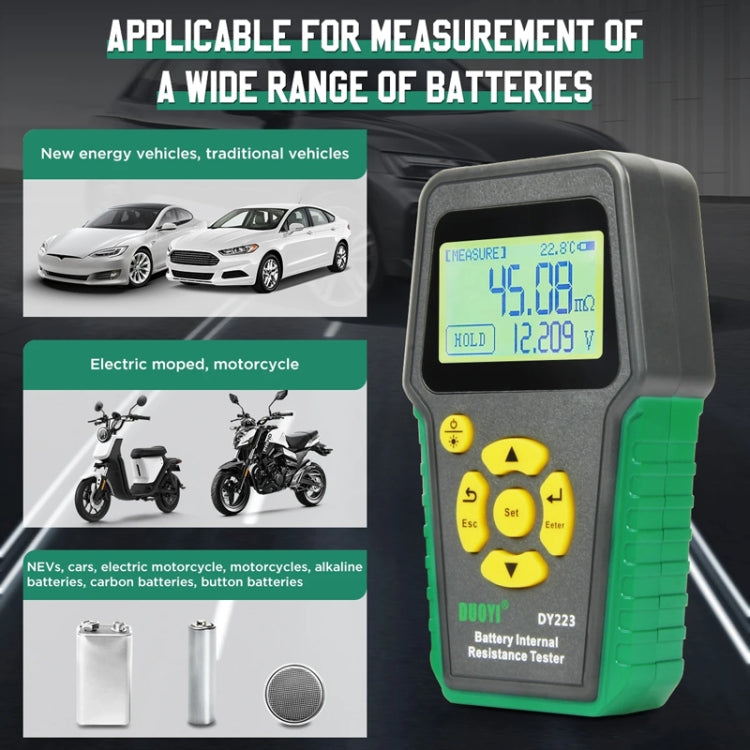

• Suitable for all kinds of battery measurement: such as new energy vehicles, traditional cars, electrical cars, motorcycles, etc
• Parameters:
• Measurement object: internal resistance measurement / battery voltage measurement / ambient temperature measurement

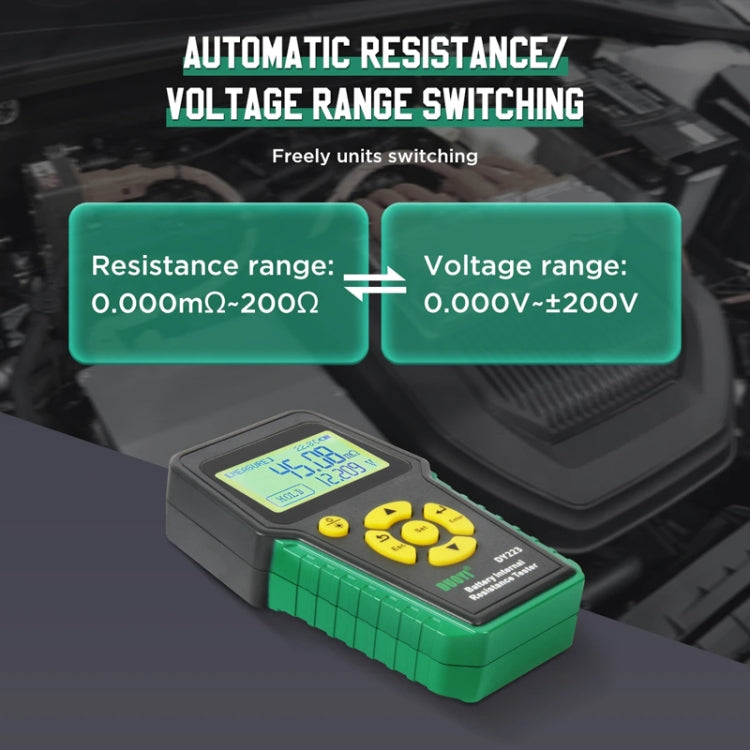

• Resistance measurement range 0.000mΩ2-200Ω (5 ranges, automatic unit switching)
• Voltage measurement range: 0.000V-+/-100V
• Temperature measurement range: -10-50 degrees celsius
• Measuring speed: 3 times/second
• Battery: 6 x LR6 (not included in shipment)

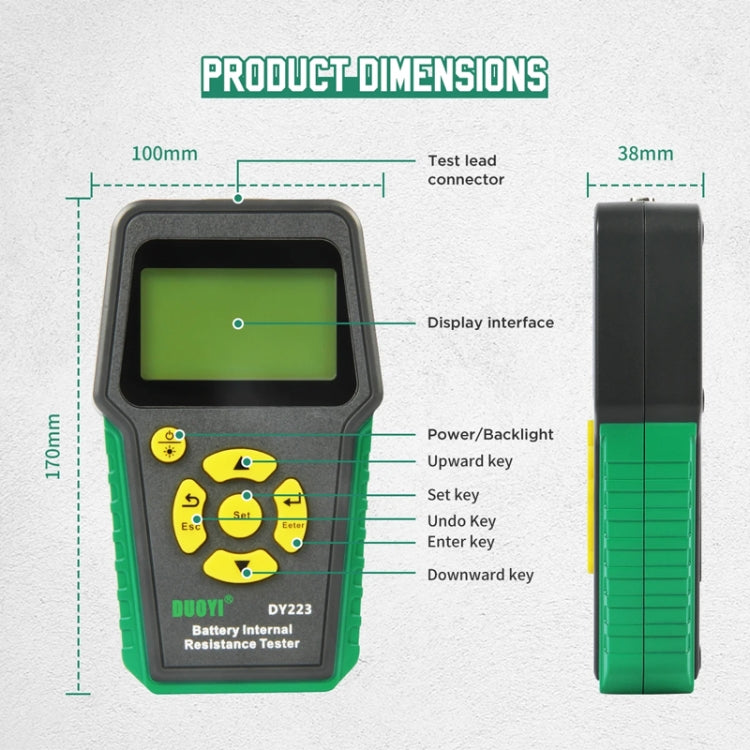

• Dimensions: 170 x 100 x 38mm
• Weight: 200g

Package Info: Weight: 0.77kgs / 1.70lb, Size: 28cm * 19cm * 6cm / 11.02inch * 7.48inch * 2.36inch
