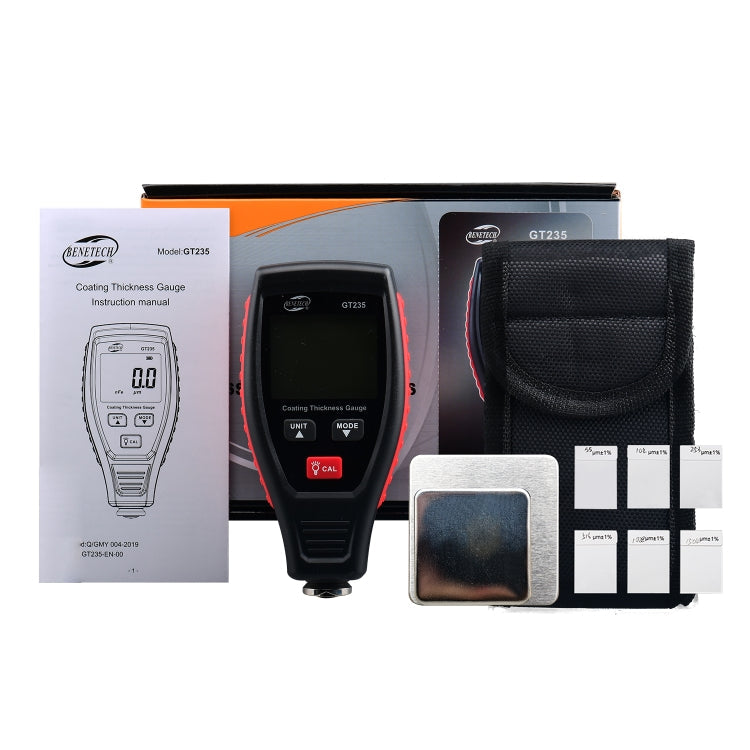

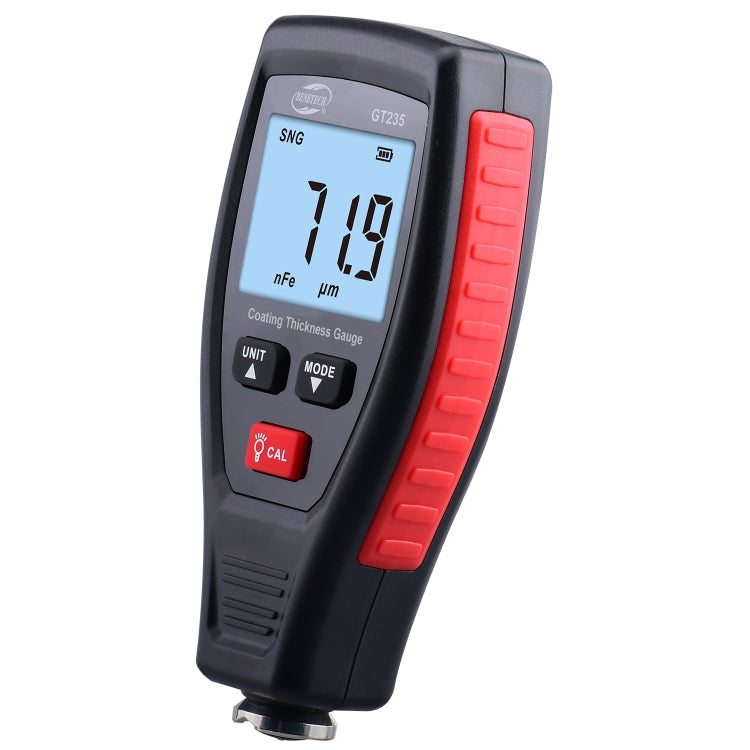

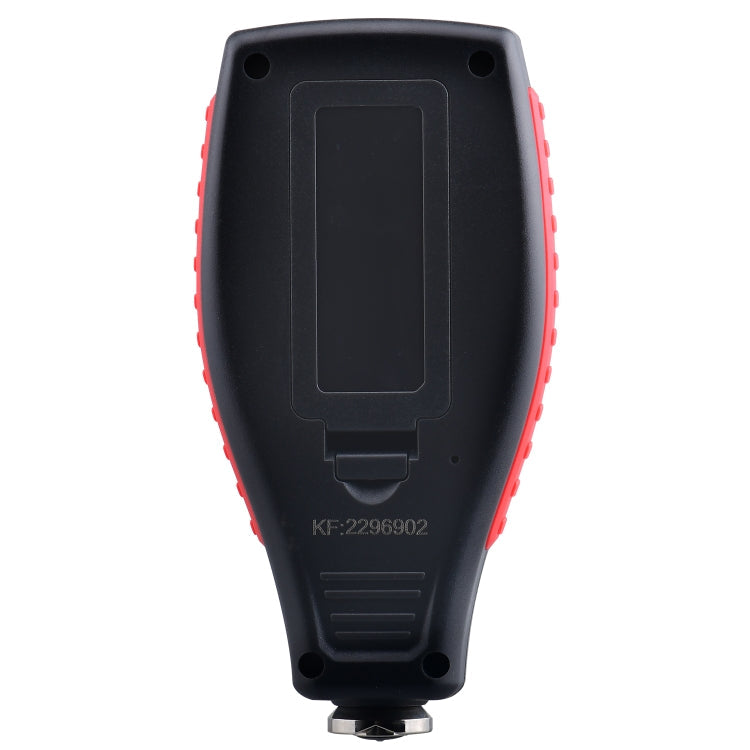

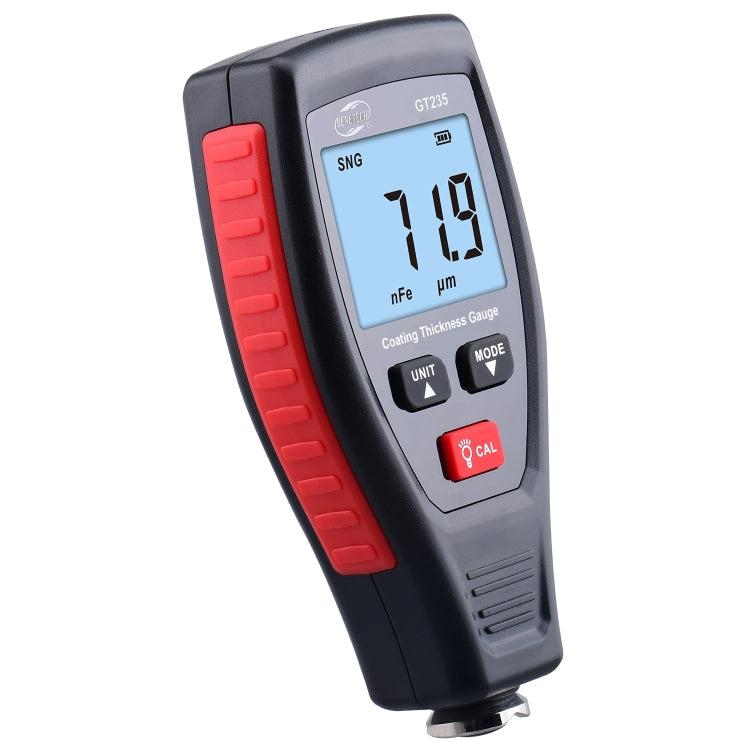

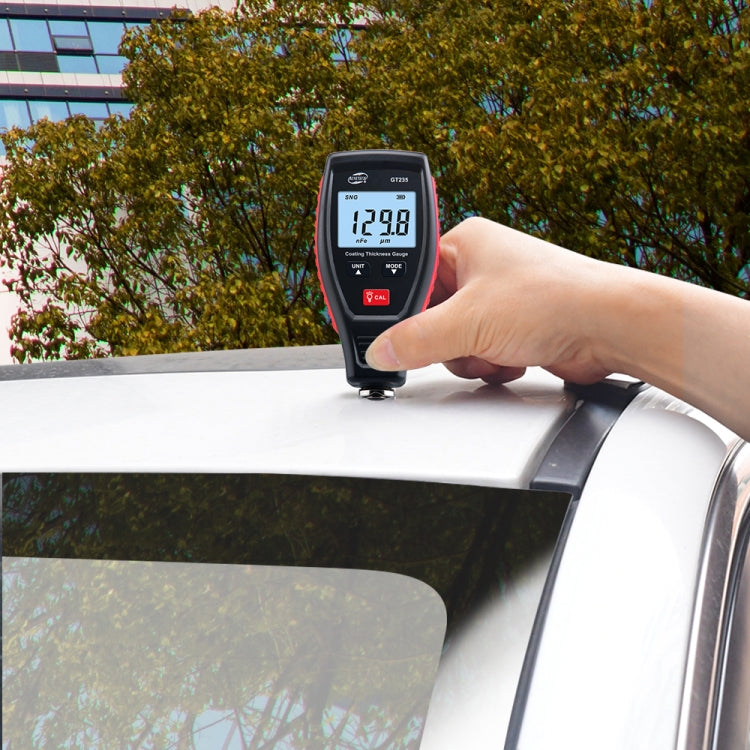

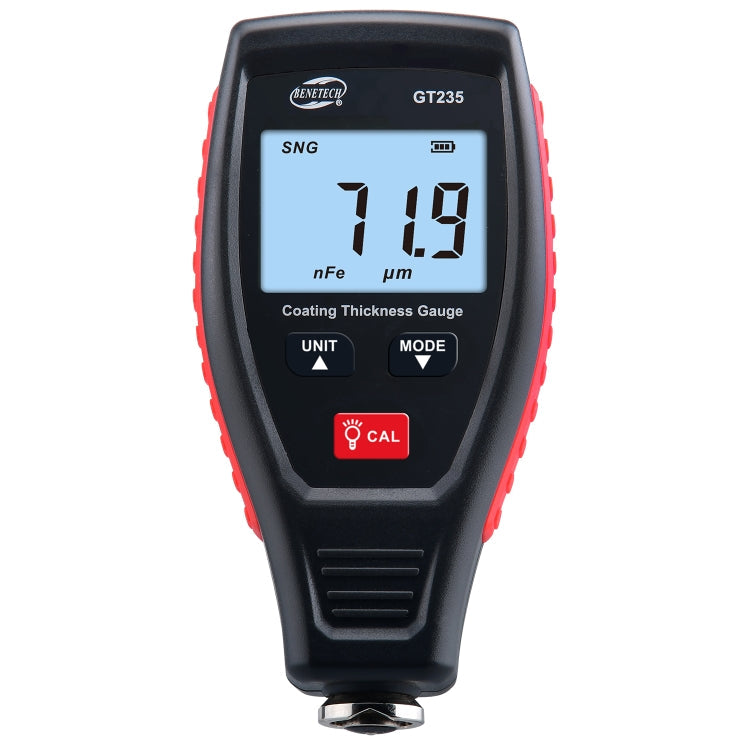

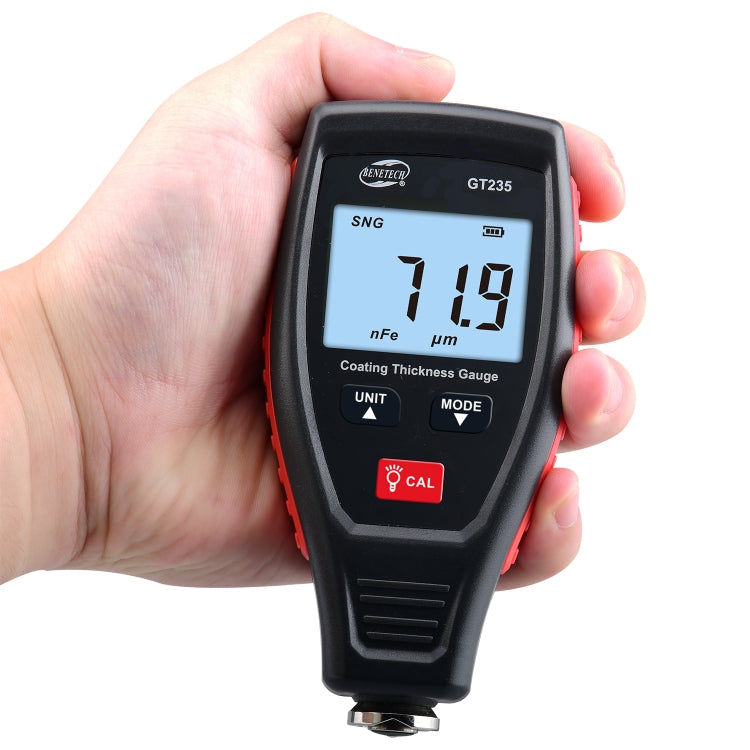

BENETECH GT235 Iron-aluminum Dual-purpose Paint Film Coating Thickness Gauge, GT235 – Magnetic

BENETECH GT235 Iron-aluminum Dual-purpose Paint Film Coating Thickness Gauge, GT235 – Magnetic.

Key Features:

• Features
• Measuring the thickness of non-magnetic coating on the magnetic metal substrate.
• Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate.
• Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.
• Single measurement, continuous measurement and differential measurement available.
• Zero-point calibration, Offset Calibration and basic calibration available.
• Metric and imperial units of measurement optional.
• LCD backlight.
• Automatic shutdown.
• Specification
• The measurement range: 0 ~ 1800pm / 70.8mi/18mm
• Resolution: (0.1 um(less than 100um), pm( greater than or equal 100pm)0.1mil 0.001mm less thano r equal 150um, +/-5um
• Measurement error: Greater than 150 um,+/-(3%H+1pm)
• The lower limit diameter of magnetic matrix: 12mm
• The lower limit thickness of magnetic matrix: 0.5mm
• The lower limit curvature radius of magnetic convex matrix: 2mm
• The lower limit curvature radius of magnetic concave substrate: 11mm
• The lower limit diameter of nonmagnetic matrix:50mn
• The lower limit thickness of non-magnetic substrate: 0.5mm
• Operating temperature: 20 ~ + 40 degree C (it is recommended to use the working temperature range in different environments, especially when the temperature...
• Working humidity range: 10 ~ 95% RH
• Battery 1.5V AAA alkaline battery x 2 (not included)
• Dimension: 62 x 27 x 121.5mm
• Weight: 105.03g

Package Info: Weight: 0.32kgs / 0.71lb, Size: 18cm * 14cm * 6cm / 7.09inch * 5.51inch * 2.36inch
