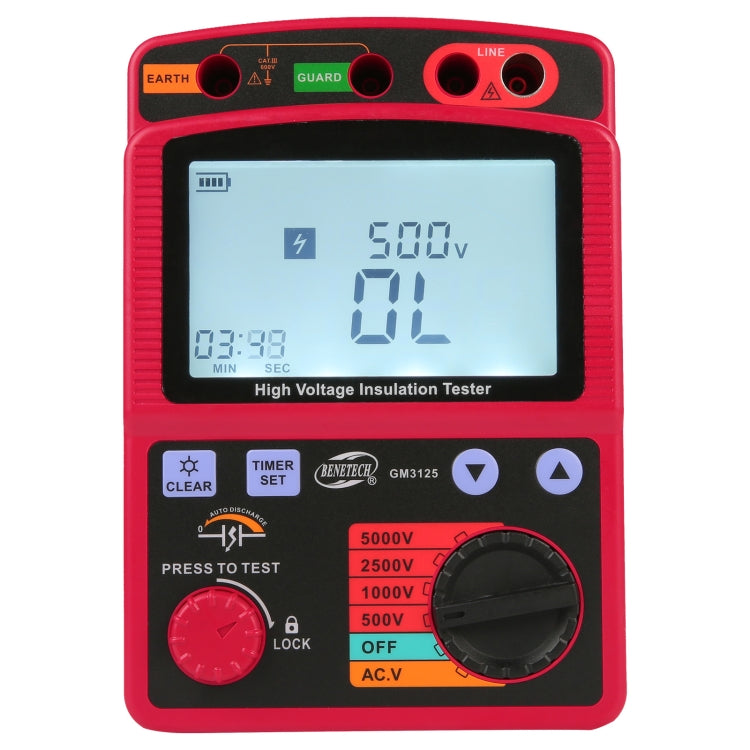

BENETECH GM3125 High Voltage Insulation Tester Resistance Tester, GM3125 – Durable Build, Easy to Use

BENETECH GM3125 High Voltage Insulation Tester Resistance Tester, GM3125 – Durable Build, Easy to Use.

Key Features:

• Features
• Auto discharge function to make the operation safe
• LCD backlight function
• Digital display of measurement results
• Live circuit warning symbols with audio sounds
• Automatic shutdown function, the instrument will automatically shut down after 10 minutes without any operation
• Set the test time function to automatically perform the measurement within the specified time
• Low battery indicator
• PI test (Polarization Index measurement)
• PI measurement can automatically measure the resistance ratio according to the setting at any two points of time
• External DC power supply (DC12V, 1A power adapter) can be used for measurement
• Specifications
• Display: MAX 999 counts LCD display (1000 counts only at 1T is displayed)
• Over range indication: OL mark appears on insulation resistance range. LO mark appears on voltage range
• Auto-ranging: Range shifts to upper range: 1000 counts. Range shifts to lower range: 95 counts (merely on the insulation resistance range)
• Sample rate: 0.5-10 times / sec
• Operable altitude: Less than or equal 2000m (Indoor use)
• Operation circumstance: Temperature 0-40 Celsius Degree, humidity: Less than or equal 85%
• Storage circumstance: Temperature -20-60 Celsius Degree, humidity: Less than or equal 90%
• Overload protection: Insulation resistance: AC 1200V / 10s, Voltage: AC 720V / 10s
• Voltage resistance: AC8320 (50/60Hz)/5 seconds (between electrical circuit and enclosure)
• Insulation resistance: 1000M ohms of more / DC 1000V (between electrical circuit and enclosure)

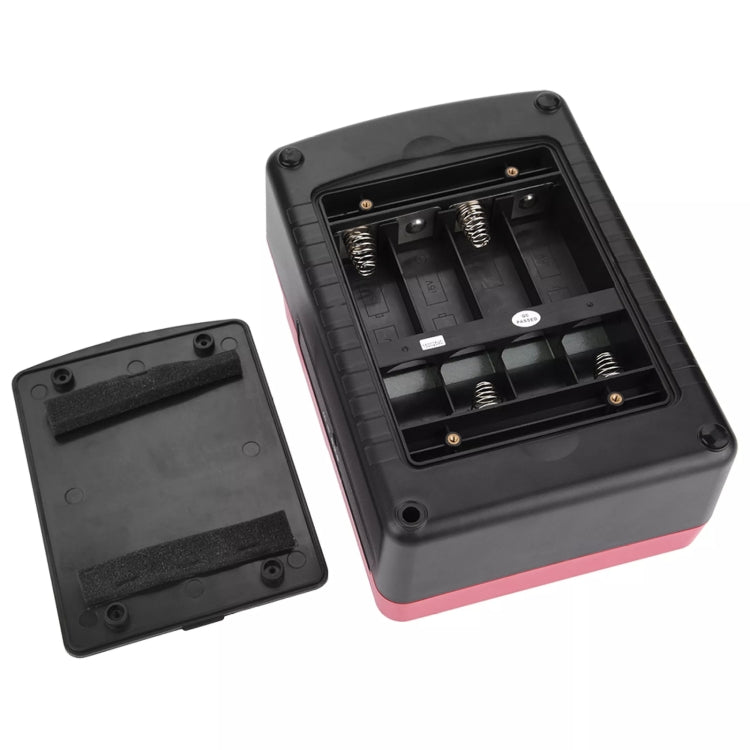

• Power Supply: DC 12V (8 x 1.5V LR14 batteries) (included)
• Size: 153mm x 96mm x 220mm
• Weight: 1032g (without batteries and test wires)

Package Info: Weight: 3.08kgs / 6.79lb, Size: 33cm * 27cm * 15cm / 12.99inch * 10.63inch * 5.91inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
