B855 LINEPAUDIO Phone Prephonograph Signal Amplifier with Auxiliary Input and Volume Control – Magnetic, TPU

B855 LINEPAUDIO Phone Prephonograph Signal Amplifier with Auxiliary Input and Volume Control – Magnetic, TPU.

Key Features:

• About The Product
• The LINEPAUDIO phone preamplifier adds phonograph functionality to any amplifier or receiver with standby auxiliary level input.
• Prephonograph signal amplifier with AUX input and volume control, and AUX is with no signal amplification function.

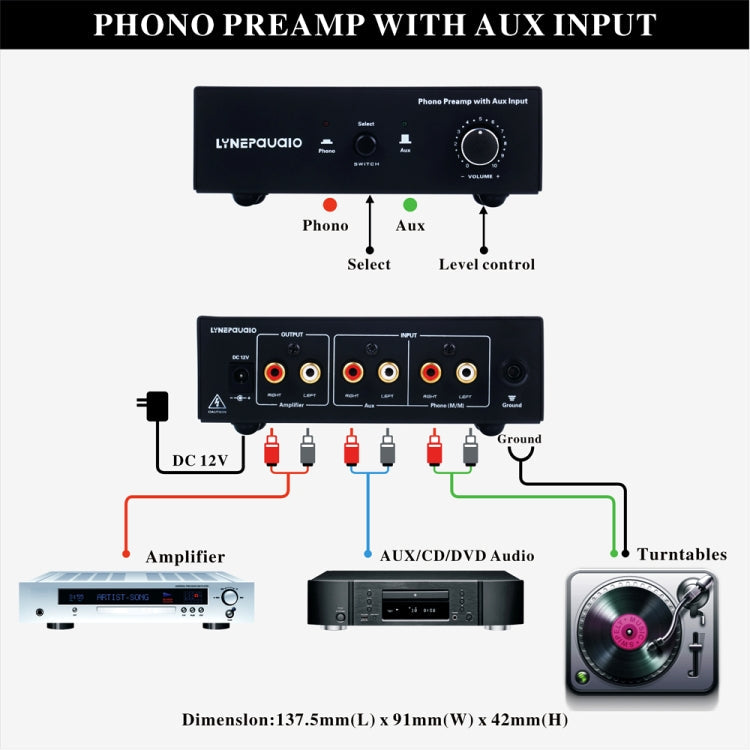

• The Phono preamplifier adds a phonograph function to any amplifier or receiver having standby AUX / CD / DVD audio line level input.
• It can also be used to drive the disc directly into a mixer or a computer sound card. With its precise RIAA balance and 80 dB S / N ratio, the product can...
• Product configuration switch function selects AUX input instead of stereo or AUX input port occupied on the computer. There is no need to connect or...
• The output level control is very convenient to use the sound card and allows for the elimination of the largest signal difference between the switched...
• Features
• High quality RIAA phonograph preamplifier, for use with dynamic magnetic type jukebox.
• Accurate and stable integrated circuit design.
• Gold-plated head input and output connection RCA port, reliable performance.
• Stylish, sturdy metal case to increase resistance of electrical noise.
• The output level control allows the volume to be adjusted to provide signals from other sources.
• Distortion ratio: 0.06% (max).
• The frequency response is: + / -0.5dB, 20Hz - 20kHz.
• Phonograph input impedance: Phono: 47K ohm - 200pF nominal.
• Line input impedance: AUXL: 10K ohm.
• Output impedance: 200 ohms.
• Channel separation: 50dB.
• Voice: 40dB (Phono) arbitrary signal source.
• Phono sensitivity: 3.3MV.
• Output: 300MV.
• SNR: 85 dB.
• Power supply: DC 12V 1A.

Package Info: Weight: 0.62kgs / 1.36lb, Size: 22cm * 20cm * 6cm / 8.66inch * 7.87inch * 2.36inch
