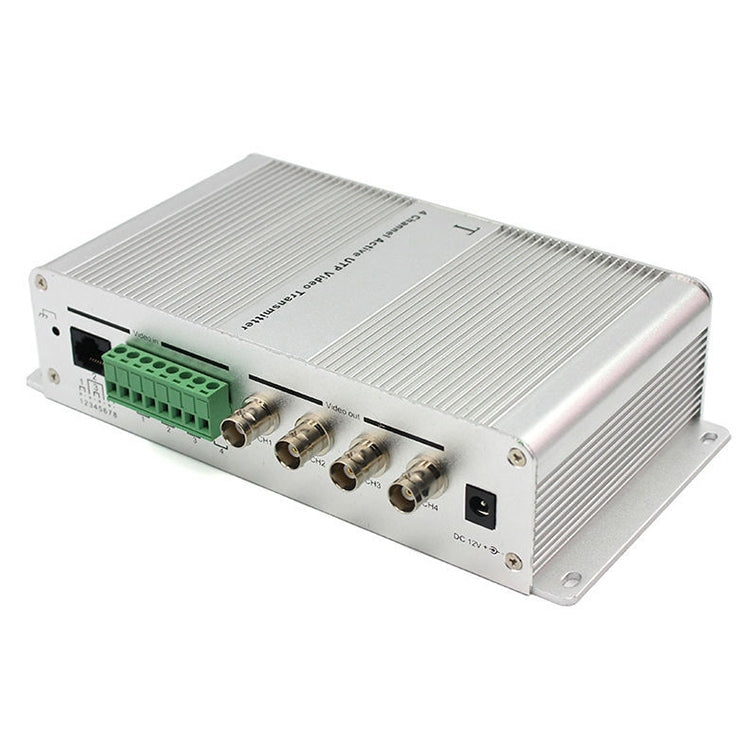

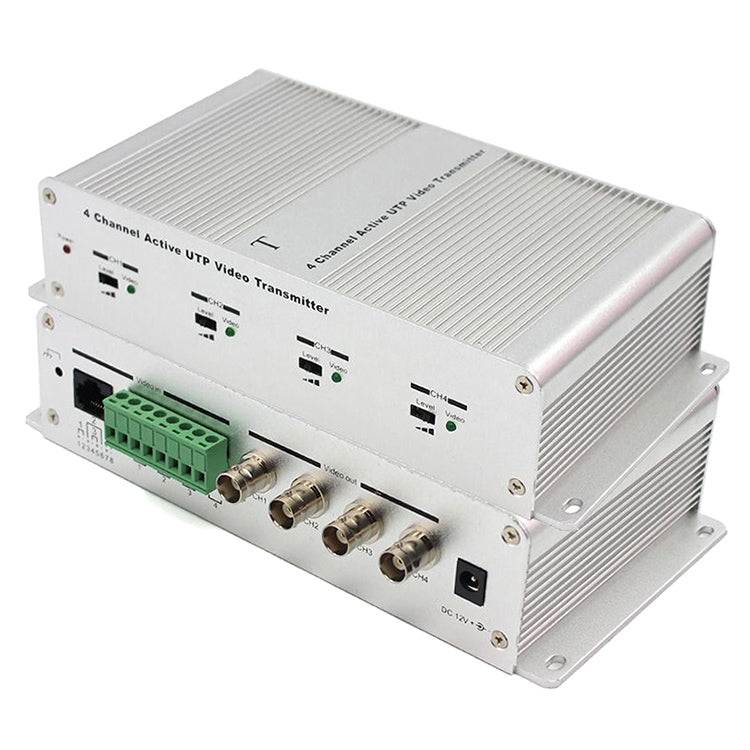

4 Channel Active UTP Video Transmitter, 411T – Durable Build, Easy to Use

4 Channel Active UTP Video Transmitter, 411T – Durable Build, Easy to Use.

Key Features:

• Applicable to NTSC, PAL, SECAM and CCIR system.
• Full motion CCTV video at distance up to 7200ft(2400m).

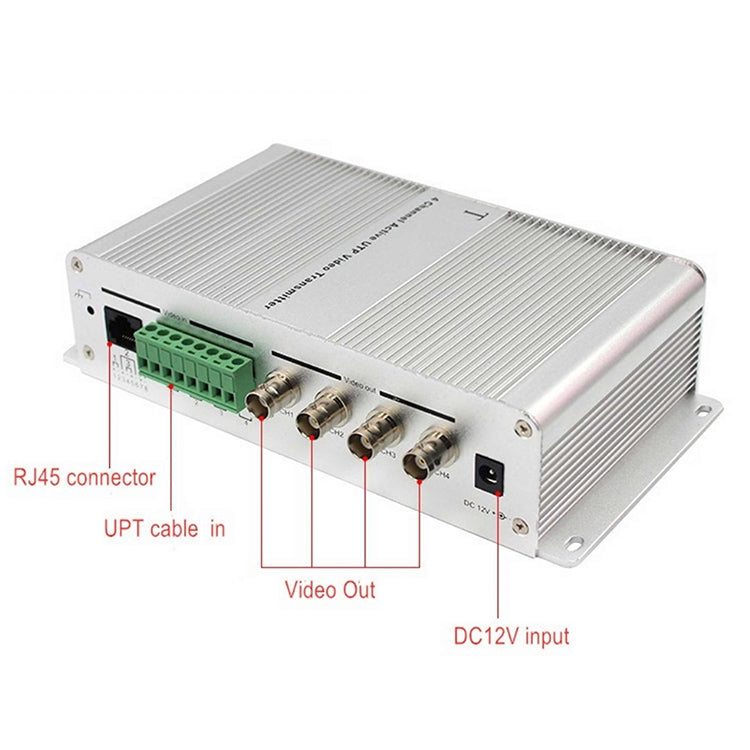

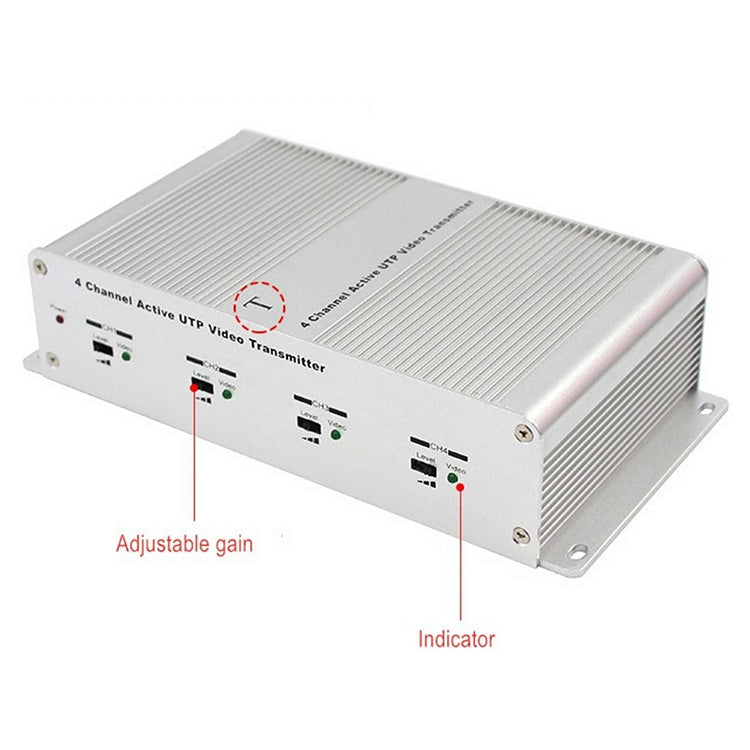

• 18 pin RJ 45 socket, 8 position green terminal block, 4 BNC port, 4 "brightness"adjustable knob, 4 "sharpness" adjustable knob.
• Applied for the occasions such as video monitoring and video meeting, can transmit four channels of video signal via 8 core cat-5 unshielded twisted pair wire.
• Can receive balanced signal to convert it into unbalanced signal, and raise the receive signal with receiving effect well.
• Specifications:
• Product Name: 4 Channel UTP Video Transmitter
• Channel: 4
• Material: Metal
• Frequency Response: DC-8MHz
• CMRR: 60db
• Impendance: BNC Terminal: 75Ohm; Connection Terminal: 100Ohm
• Working Temperature: -10-70 degree C
• Voltage: DC 12V
• Current: Max.200mA
• Characteristic Impendance: 100+/-20 Ohm
• DC Loop Resistance: 18Ohm/100m
• Size: 20 x 7 x 4.3cm
• Color: Silver Tone
• Weight: 579g

Package Info: Weight: 0.01kgs / 0.02lb

Shipping: Shipping charges and final delivery dates are shown at checkout.
