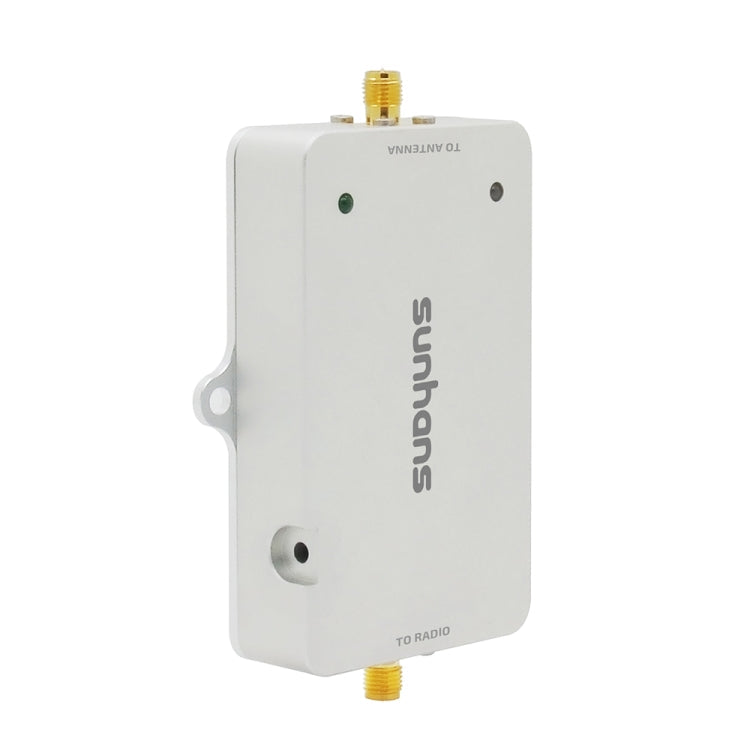

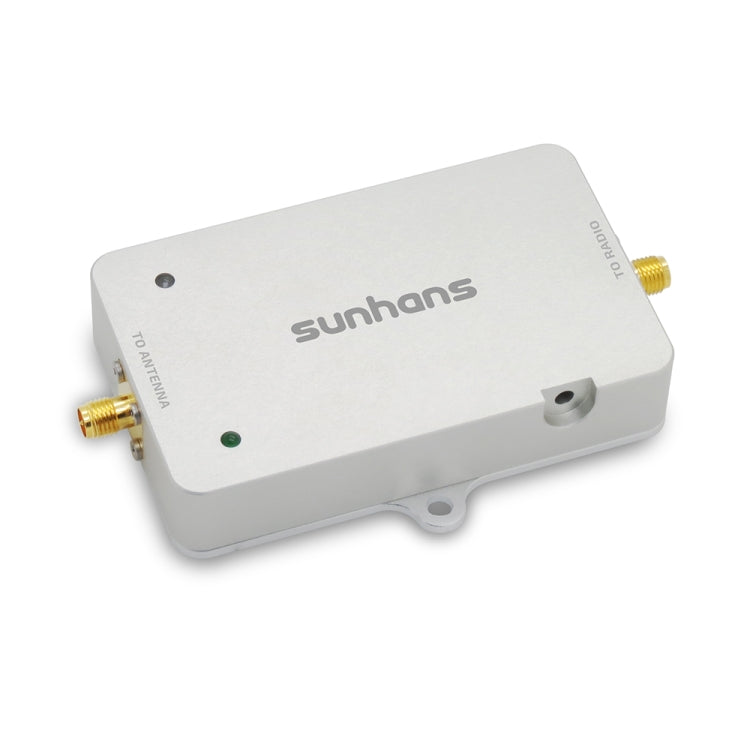

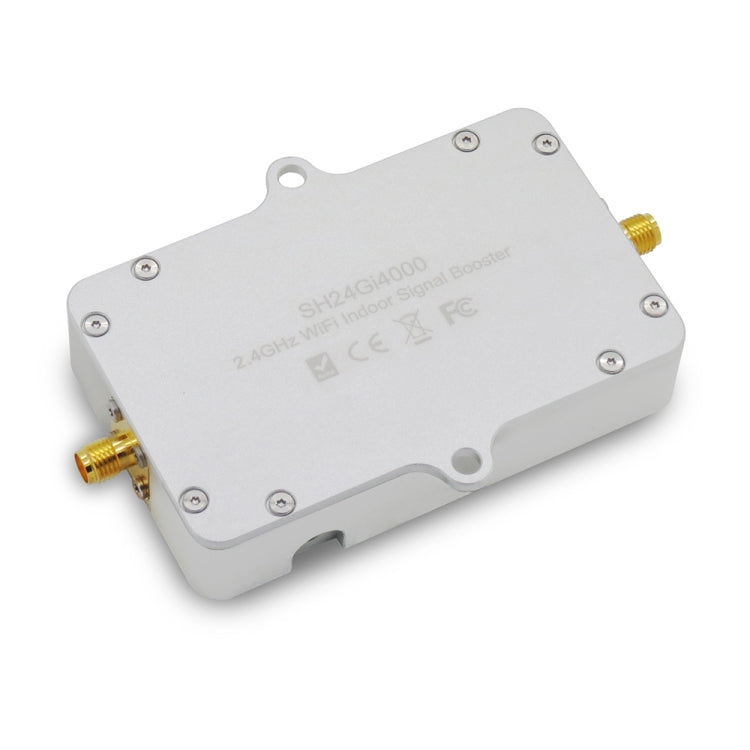

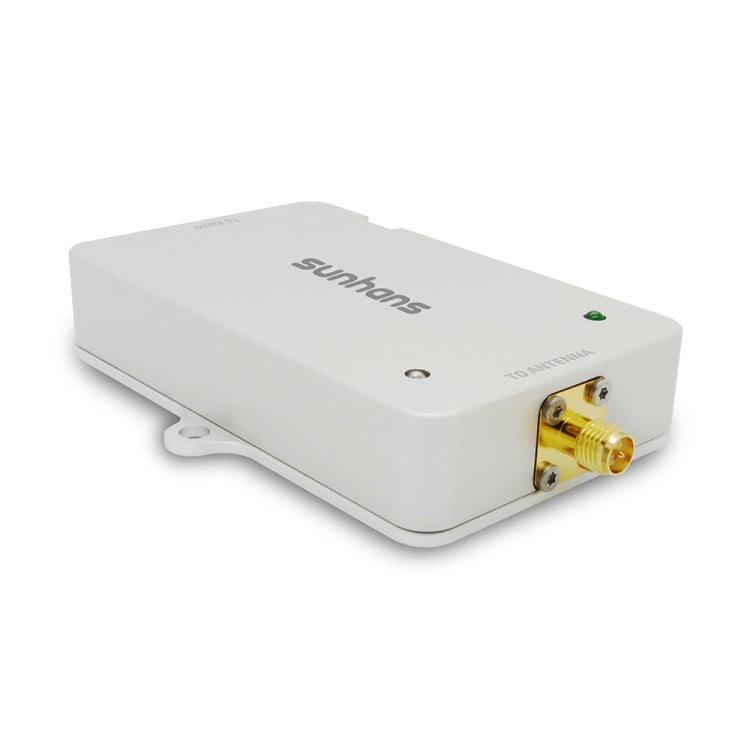

2.4Ghz Indoor WiFi High Power Signal Booster Amplifier 802.11 b/g/n (SH24Gi4000) – TPU

2.4Ghz Indoor WiFi High Power Signal Booster Amplifier 802.11 b/g/n (SH24Gi4000) – TPU.

Key Features:

• Parameters
• Model Name: SH24Gi4000
• Operating Range: 2400 ~ 2500 MHz
• Channel width: 20 Mhz & 40 Mhz
• Supported standards: IEEE 802.11b/g/n
• Operation mode: Bi-directional, half-duplex, time division duplex
• Connector type: To radio SMA female (hole inside). To antenna RP-SMA male (pin inside)
• Output power: 4000 mW (34 dBm)
• Input power: 0 ~ 20 dBm
• Transmit gain: 16-19 dB
• Receiver gain: =<15 dB
• Noise figure: =<3.5 dB typical
• Frequency response: +/-1 dB over operating range
• Power adapter: 6V/4A DC, 100~240V
• Operating temperature: -20 degree C to +70 degree C
• Operating humidity: Up to 75% relative humidity
• Material: Cast aluminum
• LED light: Power status LED and activity status LED
• Booster size: 10 x 8.6 x 2.1 cm
• Booster weight: 245 g
• Package size: 19.5 x 16.1 x 7 cm
• Package weight: 550 g
• Package contents: 1 x SH24Gi4000 / 1 x RG316 cable with SMA connectors (20cm) / 1 x 6dBi omni antenna / 1 x power supply
• Features
• 802.11b/g/n Compatible
• Auto gain adjustment
• Cast Aluminum Weatherproof Construction
• Tx / Rx LEDs Indication
• Professional kits feature N-Female connectors
• DC power feed through RF cable
• Easy to mount
• Expand the Access Point working areas including outdoor services
• The line high power Amplifier can easily be connected to any 802.11 b/g/n Wireless Router or Access point for easy extension of its wireless range.
• When used in conjunction with a Sunhans High Gain Omni-Directional wifi antenna (antenna is not includes) an appropriate coaxial cabling, this power...

Package Info: Weight: 0.57kgs / 1.26lb, Size: 21cm * 17cm * 7cm / 8.27inch * 6.69inch * 2.76inch
