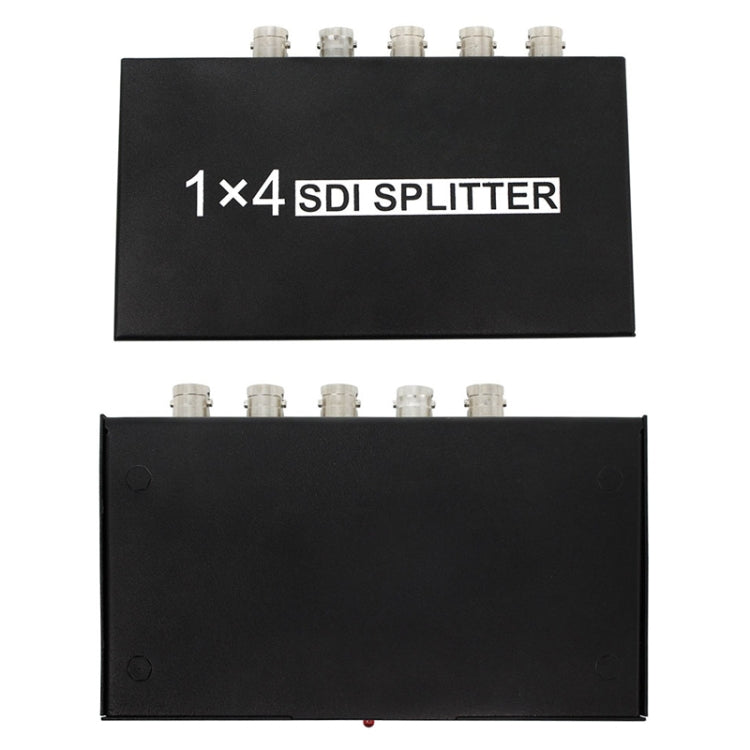

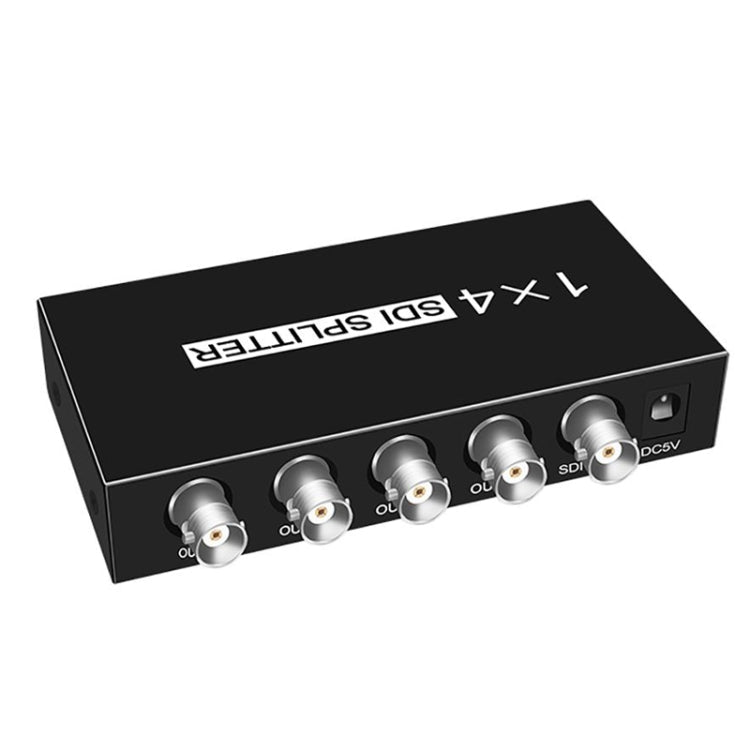

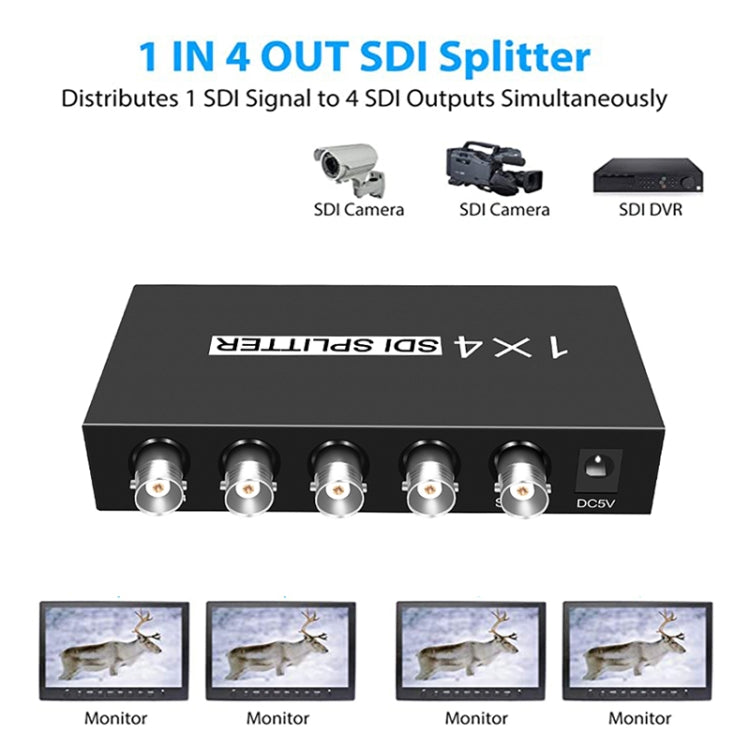

1 In 4 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter, 1 In 4 Out – TPU

1 In 4 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter, 1 In 4 Out – TPU.

Key Features:

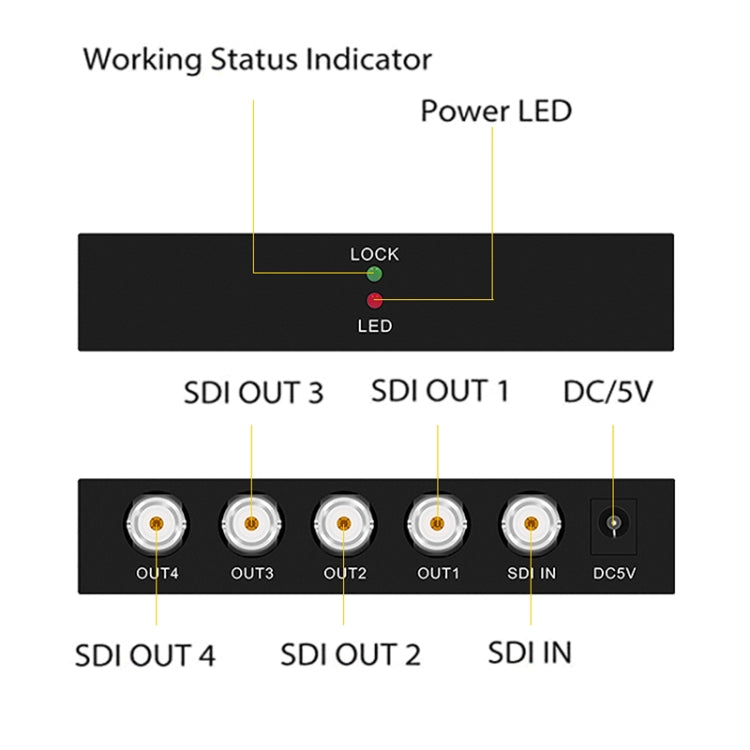

• SDI output interface: BNC SDI×2 SDI×4 SDI×8
• SDI standard compatible: SMPTE 424M, SMPTE 292M and SMPTE 259M-C
• SDI signal format: SD-SDI HD-SDI 3G-SDI
• Support SDI rate: 143-2970MB/S
• SDI impedance: 75 ohms
• Resolution: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60HZ / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
• SDI signal output amplitude: 800mVp-p

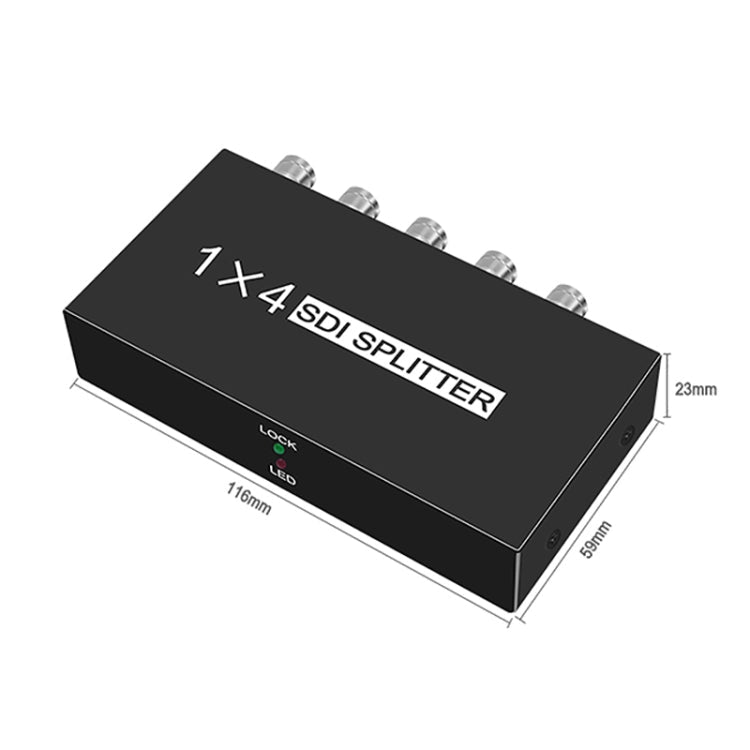

• Dimensions: 116 x 59 x 23mm

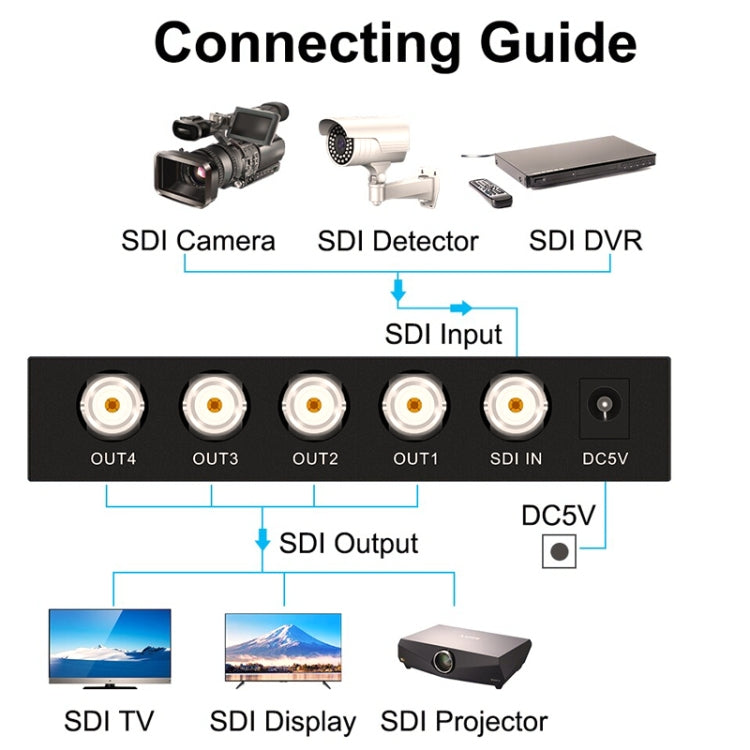

• Installation steps:
• Connect the SDI input interface to the SDI signal source through the coaxial cable
• SDI output can be connected to other display devices that support SDI signal input
• Turn on the power of the host, and the machine starts to work
• Function description:
• SDI distribution function: Connect the hardware according to the three "installation steps", and the SDI splitter will start to work normally. The SDI...

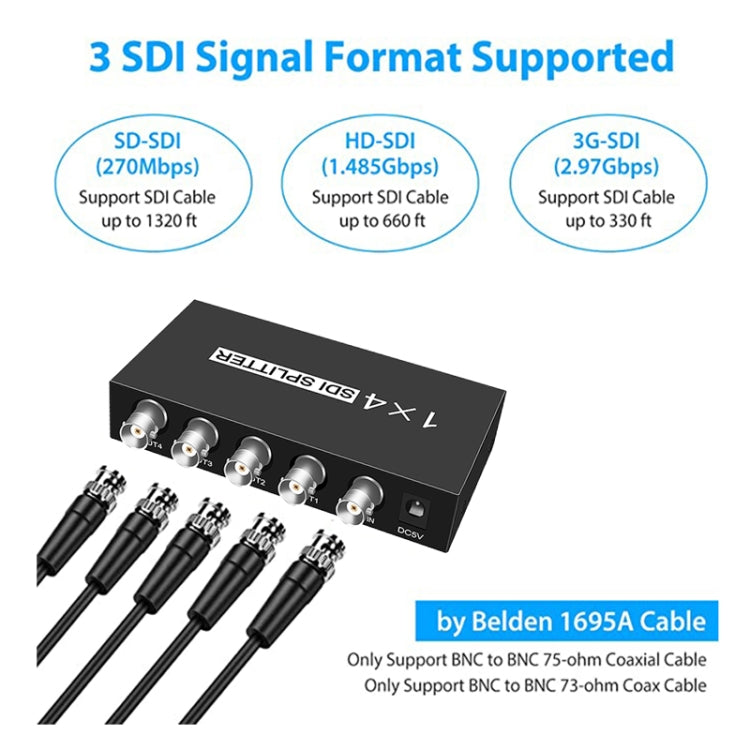

• Extension function: This product supports cable length up to (Belden-1694A); SDI line input and output distance: SD supports 400m, HD supports 200m, 3G...

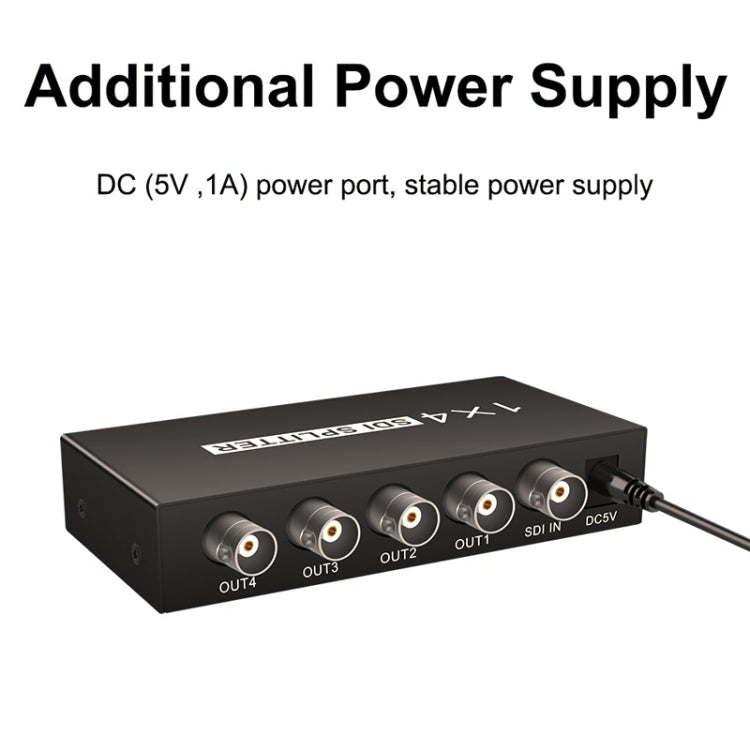

• Wide voltage design: built-in wide voltage design, support DC5V~36V voltage input (power up to 2W)
• Intelligent design: It adopts pure hardware processing to plug and play, and can automatically detect different SDI signals. When a valid SDI signal is...

Package Info: Weight: 0.20kgs / 0.45lb, Size: 14cm * 9cm * 4cm / 5.51inch * 3.54inch * 1.57inch
