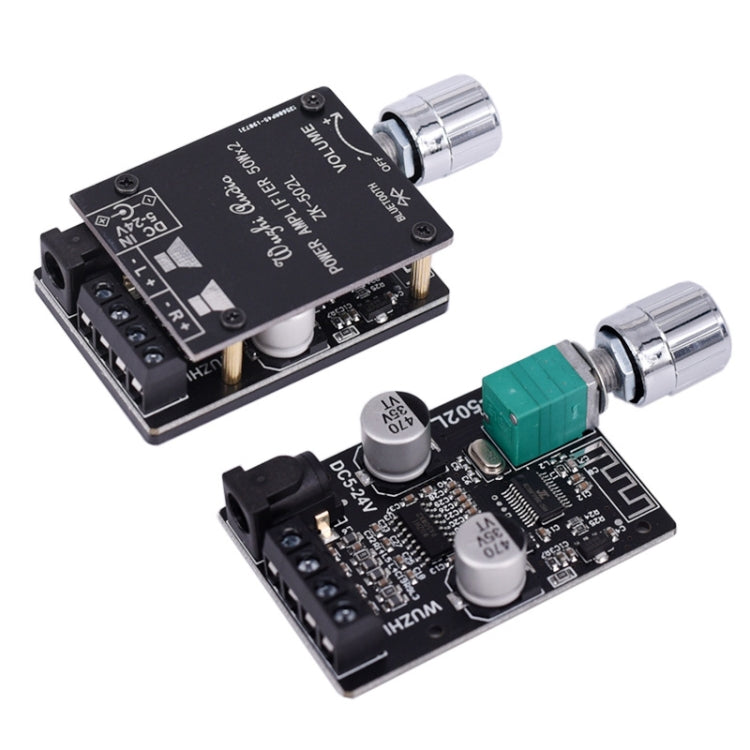

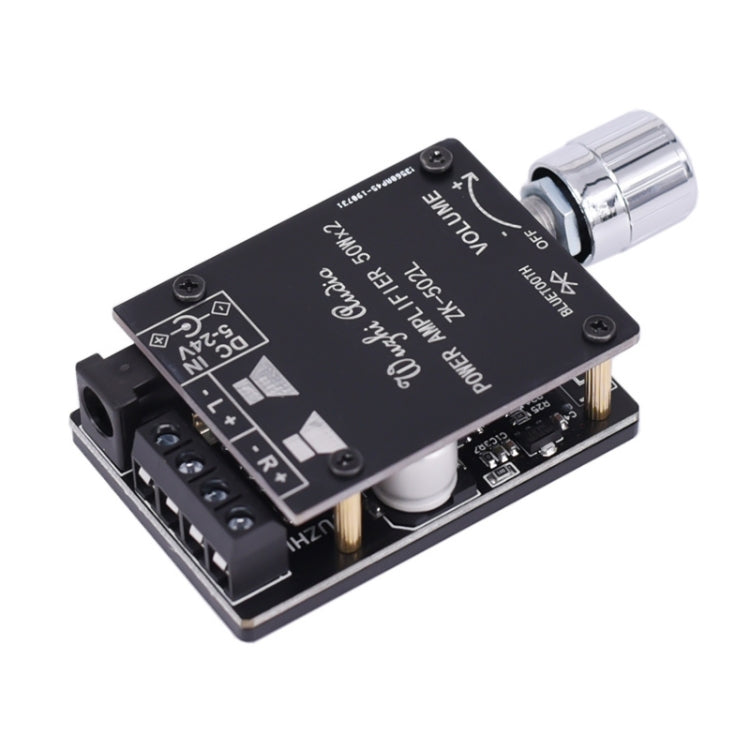

ZK-502L Bluetooth 5.0 12/24V Wireless Stereo Audio Digital Power Amplifier Board 50Wx2 Bluetooth Amp Amplificador, with Shell, ZK-502L with Shell – Bluetooth

ZK-502L Bluetooth 5.0 12/24V Wireless Stereo Audio Digital Power Amplifier Board 50Wx2 Bluetooth Amp Amplificador, with Shell, ZK-502L with Shell – Bluetooth.

Key Features:

• Features

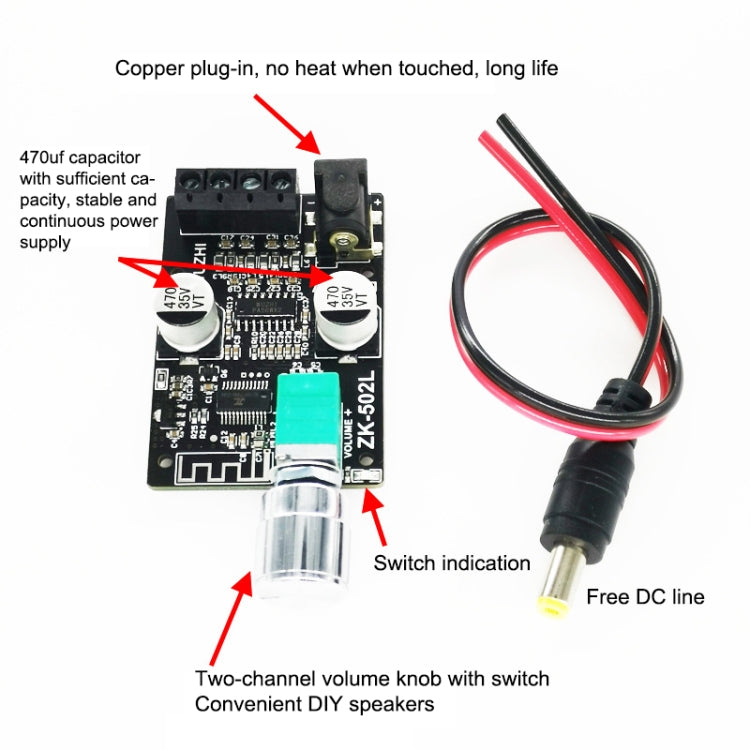

• The potentiometer adjusts the volume with a switch for easy control of the volume, making it good for DIY speakers.If it is a metal box, you need to bring...
• The copper DC connector is used to withstand high current and no heat.
• Capacitor 470uf35V solid capacitors ensure power storage and heat dissipation, and stable power supply is a prerequisite for good sound quality.
• Free DC head lead, compatible with the input power interface of this product, even if you do not have a DC head adapter or battery, it can be easily wired.
• Bluetooth 5.0 version, the transmission efficiency is higher, the transmission distance is farther.
• Precautions for use: The power switch on the board is the standby switch. After the switch is turned off, the machine is in a low-power standby state. To...
• Specification
• Material: ABS plastic
• Bluetooth version: 5.0
• Adaptation supply voltage: 5-24V(optional 9/12/15/18/24V adapter, high power recommended high voltage)
• Adapter speaker: 30-200W, 4 ohms - 8 ohms
• Number of channels: Left and right stereo(stereo)
• Bluetooth transmission distance: 15m(without occlusion)
• Protection mechanism: Self-recovery overheat protection, self-recovery short circuit protection
• Size: 55 x 38 x 17mm
• Tip:
• To have enough out put power if the input is sufficient and the supply voltage/current is sufficient. The power supply voltage is higher and the relative...
• Power supply voltage: 12V--8 ohm speaker/12W(left channel) + 12W(right channel), 4 ohm speaker/20W + 20W
• 15V--8 ohms/18 + 18W, 4 ohms/greater than 30 + 30W
• 19V--8 ohms/32 + 32W, 4 ohms/greater than 45 + 45W
• 24V--8 ohms/38 + 38W, 4 ohms/greater than 50 + 50W

Package Info: Weight: 0.07kgs / 0.15lb, Size: 13cm * 6cm * 3cm / 5.12inch * 2.36inch * 1.18inch
