XY-LJ02 6-30V Micro USB Digital LCD Display Time Delay Relay Module Control Timer Switch – TPU

XY-LJ02 6-30V Micro USB Digital LCD Display Time Delay Relay Module Control Timer Switch – TPU.

Key Features:

• Features
• With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical.
• Support high and low level trigger, switch control, suitable for most occasions.
• Wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use.
• Support UART data upload and parameter setting.
• There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn.
• Added sleep mode. After enabling, if there is no operation within 5 minutes, the LCD backlight will be automatically turned off; any key will wake up.
• Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately.
• All setting parameters are automatically saved after power off.
• Specification
• Working voltage: 6-30V, support micro USB 5.0V power supply
• Trigger signal source: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control (passive switch).
• Output capability: can control equipment within DC 30v 5A or AC 220v 5A
• Quiescent current: 15mA Working current: 50mA
• Working temperature: -40a??85 degrees Celsius
• With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters will be remembered forever after power off

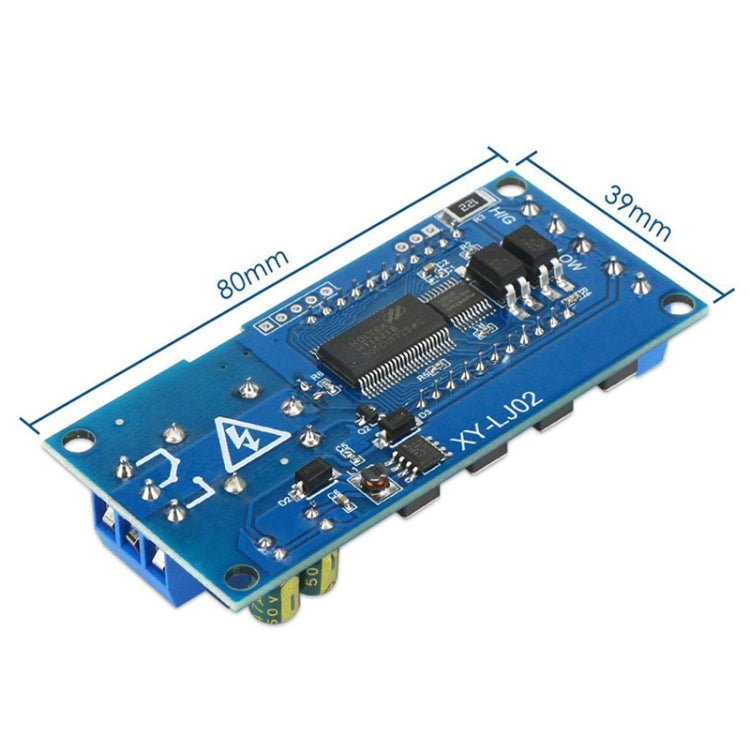

• Size: 8.0x3.8x1.9cm
• Weight: about 36g
