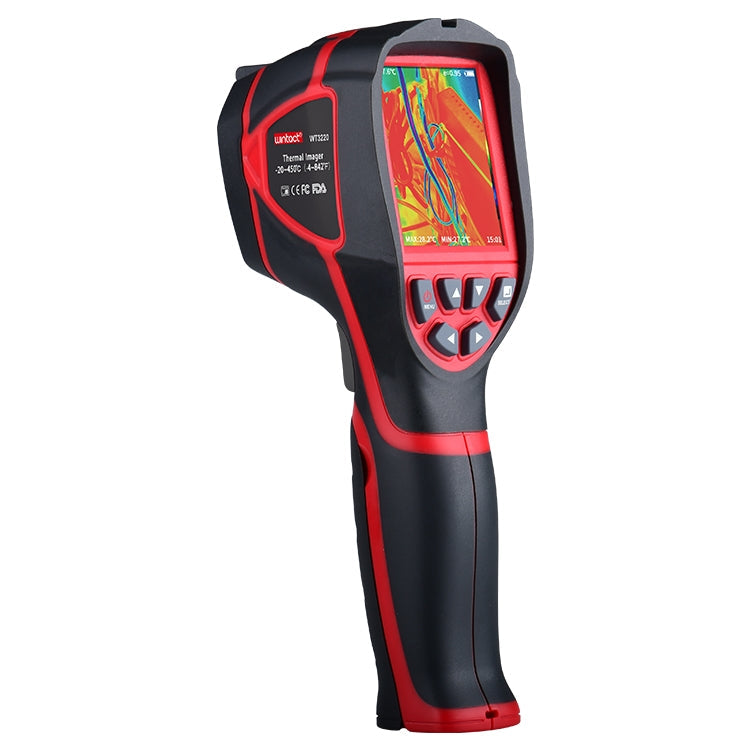

Wintact WT3220 Infrared Thermal Imager Camera, WT3220 – Durable Build, Easy to Use

Wintact WT3220 Infrared Thermal Imager Camera, WT3220 – Durable Build, Easy to Use.

Key Features:

• This product is an infrared thermal imager that integrates surface temperature measurement and real-time thermal images.
• The traditional infrared thermometer needs to measure each part one by one, but the infrared thermal imager does not need it, thus saving time
• In addition, the center point measurement cursor is used for fast and accurate positioning to measure temperature to increase the degree of discrimination....

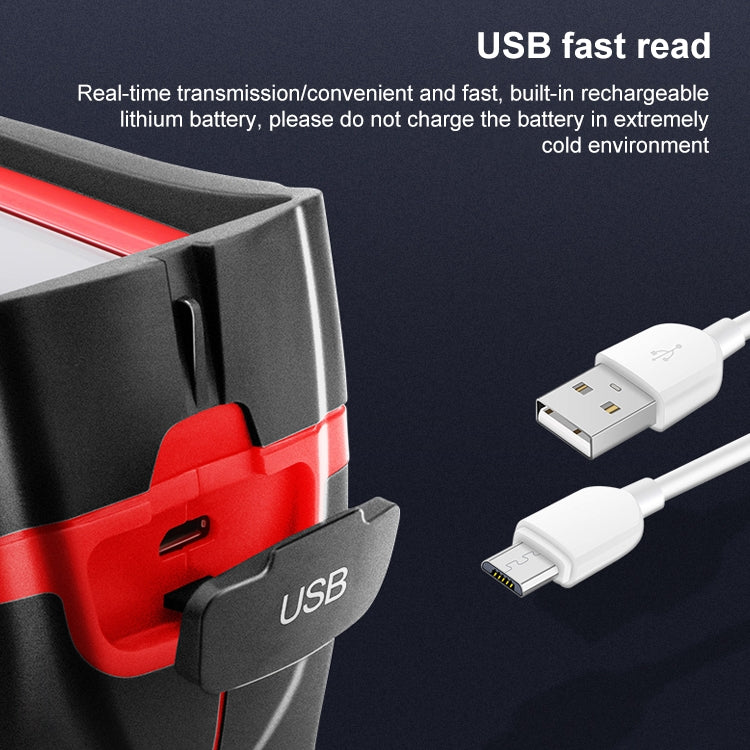

• The thermal image and visible light image are stored in the device, which can be read via USB or stored in a computer to generate reports or print
• The product is small in size, easy to operate, and powerful. This is an ideal choice for electric power, electronic manufacturing, industrial inspection and...
• The emissivity can be adjusted to improve the measurement accuracy of semi-reflective objects.
• The upper and lower temperature cursors can guide the user to the upper and lower temperature areas of the thermal image
• Optional palette
• Application areas include electric power, metallurgy, petrochemicals, machinery, coal, transportation, fire protection, national defense, etc. It can not...
• There is no need to cut off power, stop or stop production to detect potential problems and prevent failures

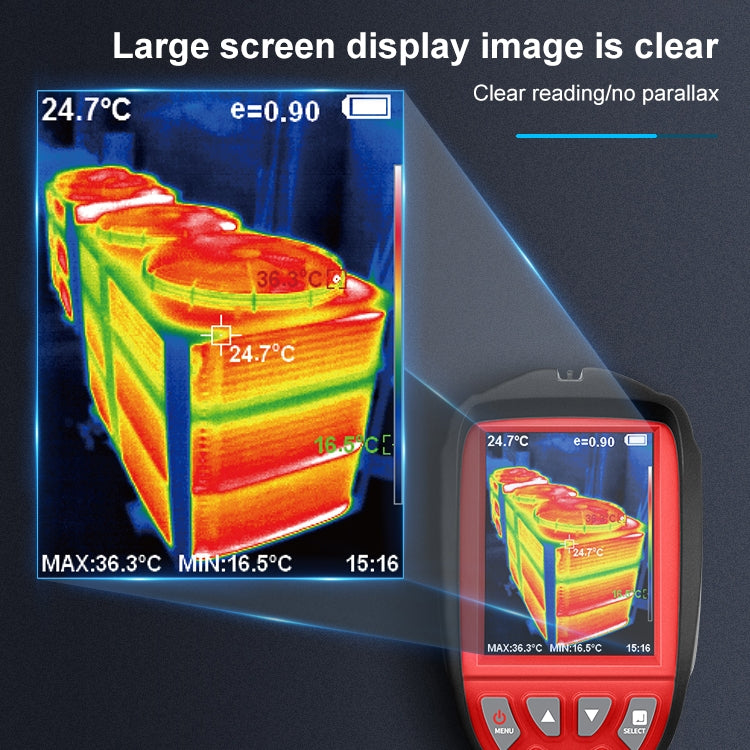

• Display: 2.8-inch full-angle TFT display
• Infrared image resolution: 220x160
• Field of view: 35x26 degrees
• Temperature measurement range: -20 to 450 degrees Celsius
• Measurement accuracy: +/-2 degrees Celsius/+/-2% (more than 300 degrees Celsius, the accuracy is +/-5%)
• Visible image resolution: 300,000 pixels
• LCD resolution: 320??240
• Focus distance: 0.5-70mk
• Emissivity: adjustable from 0.01 to 1.00
• Thermal image frame rate: 9 Hz
• Wavelength coverage: 8-14um
• Focus mode: fixed
• Palette: rainbow, iron oxide red, cool color, black and white, white and black
• Storage capacity: built-in 3G (store more than 20,000 images)
• Dimensions: 69.4x225x93.4mm
• Weight: 329.1g

Package Info: Weight: 0.94kgs / 2.07lb, Size: 27cm * 13cm * 10cm / 10.63inch * 5.12inch * 3.94inch
