Waveshare XCore407I, STM32F4 Core Board – 4K

Waveshare XCore407I, STM32F4 Core Board – 4K.

Key Features:

• Overview

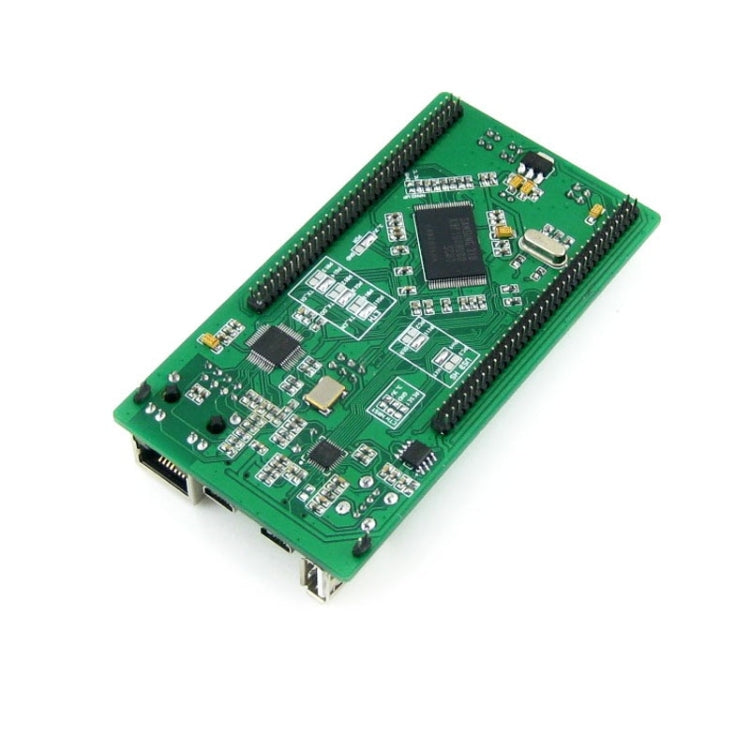

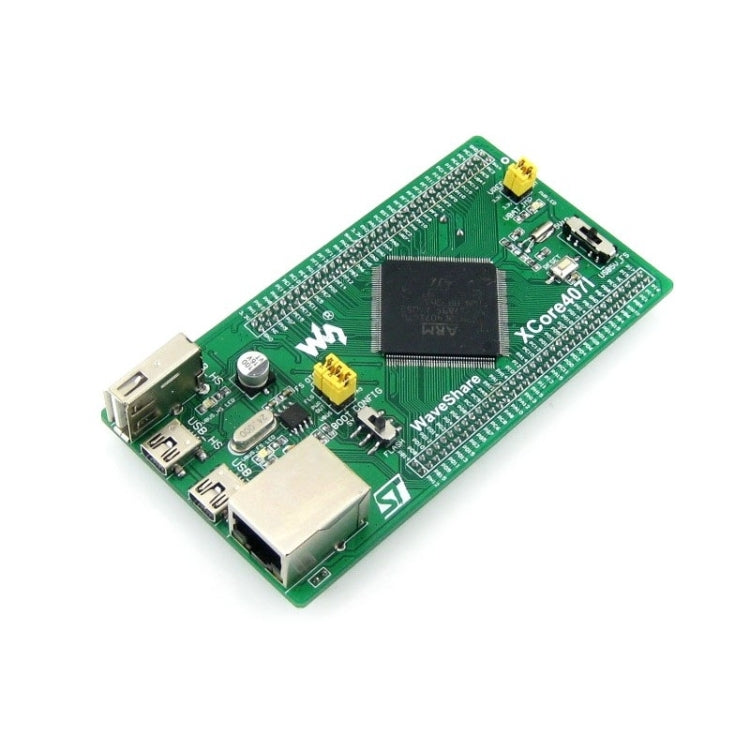

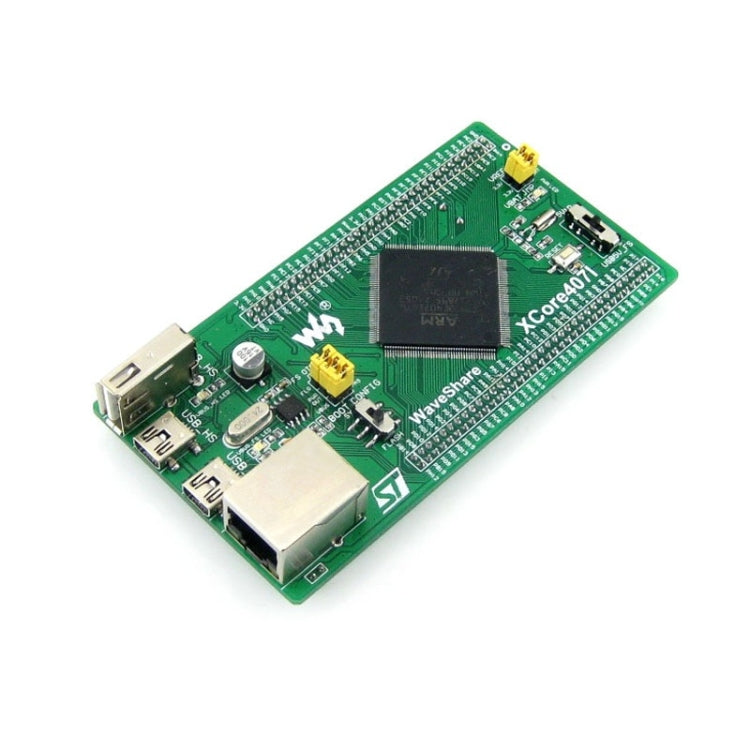

• XCore407I is an STM32 MCU core board that features the STM32F407IGT6 on board.
• Clock circuit, USB power management
• Onboard devices: USB HS PHY, Ethernet PHY, 1G Bit NandFlash
• Connectors：USB HS (mini / type A), USB FS (mini), Ethernet (RJ45)
• All the idle I/O ports are accessible on the pin headers
• 2.0mm pin header pitch, smaller size, easier to integrate into user system

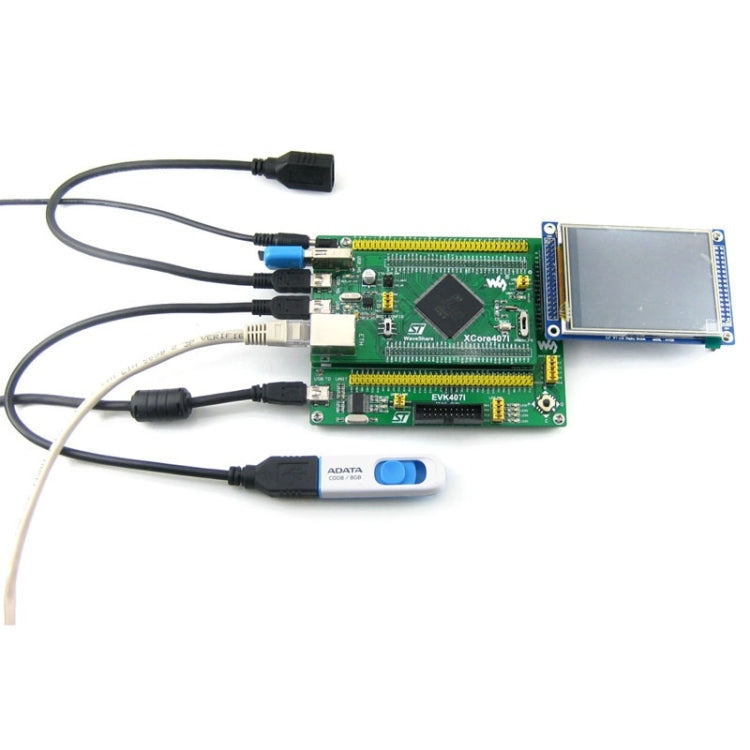

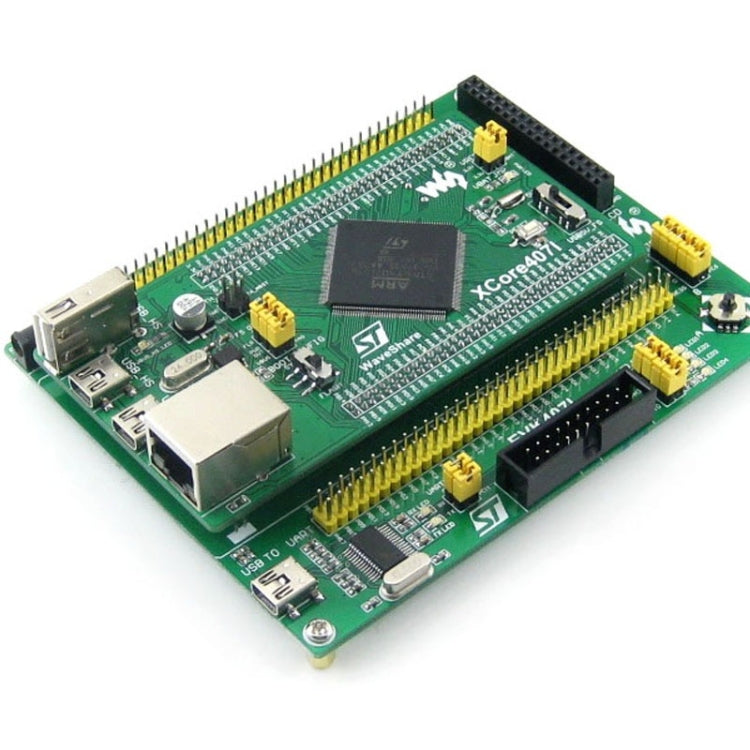

• Note : please consider the EVK407I, which supports easily programing/debugging.
• What is On Board
• STM32F407IGT6 development board on board resource
• STM32F407IGT6: The high performance STM32 MCU which features:
• - Core: Cortex-M4 32-bit RISC
• - Feature: a full set of single-cycle DSP instructions
• - Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
• - Operating Voltage: 1.8V-3.6V
• - Package: LQFP176
• - Memories: 1024kB Flash, 192+4kB SRAM
• - MCU communication Interfaces:
• -- 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C
• -- 1 x FSMC, 1 x SDIO, 2 x CAN
• -- 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY
• -- 1 x 10/100 Ethernet MAC
• -- 1 x 8 to 14-bit parallel camera interface
• - AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
• - Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP
• MIC2075-2, onboard USB FS power management device
• AMS1117-3.3, 3.3V voltage regulator
• K9F1G08U0E, 1G Bit NandFlash
• DP83848, Ethernet PHY
• MIC2075-1, onboard USB HS power management device
• USB3300, USB HS PHY
• Power supply switch, powered from 5Vin or USB connection
• Boot mode switch, for configuring BOOT0 pin
• Power indicator
• USB FS LED
• USB HS LED
• Reset button
• 8M crystal, MCU clock, enables the MCU run at higher speed by frequency multiplication
• 24M crystal, USB3300 clock
• 50M crystal, DP83848 clock
• 32.768K crystal, for internal RTC with calibration
• Ethernet connector
• USB FS mini connector
• USB HS mini connector
• USB HS type A connector
• MCU pins expander, VCC, GND and all the idle I/O ports are accessible on expansion connectors for further expansion
• USB OTG/HOST jumper
• VREF/VBAT jumper
• Ethernet I/O selection solder joint
• USB HS I/O selection solder joint
• PDR selection solder joint: 1.8-3.6V, -40～105℃ OR 1.7-3.6V, 0～70℃
• Package Contents
• XCore407I development board x 1
• USB type A to Mini-B cable x 1
• Software CD x 1

Package Info: Weight: 0.15kgs / 0.33lb, Size: 15cm * 8cm * 3cm / 5.91inch * 3.15inch * 1.18inch
