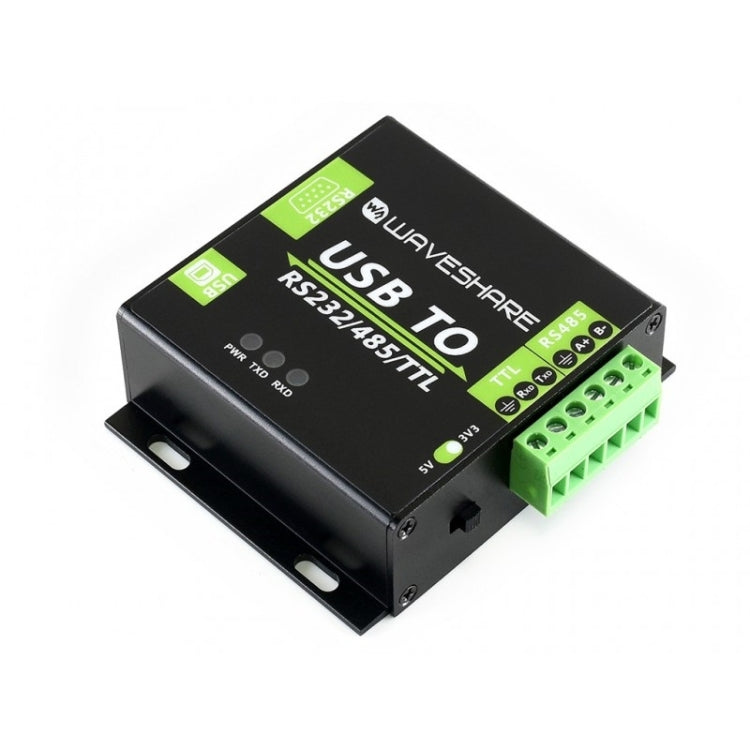

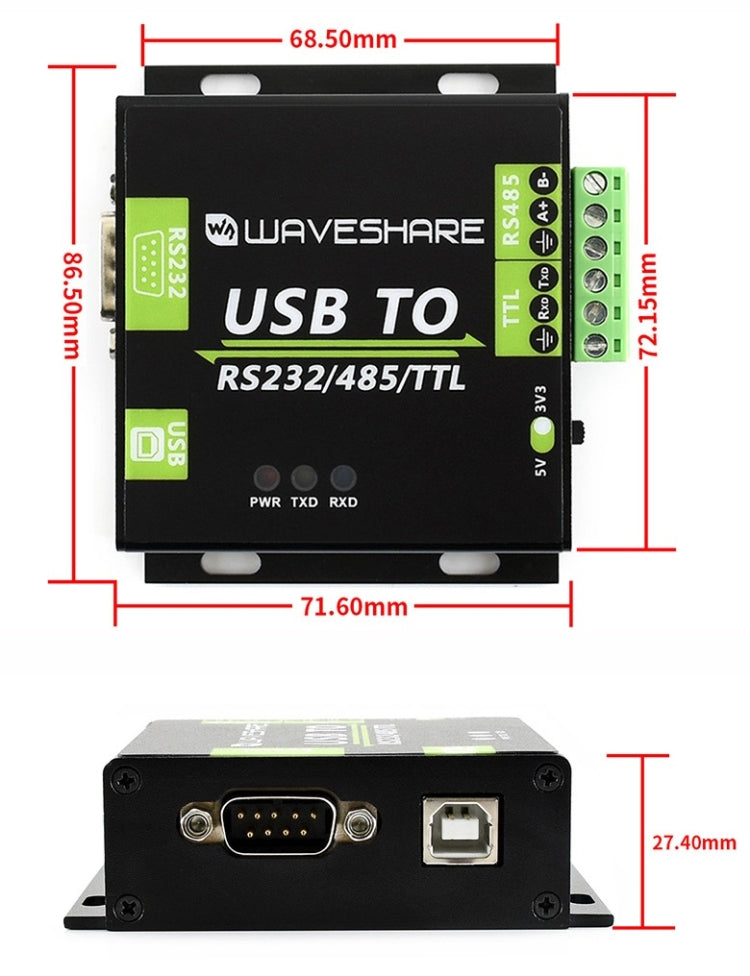

Waveshare USB TO RS232 / RS485 / TTL Industrial Isolated Converter, 15817 – Magnetic, TPU

Waveshare USB TO RS232 / RS485 / TTL Industrial Isolated Converter, 15817 – Magnetic, TPU.

Key Features:

• Overview
• This is an industrial USB to RS232/485/TTL isolated converter with original FT232RL inside. It features embedded protection circuits such as power...
• The USB TO RS232/485/TTL is very easy to use, fully automatic transceiving without delay. Due to its fast communication, stability, reliability, and safety,...
• Features
• USB TO RS232, USB TO RS485, USB TO TTL (UART)
• Adopt original FT232RL, fast communicating, stable and reliable, better compatibility
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
• Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock...
• Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other
• Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
• Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable
• 3 LEDs for indicating the power and transceiver status
• High quality USB-B and RS232 connectors, smoothly plug/pull
• Specifications
• Product type: industrial optically isolated converter
• Baudrate: 300-921600bps
• Host port: USB
• Device port: RS485/RS232/TTL
• USB:
• - Operating voltage: 5V
• - Connector: USB-B
• - Protection: 200mA self-recovery fuse, isolated output
• - Transmission distance: ~5m
• RS485:
• - Connector: screw terminal
• - Pins: A+, B-, GND
• - Direction control: hardware automatic control
• - Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads)
• - Transmission distance: ~1200m
• - Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
• RS232:
• - Connector: DR9 male
• - Protection: TVS diode, surge protection, ESD protection
• - Transmission distance: ~15m
• - Transmission mode: point-to-point
• TTL (UART):
• - Operating voltage: 3.3V/5V
• - Connector: screw terminal
• - Pins: TXD, RXD, GND
• - Protection: clamp protection diode, over-voltage/negative-voltage proof, shock resistance
• - Transmission mode: point-to-point
• LED indicators:
• - PWR: red power indicator, light up when there is USB connection and voltage is detected
• - TXD: green TX indicator, light up when the USB port sends data
• - RXD: blue RX indicator, light up when the device ports send data back
• Operating environment:
• - Temperature: -15℃ ~ 70℃
• - Humidity: 5%RH ~ 95%RH
• Operating system: Windows 10 / 8.1 / 8 / 7 / XP
• Package contents:
• - USB TO RS232/485/TTL x1
• - USB cable x1

Package Info: Weight: 0.29kgs / 0.64lb, Size: 10cm * 9cm * 5cm / 3.94inch * 3.54inch * 1.97inch
