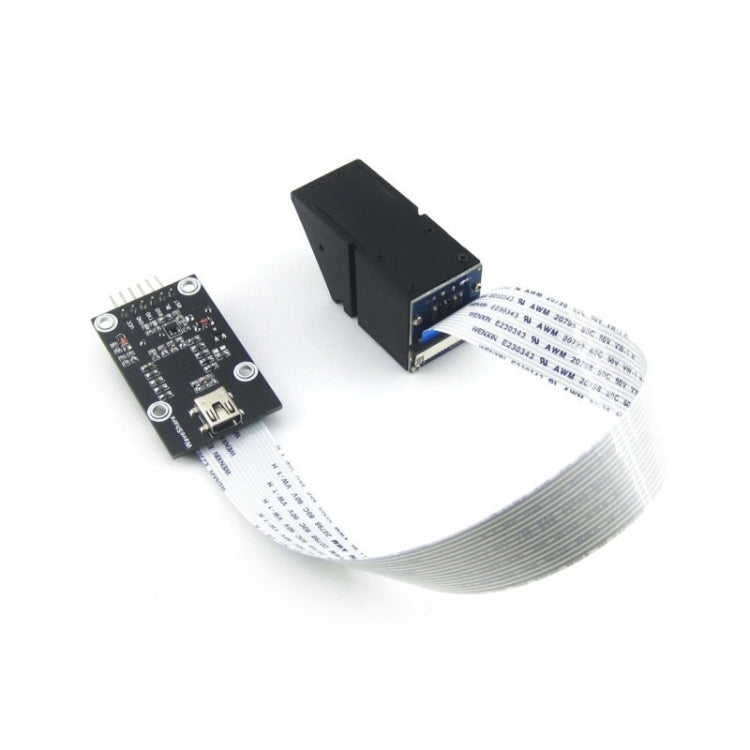

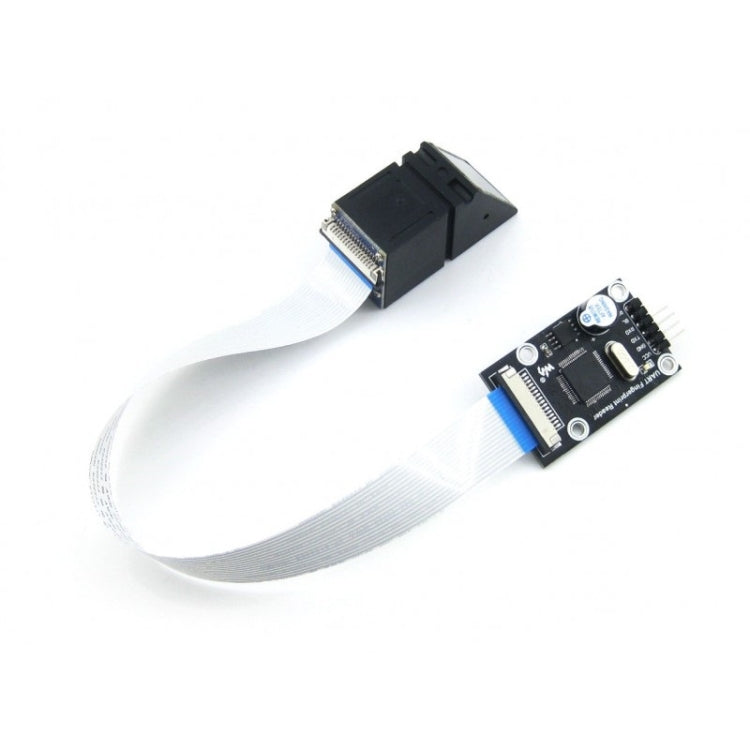

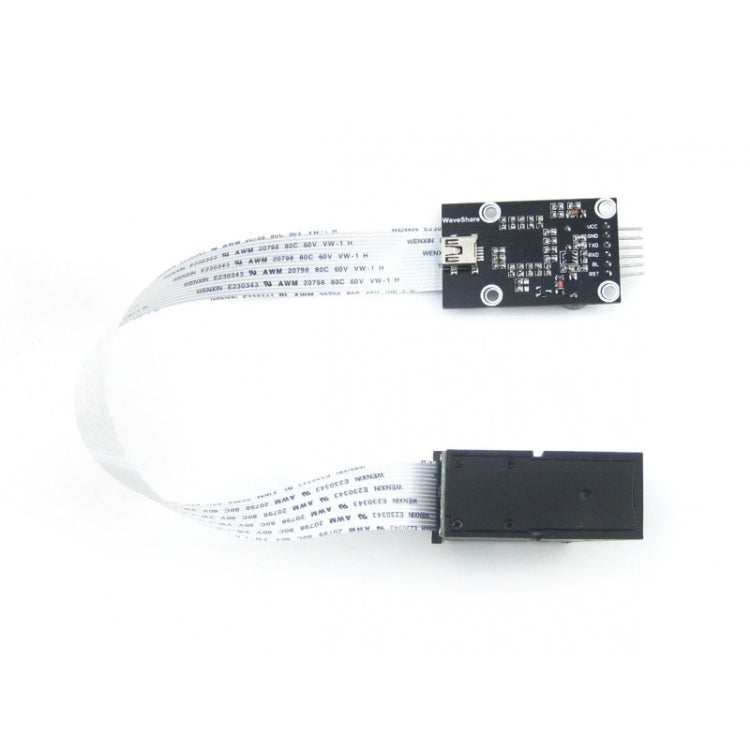

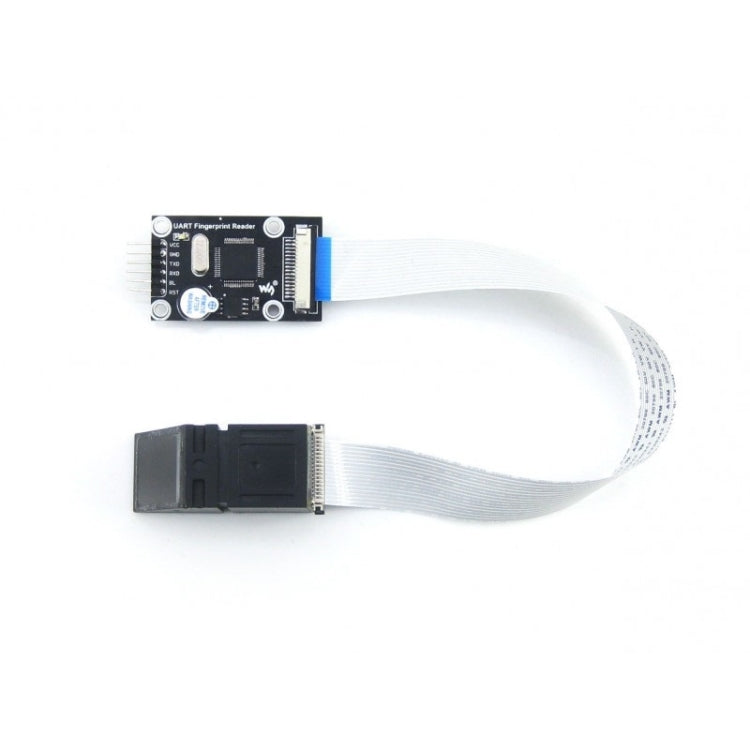

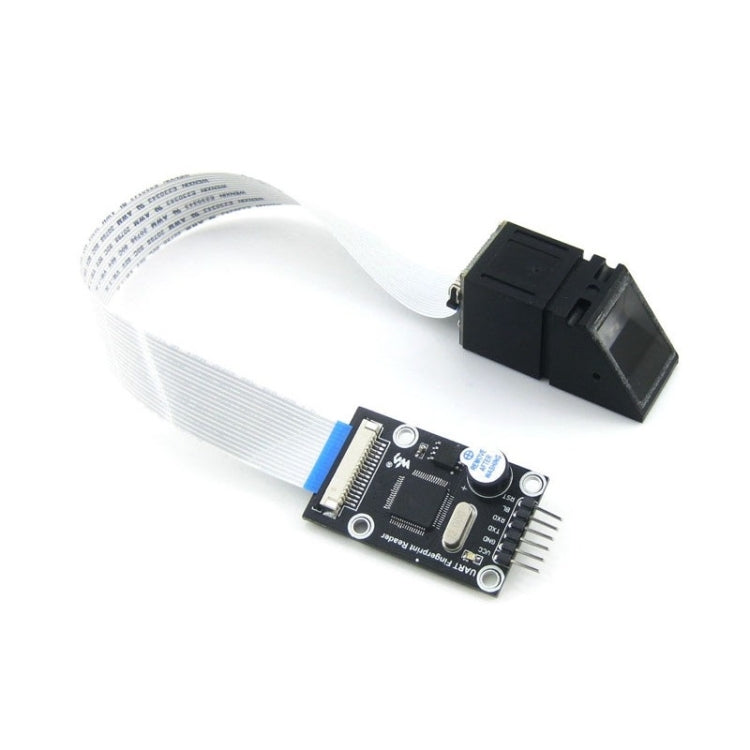

Waveshare UART Fingerprint Reader Fingerprinting Sensor Module – TPU

Waveshare UART Fingerprint Reader Fingerprinting Sensor Module – TPU.

Key Features:

• UART Fingerprint Reader, onboard processor STM32F205, commercial fingerprinting algorithm, optical sensor
• Overview
• UART Fingerprint Reader is a fingerprinting module designed for secondary development, high-speed for identification, high stability. It is an intelligent...
• Features
• 1. Onboard high-speed processor STM32F205
• Commercial fingerprinting algorithm, faster identification
• High-accuracy optical sensor, standard 16-pin interface, allows users to choose optical/semiconductor sensors
• Divided structure: fingerprint sensor + processing circuit + algorithm platform
• Easy for developing, controlled via UART, supports any MCU with UART
• Open protocol, it is available to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions
• Package Contents
• 1. UART Fingerprint Reader × 1
• 6-pin custom connector jumper wire × 1

Package Info: Weight: 0.05kgs / 0.10lb, Size: 6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch
