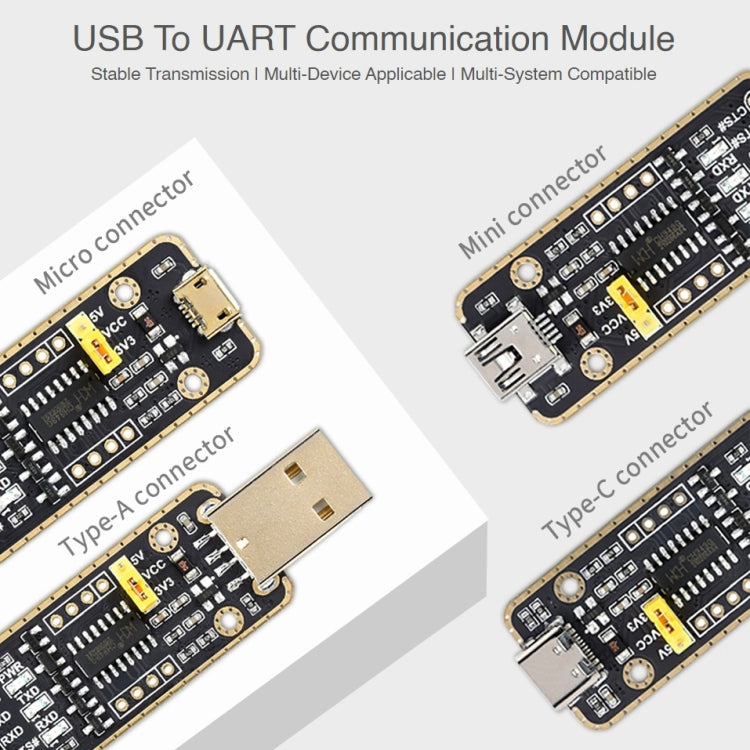

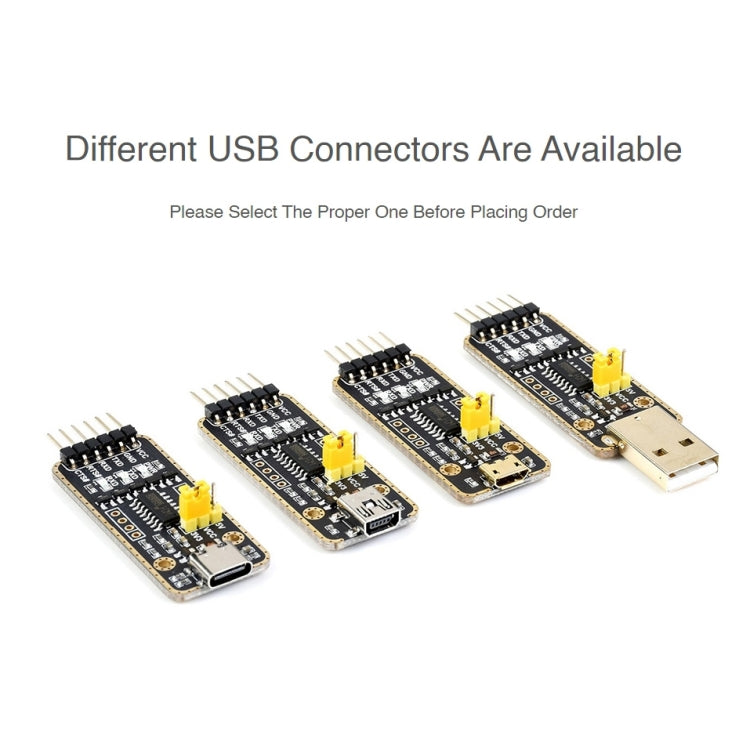

Key Features:

• Features
• Adopt new version CH343G chip. Compared with CH340G, it supports higher data rate (up to 6Mbps) and more serial port IO levels (5V / 3.3V / 2.5V / 1.8V)
• Support Mac, Linux, Android, Windows 7/8/8.1/10/11

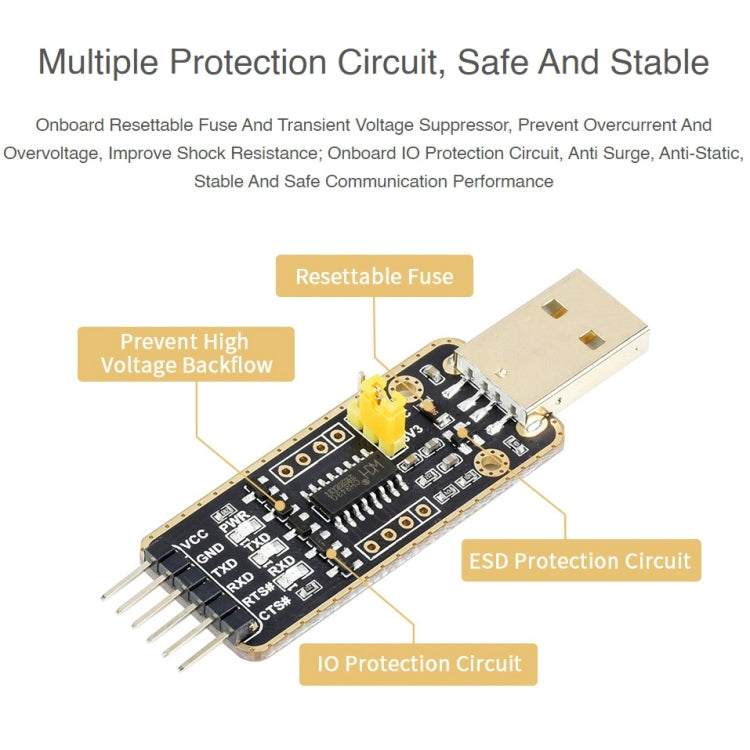

• Onboard resettable Fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improve shock resistance, stable...
• Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance
• Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
• Support 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly)
• Adopt double-sided black immersion gold process, which is durable and has a good look

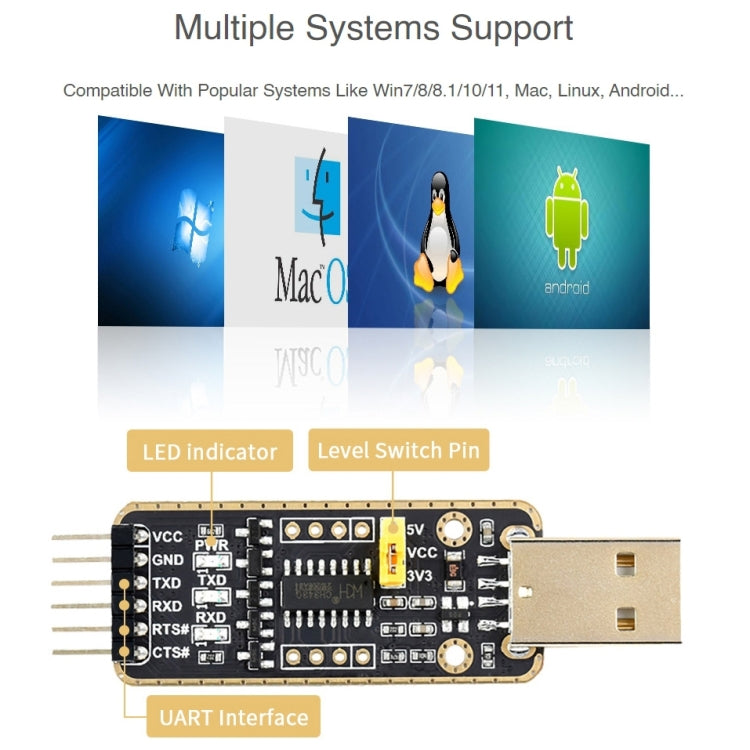

• Indictor Description
• PWR: Power indicator, turn on when the voltage is detected from USB interface
• RXD: Receiving indicator, turn on when data is sent back from the device interface
• TXD: Sending indicator, turn on when data is sent from USB
• Pinouts Definition
• VCC: 5V or 3.3V output for external device (configured by jumper)
• GND: Ground
• TXD: Connects to MCU.RXD
• RXD: Connects to MCU.TXD
• RTS: Connects to MCU.CTS
• CTS: Connects to MCU.RTS
• Specifications
• Host interface: USB
• Device interface: UART
• Communication range: 50bps ~ 6Mbps
• USB device interface: USB Type-C
• Protection: resettable Fuse, ESD protection
• UART interface connector: 6-pin right-angle pinheader
• Protection: IO protection diode

Package Info: Weight: 0.02kgs / 0.05lb, Size: 15cm * 12cm * 1cm / 5.91inch * 4.72inch * 0.39inch
