Waveshare SX1262 LoRa HAT 868MHz Frequency Band for Raspberry Pi, Applicable for Europe / Asia / Africa, 868MHz – Data Transmission, 4K

Waveshare SX1262 LoRa HAT 868MHz Frequency Band for Raspberry Pi, Applicable for Europe / Asia / Africa, 868MHz – Data Transmission, 4K.

Key Features:

• Overview
• This is a Raspberry Pi LoRa HAT based on SX1262, covers 868MHz frequency band frequency band. It allows data transmission up to 5km through serial port.
• By utilizing the new generation LoRa spread spectrum modulation technology, the communication distance of the module is as long as 5km, also supports auto...
• Comparing with normal LoRa modules, the SX1262 LoRa HAT achieves longer communication distance, higher rate, lower consumption, better safety and...
• Features

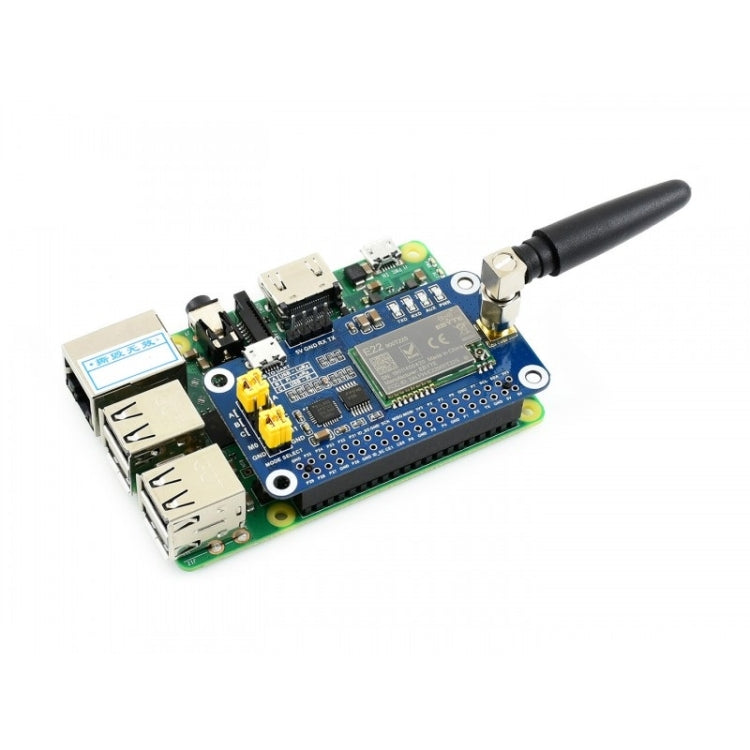

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Onboard CP2102 USB TO UART converter, for serial debugging
• Bring the UART control interface, for connecting host boards like Arduino/STM32
• 4x LED indicators, easy to check the module status
• LoRa spread spectrum modulation technology, up to 81 available signal channel, longer communication distance, more robust to interference
• Auto multi-level repeating, suit for ultra long range communication, allows multi network on the same region
• Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications
• Customizable communication key which wont be retrieved, greatly improves the security of user data
• Support LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment
• Support RSSI signal intensity indicating, for evaluating signal quality, tuning the network
• Support wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameter
• Support fixed-point transmission, broadcast, signal channel monitor
• Come with development resources and manual (examples for Raspberry Pi/STM32)

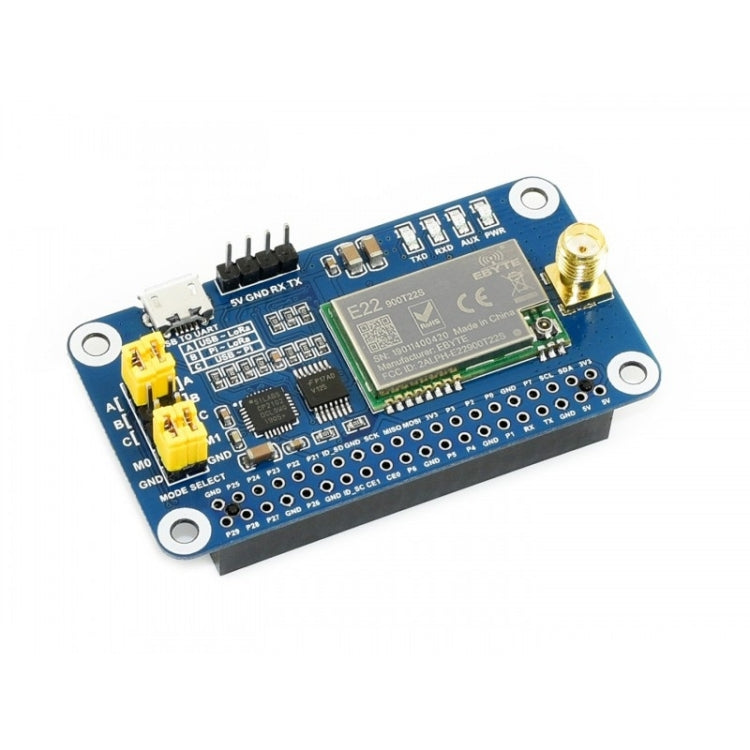

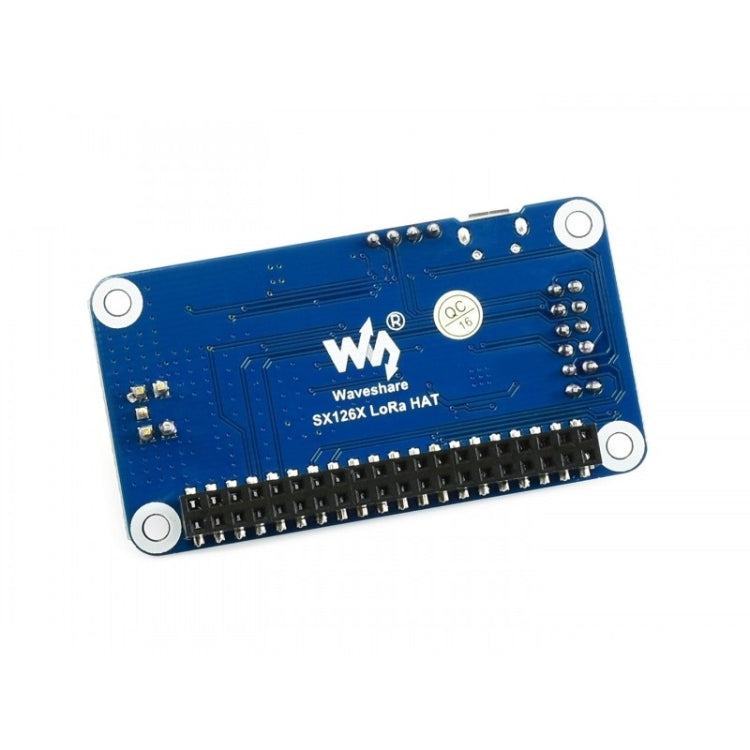

• What is on Board
• SX1262 LoRa module
• 74HC125V: voltage level translator
• CP2102: USB TO UART converter
• Raspberry Pi GPIO connector: for connecting with Raspberry Pi
• USB TO UART port
• UART header: for connecting host boards like STM32/Arduino
• SMA antenna connector
• IPEX antenna connector
• Indicators:
• - RXD/TXD: UART RX/TX indicator
• - AUX: auxiliary indicator
• - PWR: power indicator
• UART selection jumpers
• - A: Control the LoRa module through USB TO UART
• - B: Control the LoRa module through Raspberry Pi
• - C: Access Raspberry Pi through USB TO UART
• LoRa mode selection jumpers
• - Short M0, short M1: Transmission mode
• - Short M0, open M1: Configuration mode
• - Open M0, short M1: WOR mode
• - Open M0, open M1: deep sleep mode
• Specification
• RF module: SX1262
• Frequency band: 850.125 ~ 930.125MHz
• Radio rate: 0.3kbps ~ 62.5kbps (programmable)
• Transmit power: 22.0dBm (10/13/17/22dBm programmable)
• Receive sensitivity: -147dBm (radio rate 2.4kbps)
• Power consumption:
• - Transmit current: 133mA (transient consumption)
• - Receive current: 11mA
• - Sleep current: 2uA (LoRa module software shutoff)
• Communication interface: UART (TTL level)
• Baudrate: 1200bps ~ 115200bps (9600bps by default)
• Packet length: 240 Byte (32/64/128/240 Byte programmable)
• Cache: 1000 Byte
• Experimental range: 5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps)
• Power supply: 5V
• Logic level: 3.3V/5V
• Operating temperature: -40~85 degree C
• Applications: Smart home, industrial sensors, building automation, smart meters, and more other IoT applications
• Dimensions: 7cm x 12cm x 2cm
• Weight: 69g
• Packing List:
• - SX1262 868MHz LoRa HAT x1
• - USB type A plug to micro plug cable x1

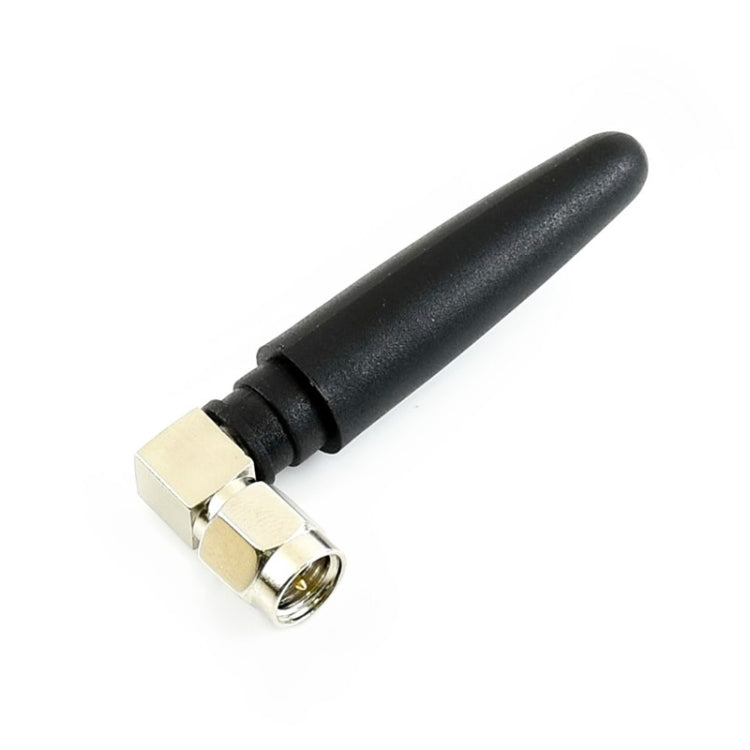

• - 868MHz antenna x1
