Waveshare Solar Power Manager (C) – TPU

Waveshare Solar Power Manager (C) – TPU.

Key Features:

• Safety Cautions
• Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they are not properly recharged or used.
• Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
• Do not mix use old batteries with new ones, avoid using batteries of different brands.
• When buying lithium battery, should make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer,...
• Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their...
• Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by...
• Features
• The Solar Power Manager (C) is compatible with general 6V~24V solar panels. It can recharge the 18650 rechargeable Li-ion batteries through solar panel or...
• The module features MPPT (MAX Power Point Tracking) function and multi protection circuits, therefore, it is able to keep operating with high-efficiency,...
• Support MPPT (MAX Power Point Tracking) function, MAX the efficiency of the solar panel
• Flexible battery recharging: from solar panel or USB TYPE-C power adapter
• Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input

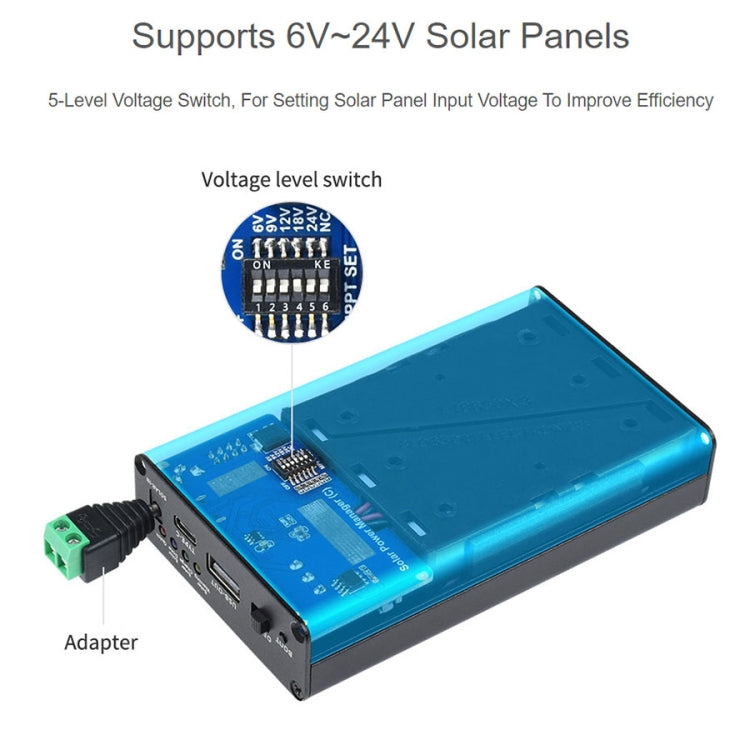

• Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
• Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance

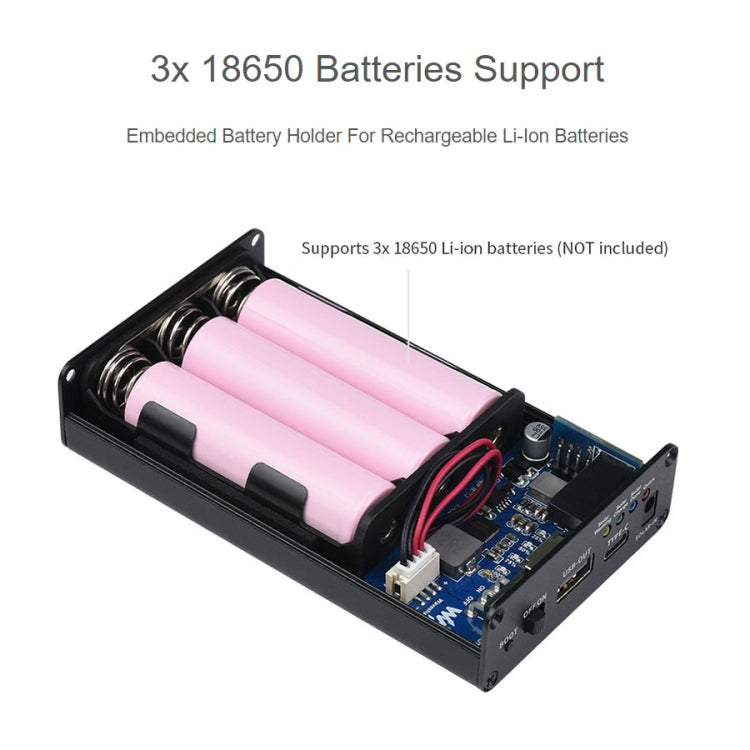

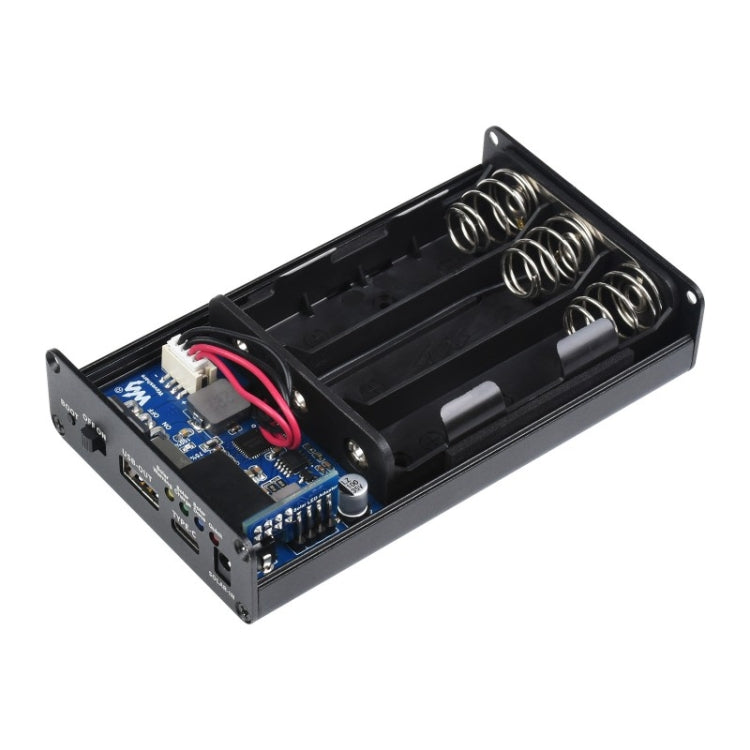

• Embedded battery holder, supports 3x 18650 rechargeable Li-ion batteries
• Several LED indicators, for monitoring the status of solar panel and battery
• Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to use
• Specifications
• Solar in: 6V ~ 24V (18V by default)
• Recharging: Solar panel, power adapter, USB
• Battery: 3 x 18650 Li-ion battery (Not included)
• USB input: 5V (Type-C, with PD quick charge support)
• 5V output: 5V / 3A (USB-out, Type-C)
• Recharging cutoff voltage: 4.2V +/- 1%
• Over discharge protection voltage: 3.0V +/- 1%
• Solar panel recharging effeciency: ~78%
• USB recharging effeciency: ~93%
• Batteries boost out effeciency: ~92%
• Case: Metal case

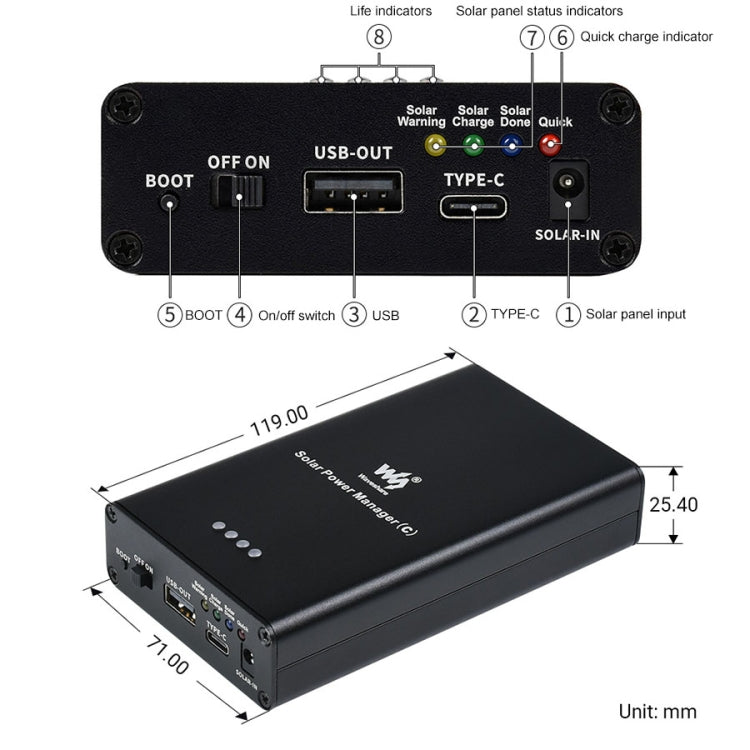

• Size: 119.0 x 71.0 x 25.2mm
• Package list:
• - Solar Power Manager (C) x1
• - Adapter x1

Package Info: Weight: 0.24kgs / 0.54lb, Size: 20cm * 15cm * 5cm / 7.87inch * 5.91inch * 1.97inch
