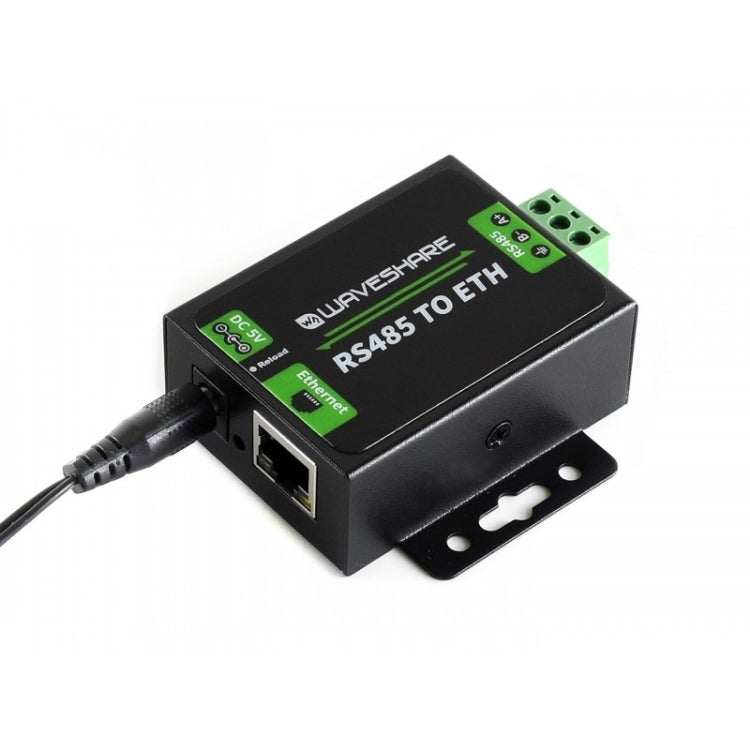

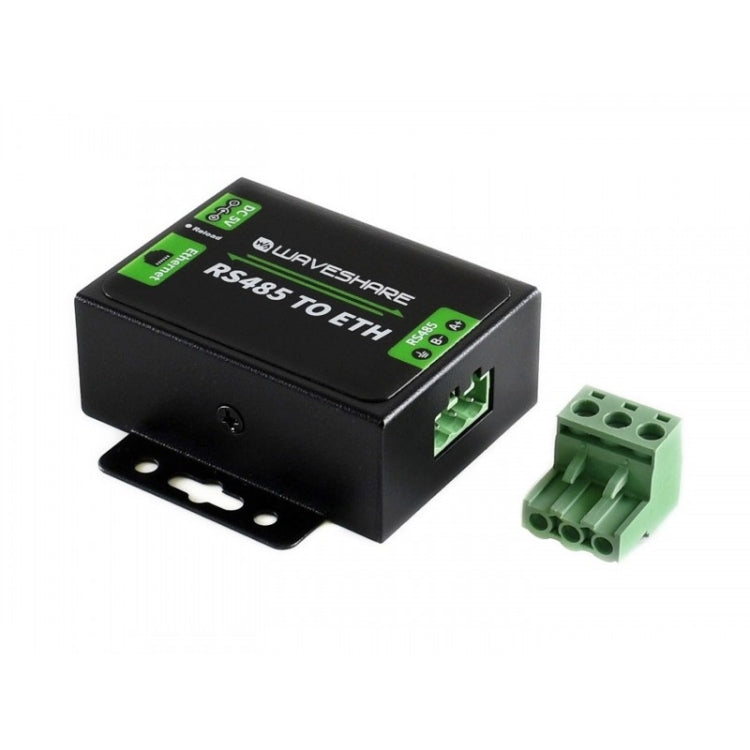

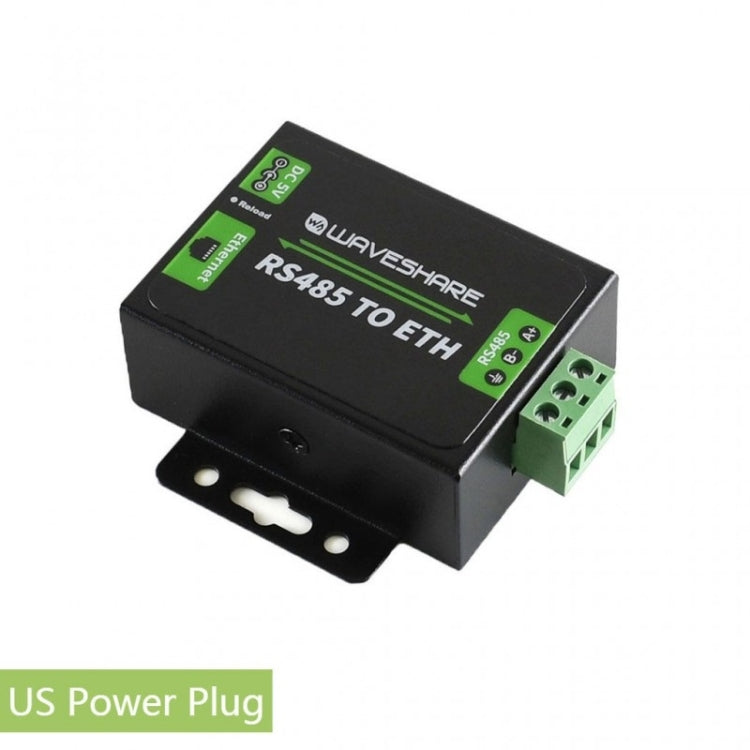

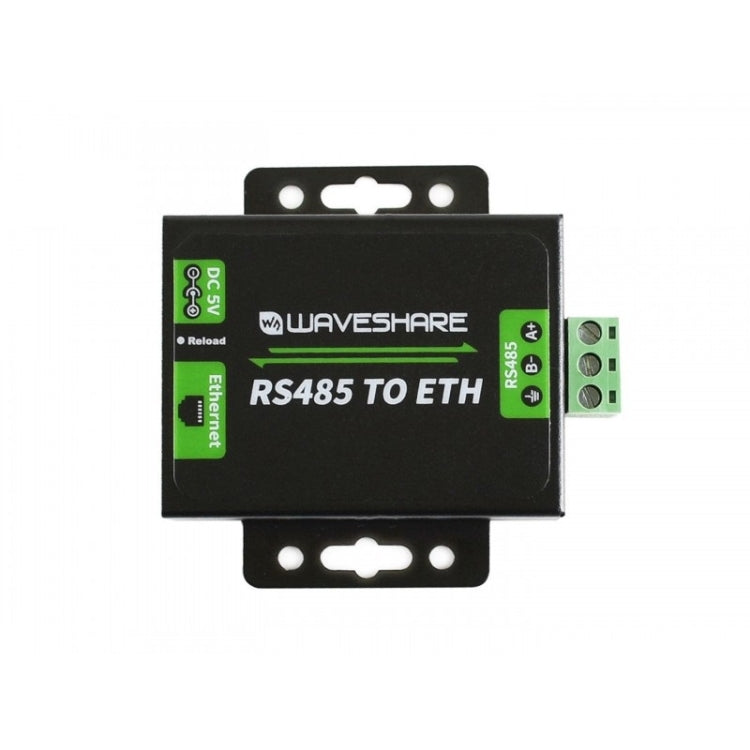

Waveshare RS485 to Ethernet Converter, US Plug, RS485 – Magnetic, 4K

Waveshare RS485 to Ethernet Converter, US Plug, RS485 – Magnetic, 4K.

Key Features:

• RS485 to Ethernet Converter, Easy-to-use, High-speed, Low-power, High-stability, Upgradable
• Overview
• The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet, it can be configured via webpage.
• Features
• M0 series 32-bit ARM processor, fast speed, high efficiency
• 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
• Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
• Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
• Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
• Support customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
• Support customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can...
• Support customized webpage, allows user to customize the module configuration page
• Support RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
• KeepAlive mechanism, detects broken connection, auto re-connecting
• Support time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
• Support DNS domain name resolution, configurable DNS server
• Support DHCP, auto-obtained IP or static IP
• Firmware is upgradable via the network
• Restore to factory settings via software and/or hardware
• Comes with default MAC address, which is customizable
• Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
• Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.
• Specifications
• Ethernet:

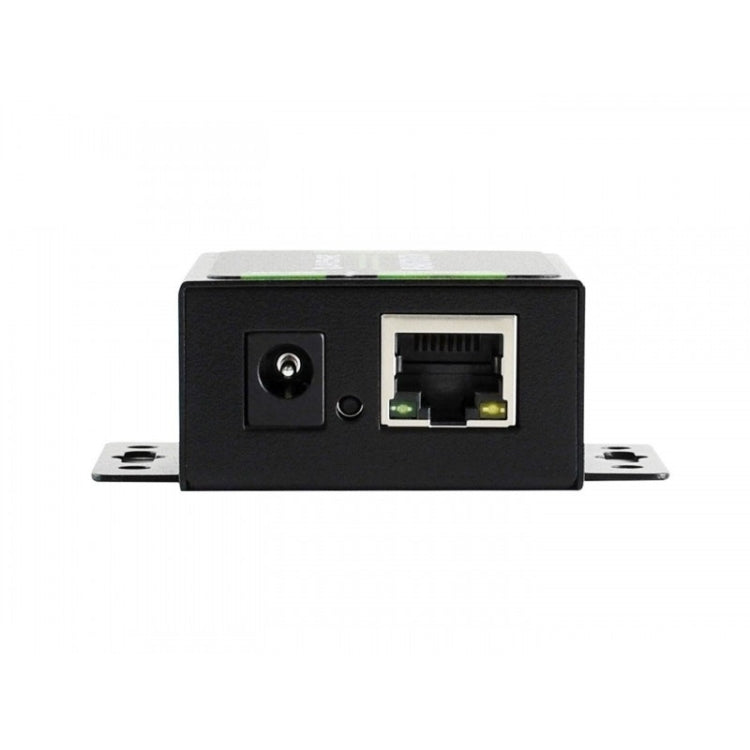

• - Connector: 4-pin RJ45
• - Communication rate: 10/100Mbps
• - Interface protection: 1.5KV electromagnetic isolation
• - Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
• - TX cache: 6Kbyte
• - RX cache: 4Kbyte
• RS485:

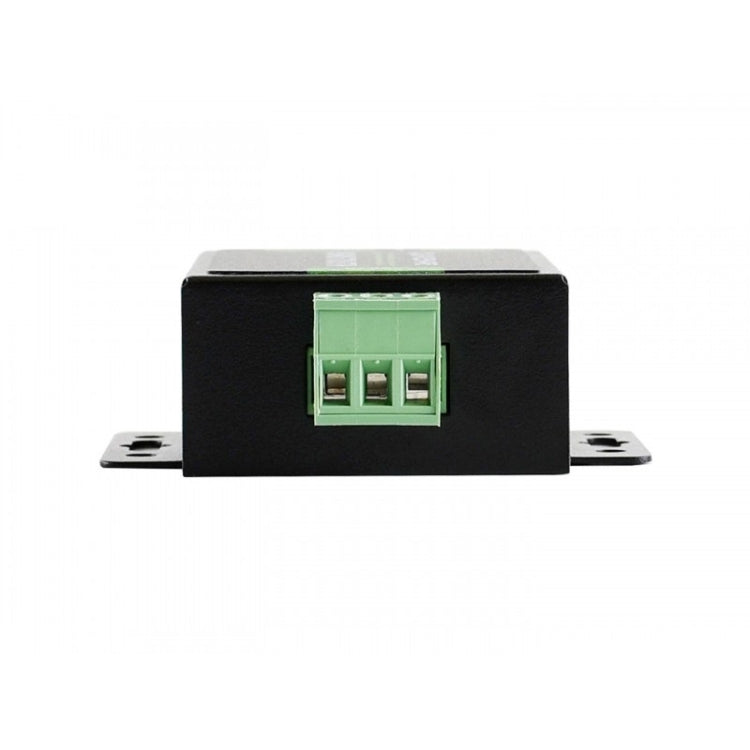

• - Connector: screw terminal (A+, B-, GND)
• - Data bit: 5bit, 6bit, 7bit, 8bit
• - Stop bit: 1, 2
• - Parity bit: None, Odd, Even, Mark, Space
• - Baudrate: 600bps~230.4Kbps
• - RX cache: 800byte
• - Hardware flow control: none
• - Interface protection:
• - 2KV ESD protection
• - RS485 pull up/down registers: 2.2KΩ
• Power:
• - Power supply: 5.0~7.0V (5V recommended)
• - Operating current: 150mA (@5V)
• - Power consumption: <1W
• - Interface protection: reverse-proof, ESD protection, anti-surge
• Environment:
• - Operating temperature: -25~75 degree C
• - Storage temperature: -40~105 degree C
• Size: 69.65*63.59*25.47mm
• Package Contents
• RS485 TO ETH x1
• 5V power adapter x1

Package Info: Weight: 0.22kgs / 0.49lb, Size: 8cm * 7cm * 3cm / 3.15inch * 2.76inch * 1.18inch
