Key Features:

• Features:
• A dual serial port device data collector/IoT gateway designed for industrial environments. One RS232 and one RS485 can work simultaneously using one network...

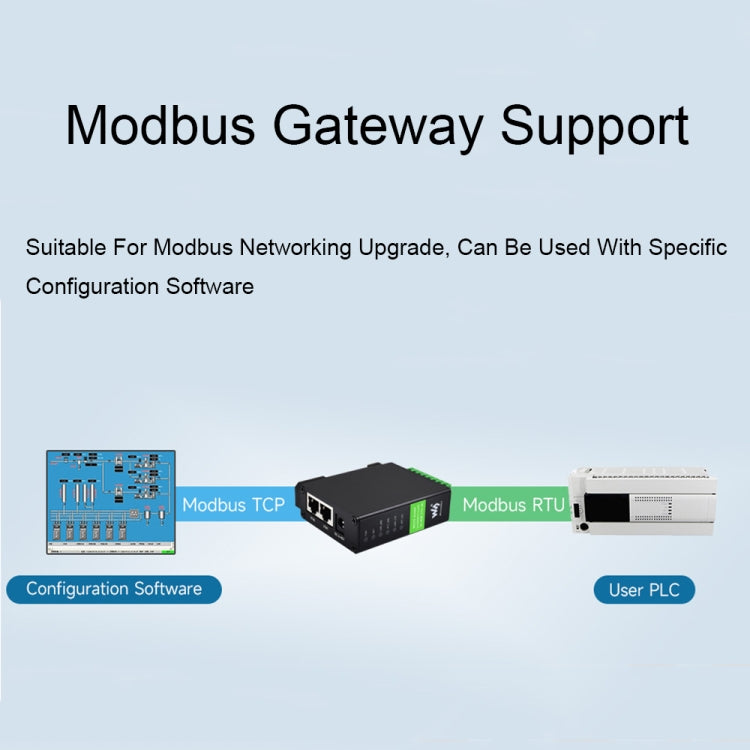

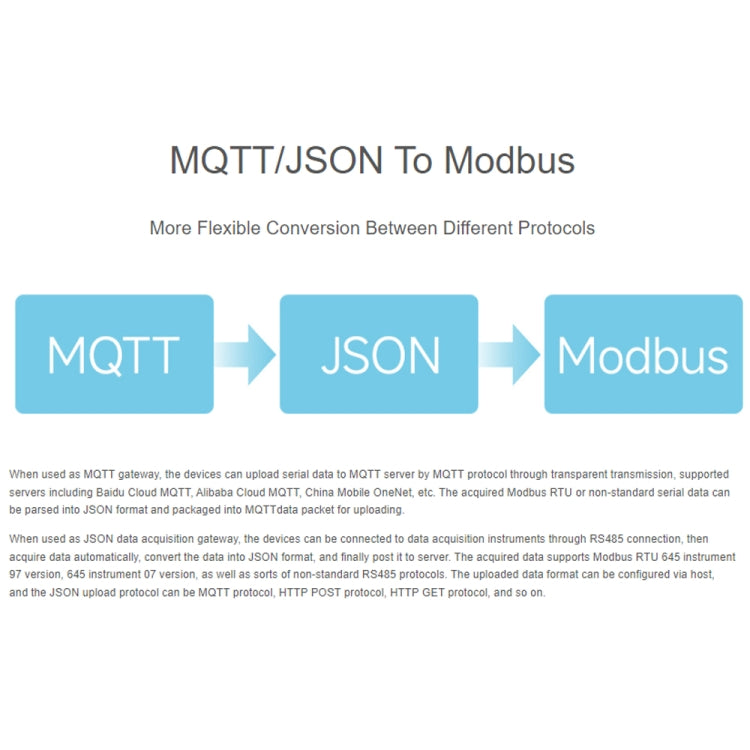

• It integrates multiple functions, including serial port server, Modbus gateway, MQTT gateway, RS232 and RS485 to JSON, etc.

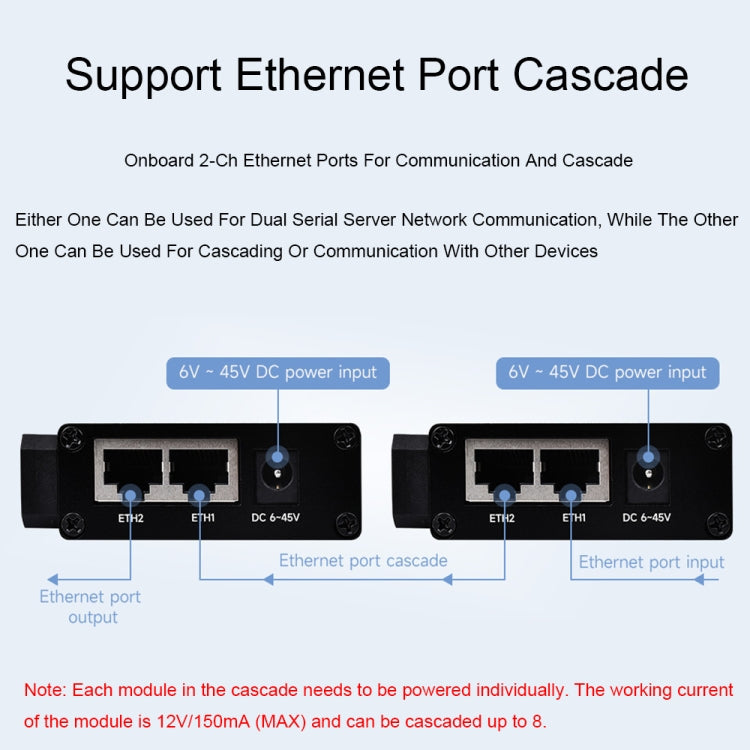

• The other Ethernet port can be used as a network switch or cascade, and the PoE function can be equipped with dual power supply.

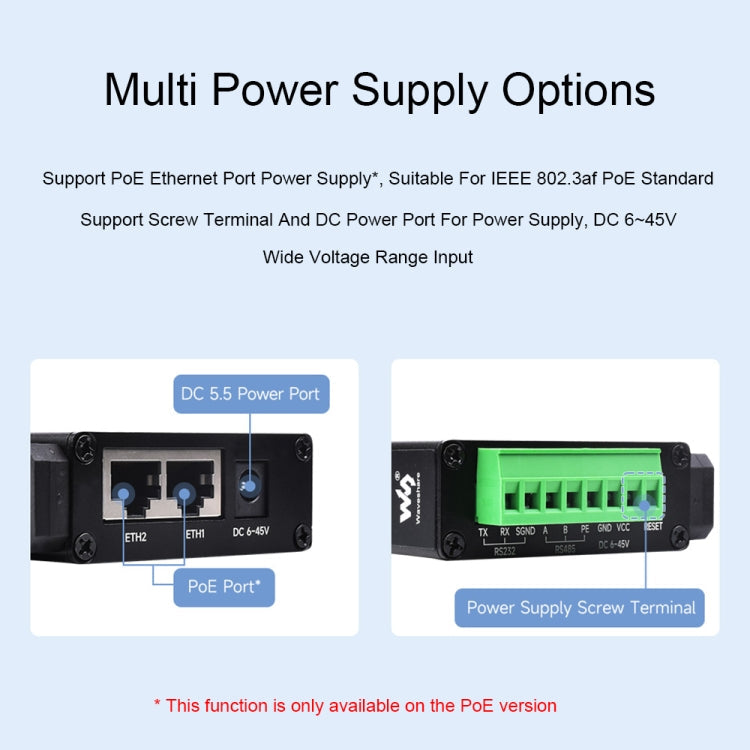

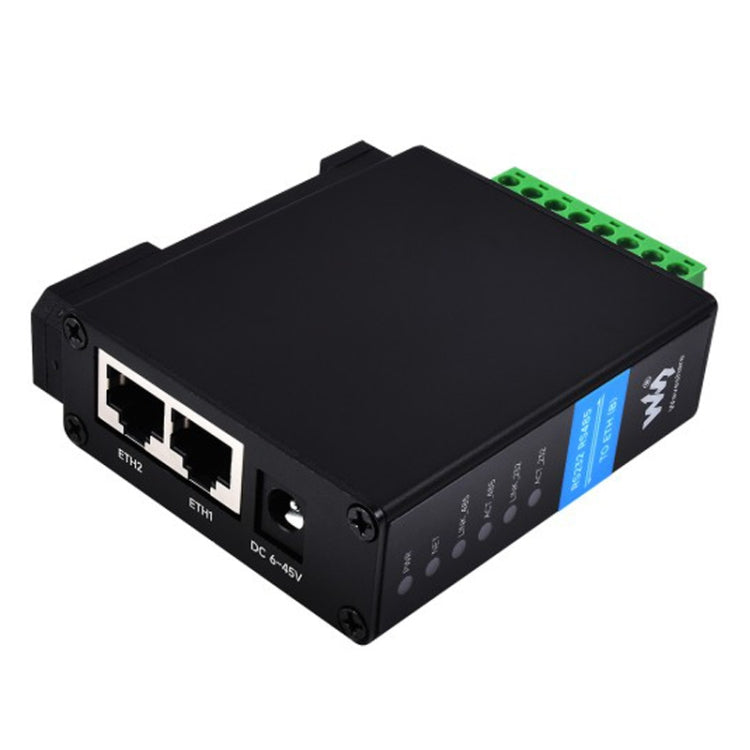

• The Ethernet port provides two power supply methods: DC port (outer diameter 5.5mm, inner diameter 2.1mm) and screw terminal.

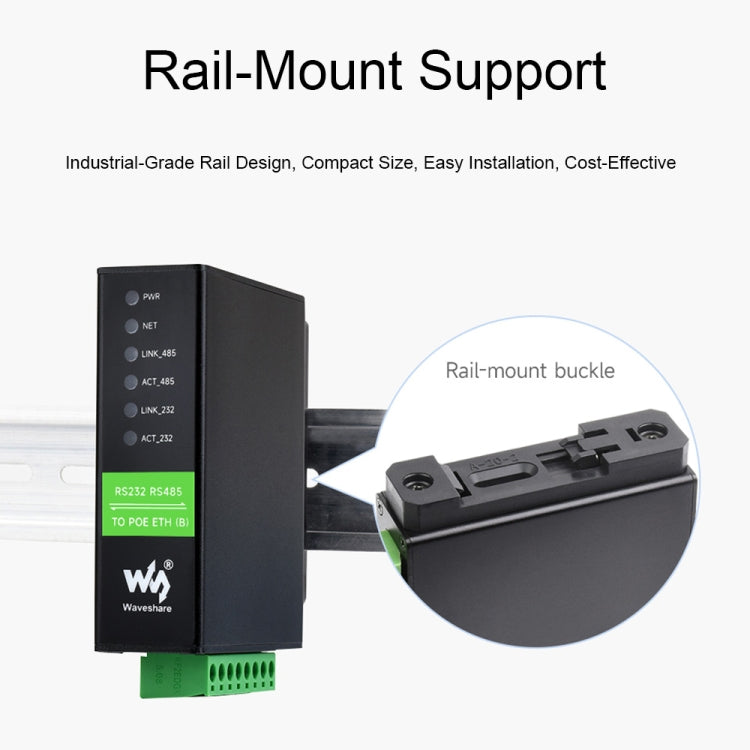

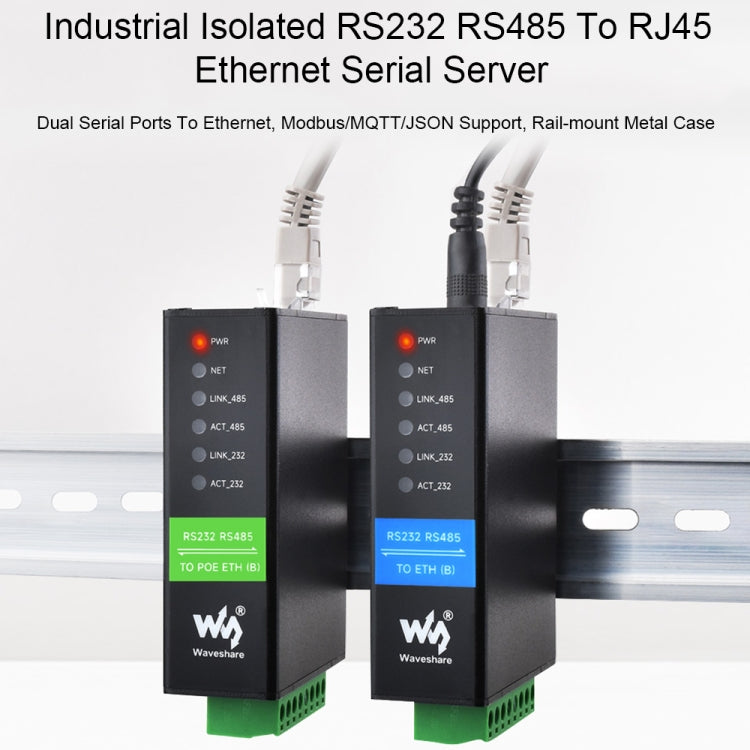

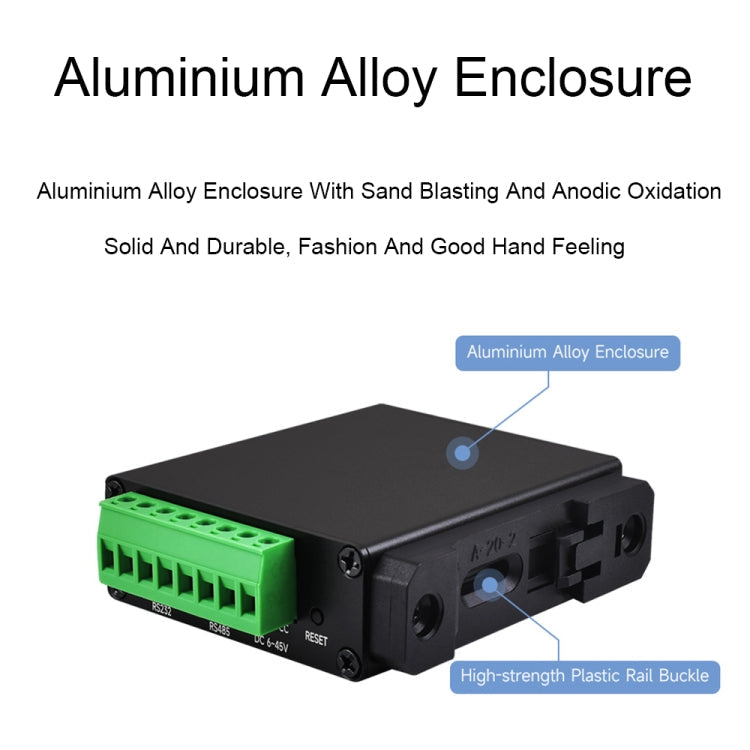

• The chassis adopts guide rail support, which is small in size, easy to install and cost-effective. 6. Suitable for data collection, IoT gateway, security...
• This product is a PoE receiving device (PD) and needs to be connected to a PoE power supply and obtain power from the PSE device to work properly.
• Product parameters:
• Product type: serial server, Modbus gateway, MQTT gateway

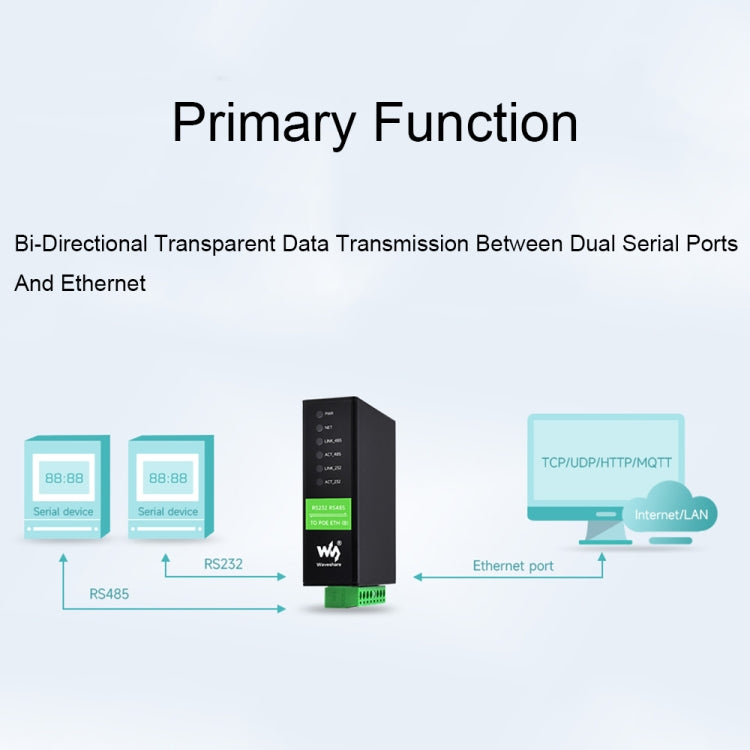

• Basic functions: two-way transparent transmission of data between RS232, RS485 and Ethernet

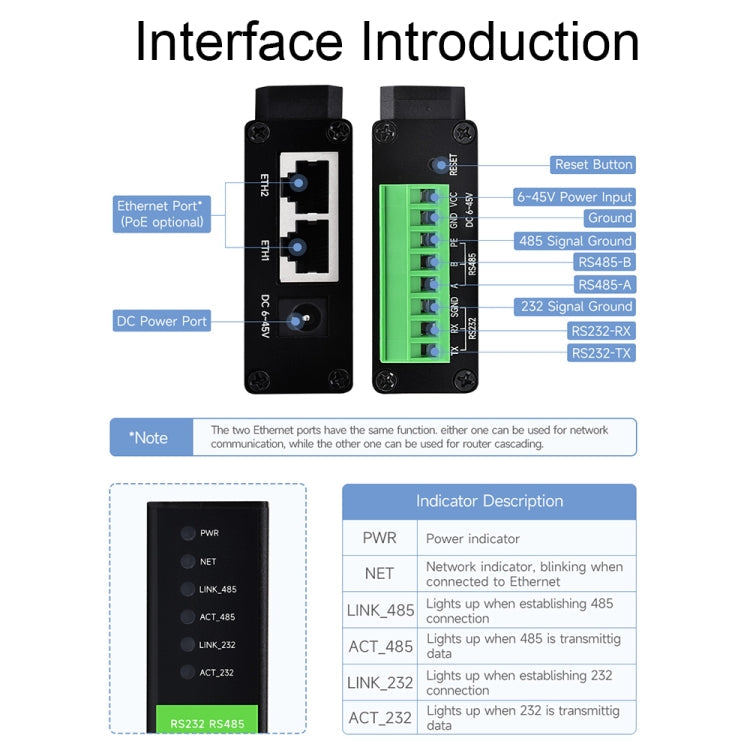

• Communication interface: RS232 port × 1, RS485 port × 1, Ethernet port × 2
• Power supply:

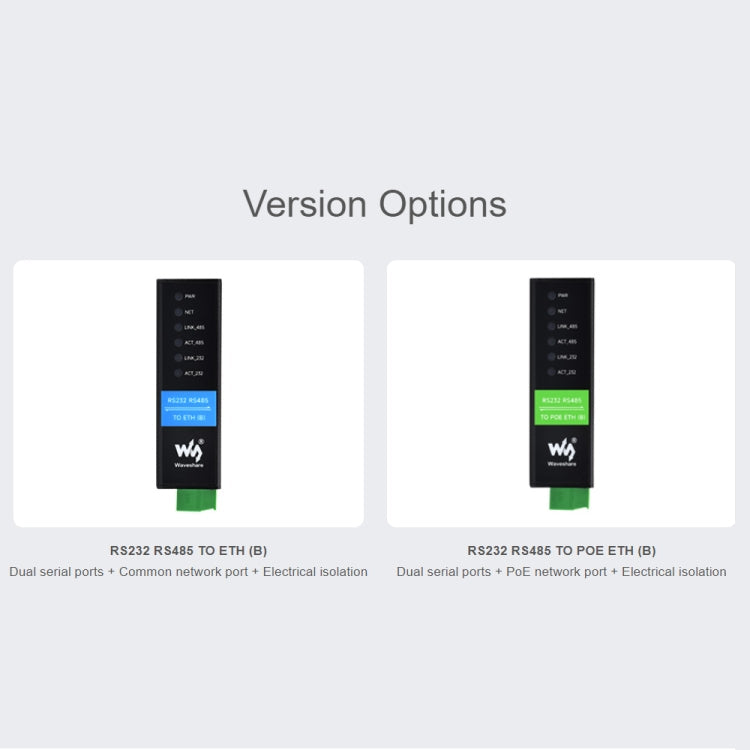

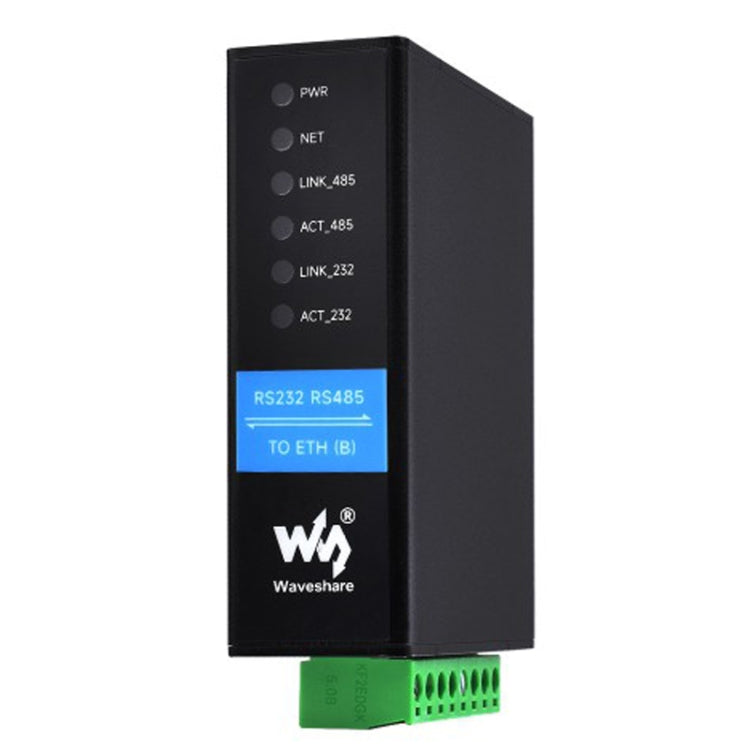

• TO ETH (B): DC 5.5 power interface, 6~45V DC screw terminal
• TO POE ETH (B): DC 5.5 power interface, 6~45V DC screw terminal, or PoE interface

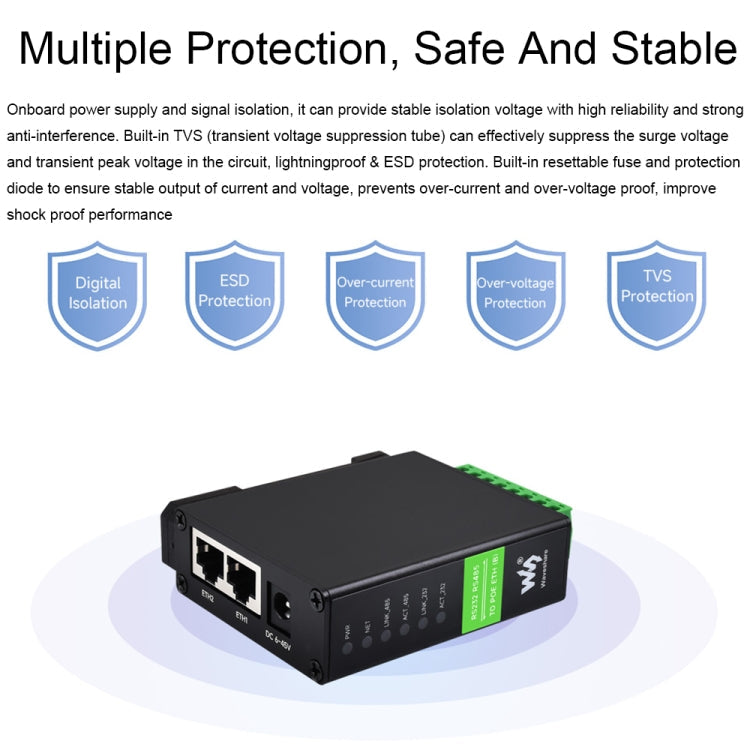

• Isolation protection: power isolation, signal isolation
• Ethernet:
• TO ETH (B)：RJ45
• TO POE ETH (B): RJ45 with PoE support, IEEE 802.3af compliant
• 10/100M self-negotiating RJ45 connector, 2KV surge protection
• Serial port: Isolated RS232 and RS485 (2 channels can receive and send independently at the same time)
• Baud rate: 300-115200 bps
• Check digit: none, odd, even, mark, space
• Data bits: 5-9 bits
• Flow control: Not applicable
• Protocol: Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
• Configuration: host, browser, device management function library
• Communication method: TCP/IP direct communication, VCOM

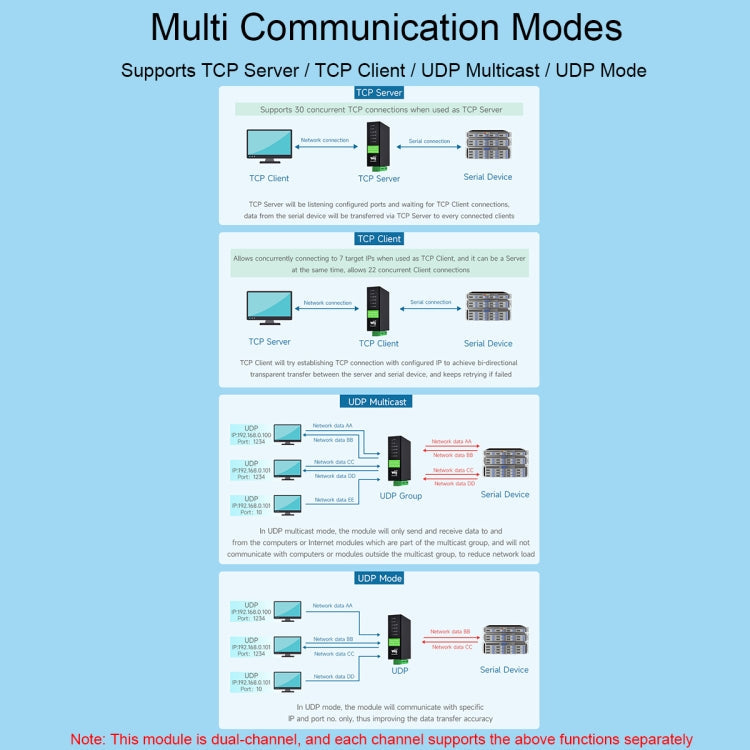

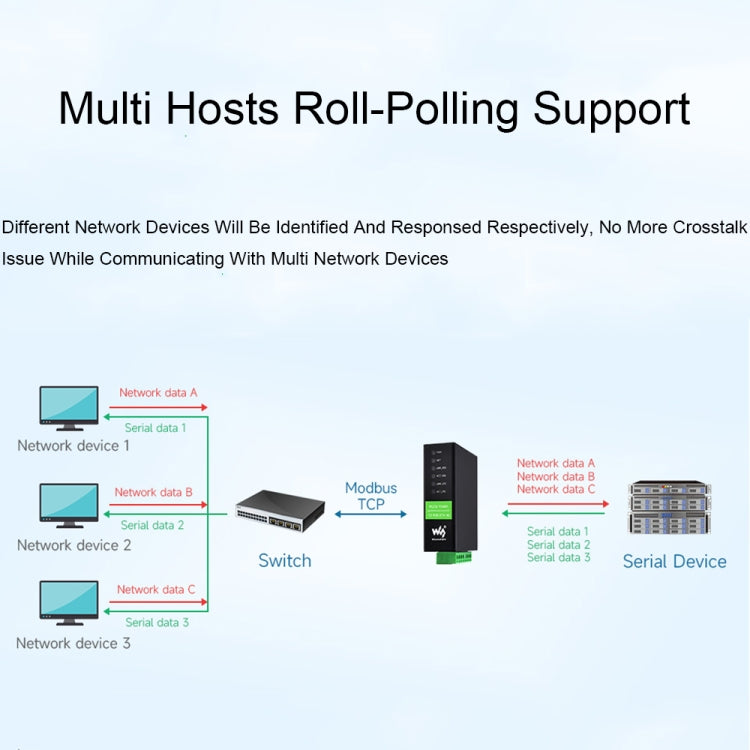

• Working mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
• Working temperature: minus 40 degrees Celsius - 85 degrees Celsius
• Humidity range: 5%-95% relative humidity

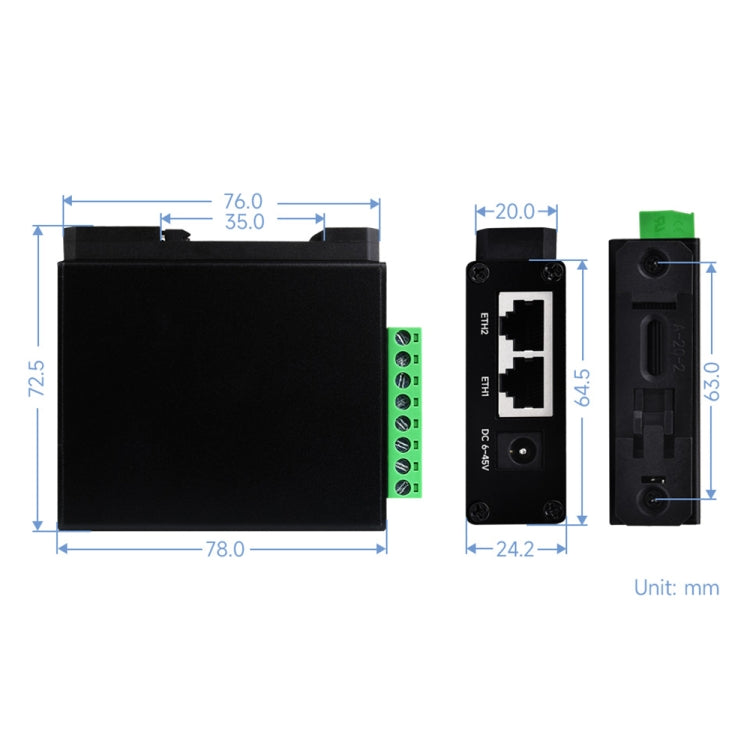

• Product size: 78 x 72.5 x 24.2mm
• Weight: 134 grams
