WAVESHARE RPLIDAR High-Performance Compact-size DTOF Lidar, Support UART Port / Ethernet Port Communication Modes, S2, S2L, S2E, S2P – TPU.

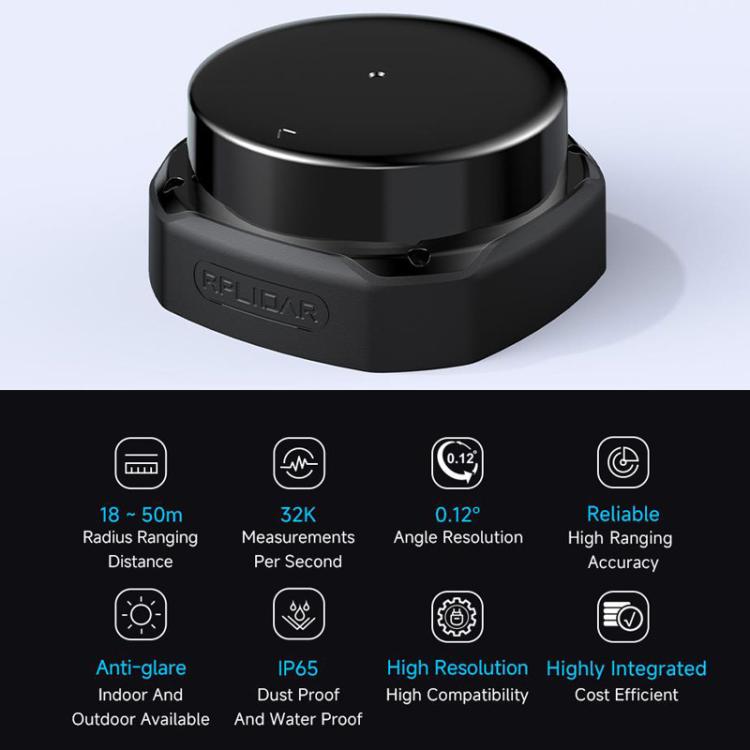

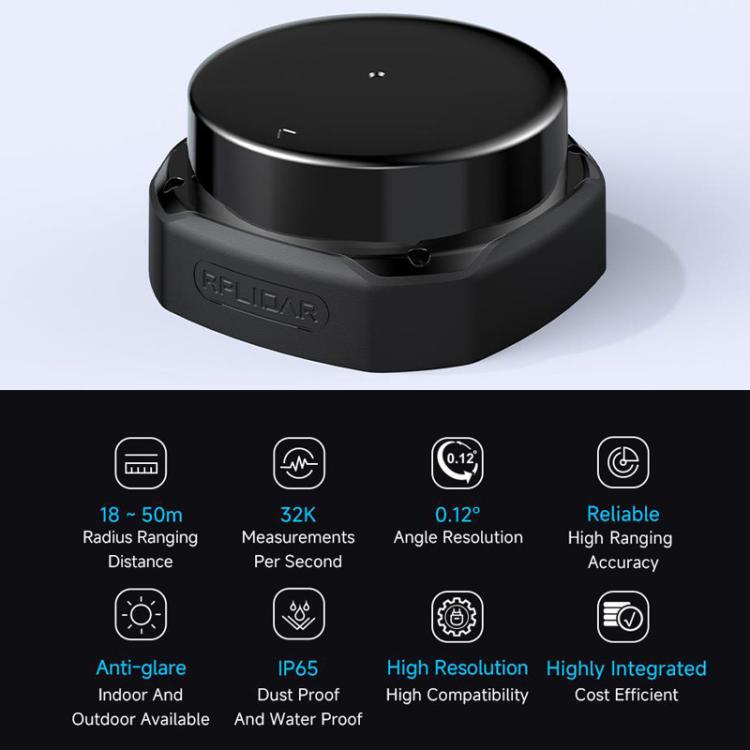

Key Features:

  • Measurement range:
  • - 90% reflectance: S2L: 0.05–18 m; S2/S2E: 0.05–30 m; S2P: 0.05–50 m
  • - 10% reflectivity: S2L: 0.05–8 m; S2/S2E: 0.05–10 m; S2P: 0.05–15 m
  • Measurement dead zone: 0.05 m
  • Sampling rate: 32,000 times/second
  • Scan frequency: 10 Hz
  • Angular resolution: 0.12°
  • Distance measurement accuracy: ±30 mm
  • Distance measurement resolution: 13 mm
  • Communication interface: S2L/S2/S2P: UART serial port (1M); S2E: Ethernet UDP (10/100M)
  • Operating voltages: 5V, 12V
  • Power consumption: >2W
  • Protection rating: IP65
  • Operating temperature: -10°C to 50°C
  • Application scenarios: for indoor and outdoor environments; reliable resistance to sunlight

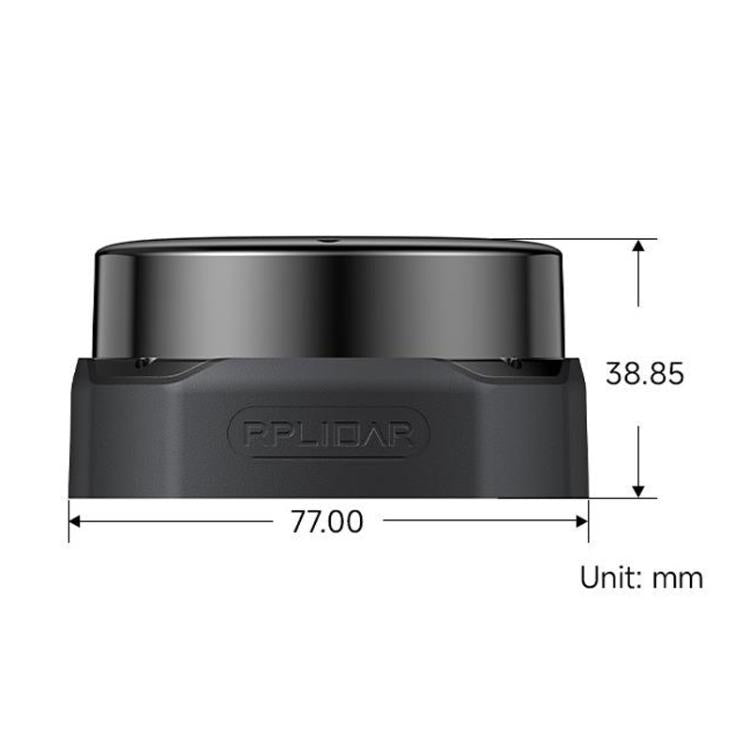

  • Size: about 77 x 38.85 mm
  • Features:

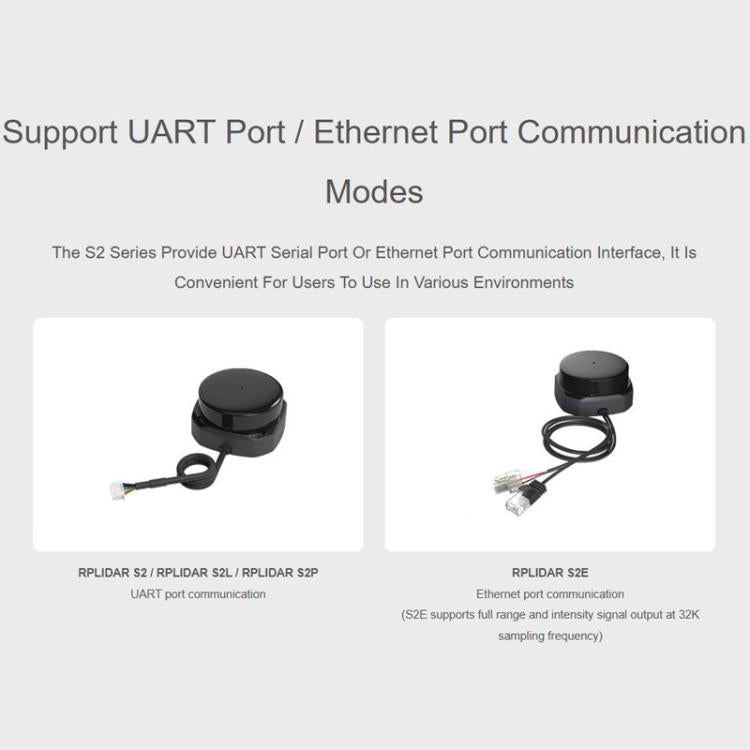

  • Supports multiple communication methods including serial and Ethernet ports, facilitating use in various environments

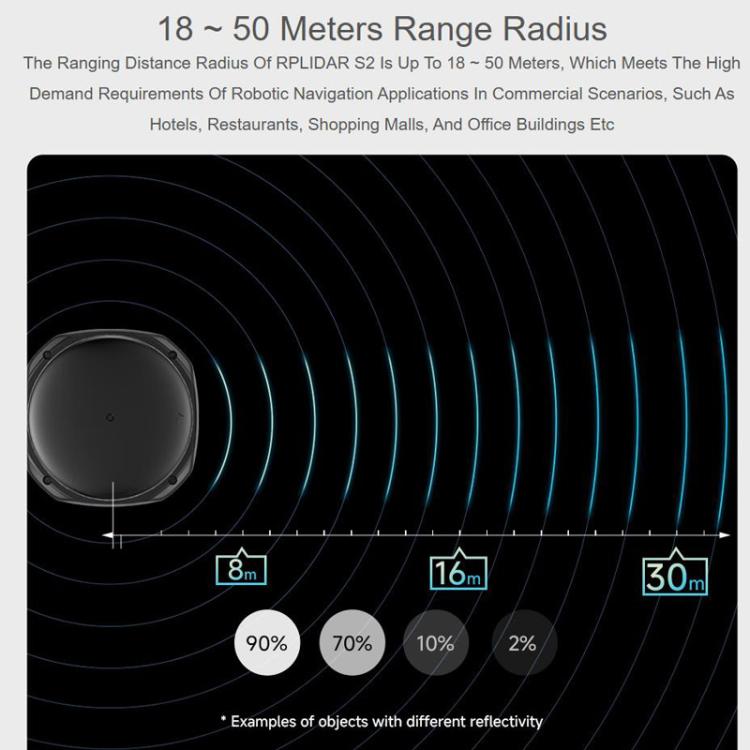

  • Measurement range of 18m to 50m, meeting the needs of robotic applications in commercial settings such as hotels, restaurants, shopping malls, and office...

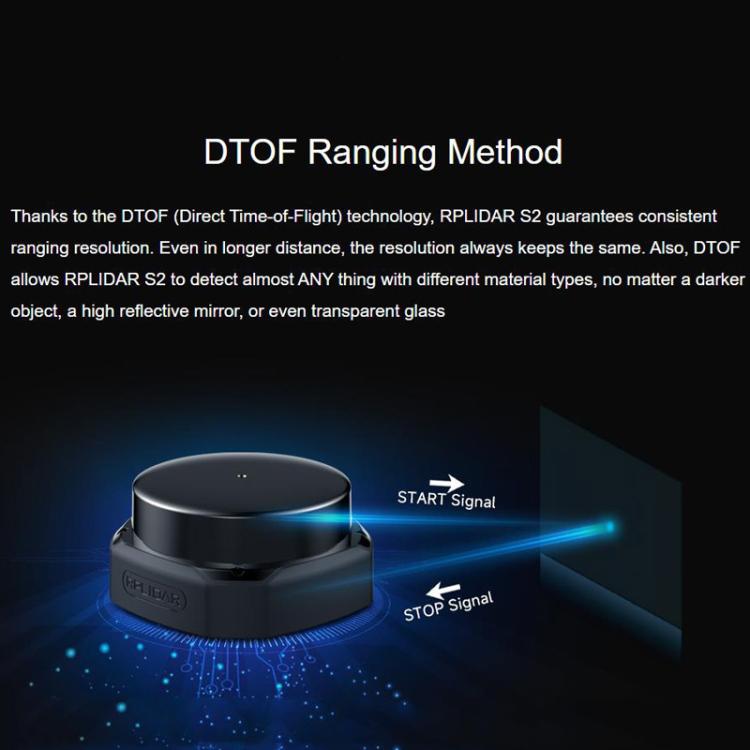

  • Utilizes DTOF (Direct Time of Flight) ranging technology to ensure excellent LiDAR measurement accuracy at any distance, while effectively detecting...

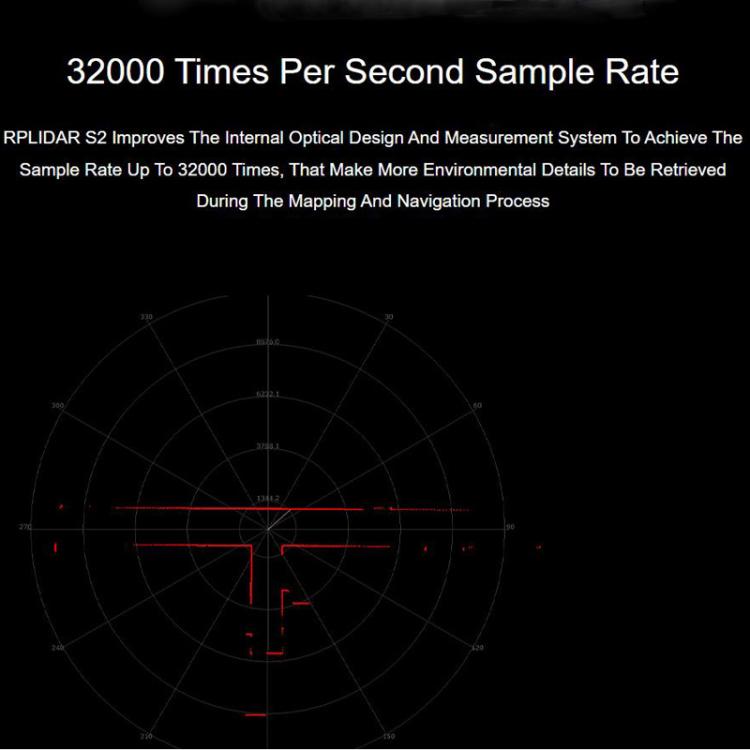

  • Comprehensively improved internal optics and algorithm systems, with a sampling rate of up to 32,000 times per second, outputting high-quality point cloud...

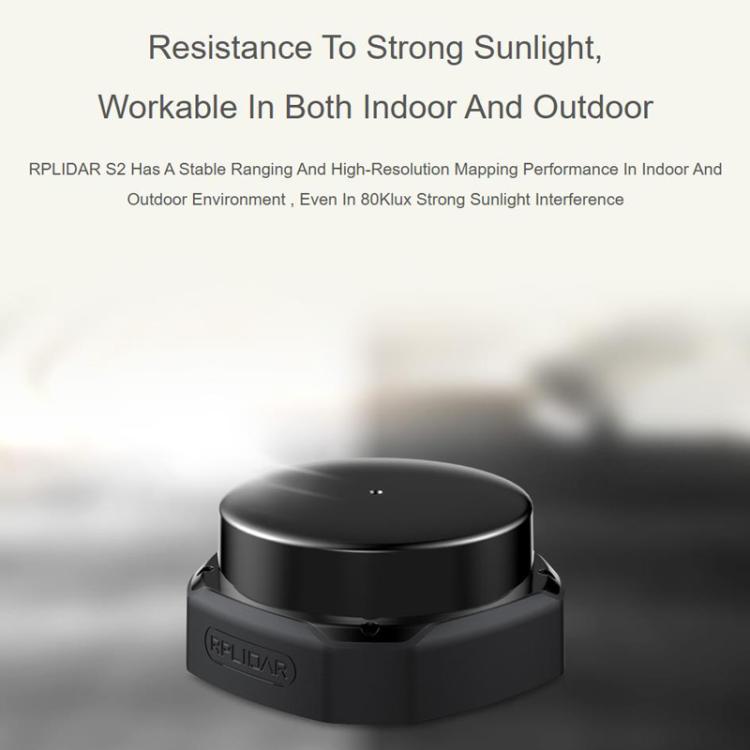

  • Effectively resists interference from indoor ambient light and strong outdoor light; achieves stable ranging and high-precision mapping even under strong...

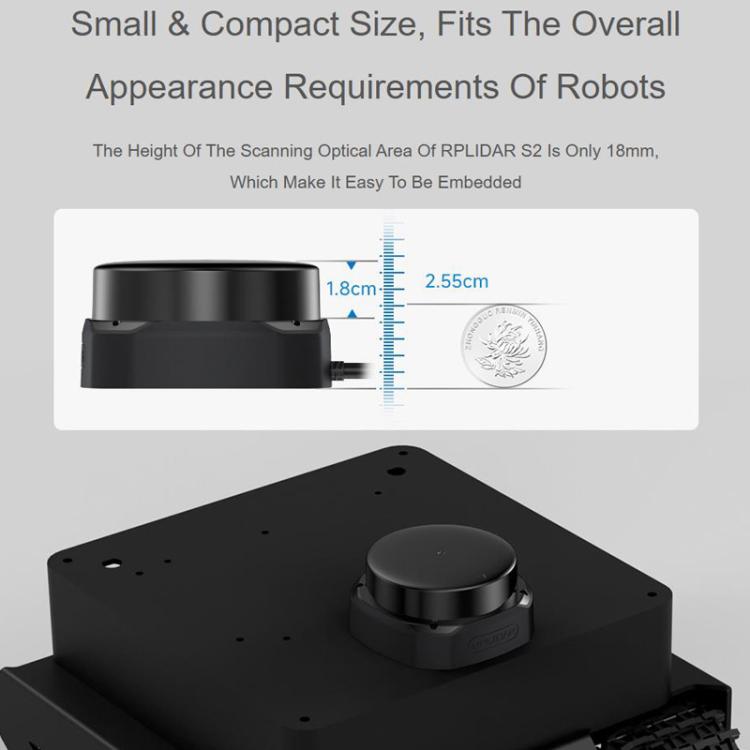

  • The radar’s top scanning area is approximately 18 mm high, making it compact and easy to embed. This significantly reduces the height of the robot’s radar...

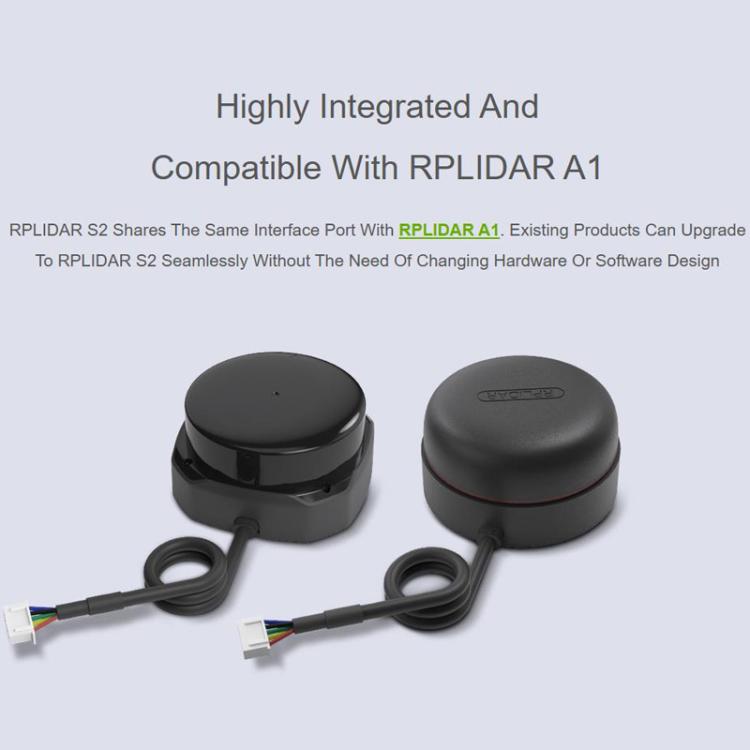

  • The interface is consistent with that of the RPLIDAR A1 radar, ensuring compatibility with existing RPLIDAR A1 LiDAR robot products

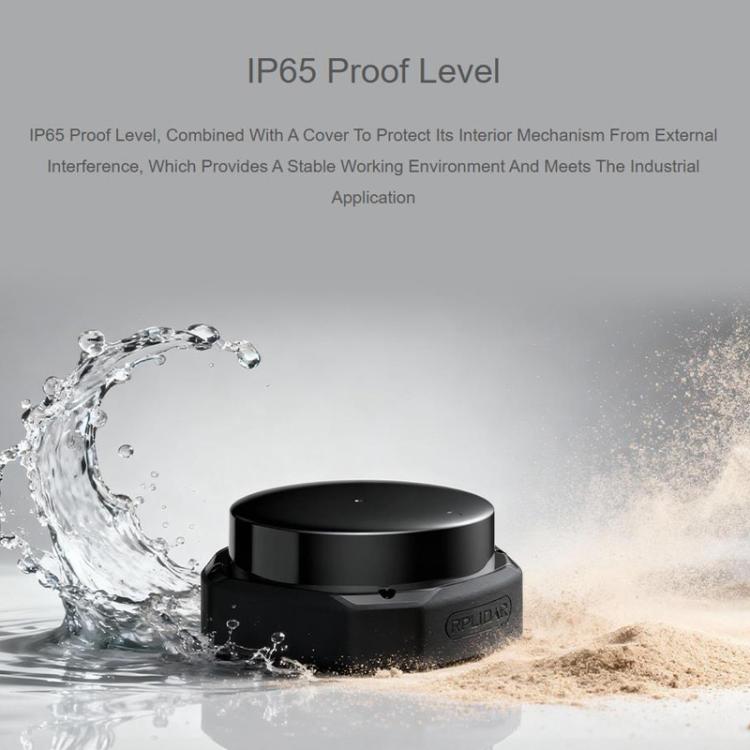

  • IP65 protection rating, combined with a sealed, independent housing, provides comprehensive protection for the internal rotating mechanism, mitigates...
  • To ensure the product’s safety for humans and pets, a low-power infrared laser emitter is used as the light source, driven by a modulated pulse method. The...

Package Info: Weight: 0.06kgs / 0.14lb, Size: 10cm * 10cm * 6cm / 3.94inch * 3.94inch * 2.36inch
